SAXSdb — 4ak3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

COLLAGEN ALPHA-1(III) CHAIN

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1222–1466	Fragment：CPROPEPTIDE, RESIDUES 1222-1466 Mutation：YES	CA CALCIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.50 Å R-free 0.337

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AK3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V53 Crystal structure of a SPARC-collagen complex Deposited 2008-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 564–584（21 aa） Fragment：RESIDUES 564-584 Chain C 564–584（21 aa） Fragment：RESIDUES 564-584 Chain D 564–584（21 aa） Fragment：RESIDUES 564-584	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.5	Resolution 3.20 Å R-free 0.320
3DMW Crystal structure of human type III collagen G982-G1023 containing C-terminal cystine knot Deposited 2008-07-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1158–1199（42 aa） Fragment：UNP residues 1158-1199 Chain B 1158–1199（42 aa） Fragment：UNP residues 1158-1199 Chain C 1158–1199（42 aa） Fragment：UNP residues 1158-1199	Mutation：Q1183M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Q1183M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Q1183M Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；30% PEG 550, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.274
4AE2 Crystal structure of Human fibrillar procollagen type III C- propeptide trimer Deposited 2012-01-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466 Chain B 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466 Chain C 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466	Mutation：YES Mutation：YES Mutation：YES	CA CALCIUM ION × 3 NO3 NITRATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20% PEG 3350, 0.1 M BIS TRIS PROPANE PH 6.5, POTASSIUM NITRATE 0.2 M	Resolution 1.68 Å R-free 0.214
4AEJ Crystal structure of Human fibrillar procollagen type III C- propeptide trimer Deposited 2012-01-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466 Chain B 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466 Chain C 1222–1466（245 aa） Fragment：CPROPEPTIDE OF PROCOLLAGEN III, RESIDUES 1222-1466	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 3 GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions 20% PEG 3350, 0.2 M NACL	Resolution 2.21 Å R-free 0.237
6FZV Crystal structure of the metalloproteinase enhancer PCPE-1 bound to the procollagen C propeptide trimer (short) Deposited 2018-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1222–1466（245 aa） Chain B 1222–1466（245 aa） Chain C 1222–1466（245 aa）	Not recorded	CA CALCIUM ION × 5 FLC CITRATE ANION × 3 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20 mg/ml protein in 20 mM HEPES pH 7.5, 180 mM NaCl, 2.5 mM calcium chloride; 0.2 M potassium citrate, 16% PEG3350	Resolution 2.70 Å R-free 0.258
6FZW Crystal structure of the metalloproteinase enhancer PCPE-1 bound to the procollagen C propeptide trimer (long) Deposited 2018-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1185–1466（282 aa） Chain B 1185–1466（282 aa） Chain C 1185–1466（282 aa）	Not recorded	CA CALCIUM ION × 5 FLC CITRATE ANION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；20 mg/ml protein in 20 mM HEPES pH 7.5, 180 mM NaCl, 2.5 mM calcium chloride; 0.2 M ammonium citrate, 18% PEG3350	Resolution 2.78 Å R-free 0.271
7WWR Structure of a triple-helix region of human collagen type III from Trautec Deposited 2022-02-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 973–1002（30 aa） Chain B 973–1002（30 aa） Chain C 973–1002（30 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MIB pH5.0, 25% PEG 1500	Resolution 1.30 Å R-free 0.194
7WWS Structure of a triple-helix region of human collagen type III from Trautec Deposited 2022-02-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 976–1002（27 aa） Chain B 976–1002（27 aa） Chain C 976–1002（27 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M MgAc2, 0.1M Na cacodylate pH6.5, 20% PEG 8000	Resolution 1.30 Å R-free 0.158
7XAN Structure of a triple-helix region of human collagen type III from Trautec Deposited 2022-03-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 922–948（27 aa） Chain B 922–948（27 aa） Chain C 922–948（27 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.04M K phosphate monobasic, 16% w/v PEG 8000, 20% v/v Glycerol	Resolution 1.50 Å R-free 0.200

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CO3A1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 12–256； UniProt 1222–1466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ak3
Deposition date deposition_date	2012-02-21
Structure title title	Crystal structure of Human fibrillar procollagen type III C- propeptide trimer
Keywords keywords	STRUCTURAL PROTEIN, FIBRILLAR COLLAGEN, EXTACELLULAR MATRIX, FIBROSIS; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.87 Å
Radius of gyration Rg (electron density) rg_electron	20.24 Å
Forward intensity I(0) i0	9989780.00
Molecular weight molecular_weight	22025.0 kDa
Excluded volume excluded_volume	26798 Å³
Envelope volume envelope_volume	33019 Å³
Hydration-shell volume shell_volume	15103 Å³
Envelope diameter envelope_diameter	85.5 Å
Shell Rg shell_rg	24.60 Å
Envelope Rg envelope_rg	20.83 Å
Shape Rg shape_rg	20.25 Å
Total Rg total_rg	20.86 Å
Total atoms total_atoms	1554
Residues n_residues	227
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

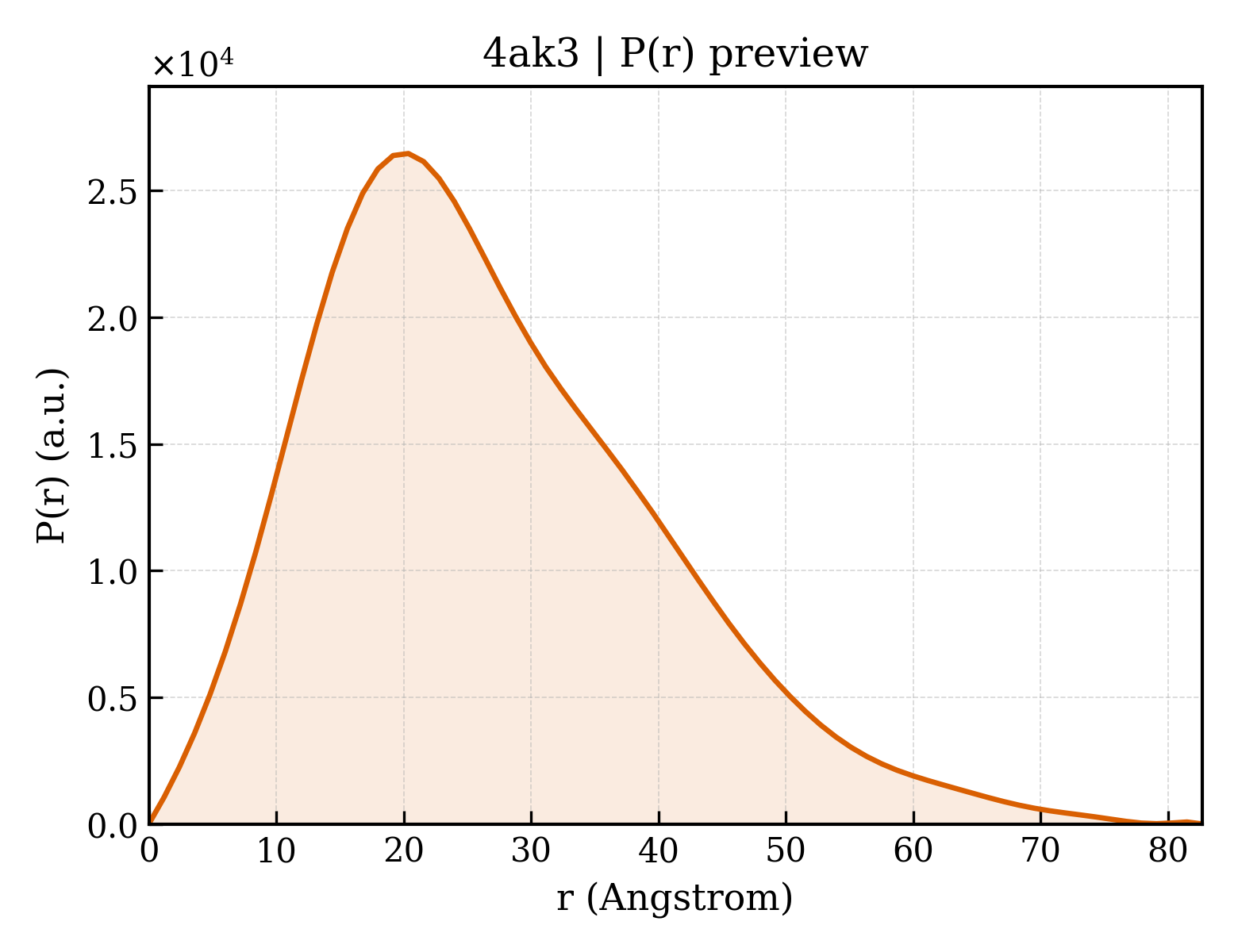

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.7 Å
Rg (real space) rg_real	21.14 Å
Rg uncertainty (real space) rg_real_error	0.84 Å
I(0) (real space) i0_real	9.9900e+06
I(0) uncertainty (real space) i0_real_error	1.4300e+05
Rg (reciprocal space) rg_reciprocal	21.09 Å
I(0) (reciprocal space) i0_reciprocal	9990000.0000
Solution quality estimate total_estimate	0.7351
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.4 Å
Skewness Skewness skewness	0.697
Kurtosis Kurtosis kurtosis	0.271
Angular range angular_range	— – 0.3800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1984000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.406; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.364; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	COLLAGEN ALPHA-1(III) CHAIN
Molecular weight formula_weight	28815.3 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1555

ETGHHHHHHSADEPMDFKINTDEIMTSLKSVNGQIESLISPDGSRKNPARNCRDLKFCHPELKSGEYWVDPNQGCKLDAIKVFCNMETGETCISANPLNVPRKHWWTDSSAEKKHVWFGESMDGGFQFSYGNPELPEDVLDVQLAFLRLLSSRASQQITYHCKNSIAYMDQASGNVKKALKLMGSNEGEFKAEGNSKFTYTVLEDGCTKHTGEWSKTVFEYRTRKAVRLPIVDIAPYDIGGPDQEFGVDVGPVCFL

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	HOMO SAPIENS

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4ak3A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	1000 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	86.047 Å
Unit-cell length b length_b	86.047 Å
Unit-cell length c length_c	72.952 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	43.020 Å
R factor r_factor	0.2854
R_work r_work	0.2828
R_free r_free	0.3372

fit	/app/data/saxs_computation/ak/4ak3/4ak3.fit
pddf	/app/data/pr_computation/ak/4ak3/4ak3.pr.out
profile	/app/data/saxs_computation/ak/4ak3/4ak3.dat
