SAXSdb — 4cgy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA TOPOISOMERASE 3-ALPHA

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–753	Fragment：RESIDUES 2-753	RECQ-MEDIATED GENOME INSTABILITY PROTEIN 1 × 1 （Q9H9A7） MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；8-12% (W/V) PEG 2000, 100 MM TRIS-HCL PH 7.0, 200 MM MGCL2	Resolution 2.85 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CGY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4CHT Crystal structure of the human topoisomerase III alpha-RMI1 complex with bound calcium ion Deposited 2013-12-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–753（752 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；8% (W/V) PEG 5000 MME, 200 MM CALCIUM CITRATE, 100 MM TRIS/HCL PH 7.0	Resolution 3.25 Å R-free 0.225

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOP3A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–754； UniProt 2–753

RECQ-MEDIATED GENOME INSTABILITY PROTEIN 1

HOMO SAPIENS

UniProt Q9H9A7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–219	Fragment：RESIDUES 1-219	DNA TOPOISOMERASE 3-ALPHA × 1 （Q13472） MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；8-12% (W/V) PEG 2000, 100 MM TRIS-HCL PH 7.0, 200 MM MGCL2	Resolution 2.85 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CGY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3MXN Crystal structure of the RMI core complex Deposited 2010-05-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 473–625（153 aa） Fragment：C-terminal OB domain (unp residues 473-625)	Not recorded	BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；298 K；10 mM Hepes pH 7.1, 0.05 M NaSCN, 20% ethylene glycol, 2 mM DTT, 13% polyethylene glycol 3350, with benzamidine (1%) added to the drop, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.231
3NBH Crystal structure of human RMI1C-RMI2 complex Deposited 2010-06-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 475–625（151 aa） Fragment：RMI1C, residues 475-625	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277.15 K；The precipitant/well solution contained 18% PEG 3350, 300 mM NaSCN, and 10 mM DTT. , pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 277.15K	Resolution 2.00 Å R-free 0.258
3NBI Crystal structure of human RMI1 N-terminus Deposited 2010-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–213（212 aa） Fragment：RMI1N, residues 2-213	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277.15 K；The precipitant/well solution contained 100 mM Tris-HCl pH 8.5, 18% PEG 3350, 300 mM NaSCN, 10 mM NiCl2 and 10 mM DTT., VAPOR DIFFUSION, HANGING DROP, temperature 277.15K	Resolution 2.00 Å R-free 0.255
4CHT Crystal structure of the human topoisomerase III alpha-RMI1 complex with bound calcium ion Deposited 2013-12-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–219（219 aa） Fragment：RESIDUES 1-219	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；8% (W/V) PEG 5000 MME, 200 MM CALCIUM CITRATE, 100 MM TRIS/HCL PH 7.0	Resolution 3.25 Å R-free 0.225
4DAY Crystal structure of the RMI core complex with MM2 peptide from FANCM Deposited 2012-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 473–625（153 aa） Fragment：C-terminal OB domain (residues 473-625)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；298 K；200 mM Na2SO4, 5% polyethylene glycol 3350, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.30 Å R-free 0.325
7XUV Crystal structure of RPA70N-RMI1 fusion Deposited 2022-05-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 243–262（20 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；278 K；30% PEG 2000 MME	Resolution 1.60 Å R-free 0.220
9DHK RMI1-RMI2 bound to cyclic peptide L3 Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 475–625（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；1.8 M sodium phosphate monobasic monohydrate / potassium phosphate dibasic pH 5.0	Resolution 2.35 Å R-free 0.247
9DHK RMI1-RMI2 bound to cyclic peptide L3 Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 475–625（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；1.8 M sodium phosphate monobasic monohydrate / potassium phosphate dibasic pH 5.0	Resolution 2.35 Å R-free 0.247
9DHK RMI1-RMI2 bound to cyclic peptide L3 Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 482–625（144 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；1.8 M sodium phosphate monobasic monohydrate / potassium phosphate dibasic pH 5.0	Resolution 2.35 Å R-free 0.247
9DHK RMI1-RMI2 bound to cyclic peptide L3 Deposited 2024-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 475–625（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；1.8 M sodium phosphate monobasic monohydrate / potassium phosphate dibasic pH 5.0	Resolution 2.35 Å R-free 0.247
9DI4 RMI1-RMI2 bound to cyclic peptide L4 Deposited 2024-09-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 475–625（151 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5；293 K；0.01M zinc chloride, 0.1M sodium acetate pH 5.0, 20% w/v PEG 6000	Resolution 2.70 Å R-free 0.248
9PFD RMI1-RMI2 bound to synthetic peptide P4Ser Deposited 2025-07-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 475–625（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；1.8 M sodium phosphate monobasic monohydrate, potassium phosphate dibasic, pH 5.0	Resolution 2.01 Å R-free 0.224

9 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RMI1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–219； UniProt 1–219

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4cgy
Deposition date deposition_date	2013-11-27
Structure title title	Crystal structure of the human topoisomerase III alpha-RMI1 complex
Keywords keywords	DNA REPLICATION-ISOMERASE COMPLEX, DOUBLE HOLLIDAY JUNCTION DISSOLUTION, DECATENATION, MINIMAL DISSOLVASOME; DNA REPLICATION/ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.28 Å
Radius of gyration Rg (electron density) rg_electron	37.27 Å
Forward intensity I(0) i0	132380000.00
Molecular weight molecular_weight	93177.0 kDa
Excluded volume excluded_volume	117020 Å³
Envelope volume envelope_volume	161350 Å³
Hydration-shell volume shell_volume	37926 Å³
Envelope diameter envelope_diameter	130.3 Å
Shell Rg shell_rg	41.02 Å
Envelope Rg envelope_rg	36.86 Å
Shape Rg shape_rg	37.25 Å
Total Rg total_rg	37.63 Å
Total atoms total_atoms	6558
Residues n_residues	824
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

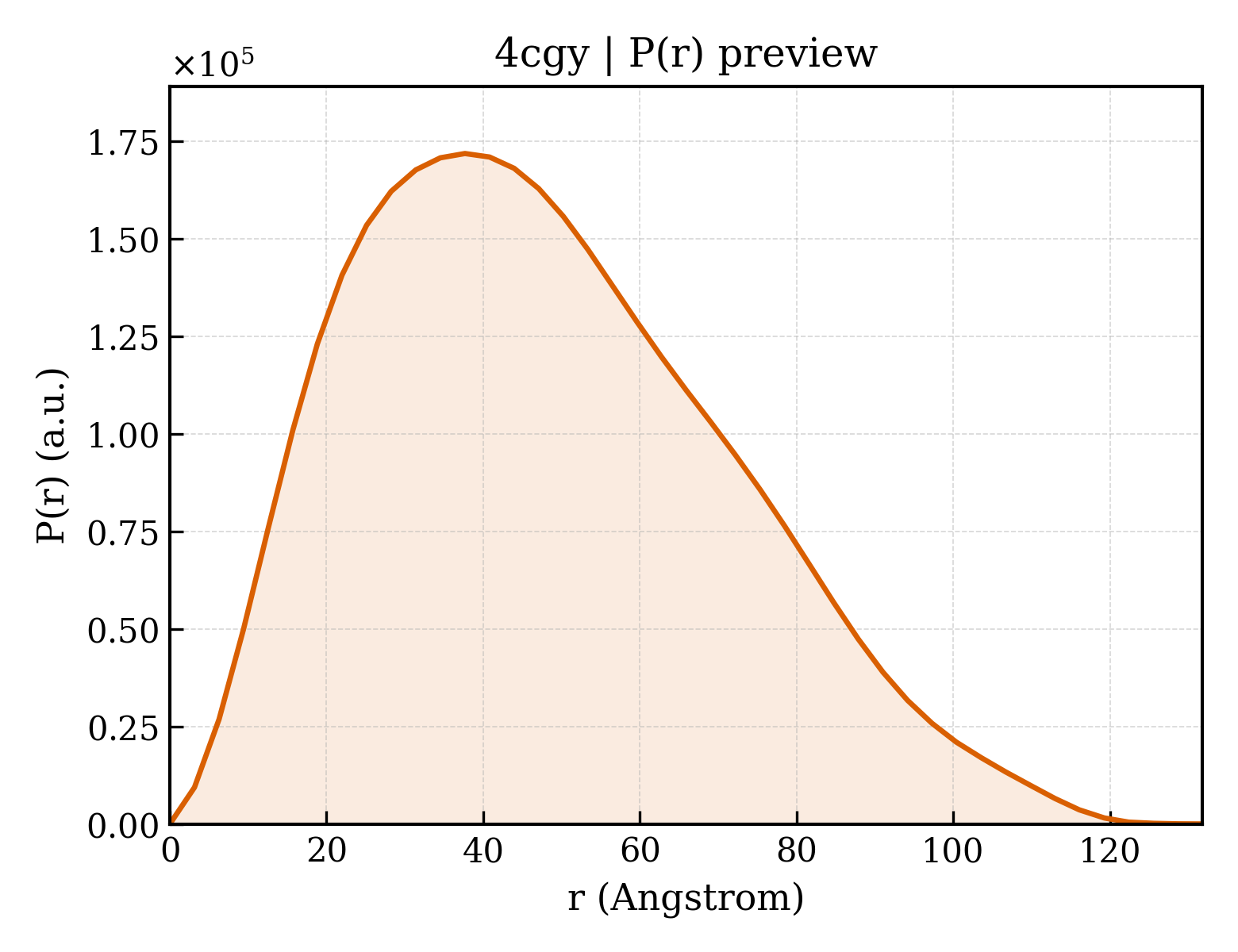

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	131.8 Å
Rg (real space) rg_real	37.55 Å
Rg uncertainty (real space) rg_real_error	1.60 Å
I(0) (real space) i0_real	1.3240e+08
I(0) uncertainty (real space) i0_real_error	2.6920e+06
Rg (reciprocal space) rg_reciprocal	37.39 Å
I(0) (reciprocal space) i0_reciprocal	132400000.0000
Solution quality estimate total_estimate	0.6298
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	37.7 Å
Skewness Skewness skewness	0.446
Kurtosis Kurtosis kurtosis	-0.393
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12250000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.796; Stabil: 1.000; Sysdev: 0.020; Positv: 1.000; Valcen: 0.850; Smooth: 0.886

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA TOPOISOMERASE 3-ALPHA
Molecular weight formula_weight	86584.6 kDa
EC 编号 ec_number	5.99.1.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6602

GRIFPVARYALRWLRRPEDRAFSRAAMEMALRGVRKVLCVAEKNDAAKGIADLLSNGRMRRREGLSKFNKIYEFDYHLYGQNVTMVMTSVSGHLLAHDFQMQFRKWQSCNPLVLFEAEIEKYCPENFVDIKKTLERETRQCQALVIWTDCDREGENIGFEIIHVCKAVKPNLQVLRARFSEITPHAVRTACENLTEPDQRVSDAVDVRQELDLRIGAAFTRFQTLRLQRIFPEVLAEQLISYGSCQFPTLGFVVERFKAIQAFVPEIFHRIKVTHDHKDGIVEFNWKRHRLFNHTACLVLYQLCVEDPMATVVEVRSKPKSKWRPQALDTVELEKLASRKLRINAKETMRIAEKLYTQGYISYPRTETNIFPRDLNLTVLVEQQTPDPRWGAFAQSILERGGPTPRNGNKSDQAHPPIHPTKYTNNLQGDEQRLYEFIVRHFLACCSQDAQGQETTVEIDIAQERFVAHGLMILARNYLDVYPYDHWSDKILPVYEQGSHFQPSTVEMVDGETSPPKLLTEADLIALMEKHGIGTDATHAEHIETIKARMYVGLTPDKRFLPGHLGMGLVEGYDSMGYEMSKPDLRAELEADLKLICDGKKDKFVVLRQQVQKYKQVFIEAVAKAKKLDEALAQYFGNGTELAQQEDIYPAMPEPIRKCPQCNKDMVLKTKKNGGFYLSCMGFPECRSAVWLPDSVLEASRDSSVCPVCQPHPVYRLKLKFKRGSLPPTMPLEFVCCIGGCDDTLREILDLRFS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	TRICHOPLUSIA NI

Entity 2 Entity 2 polymer

Description description	RECQ-MEDIATED GENOME INSTABILITY PROTEIN 1
Molecular weight formula_weight	24644.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MNVTSIALRAETWLLAAWHVKVPPMWLEACINWIQEENNNVNLSQAQMNKQVFEQWLLTDLRDLEHPLLPDGILEIPKGELNGFYALQINSLVDVSQPAYSQIQKLRGKNTTNDLVTAEAQVTPKPWEAKPSRMLMLQLTDGIVQIQGMEYQPIPILHSDLPPGTKILIYGNISFRLGVLLLKPENVKVLGGEVDALLEEYAQEKVLARLIGEPDLVVS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	TRICHOPLUSIA NI

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	44

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4cgyA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	4cgyA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	460 — Topoisomerase I; domain 2
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 2

Domain ID domain_id	4cgyA03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	20 — Topoisomerase I; domain 3
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 3

Domain ID domain_id	4cgyA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	290 — Topoisomerase I; domain 4
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 4

Domain ID domain_id	4cgyB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	1020 — RecQ-mediated genome instability protein 1, N-terminal domain

Domain ID domain_id	4cgyB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	770 — RecQ-mediated genome instability protein Rmi1, C-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	94.010 Å
Unit-cell length b length_b	94.010 Å
Unit-cell length c length_c	381.690 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	65.490 Å
R factor r_factor	0.1989
R_work r_work	0.1973
R_free r_free	0.2310

fit	/app/data/saxs_computation/cg/4cgy/4cgy.fit
pddf	/app/data/pr_computation/cg/4cgy/4cgy.pr.out
profile	/app/data/saxs_computation/cg/4cgy/4cgy.dat
