SAXSdb — 4chb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

KELCH-LIKE PROTEIN 2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 294–591	Fragment：KELCH DOMAIN, RESIDUES 294-591	SERINE/THREONINE-PROTEIN KINASE WNK4 × 1 （Q96J92） EDO 1,2-ETHANEDIOL × 3 SO4 SULFATE ION × 2 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；SITTING-DROP VAPOUR-DIFFUSION, 2.5 M AMMONIUM SULPHATE, 0.1 M HEPES, 2 % PEG 400 (PH 7.2), 293 K	Resolution 1.56 Å R-free 0.194
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 294–591	Fragment：KELCH DOMAIN, RESIDUES 294-591	SERINE/THREONINE-PROTEIN KINASE WNK4 × 1 （Q96J92） EDO 1,2-ETHANEDIOL × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；SITTING-DROP VAPOUR-DIFFUSION, 2.5 M AMMONIUM SULPHATE, 0.1 M HEPES, 2 % PEG 400 (PH 7.2), 293 K	Resolution 1.56 Å R-free 0.194

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CHB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2XN4 Crystal structure of the kelch domain of human KLHL2 (Mayven) Deposited 2010-07-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 294–591（298 aa） Fragment：KELCH DOMAIN, RESIDUES 294-591	Not recorded	NA SODIUM ION × 1 SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M (NH4)2SO4, 0.1M MES PH 6.5, 30% PEG 5000 MME, 0.2M NASCN	Resolution 1.99 Å R-free 0.222
2XN4 Crystal structure of the kelch domain of human KLHL2 (Mayven) Deposited 2010-07-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 294–591（298 aa） Fragment：KELCH DOMAIN, RESIDUES 294-591	Not recorded	NA SODIUM ION × 1 SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M (NH4)2SO4, 0.1M MES PH 6.5, 30% PEG 5000 MME, 0.2M NASCN	Resolution 1.99 Å R-free 0.222

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KLHL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–300； UniProt 294–591 Author chain B； PDBConstruct 3–300； UniProt 294–591

SERINE/THREONINE-PROTEIN KINASE WNK4

OrganismNot specified

UniProt Q96J92

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 557–567	Fragment：RESIDUES 557-567	KELCH-LIKE PROTEIN 2 × 1 （O95198） EDO 1,2-ETHANEDIOL × 3 SO4 SULFATE ION × 2 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；SITTING-DROP VAPOUR-DIFFUSION, 2.5 M AMMONIUM SULPHATE, 0.1 M HEPES, 2 % PEG 400 (PH 7.2), 293 K	Resolution 1.56 Å R-free 0.194
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 557–567	Fragment：RESIDUES 557-567	KELCH-LIKE PROTEIN 2 × 1 （O95198） EDO 1,2-ETHANEDIOL × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；SITTING-DROP VAPOUR-DIFFUSION, 2.5 M AMMONIUM SULPHATE, 0.1 M HEPES, 2 % PEG 400 (PH 7.2), 293 K	Resolution 1.56 Å R-free 0.194

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CHB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V3S Structural insights into the recognition of substrates and activators by the OSR1 kinase Deposited 2007-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1015–1020（6 aa） Fragment：RESIDUES 1015-1020	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å R-free 0.239
2V3S Structural insights into the recognition of substrates and activators by the OSR1 kinase Deposited 2007-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1015–1020（6 aa） Fragment：RESIDUES 1015-1020	Not recorded	ACT ACETATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å R-free 0.239
4CH9 Crystal structure of the human KLHL3 Kelch domain in complex with a WNK4 peptide Deposited 2013-11-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 557–567（11 aa） Fragment：RESIDUES 557-567	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.3；293 K；SITTING-DROP VAPOUR-DIFFUSTION, 25-35 % PEG 4000, 0.2 M AMMONIUM SULPHATE, 0.1 M ACETATE (PH 4.3), 293 K	Resolution 1.84 Å R-free 0.184
4CH9 Crystal structure of the human KLHL3 Kelch domain in complex with a WNK4 peptide Deposited 2013-11-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 557–567（11 aa） Fragment：RESIDUES 557-567	Not recorded	SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.3；293 K；SITTING-DROP VAPOUR-DIFFUSTION, 25-35 % PEG 4000, 0.2 M AMMONIUM SULPHATE, 0.1 M ACETATE (PH 4.3), 293 K	Resolution 1.84 Å R-free 0.184

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	WNK4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–11； UniProt 557–567 Author chain D； PDBConstruct 1–11； UniProt 557–567

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4chb
Deposition date deposition_date	2013-11-29
Structure title title	Crystal structure of the human KLHL2 Kelch domain in complex with a WNK4 peptide
Keywords keywords	SIGNALING PROTEIN-TRANSFERASE COMPLEX, KLHL3, UBIQUITIN, ADAPTOR PROTEIN, PROTEIN-BINDING, KELCH REPEAT, WNK SIGNALLING PATHWAY; SIGNALING PROTEIN/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.37 Å
Radius of gyration Rg (electron density) rg_electron	27.21 Å
Forward intensity I(0) i0	74759000.00
Molecular weight molecular_weight	64477.0 kDa
Excluded volume excluded_volume	79226 Å³
Envelope volume envelope_volume	93852 Å³
Hydration-shell volume shell_volume	29375 Å³
Envelope diameter envelope_diameter	99.5 Å
Shell Rg shell_rg	33.84 Å
Envelope Rg envelope_rg	27.39 Å
Shape Rg shape_rg	27.22 Å
Total Rg total_rg	27.81 Å
Total atoms total_atoms	4512
Residues n_residues	592
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

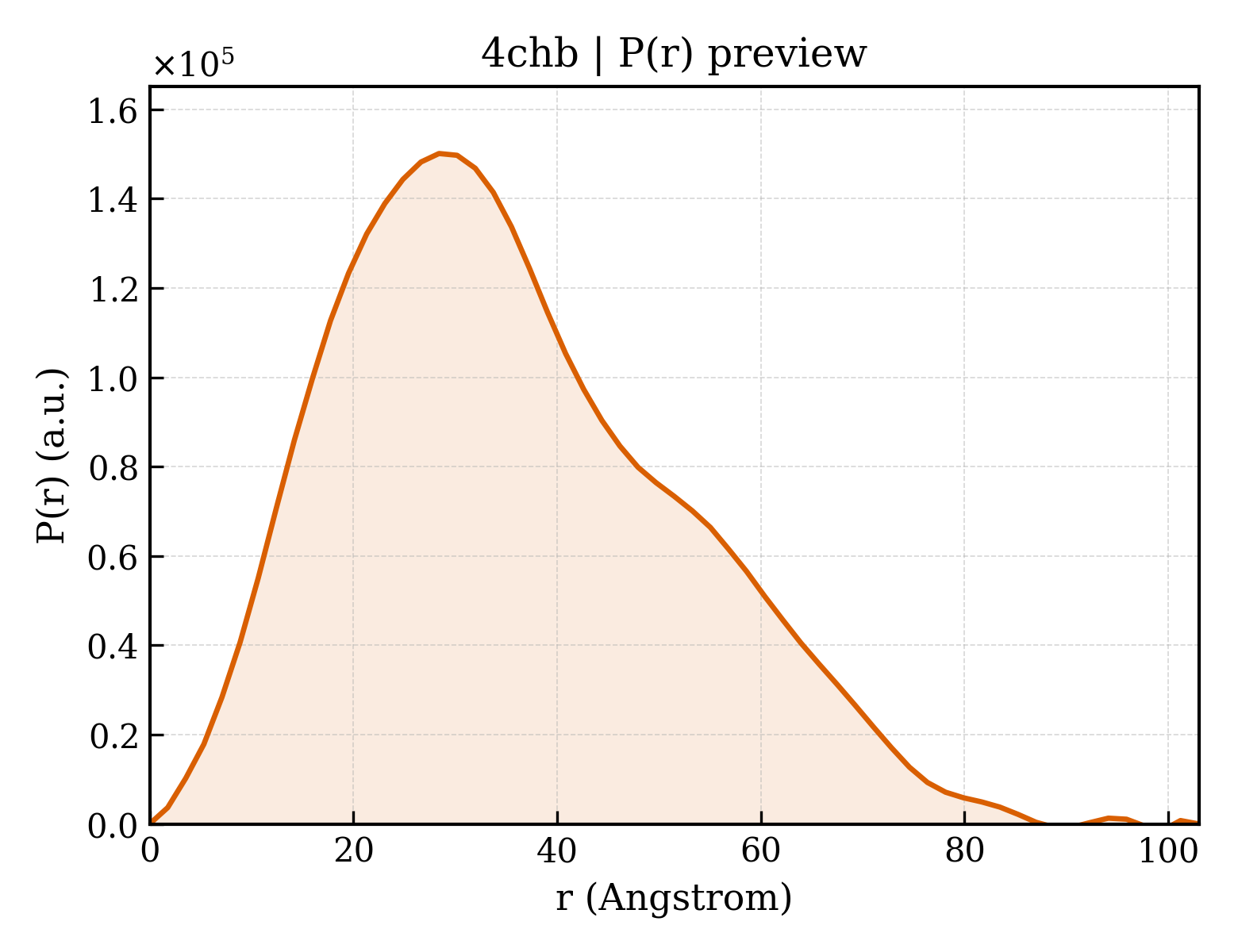

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	103.0 Å
Rg (real space) rg_real	27.51 Å
Rg uncertainty (real space) rg_real_error	1.35 Å
I(0) (real space) i0_real	7.4760e+07
I(0) uncertainty (real space) i0_real_error	1.3890e+06
Rg (reciprocal space) rg_reciprocal	27.47 Å
I(0) (reciprocal space) i0_reciprocal	74760000.0000
Solution quality estimate total_estimate	0.7148
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	28.4 Å
Skewness Skewness skewness	0.480
Kurtosis Kurtosis kurtosis	-0.351
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19340000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.515; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.764; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	KELCH-LIKE PROTEIN 2
Molecular weight formula_weight	32830.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4992

SMSVRTRLRTPMNLPKLMVVVGGQAPKAIRSVECYDFKEERWHQVAELPSRRCRAGMVYMAGLVFAVGGFNGSLRVRTVDSYDPVKDQWTSVANMRDRRSTLGAAVLNGLLYAVGGFDGSTGLSSVEAYNIKSNEWFHVAPMNTRRSSVGVGVVGGLLYAVGGYDVASRQCLSTVECYNATTNEWTYIAEMSTRRSGAGVGVLNNLLYAVGGHDGPLVRKSVEVYDPTTNAWRQVADMNMCRRNAGVCAVNGLLYVVGGDDGSCNLASVEYYNPTTDKWTVVSSCMSTGRSYAGVTVIDKRL

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	SERINE/THREONINE-PROTEIN KINASE WNK4
Molecular weight formula_weight	1309.3 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

EPEEPEADQHQ

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	DODECAETHYLENE GLYCOL
Molecular weight formula_weight	546.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	296

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4chbA00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	80 — Kelch-type beta propeller

Domain ID domain_id	4chbB00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	80 — Kelch-type beta propeller

▶

8. Citations (1)

▶

Unit-cell length a length_a	117.700 Å
Unit-cell length b length_b	117.700 Å
Unit-cell length c length_c	106.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.560 Å
Low-resolution limit resolution_low	39.516 Å
R factor r_factor	0.1779
R_work r_work	0.1771
R_free r_free	0.1935

fit	/app/data/saxs_computation/ch/4chb/4chb.fit
pddf	/app/data/pr_computation/ch/4chb/4chb.pr.out
profile	/app/data/saxs_computation/ch/4chb/4chb.dat
