SAXSdb — 4cia

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LYSOSOMAL PROTECTIVE PROTEIN

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 29–480	Not recorded	6KZ N-[(2S)-4-methyl-1-oxidanylidene-1-[[(1R,2S)-1-oxidanyl-1-(5-phenyl-1,2,4-oxadiazol-3-yl)butan-2-yl]amino]pentan-2-yl]morpholine-4-carboxamide × 2 CD CADMIUM ION × 14 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；CATHEPSIN A WAS CRYSTALLIZED USING THE HANGING DROP METHOD: 1 UL OF PROTEIN SOLUTION, CONTAINING 6.5 MG/ML CATHEPSIN A, 25 MM TRIS-HCL (PH 8.0) AND 300 MM NACL, WAS MIXED WITH 1 UL RESERVOIR SOLUTION, CONTAINING 100 MM NAACETATE (PH 4.5), 18-20% PEG400 AND 100 MM CDCL2, AND SET TO EQUILIBRATE AT 4DEG.C. ROD-SHAPED CRYSTALS APPEARED IN ABOUT ONE WEEK.	Resolution 1.98 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CIA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IVY PHYSIOLOGICAL DIMER HPP PRECURSOR Deposited 1996-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa） Chain B 29–480（452 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.3；285 K；PEG 8000, PH 8.0 - 8.3 AT 4 - 12 DEGREES CELSIUS, temperature 285K	Resolution 2.20 Å R-free 0.268
3BP4 The high resolution crystal structure of HLA-B*2705 in complex with a Cathepsin A signal sequence peptide pCatA Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–10（9 aa） Fragment：Cathepsin A signal sequence, UNP residues 2-10	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；23% PEG 8000, 0.1M Tris buffer pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.85 Å R-free 0.222
3BP7 The high resolution crystal structure of HLA-B*2709 in complex with a Cathepsin A signal sequence peptide, pCatA Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–10（9 aa） Fragment：Cathepsin A signal sequence, UNP residues 2-10	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；23.5% PEG 8000, 0.1M Tris buffer pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.204
3BXN The high resolution crystal structure of HLA-B*1402 complexed with a Cathepsin A signal sequence peptide, pCatA Deposited 2008-01-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–10（9 aa） Fragment：signal sequence peptide, residues 2-10	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；24- 27%(w/v) PEG 20000, with 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.86 Å R-free 0.219
4AZ0 crystal structure of cathepsin a, complexed with 8a. Deposited 2012-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 29–326（298 aa） Chain B 327–480（154 aa）	Not recorded	S61 (S)-3-{[1-(2-Fluoro-phenyl)-5-hydroxy-1H-pyrazole-3-carbonyl]-amino}-3-o-tolyl-propionic acid × 2 CD CADMIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；CATA WAS CRYSTALLIZED USING THE HANGING DROP METHOD: 1 UL OF PROTEIN SOLUTION, CONTAINING 6.5 MG/ML CATHEPSIN A, 25 MM TRIS-HCL (PH 8.0) AND 300 MM NACL, WAS MIXED WITH 1 UL RESERVOIR SOLUTION, CONTAINING 100 MM NAACETATE (PH 4.5), 18-20% PEG400 AND 100 MM CDCL2, AND SET TO EQUILIBRATE AT 4 DEG. C. ROD-SHAPED CRYSTALS APPEARED IN ABOUT ONE WEEK.	Resolution 2.17 Å
4AZ3 crystal structure of cathepsin a, complexed with 15a Deposited 2012-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–326（298 aa） Fragment：ACTIVATED PROTEASE RESIDUES 29-326 Chain B 327–480（154 aa） Fragment：ACTIVATED PROTEASE, RESIDUES 327-480	Not recorded	S35 (3S)-3-({[1-(2-fluorophenyl)-5-{[(2R)-2-hydroxy-3,3-dimethylbutyl]oxy}-1H-pyrazol-3-yl]carbonyl}amino)-3-(2-methylphenyl)propanoic acid × 1 CD CADMIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；CATA WAS CRYSTALLIZED USING THE HANGING DROP METHOD: 1 UL OF PROTEIN SOLUTION, CONTAINING 6.5 MG/ML CATHEPSIN A, 25 MM TRIS-HCL (PH 8.0) AND 300 MM NACL, WAS MIXED WITH 1 UL RESERVOIR SOLUTION, CONTAINING 100 MM NAACETATE (PH 4.5), 18-20% PEG400 AND 100 MM CDCL2, AND SET TO EQUILIBRATE AT 4 DEG. C. ROD-SHAPED CRYSTALS APPEARED IN ABOUT ONE WEEK.	Resolution 2.04 Å R-free 0.215
4CI9 Crystal structure of cathepsin A, apo-structure Deposited 2013-12-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa）	Not recorded	DMS DIMETHYL SULFOXIDE × 2 ACT ACETATE ION × 4 GOL GLYCEROL × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；CATHEPSIN A WAS CRYSTALLIZED USING THE HANGING DROP METHOD: 1 UL OF PROTEIN SOLUTION, CONTAINING 6.5 MG/ML CATHEPSIN A, 25 MM TRIS-HCL (PH 8.0) AND 300 MM NACL, WAS MIXED WITH 1 UL RESERVOIR SOLUTION, CONTAINING 100 MM NAACETATE (PH 4.5), 18-20% PEG400 AND 100 MM CDCL2, AND SET TO EQUILIBRATE AT 4DEG.C. ROD-SHAPED CRYSTALS APPEARED IN ABOUT ONE WEEK.	Resolution 1.58 Å R-free 0.191
4CIB crystal structure of cathepsin a, complexed with compound 2 Deposited 2013-12-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa）	Not recorded	7UZ 2-(cyclohexylmethyl)propanedioic acid × 2 CD CADMIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；CATHEPSIN A WAS CRYSTALLIZED USING THE HANGING DROP METHOD: 1 UL OF PROTEIN SOLUTION, CONTAINING 6.5 MG/ML CATHEPSIN A, 25 MM TRIS-HCL (PH 8.0) AND 300 MM NACL, WAS MIXED WITH 1 UL RESERVOIR SOLUTION, CONTAINING 100 MM NAACETATE (PH 4.5), 18-20% PEG400 AND 100 MM CDCL2, AND SET TO EQUILIBRATE AT 4DEG.C. ROD-SHAPED CRYSTALS APPEARED IN ABOUT ONE WEEK.	Resolution 1.89 Å R-free 0.211
4MWS Crystal structure of human PPCA (trigonal crystal form 1) Deposited 2013-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa） Chain B 29–480（452 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；10% PEG 3350, 0.1M sodium formate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.195
4MWT Crystal structure of human PPCA (trigonal crystal form 2) Deposited 2013-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa） Chain B 29–480（452 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；10% PEG 3350, 0.1M ammonium tartrate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.85 Å R-free 0.325
6WIA CRYSTAL STRUCTURE OF HUMAN PROTECTIVE PROTEIN/CATHEPSIN A, DFP-INHIBITED (AGED) Deposited 2020-04-09	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–480（452 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 10 CD CADMIUM ION × 12 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；Crystallized in Crystal Screen Cryo II condition #12 (0.095 M cadmium chloride hydrate, 0.095 M sodium acetate trihydrate pH 4.6, 28.5% v/v PEG 400, 5% glycerol). Mounted in 30% glycerol and 70% CS Cryo II condition #12. Protein was inhibited with DFP in 25 mM Tris pH 8, 300 mM NaCl at R.T.	Resolution 2.21 Å R-free 0.224

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PPGB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–454； UniProt 29–480

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4cia
Deposition date deposition_date	2013-12-06
Structure title title	Crystal structure of cathepsin A, complexed with compound 1
Keywords keywords	HYDROLASE, SERINE CARBOXYPEPTIDASE, CARDIOVASCULAR DRUG, HEART FAILURE, ENDOTHELIN, TETRAHEDRAL INTERMEDIATE, COVALENT INHIBITOR; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.31 Å
Radius of gyration Rg (electron density) rg_electron	21.11 Å
Forward intensity I(0) i0	39622600.00
Molecular weight molecular_weight	48047.0 kDa
Excluded volume excluded_volume	59442 Å³
Envelope volume envelope_volume	67683 Å³
Hydration-shell volume shell_volume	26052 Å³
Envelope diameter envelope_diameter	75.4 Å
Shell Rg shell_rg	28.74 Å
Envelope Rg envelope_rg	21.44 Å
Shape Rg shape_rg	21.04 Å
Total Rg total_rg	22.19 Å
Total atoms total_atoms	3341
Residues n_residues	413
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.5 Å
Rg (real space) rg_real	22.22 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	3.9620e+07
I(0) uncertainty (real space) i0_real_error	4.4280e+05
Rg (reciprocal space) rg_reciprocal	22.24 Å
I(0) (reciprocal space) i0_reciprocal	39620000.0000
Solution quality estimate total_estimate	0.6980
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.6 Å
Skewness Skewness skewness	0.276
Kurtosis Kurtosis kurtosis	-0.237
Angular range angular_range	— – 0.3550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7606000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 0.189; Positv: 1.000; Valcen: 0.995; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	LYSOSOMAL PROTECTIVE PROTEIN
Molecular weight formula_weight	51829.4 kDa
EC 编号 ec_number	3.4.16.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3710

SRAPDQDEIQRLPGLAKQPSFRQYSGYLKGSGSKHLHYWFVESQKDPENSPVVLWLNGGPGCSSLDGLLTEHGPFLVQPDGVTLEYNPYSWNLIANVLYLESPAGVGFSYSDDKFYATNDTEVAQSNFEALQDFFRLFPEYKNNKLFLTGESYAGIYIPTLAVLVMQDPSMNLQGLAVGNGLSSYEQNDNSLVYFAYYHGLLGNRLWSSLQTHCCSQNKCNFYDNKDLECVTNLQEVARIVGNSGLNIYNLYAPCAGGVPSHFRYEKDTVVVQDLGNIFTRLPLKRMWHQALLRSGDKVRMDPPCTNTTAASTYLNNPYVRKALNIPEQLPQWDMCNFLVNLQYRRLYRSMNSQYLKLLSSQKYQILLYNGDVDMACNFMGDEWFVDSLNQKMEVQRRPWLVKYGDSGEQIAGFVKEFSHIAFLTIKGAGHMVPTDKPLAAFTMFSRFLNKQPYE

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 non-polymer

Description description	;N-[(2S)-4-methyl-1-oxidanylidene-1-[[(1R,2S)-1-oxidanyl-1-(5-phenyl-1,2,4-oxadiazol-3-yl)butan-2-yl]amino]pentan-2-yl]morpholine-4-carboxamide ;
Molecular weight formula_weight	459.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	358

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d4ciaa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.5 — Serine carboxypeptidase-like

Domain ID domain_id	d4ciaa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4ciaa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4ciaA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	90.106 Å
Unit-cell length b length_b	101.295 Å
Unit-cell length c length_c	48.077 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.91 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.980 Å
Low-resolution limit resolution_low	36.110 Å
R factor r_factor	0.1729
R_work r_work	0.1699
R_free r_free	0.2320

fit	/app/data/saxs_computation/ci/4cia/4cia.fit
pddf	/app/data/pr_computation/ci/4cia/4cia.pr.out
profile	/app/data/saxs_computation/ci/4cia/4cia.dat

Crystal structure of cathepsin A, complexed with compound 1

1. Protein Identity and Related Structures Protein Identity & Related Structures

LYSOSOMAL PROTECTIVE PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

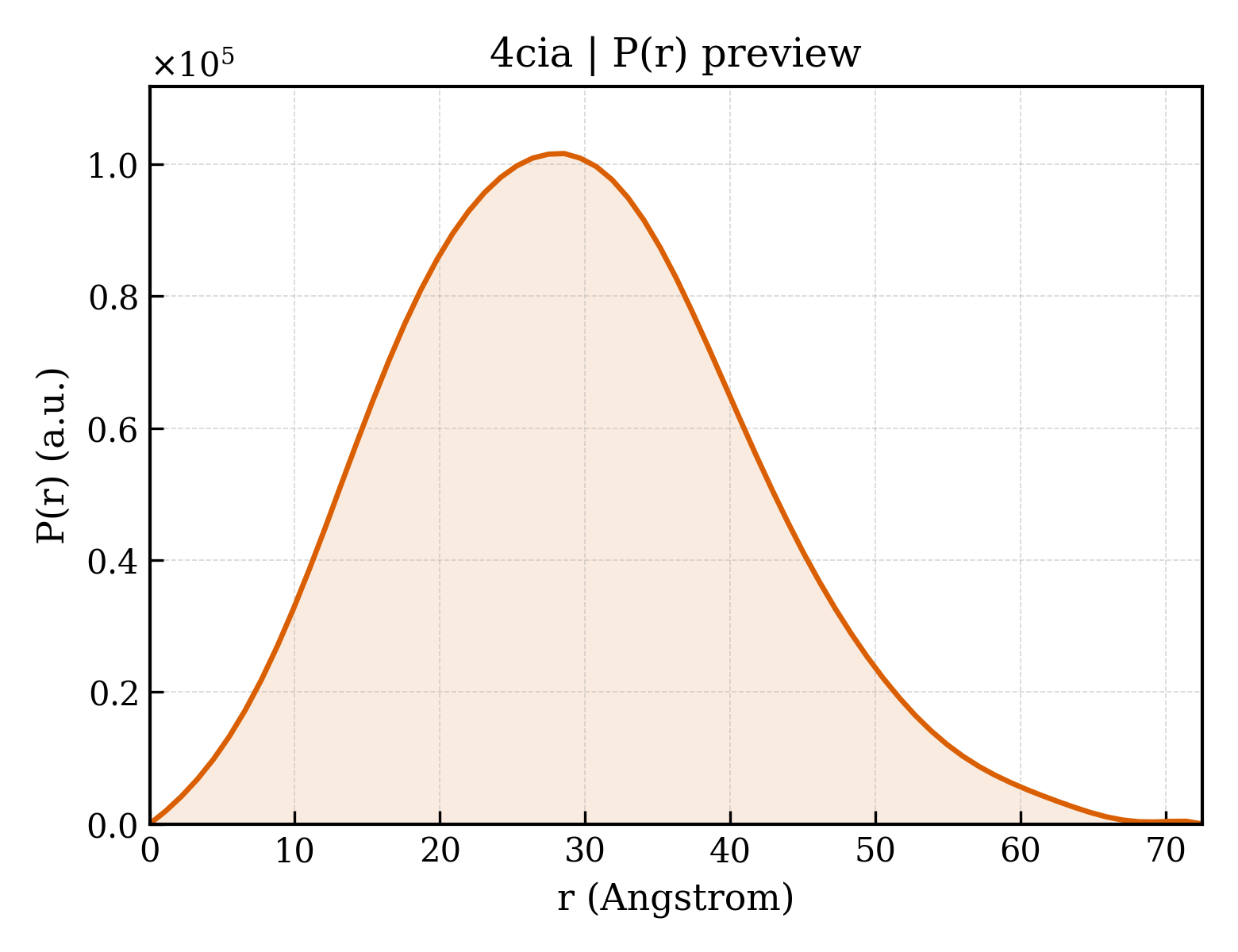

P(r) Distance Distribution P(r) Distribution
