4g1f

Crystal Structure of human Dipeptidyl Peptidase IV in complex with a pyridopyrimidinedione analogue

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dipeptidyl peptidase 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 water × 1	Consistent with protein count
3	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 1	Consistent with protein count
4	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 1	Consistent with protein count
5	Other combination	Homooligomer	Protein 2 其他Polymer 3	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 water × 2	Consistent with protein count
6	Other combination	Homooligomer	Protein 2 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 water × 2	Consistent with protein count
7	Other combination	Homooligomer	Protein 4 其他Polymer 5	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 12 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPP4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–740； UniProt 39–766 Author chain B； PDBConstruct 13–740； UniProt 39–766 Author chain C； PDBConstruct 13–740； UniProt 39–766 Author chain D； PDBConstruct 13–740； UniProt 39–766

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4g1f
Deposition date deposition_date	2012-07-10
Structure title title	Crystal Structure of human Dipeptidyl Peptidase IV in complex with a pyridopyrimidinedione analogue
Keywords keywords	;protease, 8-bladed beta-propeller domain, Aminopeptidase, Cell membrane, Glycoprotein, Hydrolase, Secreted, Serine protease, HYDROLASE-HYDROLASE INHIBITOR complex ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4g1f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

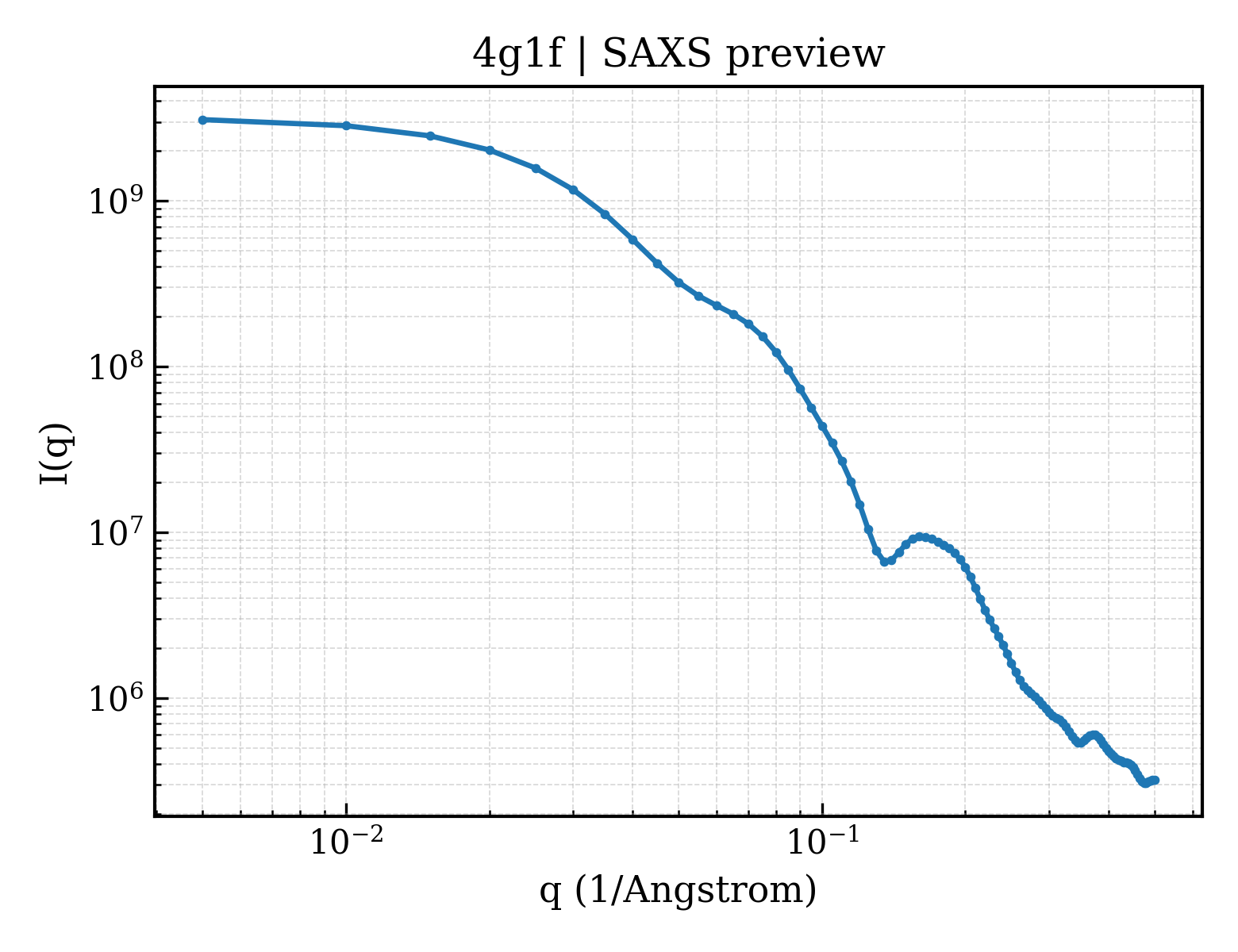

4g1f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

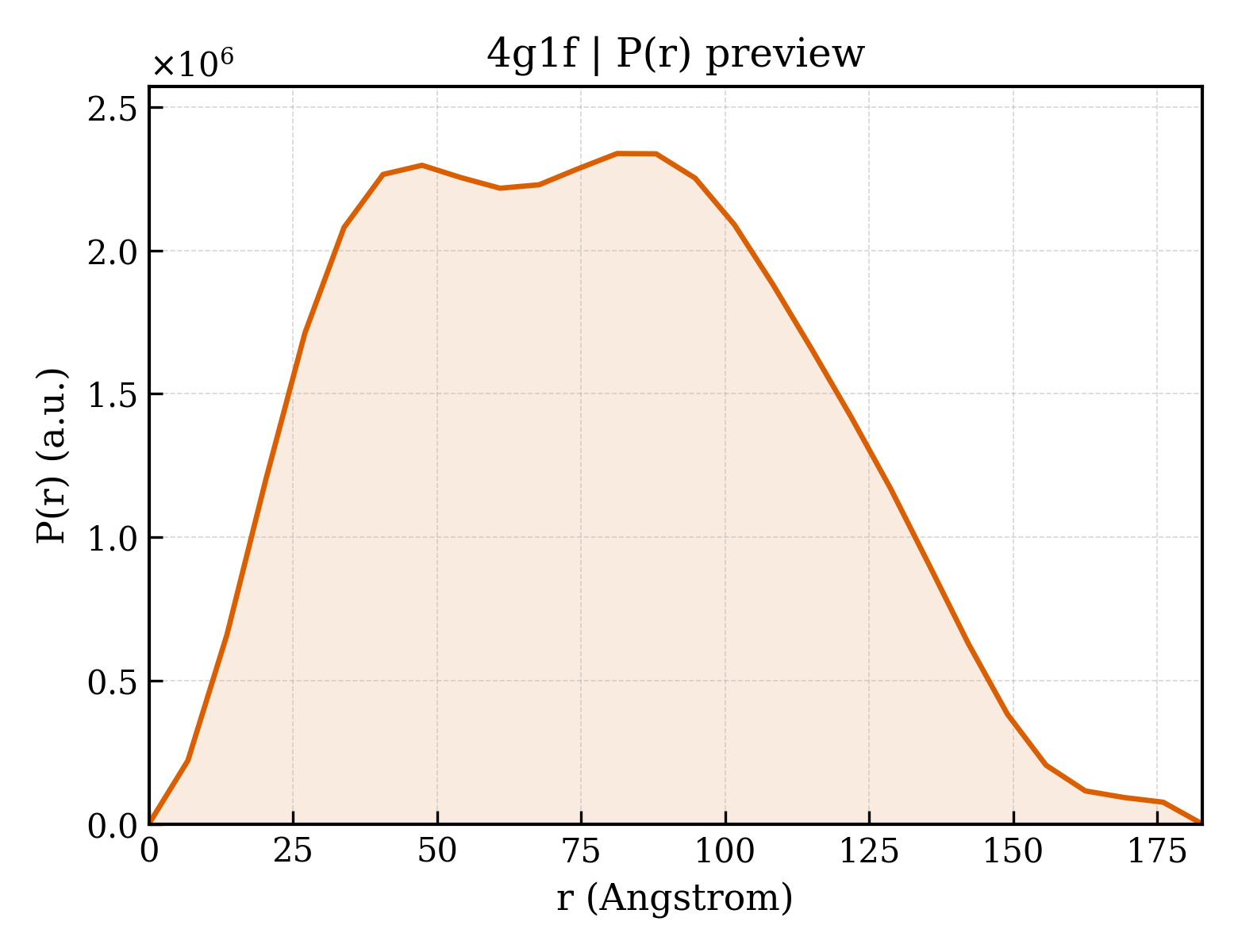

4g1f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.66 Å
Rg (electron density)	26.54 Å
Total Rg	27.57 Å
Atom count	6065
Residues	724
Excluded volume	107400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4g1f__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4g1f__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`4g1f__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`4g1f__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`4g1f__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`4g1f__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`4g1f__assembly_7__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Dipeptidyl peptidase 4
Molecular weight formula_weight	85775.9 kDa
EC 编号 ec_number	3.4.14.5
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	24443

ADPGGSHHHHHHSRKTYTLTDYLKNTYRLKLYSLRWISDHEYLYKQENNILVFNAEYGNSSVFLENSTFDEFGHSINDYSISPDGQFILLEYNYVKQWRHSYTASYDIYDLNKRQLITEERIPNNTQWVTWSPVGHKLAYVWNNDIYVKIEPNLPSYRITWTGKEDIIYNGITDWVYEEEVFSAYSALWWSPNGTFLAYAQFNDTEVPLIEYSFYSDESLQYPKTVRVPYPKAGAVNPTVKFFVVNTDSLSSVTNATSIQITAPASMLIGDHYLCDVTWATQERISLQWLRRIQNYSVMDICDYDESSGRWNCLVARQHIEMSTTGWVGRFRPSEPHFTLDGNSFYKIISNEEGYRHICYFQIDKKDCTFITKGTWEVIGIEALTSDYLYYISNEYKGMPGGRNLYKIQLSDYTKVTCLSCELNPERCQYYSVSFSKEAKYYQLRCSGPGLPLYTLHSSVNDKGLRVLEDNSALDKMLQNVQMPSKKLDFIILNETKFWYQMILPPHFDKSKKYPLLLDVYAGPCSQKADTVFRLNWATYLASTENIIVASFDGRGSGYQGDKIMHAINRRLGTFEVEDQIEAARQFSKMGFVDNKRIAIWGWSYGGYVTSMVLGSGSGVFKCGIAVAPVSRWEYYDSVYTERYMGLPTPEDNLDHYRNSTVMSRAENFKQVEYLLIHGTADDNVHFQQSAQISKALVDVGVDFQAMWYTDEDHGIASSTAHQHIYTHMSHFIKQCFSLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	7-amino-6-(aminomethyl)-5-(2-bromophenyl)-1,3-dimethylpyrido[2,3-d]pyrimidine-2,4(1H,3H)-dione
Molecular weight formula_weight	390.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	12

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	391

▼

6. Fold Classification (SCOP + CATH) 17 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d4g1fa1
Class class	b — All beta proteins
Fold Fold fold	b.70 — 8-bladed beta-propeller
Superfamily Superfamily superfamily	b.70.3 — DPP6 N-terminal domain-like
Family Family family	b.70.3.1 — DPP6 N-terminal domain-like

Domain ID domain_id	d4g1fa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.0 — automated matches

Domain ID domain_id	d4g1fb1
Class class	b — All beta proteins
Fold Fold fold	b.70 — 8-bladed beta-propeller
Superfamily Superfamily superfamily	b.70.3 — DPP6 N-terminal domain-like
Family Family family	b.70.3.1 — DPP6 N-terminal domain-like

Domain ID domain_id	d4g1fb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.0 — automated matches

Domain ID domain_id	d4g1fb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4g1fc1
Class class	b — All beta proteins
Fold Fold fold	b.70 — 8-bladed beta-propeller
Superfamily Superfamily superfamily	b.70.3 — DPP6 N-terminal domain-like
Family Family family	b.70.3.1 — DPP6 N-terminal domain-like

Domain ID domain_id	d4g1fc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.0 — automated matches

Domain ID domain_id	d4g1fd1
Class class	b — All beta proteins
Fold Fold fold	b.70 — 8-bladed beta-propeller
Superfamily Superfamily superfamily	b.70.3 — DPP6 N-terminal domain-like
Family Family family	b.70.3.1 — DPP6 N-terminal domain-like

Domain ID domain_id	d4g1fd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	4g1fA01
Class class	2 — Mainly Beta
Architecture architecture	140 — 8 Propeller
Topology topology	10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily	30 — Dipeptidylpeptidase IV, N-terminal domain

Domain ID domain_id	4g1fA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	4g1fB01
Class class	2 — Mainly Beta
Architecture architecture	140 — 8 Propeller
Topology topology	10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily	30 — Dipeptidylpeptidase IV, N-terminal domain

Domain ID domain_id	4g1fB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	4g1fC01
Class class	2 — Mainly Beta
Architecture architecture	140 — 8 Propeller
Topology topology	10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily	30 — Dipeptidylpeptidase IV, N-terminal domain

Domain ID domain_id	4g1fC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	4g1fD01
Class class	2 — Mainly Beta
Architecture architecture	140 — 8 Propeller
Topology topology	10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily	30 — Dipeptidylpeptidase IV, N-terminal domain

Domain ID domain_id	4g1fD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

Unit-cell length a length_a	121.622 Å
Unit-cell length b length_b	121.362 Å
Unit-cell length c length_c	143.257 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.63 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2093
R_work r_work	0.2067
R_free r_free	0.2592
