4gbv

Crystal Structure of AMP complexes of Porcine Liver Fructose-1,6-bisphosphatase Mutant A54L with 1,2-ethanediol as Cryo-protectant

Method: X-RAY DIFFRACTION D_max: 70.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fructose-1,6-bisphosphatase 1

Sus scrofa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 2–336	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 MN MANGANESE (II) ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：hanging drop；pH 7.5；298 K；PEG 3350, t-butyl alcohol, 1,2-ethanediol, pH 7.5, hanging drop, temperature 298K	Resolution 2.90 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4GBV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CNQ FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH FRUCTOSE-6-PHOSPHATE AND ZINC IONS Deposited 1999-05-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 8 ZN ZINC ION × 12 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4	Resolution 2.27 Å R-free 0.227
1EYI FRUCTOSE-1,6-BISPHOSPHATASE COMPLEX WITH MAGNESIUM, FRUCTOSE-6-PHOSPHATE AND PHOSPHATE (R-STATE) Deposited 2000-05-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；310 K；PEG 3350, HEPES, MPD, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 310K	Resolution 2.32 Å R-free 0.242
1EYJ FRUCTOSE-1,6-BISPHOSPHATASE COMPLEX WITH AMP, MAGNESIUM, FRUCTOSE-6-PHOSPHATE AND PHOSPHATE (T-STATE) Deposited 2000-05-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；310 K；PEG 3350, HEPES, MPD, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 310K	Resolution 2.28 Å R-free 0.255
1EYK FRUCTOSE-1,6-BISPHOSPHATASE COMPLEX WITH AMP, ZINC, FRUCTOSE-6-PHOSPHATE AND PHOSPHATE (T-STATE) Deposited 2000-05-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 4 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；310 K；PEG 3350, HEPES, MPD , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 310K	Resolution 2.23 Å R-free 0.271
1FBC CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MG MAGNESIUM ION × 4 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1FBD CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å
1FBE CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	ZN ZINC ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1FBF CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MG MAGNESIUM ION × 4 AHM 2,5-anhydro-1,6-di-O-phosphono-D-mannitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
1FBG CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 4 AHM 2,5-anhydro-1,6-di-O-phosphono-D-mannitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1FBH CRYSTALLOGRAPHIC STUDIES OF THE CATALYTIC MECHANISM OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE Deposited 1992-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	AFP 1,6-di-O-phosphono-alpha-D-fructofuranose × 4 FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1FBP CRYSTAL STRUCTURE OF FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH FRUCTOSE 6-PHOSPHATE, AMP, AND MAGNESIUM Deposited 1990-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1FJ6 FRUCTOSE-1,6-BISPHOSPHATASE (MUTANT Y57W) PRODUCT/ZN COMPLEX (R-STATE) Deposited 2000-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Mutation：Y57W	F6P 6-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 12 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；310 K；PEG3350, MPD, Hepes, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 310K	Resolution 2.50 Å R-free 0.272
1FJ9 FRUCTOSE-1,6-BISPHOSPHATASE (MUTANT Y57W) PRODUCTS/ZN/AMP COMPLEX (T-STATE) Deposited 2000-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：Y57W Mutation：Y57W	F6P 6-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 8 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；300 K；PEG3350, MPD, Hepes, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.50 Å R-free 0.258
1FPB CRYSTAL STRUCTURE OF THE NEUTRAL FORM OF FRUCTOSE 1,6-BISPHOSPHATASE COMPLEXED WITH REGULATORY INHIBITOR FRUCTOSE 2,6-BISPHOSPHATE AT 2.6-ANGSTROMS RESOLUTION Deposited 1992-02-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1FPD STRUCTURAL ASPECTS OF THE ALLOSTERIC INHIBITION OF FRUCTOSE-1,6-BISPHOSPHATASE BY AMP: THE BINDING OF BOTH THE SUBSTRATE ANALOGUE 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND CATALYTIC METAL IONS MONITORED BY X-RAY CRYSTALLOGRAPHY Deposited 1994-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4, ROOM TEMPERATURE, COCRYSTALLIZATION.	Resolution 2.10 Å
1FPE STRUCTURAL ASPECTS OF THE ALLOSTERIC INHIBITION OF FRUCTOSE-1,6-BISPHOSPHATASE BY AMP: THE BINDING OF BOTH THE SUBSTRATE ANALOGUE 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND CATALYTIC METAL IONS MONITORED BY X-RAY CRYSTALLOGRAPHY Deposited 1994-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4, ROOM TEMPERATURE, COCRYSTALLIZATION.	Resolution 2.20 Å
1FPF STRUCTURAL ASPECTS OF THE ALLOSTERIC INHIBITION OF FRUCTOSE-1,6-BISPHOSPHATASE BY AMP: THE BINDING OF BOTH THE SUBSTRATE ANALOGUE 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND CATALYTIC METAL IONS MONITORED BY X-RAY CRYSTALLOGRAPHY Deposited 1994-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4, ROOM TEMPERATURE, COCRYSTALLIZATION.	Resolution 2.10 Å
1FPG STRUCTURAL ASPECTS OF THE ALLOSTERIC INHIBITION OF FRUCTOSE-1,6-BISPHOSPHATASE BY AMP: THE BINDING OF BOTH THE SUBSTRATE ANALOGUE 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND CATALYTIC METAL IONS MONITORED BY X-RAY CRYSTALLOGRAPHY Deposited 1994-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	MN MANGANESE (II) ION × 8 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4, ROOM TEMPERATURE, COCRYSTALLIZATION.	Resolution 2.30 Å
1FPI FRUCTOSE-1,6-BISPHOSPHATASE (D-FRUCTOSE-1,6-BISPHOSPHATE 1-PHOSPHOHYDROLASE) COMPLEXED WITH AMP, 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND POTASSIUM IONS (100 MM) Deposited 1995-06-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	K POTASSIUM ION × 12 AMP ADENOSINE MONOPHOSPHATE × 4 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1FPJ FRUCTOSE-1,6-BISPHOSPHATASE (D-FRUCTOSE-1,6-BISPHOSPHATE 1-PHOSPHOHYDROLASE) COMPLEXED WITH AMP, 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE, THALLIUM (10 MM) AND LITHIUM IONS (10 MM) Deposited 1995-06-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	TL THALLIUM (I) ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1FPK FRUCTOSE-1,6-BISPHOSPHATASE (D-FRUCTOSE-1,6-BISPHOSPHATE 1-PHOSPHOHYDROLASE) COMPLEXED WITH THALLIUM IONS (10 MM) Deposited 1995-06-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	TL THALLIUM (I) ION × 12	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1FPL FRUCTOSE-1,6-BISPHOSPHATASE (D-FRUCTOSE-1,6-BISPHOSPHATE 1-PHOSPHOHYDROLASE) COMPLEXED WITH AMP, 2,5-ANHYDRO-D-GLUCITOL-1,6-BISPHOSPHATE AND THALLIUM IONS (10 MM) Deposited 1995-06-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	TL THALLIUM (I) ION × 12 AMP ADENOSINE MONOPHOSPHATE × 4 AHG 2,5-anhydro-1,6-di-O-phosphono-D-glucitol × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1FRP CRYSTAL STRUCTURE OF FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH FRUCTOSE-2,6-BISPHOSPHATE, AMP AND ZN2+ AT 2.0 ANGSTROMS RESOLUTION. ASPECTS OF SYNERGISM BETWEEN INHIBITORS Deposited 1994-08-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；pH 7.4, ROOM TEMPERATURE, COCRYSTALLIZATION.	Resolution 2.00 Å
1FSA THE T-STATE STRUCTURE OF LYS 42 TO ALA MUTANT OF THE PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI Deposited 1996-08-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：K42A Mutation：K42A	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MN MANGANESE (II) ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.232
1KZ8 CRYSTAL STRUCTURE OF PORCINE FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH A NOVEL ALLOSTERIC-SITE INHIBITOR Deposited 2002-02-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain F 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MN MANGANESE (II) ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4 PFE {4-[3-(6,7-DIETHOXY-QUINAZOLIN-4-YLAMINO)-PHENYL]-THIAZOL-2-YL}-METHANOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.2	Resolution 2.00 Å R-free 0.214
1LEV PORCINE KIDNEY FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH AN AMP-SITE INHIBITOR Deposited 2002-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain F 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MN MANGANESE (II) ION × 8 CLI 3-(2-CARBOXY-ETHYL)-4,6-DICHLORO-1H-INDOLE-2-CARBOXYLIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.2M Na Acetate, 13.75% PEG 4000, 0.1M Hepes pH7.0, 1mM F6P, 2mM MnCl2, 1mM inhibitor, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.15 Å R-free 0.255
1NUW Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate and Phosphate at pH 9.6 Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 PO3 PHOSPHITE ION × 1 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.6；295 K；PEG 3350, Glycine, pH 9.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.30 Å R-free 0.207
1NUW Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate and Phosphate at pH 9.6 Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO3 PHOSPHITE ION × 4 MG MAGNESIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.6；295 K；PEG 3350, Glycine, pH 9.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.30 Å R-free 0.207
1NUX Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and inhibitory concentrations of Potassium (200mM) Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 PO3 PHOSPHITE ION × 1 MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.208
1NUX Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and inhibitory concentrations of Potassium (200mM) Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO3 PHOSPHITE ION × 4 MG MAGNESIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.208
1NUY Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, and Phosphate Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.30 Å R-free 0.206
1NUY Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, and Phosphate Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 12 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.30 Å R-free 0.206
1NUZ Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate and Phosphate Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.246
1NUZ Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate and Phosphate Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 12 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, Hepes, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.246
1NV0 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and 1 mM Thallium Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 3 PO4 PHOSPHATE ION × 2 TL THALLIUM (I) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.80 Å R-free 0.247
1NV0 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and 1 mM Thallium Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 12 PO4 PHOSPHATE ION × 8 TL THALLIUM (I) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.80 Å R-free 0.247
1NV1 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (5 mM) Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 TL THALLIUM (I) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.255
1NV1 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (5 mM) Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8 TL THALLIUM (I) ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.255
1NV2 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (20 mM) Deposited 2003-02-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 1 PI HYDROGENPHOSPHATE ION × 1 TL THALLIUM (I) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.10 Å R-free 0.248
1NV2 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (20 mM) Deposited 2003-02-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 4 PI HYDROGENPHOSPHATE ION × 4 TL THALLIUM (I) ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.10 Å R-free 0.248
1NV3 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (100 mM) Deposited 2003-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 2 TL THALLIUM (I) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.266
1NV3 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (100 mM) Deposited 2003-02-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 8 TL THALLIUM (I) ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.266
1NV4 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (1 mM) Deposited 2003-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 TL THALLIUM (I) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.236
1NV4 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (1 mM) Deposited 2003-02-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8 TL THALLIUM (I) ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.236
1NV5 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (5 mM) Deposited 2003-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 TL THALLIUM (I) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.245
1NV5 Fructose-1,6-Bisphosphatase Complex with Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (5 mM) Deposited 2003-02-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8 TL THALLIUM (I) ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.245
1NV6 Fructose-1,6-Bisphosphatase Complex With Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (20 mM) Deposited 2003-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 1 PI HYDROGENPHOSPHATE ION × 1 TL THALLIUM (I) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.280
1NV6 Fructose-1,6-Bisphosphatase Complex With Magnesium, Fructose-6-Phosphate, Phosphate, EDTA and Thallium (20 mM) Deposited 2003-02-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 4 PI HYDROGENPHOSPHATE ION × 4 TL THALLIUM (I) ION × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.280
1NV7 Fructose-1,6-Bisphosphatase Complex With AMP, Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (20 mM) Deposited 2003-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 2 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 AMP ADENOSINE MONOPHOSPHATE × 2 TL THALLIUM (I) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.251
1NV7 Fructose-1,6-Bisphosphatase Complex With AMP, Magnesium, Fructose-6-Phosphate, Phosphate and Thallium (20 mM) Deposited 2003-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4 TL THALLIUM (I) ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；295 K；PEG 3350, HEPES, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.251
1Q9D Fructose-1,6-bisphosphatase Complexed with a New Allosteric Site Inhibitor (I-State) Deposited 2003-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 2 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 4 OI1 3-(4-HYDROXYBENZYL)-2-[1-({[2-(4-HYDROXYPHENYL)ETHYL]AMINO}CARBONYL)BUTYL]-4-OXO-3,6,11,11A-TETRAHYDRO-4H-PYRAZINO[1,2-B]ISOQUINOLIN-2-IUM-1-OLATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 3350, Tris-malonate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.35 Å R-free 0.246
1Q9D Fructose-1,6-bisphosphatase Complexed with a New Allosteric Site Inhibitor (I-State) Deposited 2003-08-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8 OI1 3-(4-HYDROXYBENZYL)-2-[1-({[2-(4-HYDROXYPHENYL)ETHYL]AMINO}CARBONYL)BUTYL]-4-OXO-3,6,11,11A-TETRAHYDRO-4H-PYRAZINO[1,2-B]ISOQUINOLIN-2-IUM-1-OLATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 3350, Tris-malonate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.35 Å R-free 0.246
1RDX R-STATE STRUCTURE OF THE ARG 243 TO ALA MUTANT OF PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI Deposited 1996-05-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：R243A Mutation：R243A	F6P 6-O-phosphono-beta-D-fructofuranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.75 Å R-free 0.297
1RDY T-STATE STRUCTURE OF THE ARG 243 TO ALA MUTANT OF PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI Deposited 1996-05-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：R243A Mutation：R243A	F6P 6-O-phosphono-beta-D-fructofuranose × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.20 Å R-free 0.234
1RDZ T-STATE STRUCTURE OF THE ARG 243 TO ALA MUTANT OF PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI Deposited 1996-05-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：R243A Mutation：R243A	F6P 6-O-phosphono-beta-D-fructofuranose × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.05 Å R-free 0.224
1YXI R-State AMP Complex Reveals Initial Steps of the Quaternary Transition of Fructose-1,6-bisphosphatase Deposited 2005-02-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Mutation：A54L	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 8 MG MAGNESIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Leu54 FBPase (10mg/ml), Hepes (25 mM, pH 7.4), MgCl2 (5 mM), F16P2 (5 mM) combined with precipitant solution [Hepes (100mM, pH7.4), PEG 3350 (8% w/v), glycerol (27% v/v), t-butanol (5% v/v)], VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.242
1YYZ R-State AMP Complex Reveals Initial Steps of the Quaternary Transition of Fructose-1,6-bisphosphatase Deposited 2005-02-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Mutation：A54L	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 MG MAGNESIUM ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；A54L FBPase (10 mg/ml), Hepes (25 mM, pH 7.4), MgCl2 (5 mM), F16P2 (5mM), AMP(5mM) and a precipitant solution [Hepes (100 mM, pH7.4), PEG 3350 (12% w/v), glycerol (23% v/v) and t-butanol (5% v/v)], VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.85 Å R-free 0.266
1YZ0 R-State AMP Complex Reveals Initial Steps of the Quaternary Transition of Fructose-1,6-bisphosphatase Deposited 2005-02-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：A54L Mutation：A54L	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；A54L FBPase (10mg/ml), 25mM Hepes pH7.4, 5 mM MgCl2, 5mM F16P2, 5mM AMP and a precipitant solution [Hepes (100mM, pH 7.4), PEG 3350 (14% w/v), 2-methyl-2,4-pentanediol (21% v/v), and t-butanol (5% v/v)], VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.07 Å R-free 0.260
2F3B Mechanism of displacement of a catalytically essential loop from the active site of fructose-1,6-bisphosphatase Deposited 2005-11-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Mutation：I10D	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 8 ZN ZINC ION × 12	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.249
2F3D Mechanism of displacement of a catalytically essential loop from the active site of fructose-1,6-bisphosphatase Deposited 2005-11-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–337（337 aa）	Mutation：I10D	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 ZN ZINC ION × 12 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.83 Å R-free 0.246
2FBP STRUCTURE REFINEMENT OF FRUCTOSE-1,6-BISPHOSPHATASE AND ITS FRUCTOSE 2,6-BISPHOSPHATE COMPLEX AT 2.8 ANGSTROMS RESOLUTION Deposited 1990-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
2QVU Porcine Liver Fructose-1,6-bisphosphatase cocrystallized with Fru-2,6-P2 and Mg2+, I(T)-state Deposited 2007-08-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Fragment：Residues 9-337 Chain B 2–338（337 aa） Fragment：Residues 9-337	Not recorded	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.25；298 K；see citation, pH 7.25, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.50 Å R-free 0.214
2QVV Porcine Liver Fructose-1,6-bisphosphatase cocrystallized with Fru-2,6-P2 and Zn2+, I(T)-state Deposited 2007-08-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Fragment：Residues 9-337 Chain B 2–338（337 aa） Fragment：Residues 9-337	Not recorded	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；see citation, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.03 Å R-free 0.234
3FBP STRUCTURE REFINEMENT OF FRUCTOSE-1,6-BISPHOSPHATASE AND ITS FRUCTOSE 2,6-BISPHOSPHATE COMPLEX AT 2.8 ANGSTROMS RESOLUTION Deposited 1990-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
4FBP CONFORMATIONAL TRANSITION OF FRUCTOSE-1,6-BISPHOSPHATASE: STRUCTURE COMPARISON BETWEEN THE AMP COMPLEX (T FORM) AND THE FRUCTOSE 6-PHOSPHATE COMPLEX (R FORM) Deposited 1991-02-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa） Chain C 1–335（335 aa） Chain D 1–335（335 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
4GBW Crystal Structure of AMP complexes of Porcine Liver Fructose-1,6-bisphosphatase Mutant A54L with 1,2-propanediol as Cryo-protectant Deposited 2012-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–336（335 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MN MANGANESE (II) ION × 12 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 7.5；298 K；PEG 3350, t-butyl alcohol, 1,2-propanediol, pH 7.5, hanging drop, temperature 298K	Resolution 2.00 Å R-free 0.241
4GWS Crystal Structure of AMP complexes of Porcine Liver Fructose-1,6-bisphosphatase with Filled Central Cavity Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Chain B 2–338（337 aa）	Mutation：S45H/T46R/L186Y Mutation：S45H/T46R/L186Y	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.75 Å R-free 0.262
4GWU Crystal Structure of Fru 2,6-bisphosphate complexes of Porcine Liver Fructose-1,6-bisphosphatase with Filled Central Cavity Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Mutation：S45H/T46R/L186Y	FDP 2,6-di-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.289
4GWW Crystal Structure of product complexes of Porcine Liver Fructose-1,6-bisphosphatase with blocked subunit pair rotation Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Mutation：M18K	F6P 6-O-phosphono-beta-D-fructofuranose × 8 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.300
4GWX Crystal Structure of product complexes of Porcine Liver Fructose-1,6-bisphosphatase with restrained subunit pair rotation Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Mutation：M18W	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 8 MG MAGNESIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.264
4GWY Crystal Structure of AMP Complexes of Porcine Liver Fructose-1,6-bisphosphatase with Blocked Subunit Pair Rotation Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Mutation：M18K	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 MG MAGNESIUM ION × 12 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.266
4GWZ Crystal Structure of AMP Complexes of Porcine Liver Fructose-1,6-bisphosphatase with Restrained Subunit Pair Rotation Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Chain B 2–338（337 aa）	Mutation：M18W Mutation：M18W	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
4GX3 Product Complexes of Porcine Liver Fructose-1,6-bisphosphatase with mutation R22M Reveal a T-state Conformation Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Chain B 2–338（337 aa）	Mutation：R22M Mutation：R22M	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.270
4GX4 AMP Complexes of Porcine Liver Fructose-1,6-bisphosphatase with mutation R22M Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Chain B 2–338（337 aa）	Mutation：R22M Mutation：R22M	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.271
4GX6 AMP Complexes of Porcine Liver Fructose-1,6-bisphosphatase with Mutation E192Q Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa） Chain B 2–338（337 aa）	Mutation：E192Q Mutation：E192Q	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, glycerol, pH 7.5, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.273
4H45 Product Complexes of Porcine Liver Fructose-1,6-bisphosphatase with Mutation E192Q Deposited 2012-09-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Mutation：E192Q	F6P 6-O-phosphono-beta-D-fructofuranose × 4 ZN ZINC ION × 8 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, 1,2-ethanediol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.283
4H46 Crystal Structure of AMP complexes of NEM modified Porcine Liver Fructose-1,6-bisphosphatase Deposited 2012-09-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–338（337 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 4 NEN 1-ETHYL-PYRROLIDINE-2,5-DIONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG3350, t-butyl alcohol, 1,2-ethanediol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.256
4KXP Crystal Structure of AMP complexes of Porcine Liver Fructose-1,6-bisphosphatase Mutant I10D in T-state Deposited 2013-05-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–338（338 aa） Chain B 1–338（338 aa）	Mutation：I10D Mutation：I10D	F6P 6-O-phosphono-beta-D-fructofuranose × 4 PO4 PHOSPHATE ION × 4 MG MAGNESIUM ION × 8 AMP ADENOSINE MONOPHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；PEG 3350, t-butyl alcohol, 2-methyl-2,4-pentanediol, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.252
5FBP CRYSTAL STRUCTURE OF THE NEUTRAL FORM OF FRUCTOSE-1,6-BISPHOSPHATASE COMPLEXED WITH THE PRODUCT FRUCTOSE 6-PHOSPHATE AT 2.1-ANGSTROMS RESOLUTION Deposited 1991-02-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–335（335 aa） Chain B 1–335（335 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å

66 other PDB entries and 79 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	F16P1_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–335； UniProt 2–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

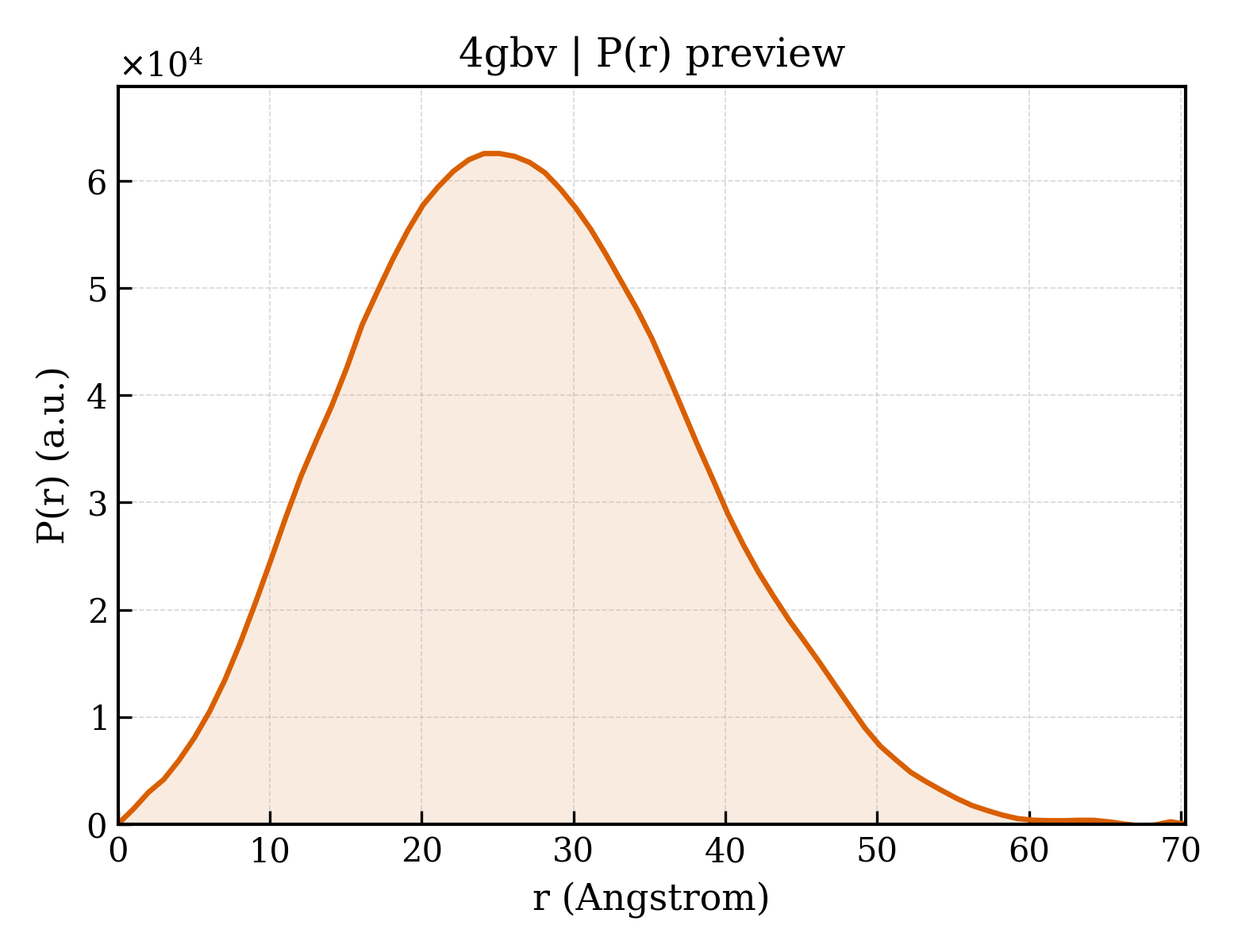

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4gbv
Deposition date deposition_date	2012-07-28
Structure title title	Crystal Structure of AMP complexes of Porcine Liver Fructose-1,6-bisphosphatase Mutant A54L with 1,2-ethanediol as Cryo-protectant
Keywords keywords	Allosteric Enzymes, FBPase, AMP, 1, 2-ethanediol, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.38 Å
Radius of gyration Rg (electron density) rg_electron	19.42 Å
Forward intensity I(0) i0	22424500.00
Molecular weight molecular_weight	36340.0 kDa
Excluded volume excluded_volume	45607 Å³
Envelope volume envelope_volume	51229 Å³
Hydration-shell volume shell_volume	21740 Å³
Envelope diameter envelope_diameter	70.4 Å
Shell Rg shell_rg	26.22 Å
Envelope Rg envelope_rg	19.81 Å
Shape Rg shape_rg	19.44 Å
Total Rg total_rg	20.23 Å
Total atoms total_atoms	2538
Residues n_residues	326
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.3 Å
Rg (real space) rg_real	20.29 Å
Rg uncertainty (real space) rg_real_error	0.58 Å
I(0) (real space) i0_real	2.2420e+07
I(0) uncertainty (real space) i0_real_error	2.8800e+05
Rg (reciprocal space) rg_reciprocal	20.31 Å
I(0) (reciprocal space) i0_reciprocal	22420000.0000
Solution quality estimate total_estimate	0.7865
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	63.3 Å
Skewness Skewness skewness	0.235
Kurtosis Kurtosis kurtosis	-0.330
Angular range angular_range	— – 0.3900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4929000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.744; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Fructose-1,6-bisphosphatase 1
Molecular weight formula_weight	36533.0 kDa
EC 编号 ec_number	3.1.3.11
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2641

TDQAAFDTNIVTLTRFVMEEGRKARGTGEMTQLLNSLCTAVKAISTAVRKAGILHLYGIAGSTNVTGDQVKKLDVLSNDLVINVLKSSFATCVLVSEEDKNAIIVEPEKRGKYVVCFDPLDGSSNIDCLVSIGTIFGIYRKNSTDEPSEKDALQPGRNLVAAGYALYGSATMLVLAMVNGVNCFMLDPAIGEFILVDRDVKIKKKGSIYSINEGYAKEFDPAITEYIQRKKFPPDNSAPYGARYVGSMVADVHRTLVYGGIFMYPANKKSPKGKLRLLYECNPMAYVMEKAGGLATTGKEAVLDIVPTDIHQRAPIILGSPEDVTELLEIYQKHA

来源 Source

来源生物 organism	Sus scrofa
通用名 common_name	pigs,swine,wild boar
NCBI Class编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	6-O-phosphono-beta-D-fructofuranose
Molecular weight formula_weight	260.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	103

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4gbva_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.7 — Carbohydrate phosphatase
Superfamily Superfamily superfamily	e.7.1 — Carbohydrate phosphatase
Family Family family	e.7.1.1 — Inositol monophosphatase/fructose-1,6-bisphosphatase-like

CATH v4.4 (2 domains)

Domain ID domain_id	4gbvA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	540 — Fructose-1,6-Bisphosphatase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Fructose-1,6-Bisphosphatase, subunit A, domain 1

Domain ID domain_id	4gbvA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	80 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	53.690 Å
Unit-cell length b length_b	82.506 Å
Unit-cell length c length_c	166.284 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	32.100 Å
R factor r_factor	0.1803
R_work r_work	0.1770
R_free r_free	0.2427

fit	/app/data/saxs_computation/gb/4gbv/4gbv.fit
pddf	/app/data/pr_computation/gb/4gbv/4gbv.pr.out
profile	/app/data/saxs_computation/gb/4gbv/4gbv.dat
