SAXSdb — 4i1m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LepB

Legionella pneumophila subsp. pneumophila

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 317–618	Fragment：GAP domain (UNP residues 317-618) Mutation：K457A, E458A, K460A	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 0.75 M lithium chloride, 6% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.238
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 317–618	Fragment：GAP domain (UNP residues 317-618) Mutation：K457A, E458A, K460A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 0.75 M lithium chloride, 6% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.238
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 317–618	Fragment：GAP domain (UNP residues 317-618) Mutation：K457A, E458A, K460A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 0.75 M lithium chloride, 6% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4I1M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4I1O Crystal structure of the Legionella pneumophila GAP domain of LepB in complex with Rab1b bound to GDP and BeF3 Deposited 2012-11-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 317–618（302 aa） Fragment：GAP domain (UNP residues 317-618)	Mutation：K457A, E458A, K460A	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；0.1 M sodium cacodylate, pH 6.4, 0.2 M magnesium chloride, 17% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.249
4I1O Crystal structure of the Legionella pneumophila GAP domain of LepB in complex with Rab1b bound to GDP and BeF3 Deposited 2012-11-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 317–618（302 aa） Fragment：GAP domain (UNP residues 317-618)	Mutation：K457A, E458A, K460A	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；0.1 M sodium cacodylate, pH 6.4, 0.2 M magnesium chloride, 17% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.249
4I1O Crystal structure of the Legionella pneumophila GAP domain of LepB in complex with Rab1b bound to GDP and BeF3 Deposited 2012-11-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 317–618（302 aa） Fragment：GAP domain (UNP residues 317-618)	Mutation：K457A, E458A, K460A	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；0.1 M sodium cacodylate, pH 6.4, 0.2 M magnesium chloride, 17% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.249
4I1O Crystal structure of the Legionella pneumophila GAP domain of LepB in complex with Rab1b bound to GDP and BeF3 Deposited 2012-11-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 317–618（302 aa） Fragment：GAP domain (UNP residues 317-618)	Mutation：K457A, E458A, K460A	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；0.1 M sodium cacodylate, pH 6.4, 0.2 M magnesium chloride, 17% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.249
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 326–623（298 aa） Fragment：LepB GAP domain, catalytic core	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 4 GOL GLYCEROL × 7 K POTASSIUM ION × 5 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 326–623（298 aa） Fragment：LepB GAP domain, catalytic core	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 8 GOL GLYCEROL × 1 K POTASSIUM ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 326–623（298 aa） Fragment：LepB GAP domain, catalytic core	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288

2 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q5ZSM7_LEGPH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–302； UniProt 317–618 Author chain B； PDBConstruct 1–302； UniProt 317–618 Author chain C； PDBConstruct 1–302； UniProt 317–618

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4i1m
Deposition date deposition_date	2012-11-21
Structure title title	Crystal structure of the Legionella pneumophila GAP domain of LepB
Keywords keywords	RabGAP, hydrolase activator, Rab1b, lpg2490, GTPase-activating proteins, hydrolysis, Rab1 hydrolase, GTP hydrolase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.55 Å
Radius of gyration Rg (electron density) rg_electron	34.68 Å
Forward intensity I(0) i0	124895000.00
Molecular weight molecular_weight	91724.0 kDa
Excluded volume excluded_volume	115540 Å³
Envelope volume envelope_volume	159440 Å³
Hydration-shell volume shell_volume	38421 Å³
Envelope diameter envelope_diameter	116.1 Å
Shell Rg shell_rg	41.17 Å
Envelope Rg envelope_rg	33.99 Å
Shape Rg shape_rg	34.70 Å
Total Rg total_rg	35.12 Å
Total atoms total_atoms	6500
Residues n_residues	854
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

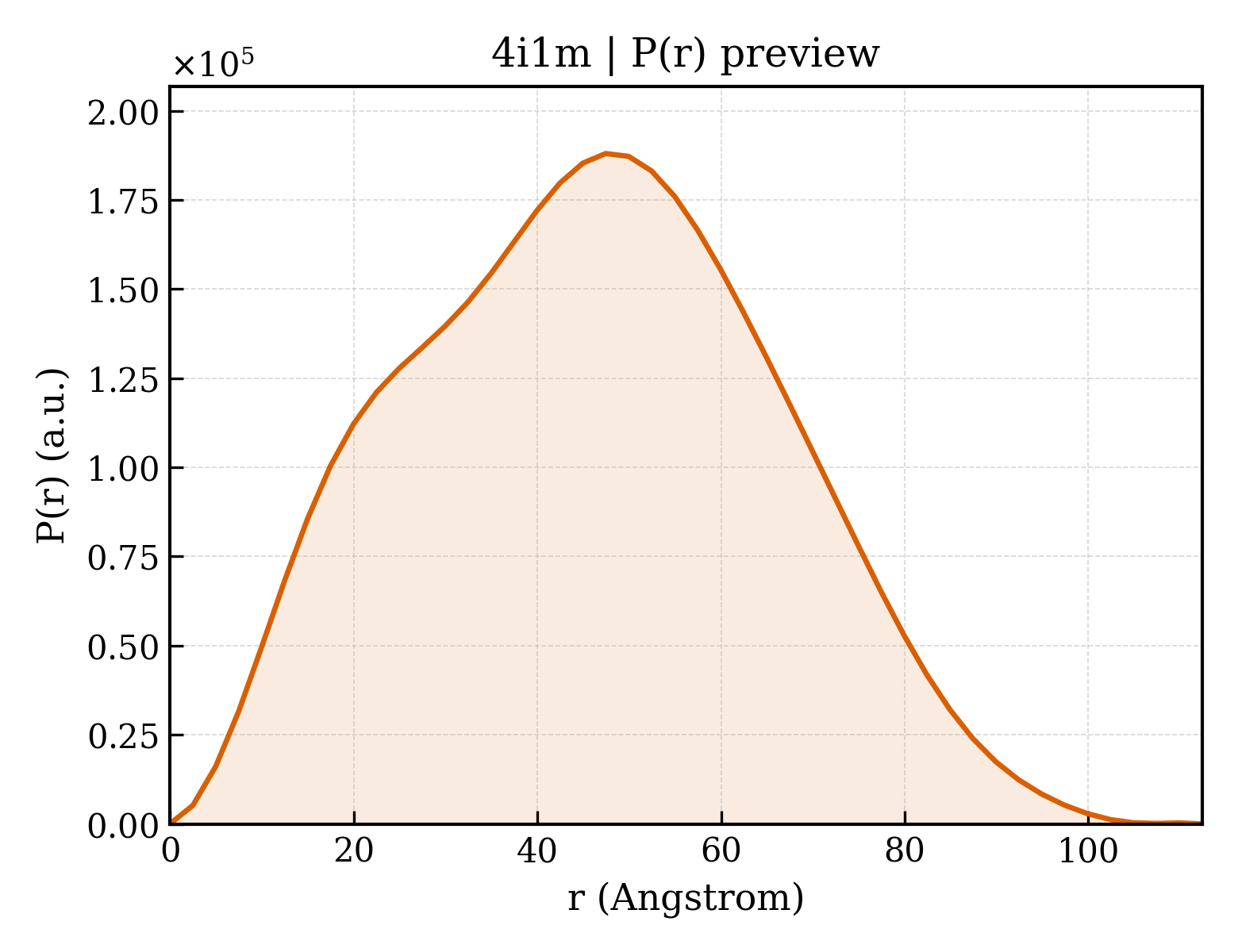

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	112.4 Å
Rg (real space) rg_real	35.43 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	1.2490e+08
I(0) uncertainty (real space) i0_real_error	1.9620e+06
Rg (reciprocal space) rg_reciprocal	35.51 Å
I(0) (reciprocal space) i0_reciprocal	124900000.0000
Solution quality estimate total_estimate	0.9028
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.5 Å
Skewness Skewness skewness	0.100
Kurtosis Kurtosis kurtosis	-0.602
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17990000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.940

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LepB
Molecular weight formula_weight	34131.9 kDa
Mutation mutation	K457A, E458A, K460A
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6534

EELYQSILELKPLTLLMTSSTSFSETINQWADILKTTDMEKFSFDSNPINLLELVKQFNLYVDELAITCEANNVWAKERIDSTPNLFALYDNSGGEAIHGHAFVPYYKESIVLRRLFTVDPNTFNLSRFAAFEGPCQLYCAAHADSAWVKIQTLLTLGNGIINTLKIIKQAQAFGIDEAVTENLKALKEQFIAFQLAEADIKESLKAPSFAEPLPNKESEFFYPIDEKALAKMNGYQLATICLEELNSPKPSPLIERILSNKKFWKRINSAFESGVFKGRTDDPAGKIAKIREWHQLLQISG

来源 Source

来源生物 organism	Legionella pneumophila subsp. pneumophila
NCBI Class编号 ncbi_taxonomy_id	272624
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	28

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4i1mA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1700 —

Domain ID domain_id	4i1mA02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	830 —

Domain ID domain_id	4i1mB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1700 —

Domain ID domain_id	4i1mB02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	830 —

Domain ID domain_id	4i1mC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1700 —

Domain ID domain_id	4i1mC02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	830 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	152.700 Å
Unit-cell length b length_b	152.700 Å
Unit-cell length c length_c	129.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.804 Å
Low-resolution limit resolution_low	49.831 Å
R factor r_factor	0.2015
R_work r_work	0.1995
R_free r_free	0.2380

fit	/app/data/saxs_computation/i1/4i1m/4i1m.fit
pddf	/app/data/pr_computation/i1/4i1m/4i1m.pr.out
profile	/app/data/saxs_computation/i1/4i1m/4i1m.dat

Crystal structure of the Legionella pneumophila GAP domain of LepB
