SAXSdb — 4n5u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Receptor-type tyrosine-protein phosphatase F

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 601–705	Fragment：Fibronectin type-III 4 domain, residues 601-705	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 10.5；298 K；Protein (20 mM Hepes, pH 7.5, 150 mM NaCl, 5% glycerol, Reservoir (0.2M Lithium Sulfate, 0.1M CAPS, 1.2M NaH2PO4/0.8M K2HPO4), Cryoprotection (2M Li2SO4), VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.46 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4N5U	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1LAR CRYSTAL STRUCTURE OF THE TANDEM PHOSPHATASE DOMAINS OF RPTP LAR Deposited 1999-04-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1323–1897（575 aa） Fragment：PHOSPHATASE	Mutation：P1307M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.00 Å R-free 0.274
1LAR CRYSTAL STRUCTURE OF THE TANDEM PHOSPHATASE DOMAINS OF RPTP LAR Deposited 1999-04-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1323–1897（575 aa） Fragment：PHOSPHATASE	Mutation：P1307M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.00 Å R-free 0.274
2DJU Solution structures of the fn3 domain of human receptor-type tyrosine-protein phosphatase F Deposited 2006-04-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 309–401（93 aa） Fragment：Fibronectin type III domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1mM fn3 domain U-15N, 13C; 20mM d-Tris HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2DN7 Solution structures of the 6th fn3 domain of human receptor-type tyrosine-protein phosphatase F Deposited 2006-04-25	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 811–904（94 aa） Fragment：Fibronectin type III domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1mM fn3 domain U-15N,13C; 20mM d-Tris HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2EDY Solution structures of the fn3 domain of human receptor-type tyrosine-protein phosphatase F Deposited 2007-02-15	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 905–1000（96 aa） Fragment：Fibronectin type III domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1mM fn3 domain U-15N, 13C; 20mM d-Tris HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YD5 Crystal structure of the N-terminal Ig1-2 module of Human Receptor Protein Tyrosine Phosphatase LAR Deposited 2011-03-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–231（203 aa） Fragment：IG1-2, RESIDUES 29-231	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；0.1 M SODIUM ACETATE TRIHYDRATE, 20% ISOPROPANOL, 20% (W/V) PEG 4000, 0.25 MM HEPARIN DP10, PH 5.6 .	Resolution 2.20 Å R-free 0.233
2YD8 Crystal structure of the N-terminal Ig1-2 module of Human Receptor Protein Tyrosine Phosphatase LAR in complex with sucrose octasulphate Deposited 2011-03-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–231（203 aa） Fragment：IG1-2, RESIDUES 29-231	Not recorded	YYJ 1,3,4,6-tetra-O-sulfo-beta-D-fructofuranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；0.1 M MES, 30% PEG 6000, PH 6.0 .	Resolution 2.05 Å R-free 0.227
6KR4 Crystal structure of the liprin-alpha3_SAM123/LAR_D1D2 complex Deposited 2019-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1332–1907（576 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；50mM Tris-HCl, 200mM NaCl, 1mM ethylenediaminetetraacetic acid, 1mM dithiothreitol	Resolution 2.85 Å R-free 0.230
6KR4 Crystal structure of the liprin-alpha3_SAM123/LAR_D1D2 complex Deposited 2019-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1332–1907（576 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；50mM Tris-HCl, 200mM NaCl, 1mM ethylenediaminetetraacetic acid, 1mM dithiothreitol	Resolution 2.85 Å R-free 0.230
6KR4 Crystal structure of the liprin-alpha3_SAM123/LAR_D1D2 complex Deposited 2019-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1332–1907（576 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PO4 PHOSPHATE ION × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；50mM Tris-HCl, 200mM NaCl, 1mM ethylenediaminetetraacetic acid, 1mM dithiothreitol	Resolution 2.85 Å R-free 0.230
6KR4 Crystal structure of the liprin-alpha3_SAM123/LAR_D1D2 complex Deposited 2019-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1332–1907（576 aa）	Not recorded	PO4 PHOSPHATE ION × 1 PGE TRIETHYLENE GLYCOL × 1 P6G HEXAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；50mM Tris-HCl, 200mM NaCl, 1mM ethylenediaminetetraacetic acid, 1mM dithiothreitol	Resolution 2.85 Å R-free 0.230
6TPT Crystal structures of FNIII domain three and four of the human leucocyte common antigen-related protein, LAR Deposited 2019-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 512–706（195 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；0.2 M Sodium fluoride, 0.1 M Bis-tris propane pH 6.5, and 20% PEG3350	Resolution 3.20 Å R-free 0.269
6TPU Crystal structures of FNIII domain three and four of the human leucocyte common antigen-related protein, LAR Deposited 2019-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 513–706（194 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；277 K；1.8 M Ammonium citrate tribasic pH 7.0	Resolution 1.55 Å R-free 0.193
6TPU Crystal structures of FNIII domain three and four of the human leucocyte common antigen-related protein, LAR Deposited 2019-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 513–706（194 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；277 K；1.8 M Ammonium citrate tribasic pH 7.0	Resolution 1.55 Å R-free 0.193
6TPV Crystal structures of FNIII domain one and two of the human leucocyte common antigen-related protein, LAR Deposited 2019-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 319–512（194 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；277 K；0.2 M Sodium citrate tribasic dihydrate pH 8.3, 20 % PEG 3,350	Resolution 1.80 Å R-free 0.220
6TPV Crystal structures of FNIII domain one and two of the human leucocyte common antigen-related protein, LAR Deposited 2019-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 319–512（194 aa）	Not recorded	IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；277 K；0.2 M Sodium citrate tribasic dihydrate pH 8.3, 20 % PEG 3,350	Resolution 1.80 Å R-free 0.220
6TPW Crystal structures of FNIII domain one through four of the human leucocyte common antigen-related protein ( LAR) Deposited 2019-12-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 319–706（388 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；277 K；0.2 M Ammonium sulfate and 30% PEG8000	Resolution 2.90 Å R-free 0.301

11 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PTPRF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–110； UniProt 601–705

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4n5u
Deposition date deposition_date	2013-10-10
Structure title title	Crystal structure of the 4th FN3 domain of human Protein Tyrosine phosphatase, receptor type F [PSI-NYSGRC-006240]
Keywords keywords	;internal FN3 domain, Structural genomics, PSI-Biology, New York Structural Genomics Research Consortium (NYSGRC), HYDROLASE, Atoms-to-Animals: The Immune Function Network, IFN ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.45 Å
Radius of gyration Rg (electron density) rg_electron	14.43 Å
Forward intensity I(0) i0	3355060.00
Molecular weight molecular_weight	12002.0 kDa
Excluded volume excluded_volume	14623 Å³
Envelope volume envelope_volume	16911 Å³
Hydration-shell volume shell_volume	10578 Å³
Envelope diameter envelope_diameter	55.4 Å
Shell Rg shell_rg	19.49 Å
Envelope Rg envelope_rg	14.92 Å
Shape Rg shape_rg	14.41 Å
Total Rg total_rg	15.49 Å
Total atoms total_atoms	1623
Residues n_residues	108
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.0 Å
Rg (real space) rg_real	15.49 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	3.3550e+06
I(0) uncertainty (real space) i0_real_error	4.2000e+04
Rg (reciprocal space) rg_reciprocal	15.49 Å
I(0) (reciprocal space) i0_reciprocal	3355000.0000
Solution quality estimate total_estimate	0.7575
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.0 Å
Skewness Skewness skewness	0.434
Kurtosis Kurtosis kurtosis	-0.202
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	814900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.678; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.808; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Receptor-type tyrosine-protein phosphatase F
Molecular weight formula_weight	12905.1 kDa
EC 编号 ec_number	3.1.3.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1853

QDYGGTAQSTPSAPPQKVMCVSMGSTTVRVSWVPPPADSRNGVITQYSVAYEAVDGEDRGRHVVDGISREHSSWDLVGLEKWTEYRVWVRAHTDVGPGPESSPVLVRTDEAENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	116

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4n5ua1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.0 — automated matches

Domain ID domain_id	d4n5ua2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4n5uA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.011 Å
Unit-cell length b length_b	39.677 Å
Unit-cell length c length_c	68.525 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.456 Å
Low-resolution limit resolution_low	34.337 Å
R factor r_factor	0.1641
R_work r_work	0.1623
R_free r_free	0.1983

fit	/app/data/saxs_computation/n5/4n5u/4n5u.fit
pddf	/app/data/pr_computation/n5/4n5u/4n5u.pr.out
profile	/app/data/saxs_computation/n5/4n5u/4n5u.dat

Crystal structure of the 4th FN3 domain of human Protein Tyrosine phosphatase, receptor type F [PSI-NYSGRC-006240]

1. Protein Identity and Related Structures Protein Identity & Related Structures

Receptor-type tyrosine-protein phosphatase F

State in the Current Structure

Other States of the Same Protein in the Database

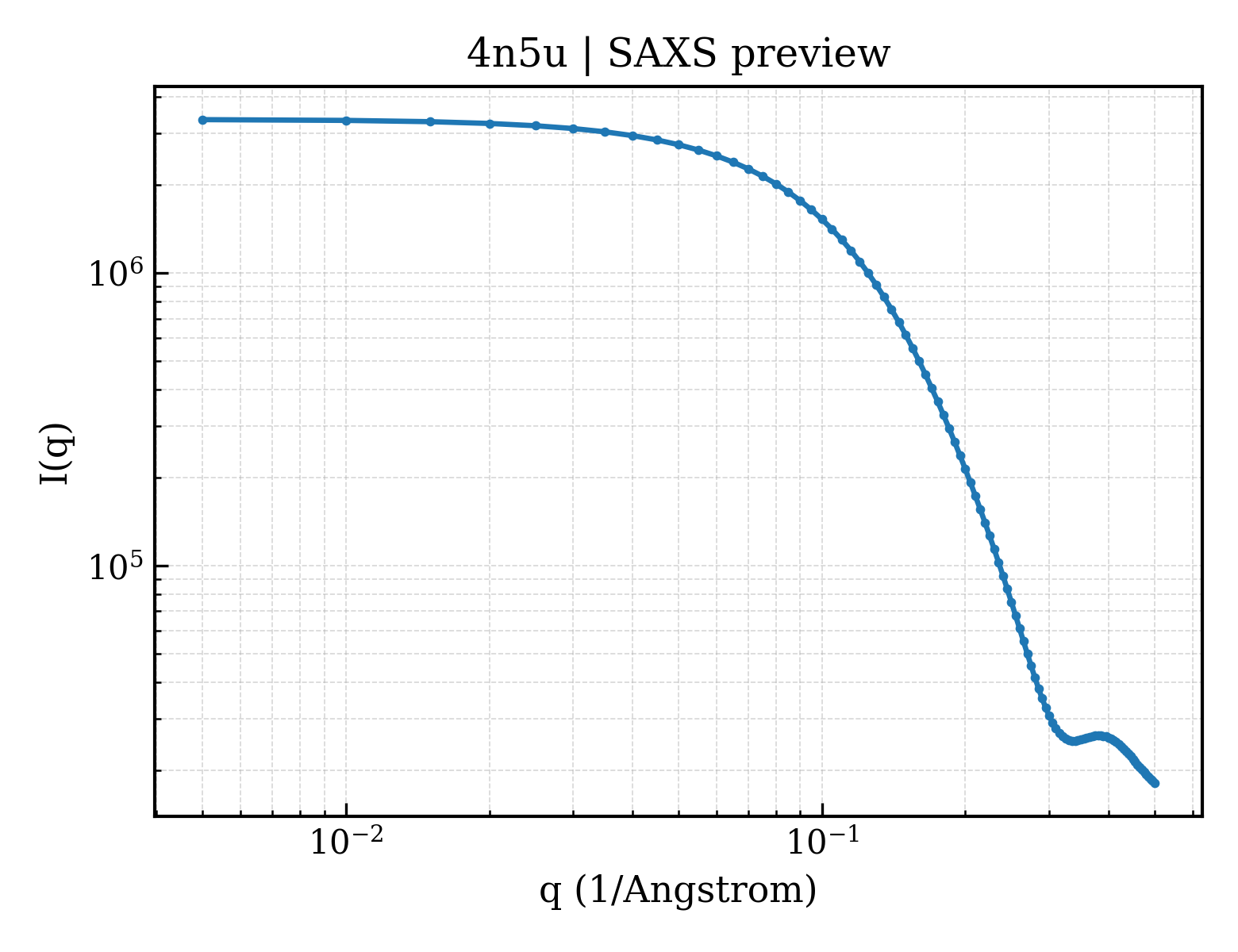

SAXS scattering curve SAXS Profile
