4ohu

Crystal structure of Mycobacterium tuberculosis InhA in complex with inhibitor PT92

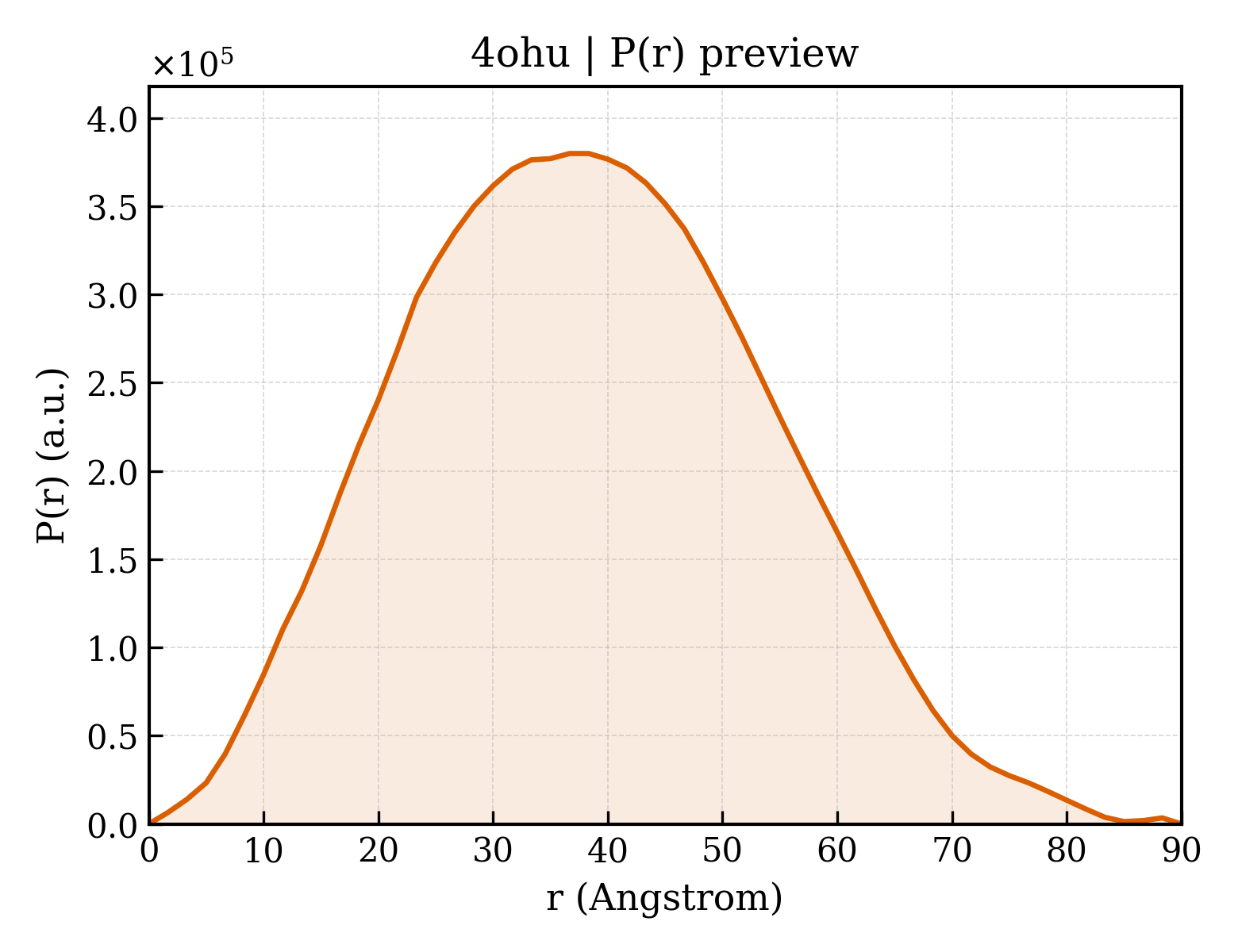

Method: X-RAY DIFFRACTION Dmax: 90.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Enoyl-[acyl-carrier-protein] reductase [NADH]

Mycobacterium tuberculosis

UniProt P0A5Y6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain A； UniProt 1–269 Chain B； UniProt 1–269 Chain C； UniProt 1–269 Chain D； UniProt 1–269 Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 2TK 2-(2-bromophenoxy)-5-hexylphenol × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；100 mM Bis-tris, 200 mM NaCl, 14% PEG 3350, 4% DMSO, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K Resolution 1.60 Å R-free 0.188

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4OHU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BVR M.TB. ENOYL-ACP REDUCTASE (INHA) IN COMPLEX WITH NAD+ AND C16-FATTY-ACYL-SUBSTRATE Deposited 1998-09-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 2–269（268 aa）
Chain D 2–269（268 aa）
Chain E 2–269（268 aa）
Chain F 2–269（268 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 THT TRANS-2-HEXADECENOYL-(N-ACETYL-CYSTEAMINE)-THIOESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；10% PEG-4000, 6% DMSO, 100 MM AMMONIUM ACETATE, AND 100 MM ADA, PH 6.8
Resolution 2.80 Å R-free 0.344
1BVR M.TB. ENOYL-ACP REDUCTASE (INHA) IN COMPLEX WITH NAD+ AND C16-FATTY-ACYL-SUBSTRATE Deposited 1998-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–269（268 aa）
Chain B 2–269（268 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 THT TRANS-2-HEXADECENOYL-(N-ACETYL-CYSTEAMINE)-THIOESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；10% PEG-4000, 6% DMSO, 100 MM AMMONIUM ACETATE, AND 100 MM ADA, PH 6.8
Resolution 2.80 Å R-free 0.344
1BVR M.TB. ENOYL-ACP REDUCTASE (INHA) IN COMPLEX WITH NAD+ AND C16-FATTY-ACYL-SUBSTRATE Deposited 1998-09-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Chain B 2–269（268 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 THT TRANS-2-HEXADECENOYL-(N-ACETYL-CYSTEAMINE)-THIOESTER × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；10% PEG-4000, 6% DMSO, 100 MM AMMONIUM ACETATE, AND 100 MM ADA, PH 6.8
Resolution 2.80 Å R-free 0.344
1ENY CRYSTAL STRUCTURE AND FUNCTION OF THE ISONIAZID TARGET OF MYCOBACTERIUM TUBERCULOSIS Deposited 1995-01-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 3–269（267 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1ENY CRYSTAL STRUCTURE AND FUNCTION OF THE ISONIAZID TARGET OF MYCOBACTERIUM TUBERCULOSIS Deposited 1995-01-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 3–269（267 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1ENZ CRYSTAL STRUCTURE AND FUNCTION OF THE ISONIAZID TARGET OF MYCOBACTERIUM TUBERCULOSIS Deposited 1995-01-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 3–269（267 aa）
Mutation：S94A NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å
1ENZ CRYSTAL STRUCTURE AND FUNCTION OF THE ISONIAZID TARGET OF MYCOBACTERIUM TUBERCULOSIS Deposited 1995-01-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 3–269（267 aa）
Mutation：S94A NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å
1P44 Targeting tuberculosis and malaria through inhibition of enoyl reductase: compound activity and structural data Deposited 2003-04-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 GEQ 5-{[4-(9H-FLUOREN-9-YL)PIPERAZIN-1-YL]CARBONYL}-1H-INDOLE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；100 mM ADA, 150 mM ammonium acetate, 12% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.70 Å R-free 0.288
1P44 Targeting tuberculosis and malaria through inhibition of enoyl reductase: compound activity and structural data Deposited 2003-04-21 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 GEQ 5-{[4-(9H-FLUOREN-9-YL)PIPERAZIN-1-YL]CARBONYL}-1H-INDOLE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；100 mM ADA, 150 mM ammonium acetate, 12% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.70 Å R-free 0.288
1P45 Targeting tuberculosis and malaria through inhibition of enoyl reductase: compound activity and structural data Deposited 2003-04-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 TCL TRICLOSAN × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；100 mM Tris, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.60 Å R-free 0.290
1ZID LONG FATTY ACID CHAIN ENOYL-ACP REDUCTASE (INHA) IN COMPLEX WITH AN ISONICOTINIC-ACYL-NADH INHIBITOR Deposited 1997-03-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 3–269（267 aa）
Mutation：T2A ZID ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；12% MPD, 4% DMSO, 50MM NACITRATE, 100 MM HEPES, PH 7.5
Resolution 2.70 Å R-free 0.297
2AQ8 Crystal structure of wild-type of Enoyl-ACP(CoA) reductase from Mycobacterium tuberculosis in complex with NADH. Deposited 2005-08-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 LYS LYSINE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05 M Sodium citrate, 0.05 M Hepes, 8-15% 2-Methyl-2-4-pentanediol (MPD), pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.92 Å R-free 0.213
2AQH Crystal structure of Isoniazid-resistant I21V Enoyl-ACP(CoA) reductase mutant enzyme from Mycobacterium tuberculosis in complex with NADH Deposited 2005-08-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：I21V NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05M Sodium citrate, 0.05M Hepes, 8-15% 2-Methyl-2-4-pentanediol (MPD), pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.01 Å R-free 0.227
2AQI Crystal structure of Isoniazid-resistant I47T Enoyl-ACP(CoA) reductase mutant enzyme from Mycobacterium tuberculosis in complex with NADH Deposited 2005-08-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：I47T NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05M Sodium citrate, 0.05M Hepes, 8-15% 2-Methyl-2-4-pentanediol (MPD), pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.213
2AQK Crystal structure of Isoniazid-resistant S94A Enoyl-ACP(CoA) reductase mutant enzyme from Mycobacterium tuberculosis in complex with NADH Deposited 2005-08-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：S94A NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05M Sodium citrate, 0.05M Hepes, 8-15% 2-Methyl-2-4-pentanediol (MPD), pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.242
2B35 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by triclosan Deposited 2005-09-19 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded TCL TRICLOSAN × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.30 Å R-free 0.334
2B35 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by triclosan Deposited 2005-09-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded TCL TRICLOSAN × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.30 Å R-free 0.334
2B36 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by 5-pentyl-2-phenoxyphenol Deposited 2005-09-19 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded 5PP 5-PENTYL-2-PHENOXYPHENOL × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA , pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.80 Å R-free 0.295
2B36 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by 5-pentyl-2-phenoxyphenol Deposited 2005-09-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded 5PP 5-PENTYL-2-PHENOXYPHENOL × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA , pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.80 Å R-free 0.295
2B37 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by 5-octyl-2-phenoxyphenol Deposited 2005-09-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA , pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.60 Å R-free 0.294
2B37 Crystal structure of Mycobacterium tuberculosis enoyl reductase (InhA) inhibited by 5-octyl-2-phenoxyphenol Deposited 2005-09-19 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 8PS 5-OCTYL-2-PHENOXYPHENOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；295 K；PEG 4000, DMSO, ammonium acetate, NAD+, ADA , pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.60 Å R-free 0.294
2H9I Mycobacterium tuberculosis InhA bound with ETH-NAD adduct Deposited 2006-06-09 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 3–269（267 aa）
Not recorded EAD {(2R,3S,4R,5R)-5-[(4S)-3-(AMINOCARBONYL)-4-(2-ETHYLISONICOTINOYL)PYRIDIN-1(4H)-YL]-3,4-DIHYDROXYTETRAHYDROFURAN-2-YL}METHYL [(2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-3,4-DIHYDROXYTETRAHYDROFURAN-2-YL]METHYL DIHYDROGEN DIPHOSPHATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；12% MDP, 4% DMSO, 0.1M Hepes, 0.025M Sodium Citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.20 Å R-free 0.261
2IDZ Crystal structure of wild type Enoyl-ACP(CoA) reductase from Mycobacterium tuberculosis in complex with NADH-INH Deposited 2006-09-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Not recorded ZID ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05M SODIUM CITRATE, 0.05M HEPES, 8-15% 2-METHYL-2-4-PENTANEDIOL (MPD), PH 7.2, TEMPERATURE 293K , VAPOR DIFFUSION, HANGING DROP
Resolution 2.00 Å R-free 0.226
2IE0 Crystal Structure of Isoniazid-resistant I21V Enoyl-ACP(COA) Reductase Mutant Enzyme From MYCOBACTERIUM TUBERCULOSIS in Complex with NADH-INH Deposited 2006-09-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Mutation：i21v ZID ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05M SODIUM CITRATE, 0.05M HEPES, 8-15% 2-METHYL-2-4-PENTANEDIOL (MPD), PH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.237
2IEB Crystal Structure of Isoniazid-resistant S94A ENOYL-ACP(COA) Reductase Mutant Enzyme from MYCOBACTERIUM TUBERCULOSIS in Complex with NADH-INH Deposited 2006-09-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Mutation：S94A ZID ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.05 M SODIUM CITRATE, 0.05 M HEPES, 8-15% 2-METHYL-2-4-PENTANEDIOL (MPD), PH 7.2., VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.240
2IED CRYSTAL STRUCTURE of ISONIAZID-RESISTANT S94A ENOYL-ACP(COA) REDUCTASE MUTANT ENZYME FROM MYCOBACTERIUM TUBERCULOSIS UNCOMPLEXED Deposited 2006-09-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Chain B 2–269（268 aa）
Chain C 2–269（268 aa）
Chain D 2–269（268 aa）
Mutation：S94A Mutation：S94A Mutation：S94A Mutation：S94A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；100 mM sodium citrate, pH 5.6, 200 mM ammonium acetate and 20-30% of the PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.14 Å R-free 0.255
2NSD Enoyl acyl carrier protein reductase InhA in complex with N-(4-methylbenzoyl)-4-benzylpiperidine Deposited 2006-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 4PI N-(4-METHYLBENZOYL)-4-BENZYLPIPERIDINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；8% MPD, 50mM Sodium citrate pH 6.5, 100mM HEPES pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.90 Å R-free 0.259
2NSD Enoyl acyl carrier protein reductase InhA in complex with N-(4-methylbenzoyl)-4-benzylpiperidine Deposited 2006-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 4PI N-(4-METHYLBENZOYL)-4-BENZYLPIPERIDINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；8% MPD, 50mM Sodium citrate pH 6.5, 100mM HEPES pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.90 Å R-free 0.259
2NTJ Mycobacterium tuberculosis InhA bound with PTH-NAD adduct Deposited 2006-11-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 3–269（267 aa）
Chain B 3–269（267 aa）
Mutation：D2A Mutation：D2A P1H {(2R,3S,4R,5R)-5-[(4S)-3-(AMINOCARBONYL)-4-(2-PROPYLISONICOTINOYL)PYRIDIN-1(4H)-YL]-3,4-DIHYDROXYTETRAHYDROFURAN-2-YL}M ETHYL [(2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-3,4-DIHYDROXYTETRAHYDROFURAN-2-YL]METHYL DIHYDROGEN DIPHOSPHATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；12% MDP, 4% DMSO, 0.1M Hepes, 0.025M Sodium Citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.50 Å R-free 0.268
2NV6 Mycobacterium tuberculosis InhA (S94A) bound with INH-NAD adduct Deposited 2006-11-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–269（268 aa）
Mutation：D2A, S94A ZID ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；12% MPD, 4% DMSO, 0.1 M Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 1.90 Å R-free 0.228
2PR2 Structure of Mycobacterium tuberculosis enoyl-ACP reductase with bound INH-NADP. Deposited 2007-05-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded DG1 (4S)-ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 9；291 K；Cocrystallization with Inh-NADP at 4.8 mM 20 25% of 2-methyl-2,4-pentanediol, 100 mM Bicine pH 9.0., Vapour diffusion under oil, temperature 291K, VAPOR DIFFUSION
Resolution 2.50 Å R-free 0.217
2X22 crystal structure of M. tuberculosis InhA inhibited by PT70 Deposited 2010-01-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 TCU 5-HEXYL-2-(2-METHYLPHENOXY)PHENOL × 4 DMS DIMETHYL SULFOXIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions 12-16% (W/V) PEG4000, 1% DMSO, 100MM ADA PH 6.8, 250MM AMMONIUM ACETATE
Resolution 2.10 Å R-free 0.216
2X23 crystal structure of M. tuberculosis InhA inhibited by PT70 Deposited 2010-01-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain E 1–269（269 aa）
Chain G 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 TCU 5-HEXYL-2-(2-METHYLPHENOXY)PHENOL × 4 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 12-16% (W/V) PEG 4000, 1% DMSO, 250MM AMMONIUM ACETATE, 100MM ADA PH 6.8
Resolution 1.81 Å R-free 0.203
3FNE Crystal structure of InhA bound to triclosan derivative 17 Deposited 2008-12-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 8PC 2-(2,4-DICHLOROPHENOXY)-5-(PYRIDIN-2-YLMETHYL)PHENOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；20% PEG 3350, 6% DMSO, 0.1 m N-(2-acetamido)iminodiacetic acid pH 6.8, 0.08 m NH4OAc, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.98 Å R-free 0.253
3FNF Crystal structure of InhA bound to triclosan derivative Deposited 2008-12-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 JPM 5-benzyl-2-(2,4-dichlorophenoxy)phenol × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；20% PEG 3350, 6% DMSO, 0.1M ADA pH 6.8, and 0.08 M ammonium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.260
3FNG Crystal structure of InhA bound to triclosan derivative Deposited 2008-12-24 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 JPL 5-(cyclohexylmethyl)-2-(2,4-dichlorophenoxy)phenol × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 12% MPD, and 4% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.97 Å R-free 0.253
3FNH Crystal structure of InhA bound to triclosan derivative Deposited 2008-12-24 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 JPJ 2-(2,4-DICHLOROPHENOXY)-5-(2-PHENYLETHYL)PHENOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 12% MPD, and 4% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.268
3OEW Crystal structure of wild-type InhA:NADH complex Deposited 2010-08-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；100 mM Hepes 7.2, 50 mM sodium citrate 6.5, 8-12% MPD, 4% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.20 Å R-free 0.209
3OEY Crystal structure of InhA_T266E:NADH complex Deposited 2010-08-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：T266E NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；100 mM Hepes 7.2, 50 mM sodium citrate 6.5, 8-12% MPD, 4% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.00 Å R-free 0.214
3OF2 Crystal structure of InhA_T266D:NADH complex Deposited 2010-08-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：T266D NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；100 mM Hepes 7.2, 50 mM sodium citrate 6.5, 8-12% MPD, 4% DMSO , VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.00 Å R-free 0.203
4BII How nature bridges the gap: Crystallographic elucidation of pyridomycin binding to InhA Deposited 2013-04-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 3 PYW Pyridomycin × 3 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.205
4BQP Mtb InhA complex with Methyl-thiazole compound 7 Deposited 2013-05-31 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 NA SODIUM ION × 2 VMY (1S)-1-(5-{[1-(2,6-DIFLUOROBENZYL)-1H-PYRAZOL-3-YL]AMINO}-1,3,4-THIADIAZOL-2-YL)-1-(4-METHYL-1,3-THIAZOL-2-YL)ETHANOL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.89 Å R-free 0.233
4BQP Mtb InhA complex with Methyl-thiazole compound 7 Deposited 2013-05-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 VMY (1S)-1-(5-{[1-(2,6-DIFLUOROBENZYL)-1H-PYRAZOL-3-YL]AMINO}-1,3,4-THIADIAZOL-2-YL)-1-(4-METHYL-1,3-THIAZOL-2-YL)ETHANOL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.89 Å R-free 0.233
4BQP Mtb InhA complex with Methyl-thiazole compound 7 Deposited 2013-05-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Chain E 1–269（269 aa）
Chain F 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 VMY (1S)-1-(5-{[1-(2,6-DIFLUOROBENZYL)-1H-PYRAZOL-3-YL]AMINO}-1,3,4-THIADIAZOL-2-YL)-1-(4-METHYL-1,3-THIAZOL-2-YL)ETHANOL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.89 Å R-free 0.233
4BQR Mtb InhA complex with Methyl-thiazole compound 11 Deposited 2013-05-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 IBH (NZ)-2-[2,6-bis(fluoranyl)phenyl]-N-[5-[(1S)-1-(4-methyl-1,3-thiazol-2-yl)-1-oxidanyl-ethyl]-3H-1,3,4-thiadiazol-2-ylidene]ethanamide × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.05 Å R-free 0.232
4COD Encoded library technology as a source of hits for the discovery and lead optimization of a potent and selective class of bactericidal direct inhibitors of Mycobacterium tuberculosis InhA Deposited 2014-01-28 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain B 1–269（269 aa）
Chain D 1–269（269 aa）
Chain F 1–269（269 aa）
Chain H 1–269（269 aa）
Not recorded KV1 N-((3R,5S)-1-(benzofuran-3-carbonyl)-5-(ethylcarbamoyl)pyrrolidin-3-yl)-3-ethyl-1-methyl-1H-pyrazole-5-carboxamide × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% PEG 8K, 0.1M TRIS PH8.5 25% ETHYLENE GLYCOL USED AS CRYO.
Resolution 2.40 Å R-free 0.206
4DQU Mycobacterium tuberculosis InhA-D148G mutant in complex with NADH Deposited 2012-02-16 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：D148G NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 9；291 K；8% (v/v) MPD and 0.1 M Bicine, pH 9, VAPOR DIFFUSION, temperature 291K
Resolution 2.45 Å R-free 0.254
4DRE Mycobacterium tuberculosis InhA in complex with NADH Deposited 2012-02-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；10% (v/v) MPD and 0.1 M TRIS, pH 8, VAPOR DIFFUSION, temperature 291K
Resolution 2.40 Å R-free 0.249
4DRE Mycobacterium tuberculosis InhA in complex with NADH Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–269（269 aa）
Not recorded NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；10% (v/v) MPD and 0.1 M TRIS, pH 8, VAPOR DIFFUSION, temperature 291K
Resolution 2.40 Å R-free 0.249
4DRE Mycobacterium tuberculosis InhA in complex with NADH Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–269（269 aa）
Not recorded NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；291 K；10% (v/v) MPD and 0.1 M TRIS, pH 8, VAPOR DIFFUSION, temperature 291K
Resolution 2.40 Å R-free 0.249
4DTI Mycobacterium tuberculosis InhA-S94A mutant in complex with NADH Deposited 2012-02-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Mutation：S94A NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；8% (v/v) MPD, 50mM Sodium Citrate, pH 6.5 and 0.1 M Hepes, VAPOR DIFFUSION, temperature 291K
Resolution 1.90 Å R-free 0.212
4OIM Crystal structure of Mycobacterium tuberculosis InhA in complex with inhibitor PT119 in 2.4 M acetate Deposited 2014-01-20 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 JUS 2-(2-CYANOPHENOXY)-5-HEXYLPHENOL × 4 ACT ACETATE ION × 44 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；2.4 M sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.85 Å R-free 0.198
4OXK Multiple binding modes of inhibitor PT155 to the Mycobacterium tuberculosis enoyl-ACP reductase InhA within a tetramer Deposited 2014-02-05 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 1S5 5-(4-amino-2-methylphenoxy)-2-hexyl-4-hydroxy-1-methylpyridinium × 4 2NV 3,6,9,12,15-pentaoxaoctadecan-17-amine × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；100 mM HEPES pH 8.0, 32% Jeffamine ED-2001 pH 7.0
Resolution 1.84 Å R-free 0.177
4OXN Substrate-like binding mode of inhibitor PT155 to the Mycobacterium tuberculosis enoyl-ACP reductase InhA Deposited 2014-02-05 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 1S5 5-(4-amino-2-methylphenoxy)-2-hexyl-4-hydroxy-1-methylpyridinium × 4 CL CHLORIDE ION × 4 2NV 3,6,9,12,15-pentaoxaoctadecan-17-amine × 16 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；100 mM HEPES pH 8.0, 32% Jeffamine ED-2001 pH 7.0
Resolution 2.29 Å R-free 0.205
4OXY Substrate-binding loop movement with inhibitor PT10 in the tetrameric Mycobacterium tuberculosis enoyl-ACP reductase InhA Deposited 2014-02-09 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 1TN 5-hexyl-2-(2-nitrophenoxy)phenol × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；250 mM ammonium acetate, 14% PEG 4000, 6% DMSO
Resolution 2.35 Å R-free 0.220
4OYR Competition of the small inhibitor PT91 with large fatty acyl substrate of the Mycobacterium tuberculosis enoyl-ACP reductase InhA by induced substrate-binding loop refolding Deposited 2014-02-13 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–269（269 aa）
Chain B 1–269（269 aa）
Chain C 1–269（269 aa）
Chain D 1–269（269 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 1US 2-(2-chloranylphenoxy)-5-hexyl-phenol × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；100 mM ADA, 200 mM ammonium acetate, 16% PEG 4000, 6% DMSO
Resolution 2.30 Å R-free 0.244

43 other PDB entries and 56 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name INHA_MYCTU
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 21–289； UniProt 1–269 Author chain B； PDBConstruct 21–289； UniProt 1–269 Author chain C； PDBConstruct 21–289； UniProt 1–269 Author chain D； PDBConstruct 21–289； UniProt 1–269

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4ohu

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4ohu
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4ohu
Deposition date deposition_date2014-01-18
Structure title titleCrystal structure of Mycobacterium tuberculosis InhA in complex with inhibitor PT92
Keywords keywords;catalysis, inhibition, slow-onset inhibition, induced-fit, conformational change, simulation, binding pathway, binding energy, OXIDOREDUCTASE-OXIDOREDUCTASE INHIBITOR complex ;; OXIDOREDUCTASE/OXIDOREDUCTASE INHIBITOR
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier29.30 Å
Radius of gyration Rg (electron density) rg_electron28.36 Å
Forward intensity I(0) i0200259000.00
Molecular weight molecular_weight113450.0 kDa
Excluded volume excluded_volume142110 ų
Envelope volume envelope_volume161570 ų
Hydration-shell volume shell_volume45165 ų
Envelope diameter envelope_diameter96.5 Å
Shell Rg shell_rg37.61 Å
Envelope Rg envelope_rg28.54 Å
Shape Rg shape_rg28.36 Å
Total Rg total_rg29.11 Å
Total atoms total_atoms7956
Residues n_residues1055
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax90.0 Å
Rg (real space) rg_real29.15 Å
Rg uncertainty (real space) rg_real_error0.55 Å
I(0) (real space) i0_real2.0030e+08
I(0) uncertainty (real space) i0_real_error2.5590e+06
Rg (reciprocal space) rg_reciprocal29.22 Å
I(0) (reciprocal space) i0_reciprocal200300000.0000
Solution quality estimate total_estimate0.8934
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary88.3 Å
Skewness Skewness skewness0.191
Kurtosis Kurtosis kurtosis-0.418
Angular range angular_range— – 0.2700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha97520000.0000
Real-space data points n_real_points55
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.918; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.880
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id4ohuA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily720 — NAD(P)-binding Rossmann-like Domain
Domain ID domain_id4ohuB00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily720 — NAD(P)-binding Rossmann-like Domain
Domain ID domain_id4ohuC00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily720 — NAD(P)-binding Rossmann-like Domain
Domain ID domain_id4ohuD00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily720 — NAD(P)-binding Rossmann-like Domain
▶

8. Citations (2)

▶

9. Files and Curves (10)
