SAXSdb — 4ozq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chimera of Maltose-binding periplasmic protein and Kinesin family member 14 protein

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	ADENOSINE-5'-DIPHOSPHATE × 1 1,2-ETHANEDIOL × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	ADENOSINE-5'-DIPHOSPHATE × 1 1,2-ETHANEDIOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L0N7N1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 372–720； UniProt 390–738 Author chain B； PDBConstruct 372–720； UniProt 390–738

Chimera of Maltose-binding periplasmic protein and Kinesin family member 14 protein

Mus musculus

UniProt T9HUW4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	ADENOSINE-5'-DIPHOSPHATE × 1 1,2-ETHANEDIOL × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	ADENOSINE-5'-DIPHOSPHATE × 1 1,2-ETHANEDIOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	T9HUW4_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–362； UniProt 27–387 Author chain B； PDBConstruct 2–362； UniProt 27–387

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ozq
Deposition date deposition_date	2014-02-18
Structure title title	Crystal structure of the mouse Kif14 motor domain
Keywords keywords	Kinesin, ATPase, motor protein; MOTOR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4ozq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4ozq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

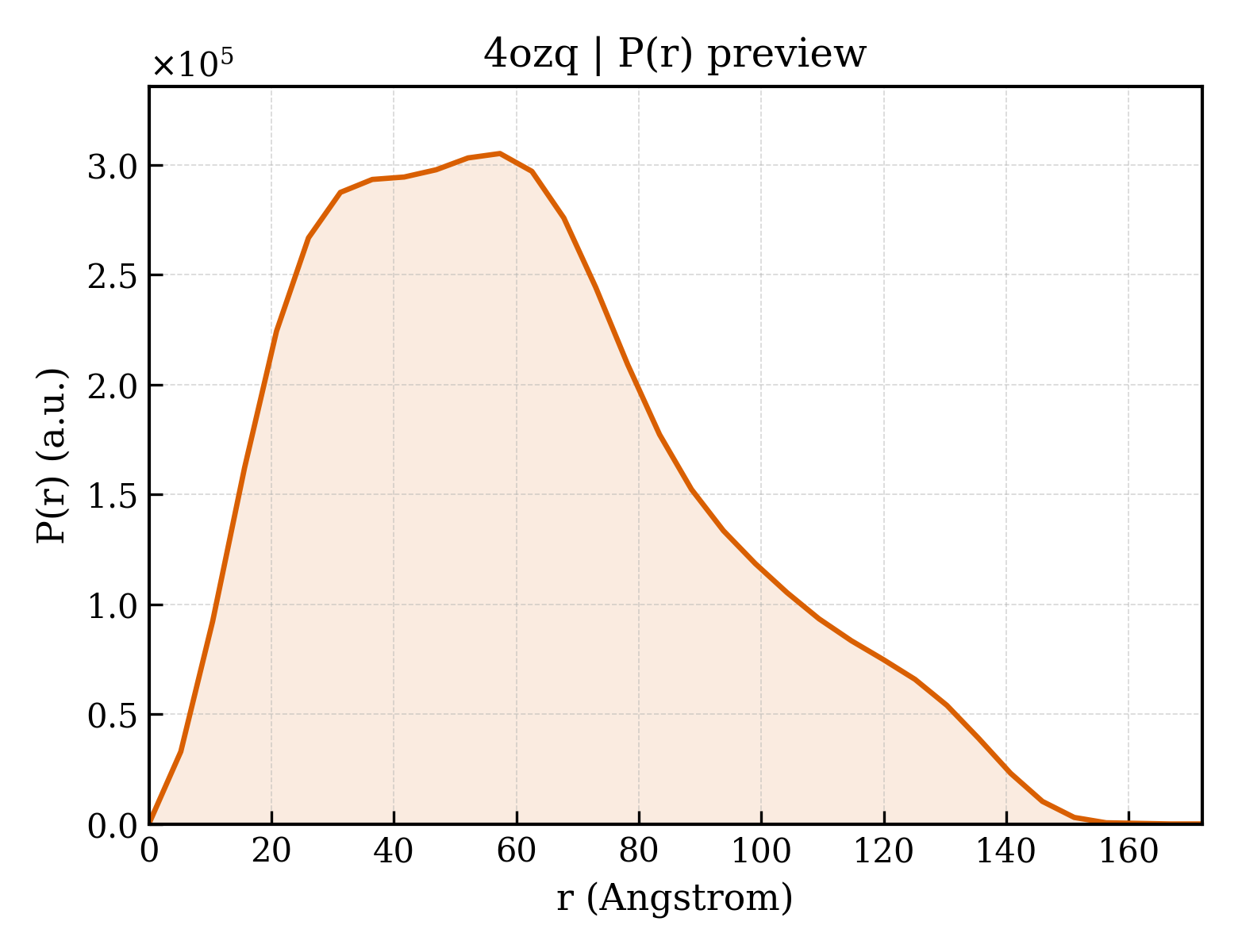

4ozq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.20 Å
Rg (electron density)	30.45 Å
Total Rg	31.10 Å
Atom count	5101
Residues	683
Excluded volume	90356 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4ozq__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4ozq__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Chimera of Maltose-binding periplasmic protein and Kinesin family member 14 protein
Molecular weight formula_weight	79475.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10264

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDAALAAAQTNAAAENSQVTVAVRVRPFSKREKTEKASQVVFTNGEEITVEHPDMKQVYSFIYDVSFWSFDECHPGYASQTTVYETLAAPLLDRAFEGYNTCLFAYGQTGSGKSYTMMGLNEEPGIIPRFCEDLFAQIAKKQTSEVSYHLEMSFFEVYNEKIHDLLVCKGENGQRKQPLRAREHPVSGPYVEGLSMNVVSSYSDIQSWLELGNKQRATAATGMNDKSSRSHSVFTLVMTQTKTEVVEGEEHDHRITSRINLVDLAGSERCSTAHSSGQRLKEGVSINKSLLTLGKVISALSEQANGKRVFIPYRESTLTWLLKESLGGNSKTAMIATVSPAASNIEETLSTLRYATQARLIVN

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	36

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	4ozqA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	4ozqA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	850 — Kinesin
Homologous superfamily homologous superfamily	10 — Kinesin motor domain

Domain ID domain_id	4ozqB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	4ozqB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	850 — Kinesin
Homologous superfamily homologous superfamily	10 — Kinesin motor domain

▶

Unit-cell length a length_a	65.137 Å
Unit-cell length b length_b	72.193 Å
Unit-cell length c length_c	94.098 Å
Unit-cell angle α angle_alpha	74.43 °
Unit-cell angle β angle_beta	87.45 °
Unit-cell angle γ angle_gamma	89.94 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.710 Å
Low-resolution limit resolution_low	29.360 Å
R factor r_factor	0.2661
R_work r_work	0.2638
R_free r_free	0.3075
