SAXSdb — 4qy3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Carbonic anhydrase 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 2-[(S)-benzylsulfinyl]benzoic acid × 1 4-(HYDROXYMERCURY)BENZOIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAH2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–259； UniProt 2–260

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4qy3
Deposition date deposition_date	2014-07-23
Structure title title	THE CRYSTAL STRUCTURE OF THE COMPLEX of HCAII WITH AN ORTHO-SUBSTITUTED BENZOIC ACID
Keywords keywords	CARBONIC ANHYDRASE II, LYASE, Lyase-Lyase inhibitor complex; Lyase/Lyase inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4qy3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4qy3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

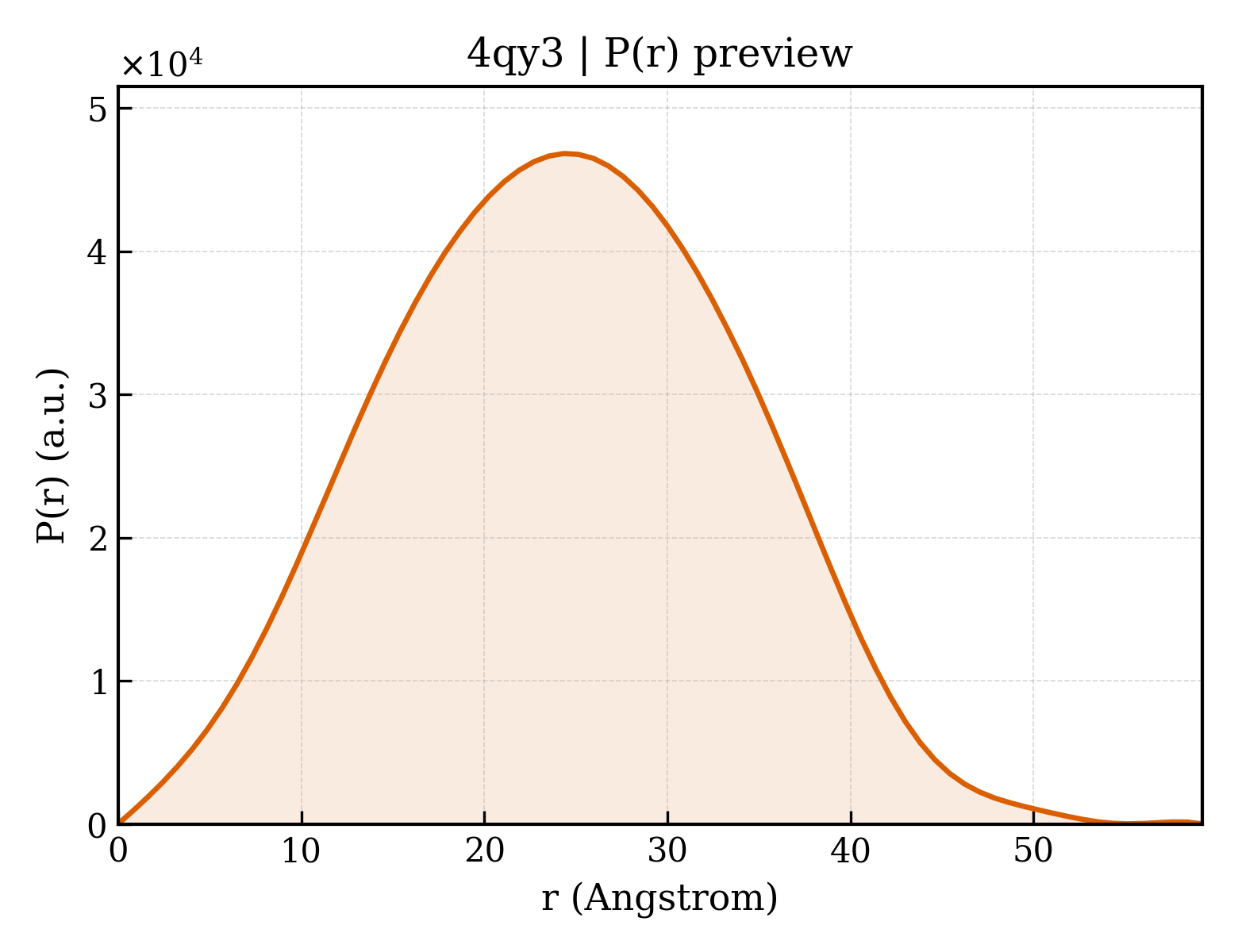

4qy3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.63 Å
Rg (electron density)	17.37 Å
Total Rg	18.45 Å
Atom count	2077
Residues	257
Excluded volume	36916 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4qy3__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Carbonic anhydrase 2
Molecular weight formula_weight	29157.9 kDa
EC 编号 ec_number	4.2.1.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2414

SHHWGYGKHNGPEHWHKDFPIAKGERQSPVDIDTHTAKYDPSLKPLSVSYDQATSLRILNNGHAFNVEFDDSQDKAVLKGGPLDGTYRLIQFHFHWGSLDGQGSEHTVDKKKYAAELHLVHWNTKYGDFGKAVQQPDGLAVLGIFLKVGSAKPGLQKVVDVLDSIKTKGKSADFTNFDPRGLLPESLDYWTYPGSLTTPPLLECVTWIVLKEPISVSSEQVLKFRKLNFNGEGEPEELMVDNWRPAQPLKNRQIKASFK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-[(S)-benzylsulfinyl]benzoic acid
Molecular weight formula_weight	260.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	4-(HYDROXYMERCURY)BENZOIC ACID
Molecular weight formula_weight	338.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	284

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4qy3a_
Class class	b — All beta proteins
Fold Fold fold	b.74 — Carbonic anhydrase
Superfamily Superfamily superfamily	b.74.1 — Carbonic anhydrase
Family Family family	b.74.1.1 — Carbonic anhydrase

CATH v4.4 (1 domains)

Domain ID domain_id	4qy3A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	200 — Carbonic Anhydrase II
Homologous superfamily homologous superfamily	10 — Alpha carbonic anhydrase

▶

Unit-cell length a length_a	42.150 Å
Unit-cell length b length_b	41.530 Å
Unit-cell length c length_c	72.180 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.1630
R_free r_free	0.1840

THE CRYSTAL STRUCTURE OF THE COMPLEX of HCAII WITH AN ORTHO-SUBSTITUTED BENZOIC ACID
