SAXSdb — 4to0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Deoxynucleoside triphosphate triphosphohydrolase SAMHD1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 4 GUANOSINE-5'-TRIPHOSPHATE × 4 ;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ; × 4 MAGNESIUM ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SAMH1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–514； UniProt 113–626 Author chain B； PDBConstruct 1–514； UniProt 113–626 Author chain C； PDBConstruct 1–514； UniProt 113–626 Author chain D； PDBConstruct 1–514； UniProt 113–626

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4to0
Deposition date deposition_date	2014-06-05
Structure title title	Structure basis of cellular dNTP regulation, SAMHD1-GTP-dATP-dCTP complex
Keywords keywords	SAMHD1, HIV, restriction factor, dNTPase, dNTP regulation, host pathogen interaction, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4to0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

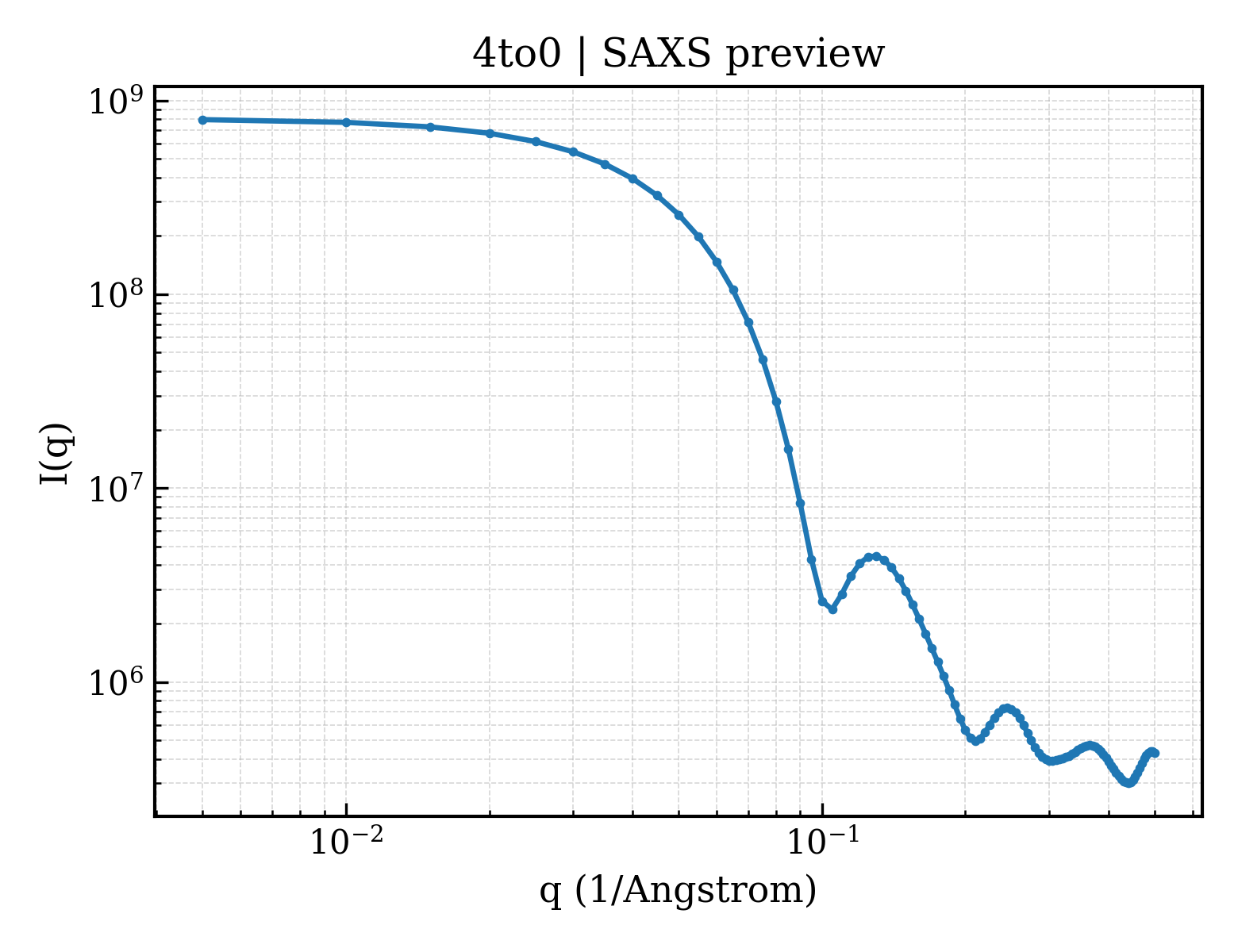

4to0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

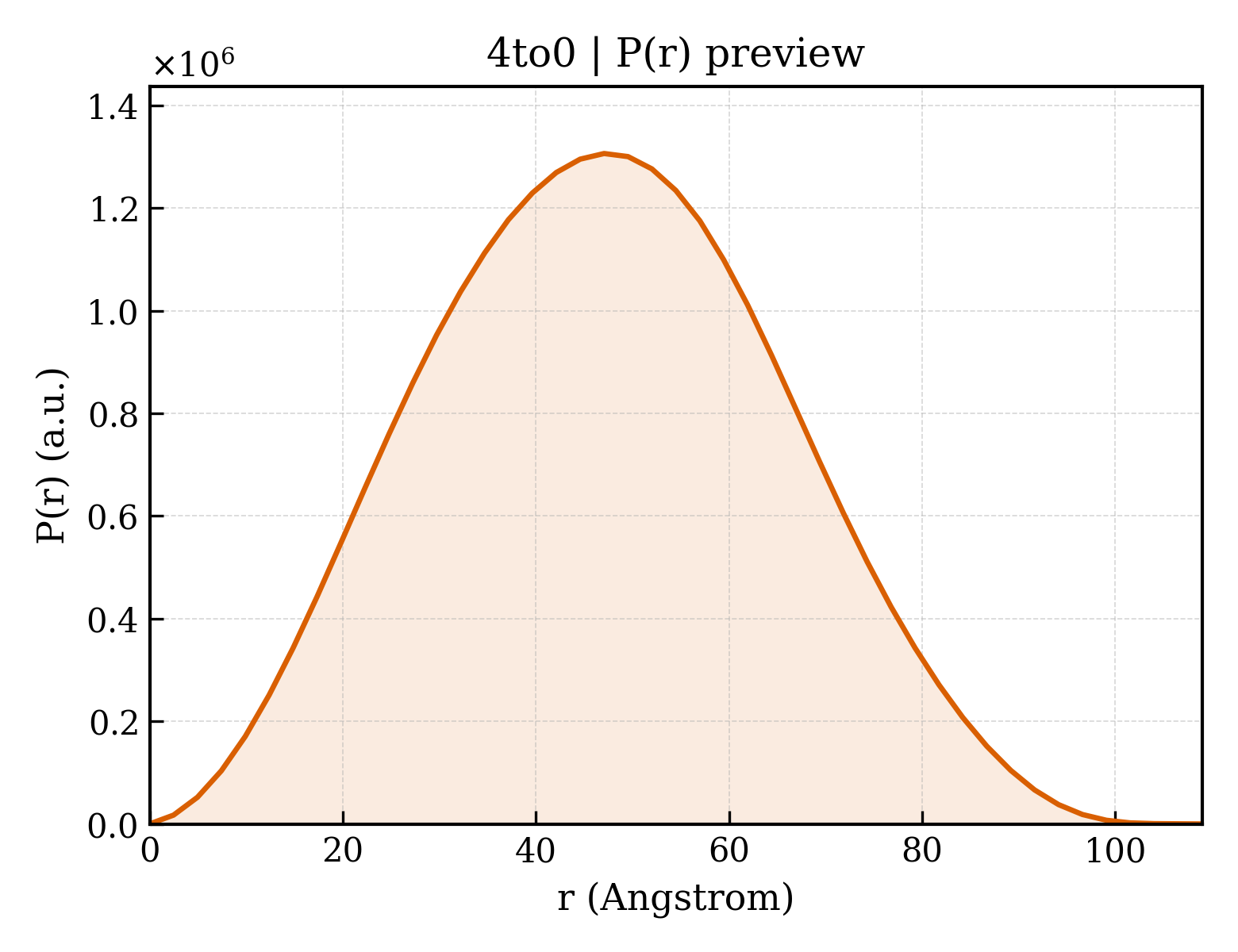

4to0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.04 Å
Rg (electron density)	35.59 Å
Total Rg	36.26 Å
Atom count	16087
Residues	1924
Excluded volume	285540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4to0__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Deoxynucleoside triphosphate triphosphohydrolase SAMHD1
Molecular weight formula_weight	59604.2 kDa
EC 编号 ec_number	3.1.5.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	16246

DTMKVINDPIHGHIELHPLLVRIIDTPQFQRLRYIKQLGGGYYVFPGASHNRFEHSLGVGYLAGCLVHALGEKQPELQISERDVLCVQIAGLCRNLGHGPFSHMFDGRFIPLARPEVKWTHEQGSVMMFEHLINSNGIKPVMEQYGLIPEEDICFIKEQIVGPLESPVEDSLWPYKGRPENKSFLYEIVSNKRNGIDVDKWDYFARDCHHLGIQNNFDYKRFIKFARVCEVDNELRICARDKEVGNLYDMFHTRNSLHRRAYQHKVGNIIDTMITDAFLKADDYIEITGAGGKKYRISTAIDDMEAYTKLTDNIFLEILYSTDPKLKDAREILKQIEYRNLFKYVGETQPTGQIKIKREDYESLPKEVASAKPKVLLDVKLKAEDFIVDVINMDYGMQEKNPIDHVSFYCKTAPNRAIRITKNQVSQLLPEKFAEQLIRVYCKKVDRKSLYAARQYFVQWCADRNFTKPQDGDVIAPLITPQKKEWNDSTSVQNPTRLREASKSRVQLFKDDPM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	467.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ;
Molecular weight formula_weight	491.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	4to0A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3210 — Hypothetical protein af1432
Homologous superfamily homologous superfamily	10 — Hypothetical protein af1432

Domain ID domain_id	4to0B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3210 — Hypothetical protein af1432
Homologous superfamily homologous superfamily	10 — Hypothetical protein af1432

Domain ID domain_id	4to0C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3210 — Hypothetical protein af1432
Homologous superfamily homologous superfamily	10 — Hypothetical protein af1432

Domain ID domain_id	4to0D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3210 — Hypothetical protein af1432
Homologous superfamily homologous superfamily	10 — Hypothetical protein af1432

▶

Unit-cell length a length_a	81.418 Å
Unit-cell length b length_b	141.329 Å
Unit-cell length c length_c	97.519 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.58 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1926
R_work r_work	0.1910
R_free r_free	0.2217
