SAXSdb — 4wae

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphatidylinositol 4-kinase beta,Phosphatidylinositol 4-kinase beta

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 128–422 Chain A； UniProt 523–799	Fragment：UNP residues 130-422, UNP residues 523-799	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；10% w/v PEG 4000, 20% v/v glycerol 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 3.32 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4WAE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4D0L Phosphatidylinositol 4-kinase III beta-PIK93 in a complex with Rab11a- GTP gammaS Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 121–407（287 aa） Fragment：RESIDUES 121-407,508-784 Chain A 508–784（277 aa） Fragment：RESIDUES 121-407,508-784	Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；15% (W/V) PEG 4000, 0.1 M NA CITRATE PH 5.6, AND 0.2 M AMMONIUM ACETATE	Resolution 2.94 Å R-free 0.259
4D0L Phosphatidylinositol 4-kinase III beta-PIK93 in a complex with Rab11a- GTP gammaS Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 121–407（287 aa） Fragment：RESIDUES 121-407,508-784 Chain C 508–784（277 aa） Fragment：RESIDUES 121-407,508-784	Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；15% (W/V) PEG 4000, 0.1 M NA CITRATE PH 5.6, AND 0.2 M AMMONIUM ACETATE	Resolution 2.94 Å R-free 0.259
4D0L Phosphatidylinositol 4-kinase III beta-PIK93 in a complex with Rab11a- GTP gammaS Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 121–407（287 aa） Fragment：RESIDUES 121-407,508-784 Chain E 508–784（277 aa） Fragment：RESIDUES 121-407,508-784	Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；15% (W/V) PEG 4000, 0.1 M NA CITRATE PH 5.6, AND 0.2 M AMMONIUM ACETATE	Resolution 2.94 Å R-free 0.259
4D0M Phosphatidylinositol 4-kinase III beta in a complex with Rab11a-GTP- gamma-S and the Rab-binding domain of FIP3 Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 121–303（183 aa） Chain A 319–421（103 aa） Chain A 522–799（278 aa） Chain C 121–303（183 aa） Chain C 319–421（103 aa） Chain C 522–799（278 aa） Chain O 121–303（183 aa） Chain O 319–421（103 aa） Chain O 522–799（278 aa） Chain S 121–303（183 aa） Chain S 319–421（103 aa） Chain S 522–799（278 aa）	Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG 6K, 0.01 M NA CITRATE	Resolution 6.00 Å R-free 0.359
4D0M Phosphatidylinositol 4-kinase III beta in a complex with Rab11a-GTP- gamma-S and the Rab-binding domain of FIP3 Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 121–303（183 aa） Chain G 319–421（103 aa） Chain G 522–799（278 aa） Chain I 121–303（183 aa） Chain I 319–421（103 aa） Chain I 522–799（278 aa） Chain M 121–303（183 aa） Chain M 319–421（103 aa） Chain M 522–799（278 aa） Chain Q 121–303（183 aa） Chain Q 319–421（103 aa） Chain Q 522–799（278 aa）	Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG 6K, 0.01 M NA CITRATE	Resolution 6.00 Å R-free 0.359
4D0M Phosphatidylinositol 4-kinase III beta in a complex with Rab11a-GTP- gamma-S and the Rab-binding domain of FIP3 Deposited 2014-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain W 121–303（183 aa） Chain W 319–421（103 aa） Chain W 522–799（278 aa） Chain Y 121–303（183 aa） Chain Y 319–421（103 aa） Chain Y 522–799（278 aa） Chain c 121–303（183 aa） Chain c 319–421（103 aa） Chain c 522–799（278 aa） Chain g 121–303（183 aa） Chain g 319–421（103 aa） Chain g 522–799（278 aa）	Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES Mutation：YES	093 N-(5-(4-CHLORO-3-(2-HYDROXY-ETHYLSULFAMOYL)- PHENYLTHIAZOLE-2-YL)-ACETAMIDE × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG 6K, 0.01 M NA CITRATE	Resolution 6.00 Å R-free 0.359
4WAG Phosphatidylinositol 4-kinase III beta crystallized with MI103 inhibitor Deposited 2014-08-29	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 128–422（295 aa） Fragment：UNP residues 128-422, UNP residues 523-799 Chain A 523–799（277 aa） Fragment：UNP residues 128-422, UNP residues 523-799	Not recorded	3K7 6-chloro-3-(3,4-dimethoxyphenyl)-2-methylimidazo[1,2-b]pyridazin-8-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10% w/v PEG 4000, 20% v/v glycerol 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 3.41 Å R-free 0.251
5C46 Crystal structure of an engineered construct of phosphatidylinositol 4 kinase III beta in complex with GTP gamma S loaded Rab11 Deposited 2015-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 121–248（128 aa） Chain E 288–407（120 aa） Chain E 508–784（277 aa）	Mutation：S294A Mutation：S294A Mutation：S294A	SO4 SULFATE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；290 K；PEG-4000, sodium citrate, ammonium sulfate, glycerol	Resolution 2.65 Å R-free 0.246
5C4G Crystal structure of an engineered construct of phosphatidylinositol 4 kinase III beta with the inhibitor BQR695 in complex with GDP loaded Rab11 Deposited 2015-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 121–248（128 aa） Chain E 288–407（120 aa） Chain E 508–784（277 aa）	Mutation：S294A Mutation：S294A Mutation：S294A	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 2 BQR N~2~-[7-(3,4-dimethoxyphenyl)quinoxalin-2-yl]-N-methylglycinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；290 K；PEG-4000, sodium citrate, ammonium sulfate, glycerol	Resolution 3.20 Å R-free 0.287
5EUQ Crystal structure of an engineered construct of phosphatidylinositol 4 kinase III beta with a potent and selective inhibitor in complex with GDP loaded Rab11 Deposited 2015-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 121–248（128 aa） Chain E 523–799（277 aa）	Mutation：S294A Mutation：S294A	GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 2 5S8 ~{N}-[5-[3-[[(4-hydroxyphenyl)amino]-bis(oxidanyl)-$l^{4}-sulfanyl]-4-methoxy-phenyl]-4-methyl-1,3-thiazol-2-yl]cyclopentanecarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；290 K；PEG-4000, sodium citrate, ammonium sulfate, glycerol	Resolution 3.20 Å R-free 0.266
5FBL PI4KB in complex with Rab11 and the MI356 Inhibitor Deposited 2015-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–422（295 aa） Fragment：UNP Residues 128-422, 523-799 Chain A 523–799（277 aa） Fragment：UNP Residues 128-422, 523-799	Not recorded	5W9 ~{N}-[2-[[6-chloranyl-3-(4-methoxy-3-morpholin-4-ylsulfonyl-phenyl)-2-methyl-imidazo[1,2-b]pyridazin-8-yl]amino]ethyl]ethanamide × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；1M Lithium chloride, 0.1M Citric acid pH=5, 10% (w/v) PEG 6000	Resolution 3.37 Å R-free 0.269
5FBQ PI4KB in complex with Rab11 and the MI358 Inhibitor Deposited 2015-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–422（295 aa） Fragment：UNP Residues 128-422, 523-799 Chain A 523–799（277 aa） Fragment：UNP Residues 128-422, 523-799	Not recorded	5W6 ~{N}-[2-[[6-chloranyl-3-[3-[4-(hydroxymethyl)piperidin-1-yl]sulfonyl-4-methoxy-phenyl]-2-methyl-imidazo[1,2-b]pyridazin-8-yl]amino]ethyl]ethanamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M magnesium chloride, 0.1M Tris PH=7, 10% (w/v) PEG 8000	Resolution 3.79 Å R-free 0.302
5FBR PI4KB in complex with Rab11 and the MI359 Inhibitor Deposited 2015-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–422（295 aa） Fragment：UNP Residues 128-422, 523-799 Chain A 523–799（277 aa） Fragment：UNP Residues 128-422, 523-799	Not recorded	5W7 ~{N}-[2-[[3-[3-[(4-azanylcyclohexyl)sulfamoyl]-4-methoxy-phenyl]-6-chloranyl-2-methyl-imidazo[1,2-b]pyridazin-8-yl]amino]ethyl]ethanamide × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.15M amonium sulfate, 0.1M MES pH=6, 15% PEG 4000	Resolution 3.28 Å R-free 0.264
5FBV PI4KB in complex with Rab11 and the MI364 Inhibitor Deposited 2015-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–422（295 aa） Fragment：UNP Residues 128-422, 523-799 Chain A 523–799（277 aa） Fragment：UNP Residues 128-422, 523-799	Not recorded	5W3 ~{N}-[2-[[6-chloranyl-3-[3-(2-hydroxyethylsulfamoyl)-4-methoxy-phenyl]-2-methyl-imidazo[1,2-b]pyridazin-8-yl]amino]ethy l]ethanamide × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.15M amonium sulfate, 0.1M MEW pH=6, 15% PEG 4000	Resolution 3.29 Å R-free 0.281
5FBW PI4KB in complex with Rab11 and the MI369 Inhibitor Deposited 2015-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–422（295 aa） Fragment：UNP Residues 128-422, 523-729,UNP Residues 128-422, 523-729 Chain A 191–467（277 aa） Fragment：UNP Residues 128-422, 523-729,UNP Residues 128-422, 523-729	Not recorded	5W8 ~{N}-[2-[[6-chloranyl-3-[4-methoxy-3-[[(2~{R})-1-oxidanylbutan-2-yl]sulfamoyl]phenyl]-2-methyl-imidazo[1,2-b]pyridazin-8-yl]amino]ethyl]ethanamide × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M ammonium sulfate, 0.1M MES pH=6.5, 20% (w/v) PEG 8000	Resolution 3.49 Å R-free 0.283
5NAS Crystal structure of human 14-3-3 zeta in complex with PI4KIIIB peptide Deposited 2017-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 289–297（9 aa） Fragment：UNP residues 289-297 Chain D 289–297（9 aa） Fragment：UNP residues 289-297	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；MES, PEG, ethylene glycol	Resolution 2.08 Å R-free 0.231
6GL3 Crystal structure of human Phosphatidylinositol 4-kinase III beta (PI4KIIIbeta) in complex with ligand 44 Deposited 2018-05-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 317–428（112 aa） Chain A 532–798（267 aa）	Not recorded	EMW (3~{S})-4-(6-azanyl-1-methyl-pyrazolo[3,4-d]pyrimidin-4-yl)-~{N}-(4-methoxy-2-methyl-phenyl)-3-methyl-piperazine-1-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium citrate, 22% (w/v) PEG3350, 10 mM Manganese(II)chloride	Resolution 2.77 Å R-free 0.333
6GL3 Crystal structure of human Phosphatidylinositol 4-kinase III beta (PI4KIIIbeta) in complex with ligand 44 Deposited 2018-05-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 317–428（112 aa） Chain B 532–798（267 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium citrate, 22% (w/v) PEG3350, 10 mM Manganese(II)chloride	Resolution 2.77 Å R-free 0.333
8Q6F HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 4) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 291–415（125 aa）	Mutation：R409Q,R412Q	KHR 3-(3-fluorosulfonyloxy-4-methoxy-phenyl)-2,5-dimethyl-7-(pyridin-4-ylmethylamino)pyrazolo[1,5-a]pyrimidine × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 7 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.51 Å R-free 0.224
8Q6G HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 8) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 291–415（125 aa）	Mutation：R409Q,R412Q	KIH 3-(3,4-dimethoxyphenyl)-7-[(4-fluorosulfonyloxyphenyl)methylamino]-2,5-dimethyl-pyrazolo[1,5-a]pyrimidine × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.54 Å R-free 0.221
8Q6H HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 11) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 291–415（125 aa）	Mutation：R409Q,R412Q	MG MAGNESIUM ION × 1 KI7 3-(3-fluorosulfonyloxy-4-methoxy-phenyl)-7-[(4-fluorosulfonyloxyphenyl)methylamino]-2,5-dimethyl-pyrazolo[1,5-a]pyrimidine × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.94 Å R-free 0.237
8VOF GI targeted CpPI4K inhibitor Deposited 2024-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 121–407（287 aa）	Mutation：L294A,L374Y,P597Y	A1ADE methyl 2-chloro-5-(methyl{(8R)-3-[4-(methylcarbamoyl)phenyl]pyrazolo[1,5-a]pyridine-5-carbonyl}amino)benzoate × 1 SO4 SULFATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；0.5M ammonium sulfate, 0.088M sodium citrate, 0.875M lithium sulfate, 2.4% glycerol, 2.5% ethylene glycol, 50mM HEPES pH 6.8	Resolution 3.00 Å R-free 0.270

17 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PI4KB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–295； UniProt 128–422 Author chain A； PDBConstruct 296–572； UniProt 523–799

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4wae
Deposition date deposition_date	2014-08-29
Structure title title	Phosphatidylinositol 4-kinase III beta crystallized with ATP
Keywords keywords	transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.81 Å
Radius of gyration Rg (electron density) rg_electron	23.52 Å
Forward intensity I(0) i0	44940800.00
Molecular weight molecular_weight	52713.0 kDa
Excluded volume excluded_volume	66365 Å³
Envelope volume envelope_volume	79948 Å³
Hydration-shell volume shell_volume	27912 Å³
Envelope diameter envelope_diameter	74.6 Å
Shell Rg shell_rg	30.90 Å
Envelope Rg envelope_rg	23.49 Å
Shape Rg shape_rg	23.52 Å
Total Rg total_rg	24.38 Å
Total atoms total_atoms	3711
Residues n_residues	463
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

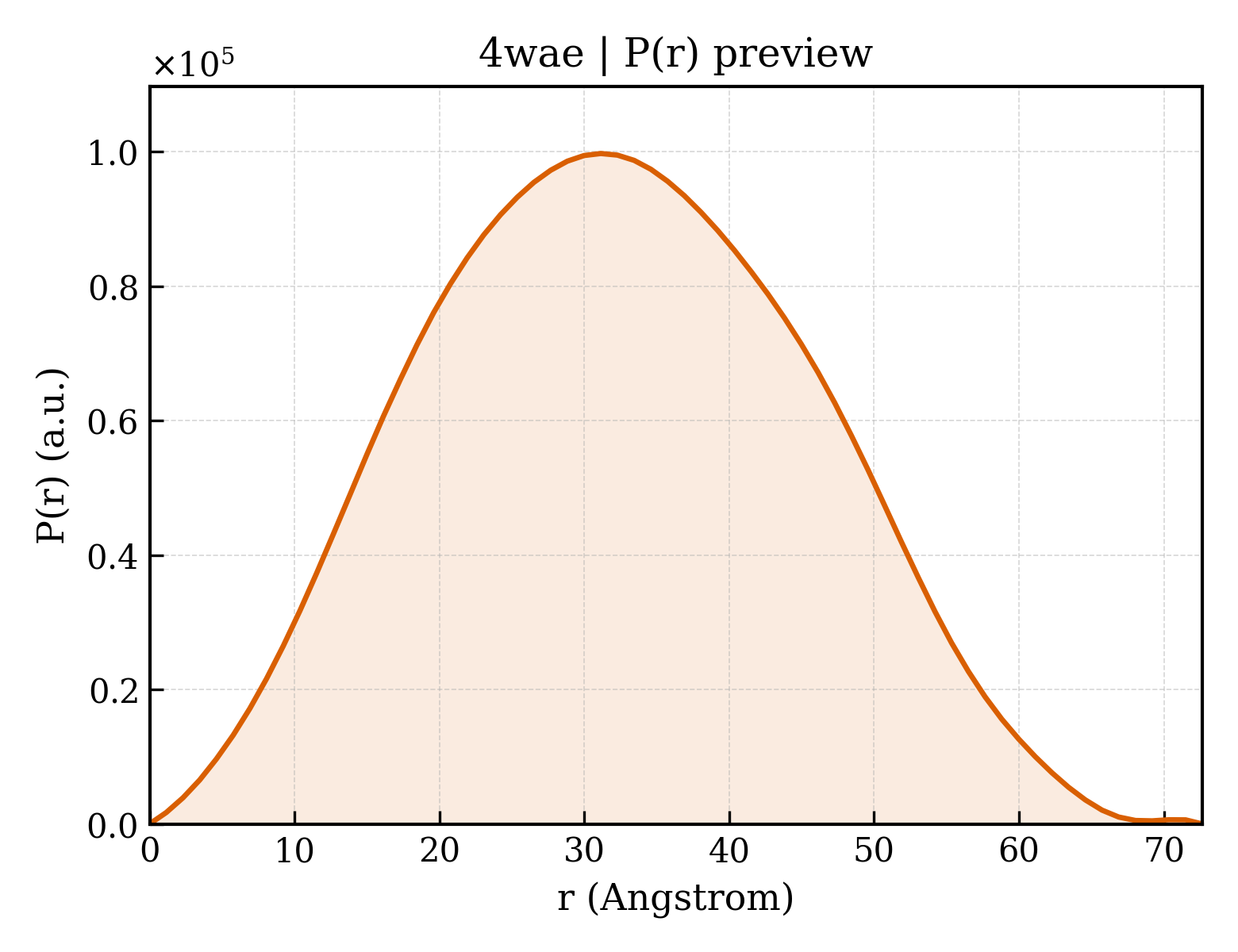

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.7 Å
Rg (real space) rg_real	24.63 Å
Rg uncertainty (real space) rg_real_error	0.42 Å
I(0) (real space) i0_real	4.4940e+07
I(0) uncertainty (real space) i0_real_error	6.0730e+05
Rg (reciprocal space) rg_reciprocal	24.67 Å
I(0) (reciprocal space) i0_reciprocal	44940000.0000
Solution quality estimate total_estimate	0.9172
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.1 Å
Skewness Skewness skewness	0.089
Kurtosis Kurtosis kurtosis	-0.589
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7010000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Phosphatidylinositol 4-kinase beta,Phosphatidylinositol 4-kinase beta
Molecular weight formula_weight	65264.8 kDa
EC 编号 ec_number	2.7.1.67
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3711

SWLLRLFESKLFDISMAISYLYNSKEPGVQAYIGNRLFCFRNEDVDFYLPQLLNMYIHMDEDVGDAIKPYIVHRCRQSINFSLQCALLLGAYSSDMHISTQRHSRGTKLRKLILSDELKPAHRKRELPSLSPAPDTGLSPSKRTHQRSKSDATASISLSSNLKRTASNPKVENEDEELSSSTESIDNSFSSPVRLAPEREFIKSLMAIGKRLATLPTKEQKTQRLISELSLLNHKLPARVWLPTAGFDHHVVRVPHTQAVVLNSKDKAPYLIYVEVLECENFDTTSVPARIPENRRDPEDPSAVALKEPWQEKVRRIREGSPYGHLPNWRLLSVIVKCGDDLRQELLAFQVLKQLQSIWEQERVPLWIKPYKILVISADSGMIEPVVNAVSIHQVKKQSQLSLLDYFLQEHGSYTTEAFLSAQRNFVQSCAGYCLVCYLLQVKDRHNGNILLDAEGHIIHIDFGFILSSSPRNLGFETSAFKLTTEFVDVMGGLDGDMFNYYKMLMLQGLIAARKHMDKVVQIVEIMQQGSQLPCFHGSSTIRNLKERFHMSMTEEQLQLLVEQMVDGSMRS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	108.327 Å
Unit-cell length b length_b	108.327 Å
Unit-cell length c length_c	55.189 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	3.318 Å
Low-resolution limit resolution_low	48.445 Å
R factor r_factor	0.1855
R_work r_work	0.1825
R_free r_free	0.2441

fit	/app/data/saxs_computation/wa/4wae/4wae.fit
pddf	/app/data/pr_computation/wa/4wae/4wae.pr.out
profile	/app/data/saxs_computation/wa/4wae/4wae.dat
