SAXSdb — 4xqb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fiber

Human adenovirus 37

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	;2-(1-{2-[bis(2-{4-[2-({(6R)-5-(acetylamino)-3,5-dideoxy-6-[(1R,2R)-1,2,3-trihydroxypropyl]-beta-L-threo-hex-2-ulopyranonosyl}oxy)ethyl]-1H-1,2,3-triazol-1-yl}ethyl)amino]ethyl}-1H-1,2,3-triazol-4-yl)ethyl (6R)-5-(acetylamino)-3,5-dideoxy-6-[(1R,2R)-1,2,3-trihydroxypropyl]-beta-L-threo-hex-2-ulopyranosidonic acid ; × 1 ZINC ION × 4 ACETATE ION × 7 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q64823_9ADEN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–194； UniProt 177–365 Author chain B； PDBConstruct 6–194； UniProt 177–365 Author chain C； PDBConstruct 6–194； UniProt 177–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4xqb
Deposition date deposition_date	2015-01-19
Structure title title	CRYSTAL STRUCTURE OF AD37 FIBER KNOB IN COMPLEX WITH TRIVALENT SIALIC ACID INHIBITOR ME0461
Keywords keywords	ADENOVIRUS, FIBER KNOB, PROTEIN CARBOHYDRATE INTERACTION, SIALIC ACID, CARBOHYDRATE MIMIC, MULTIVALENT LIGAND, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4xqb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

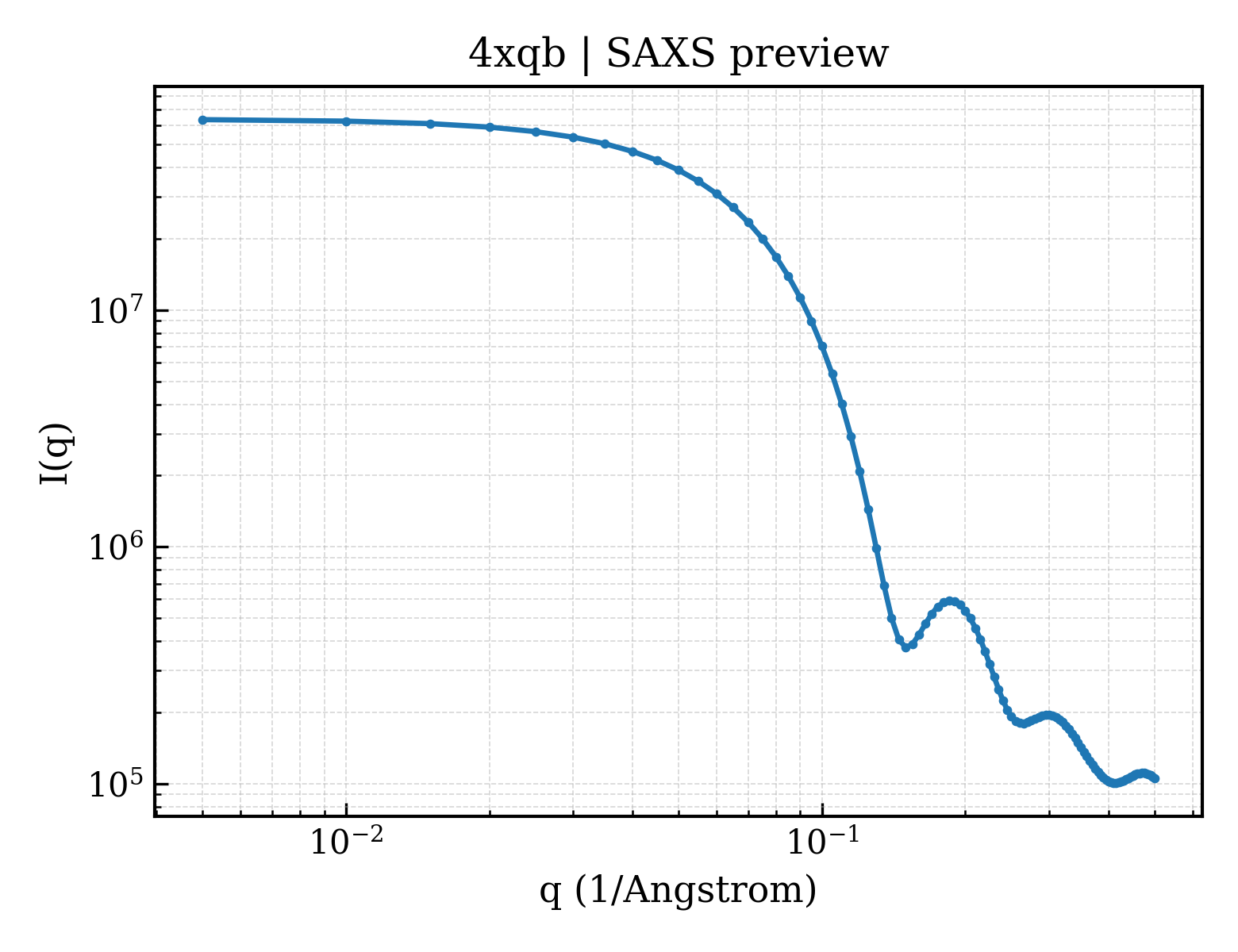

4xqb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

4xqb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.26 Å
Rg (electron density)	22.84 Å
Total Rg	23.88 Å
Atom count	4477
Residues	553
Excluded volume	80011 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4xqb__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fiber
Molecular weight formula_weight	21716.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5178

GAMGSWNPKYDTRTLWTTPDTSPNCTIAQDKDSKLTLVLTKCGSQILANVSLIVVAGKYHIINNKTNPKIKSFTIKLLFNKNGVLLDNSNLGKAYWNFRSGNSNVSTAYEKAIGFMPNLVAYPKPSNSKKYARDIVYGTIYLGGKPDQPAVIKTTFNQETGCEYSITFNFSWSKTYENVEFETTSFTFSYIAQE

Source Source

Source organism organism	Human adenovirus 37
NCBI taxonomy ID ncbi_taxonomy_id	52275
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	;2-(1-{2-[bis(2-{4-[2-({(6R)-5-(acetylamino)-3,5-dideoxy-6-[(1R,2R)-1,2,3-trihydroxypropyl]-beta-L-threo-hex-2-ulopyranonosyl}oxy)ethyl]-1H-1,2,3-triazol-1-yl}ethyl)amino]ethyl}-1H-1,2,3-triazol-4-yl)ethyl (6R)-5-(acetylamino)-3,5-dideoxy-6-[(1R,2R)-1,2,3-trihydroxypropyl]-beta-L-threo-hex-2-ulopyranosidonic acid ;
Molecular weight formula_weight	1308.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	654

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d4xqba_
Class class	b — All beta proteins
Fold Fold fold	b.21 — Virus attachment protein globular domain
Superfamily Superfamily superfamily	b.21.1 — Virus attachment protein globular domain
Family Family family	b.21.1.1 — Adenovirus fiber protein 'knob' domain

Domain ID domain_id	d4xqbb_
Class class	b — All beta proteins
Fold Fold fold	b.21 — Virus attachment protein globular domain
Superfamily Superfamily superfamily	b.21.1 — Virus attachment protein globular domain
Family Family family	b.21.1.1 — Adenovirus fiber protein 'knob' domain

Domain ID domain_id	d4xqbc_
Class class	b — All beta proteins
Fold Fold fold	b.21 — Virus attachment protein globular domain
Superfamily Superfamily superfamily	b.21.1 — Virus attachment protein globular domain
Family Family family	b.21.1.1 — Adenovirus fiber protein 'knob' domain

CATH v4.4 (3 domains)

Domain ID domain_id	4xqbA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	90 — Adenovirus Type 5 Fiber Protein (Receptor Binding Domain)
Homologous superfamily homologous superfamily	10 — Adenovirus pIV-related, attachment domain

Domain ID domain_id	4xqbB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	90 — Adenovirus Type 5 Fiber Protein (Receptor Binding Domain)
Homologous superfamily homologous superfamily	10 — Adenovirus pIV-related, attachment domain

Domain ID domain_id	4xqbC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	90 — Adenovirus Type 5 Fiber Protein (Receptor Binding Domain)
Homologous superfamily homologous superfamily	10 — Adenovirus pIV-related, attachment domain

▶

Unit-cell length a length_a	61.440 Å
Unit-cell length b length_b	70.320 Å
Unit-cell length c length_c	74.480 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.47 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.597 Å
Low-resolution limit resolution_low	45.541 Å
R factor r_factor	0.1580
R_work r_work	0.1569
R_free r_free	0.1784
