1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein gp160

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain G； UniProt 43–122 Chain G； UniProt 191–293 Chain G； UniProt 315–482	Fragment：UNP residues 43-122, 191-293, 315-482	HEAVY CHAIN OF ANTIBODY Z258-VRC27.01 × 1 LIGHT CHAIN OF ANTIBODY Z258-VRC27.01 × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13 SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；4% PEG 400, 1.9 M (NH4)2SO4, 0.1M Tris-HCl, pH 8.5	Resolution 3.45 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4YDI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7LLK Cryo-EM structure of Q23.17_DS-SOSIP in complex with Glycan276-Dependent Broadly Neutralizing Antibody 179NC75 Fab Deposited 2021-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 31–498（468 aa） Chain E 31–498（468 aa） Chain I 31–498（468 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2.5 S before plunging	Resolution 4.80 Å
9BNL Cryo-EM structure of rhesus antibody 6070-a.01 in complex with HIV-1 Env trimer Q23.17 MD39 Deposited 2024-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain A 32–495（464 aa） Chain B 510–651（142 aa） Chain C 32–495（464 aa） Chain E 32–495（464 aa） Chain F 510–651（142 aa） Chain G 510–651（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9BTV Cryo-EM structure of rhesus antibody T646-a.01 in complex with HIV-1 Env trimer Q23.17 MD39 Deposited 2024-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain A 30–498（469 aa） Chain B 502–654（153 aa） Chain C 30–498（469 aa） Chain E 30–498（469 aa） Chain F 502–654（153 aa） Chain G 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.48 Å
9DHW Q23.MD39 in Complex with Fabs from antibodies CH01 iGL and 35O22 Deposited 2024-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 31–497（467 aa） Chain B 502–654（153 aa） Chain C 31–497（467 aa） Chain D 502–654（153 aa） Chain G 31–497（467 aa） Chain I 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；1X PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
9DIM Q23.MD39 in Complex with Fab from antibody 35O22 Deposited 2024-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain A 31–497（467 aa） Chain B 502–654（153 aa） Chain C 31–497（467 aa） Chain D 502–654（153 aa） Chain G 31–497（467 aa） Chain I 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；1X PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9NVV Cryo-EM structure of V2 apex germline-targeting HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 6 PDB declaration: hexameric	Chain b 30–584（555 aa） Chain c 502–654（153 aa） Chain d 30–584（555 aa） Chain e 502–654（153 aa） Chain f 30–584（555 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9NVW Cryo-EM structure of rhesus antibody CH35-Apex1.08 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9NVX Cryo-EM structure of rhesus antibody CI91-Apex1.01 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9NVY Cryo-EM structure of rhesus antibody CH70-Apex2.01 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9NVZ Cryo-EM structure of rhesus antibody CH70-Apex1.01 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 27	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9NW0 Cryo-EM structure of rhesus antibody CH42-Apex1.01 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9NW1 Cryo-EM structure of rhesus antibody CH42-Apex2.01 in complex with HIV Env trimer Q23-APEX-GT2 Deposited 2025-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–507（478 aa） Chain c 502–654（153 aa） Chain d 30–507（478 aa） Chain e 502–654（153 aa） Chain f 30–507（478 aa） Chain g 502–654（153 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9Z9L Q23.MD39 in Complex with Fabs from antibodies CH01 and 35O22 Deposited 2025-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 31–497（467 aa） Chain B 502–654（153 aa） Chain C 31–497（467 aa） Chain D 502–654（153 aa） Chain G 31–497（467 aa） Chain I 502–654（153 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；1X PBS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.49 Å
9ZRX Cryo-EM structure of SHIV-elicited CE79-1571 Fab in complex with HIV Env trimer Q23-SCT27 Deposited 2025-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–497（468 aa） Chain c 502–654（153 aa） Chain d 30–497（468 aa） Chain e 502–654（153 aa） Chain f 30–497（468 aa） Chain g 502–654（153 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.30 Å
9ZRY Cryo-EM structure of SHIV-elicited CN81-2029 Fab in complex with HIV Env trimer Q23-SCT27 Deposited 2025-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–497（468 aa） Chain c 502–654（153 aa） Chain d 30–497（468 aa） Chain e 502–654（153 aa） Chain f 30–497（468 aa） Chain g 502–654（153 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.90 Å
9ZRZ Cryo-EM structure of SHIV-elicited CI93-1365 Fab in complex with HIV Env trimer Q23-SCT27 Deposited 2025-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain b 30–497（468 aa） Chain c 502–654（153 aa） Chain d 30–497（468 aa） Chain e 502–654（153 aa） Chain f 30–497（468 aa） Chain g 502–654（153 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.90 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O55774_9HIV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain G； PDBConstruct 1–80； UniProt 43–122 Author chain G； PDBConstruct 83–185； UniProt 191–293 Author chain G； PDBConstruct 192–359； UniProt 315–482

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ydi
Deposition date deposition_date	2015-02-22
Structure title title	Crystal structure of broad and potently neutralizing VRC01-class antibody Z258-VRC27.01, isolated from human donor Z258, in complex with HIV-1 gp120 from clade A strain Q23.17
Keywords keywords	Antibody, HIV-1, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.93 Å
Radius of gyration Rg (electron density) rg_electron	32.94 Å
Forward intensity I(0) i0	126342000.00
Molecular weight molecular_weight	87553.0 kDa
Excluded volume excluded_volume	108750 Å³
Envelope volume envelope_volume	145780 Å³
Hydration-shell volume shell_volume	38279 Å³
Envelope diameter envelope_diameter	116.6 Å
Shell Rg shell_rg	38.28 Å
Envelope Rg envelope_rg	33.26 Å
Shape Rg shape_rg	32.90 Å
Total Rg total_rg	33.47 Å
Total atoms total_atoms	6150
Residues n_residues	751
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

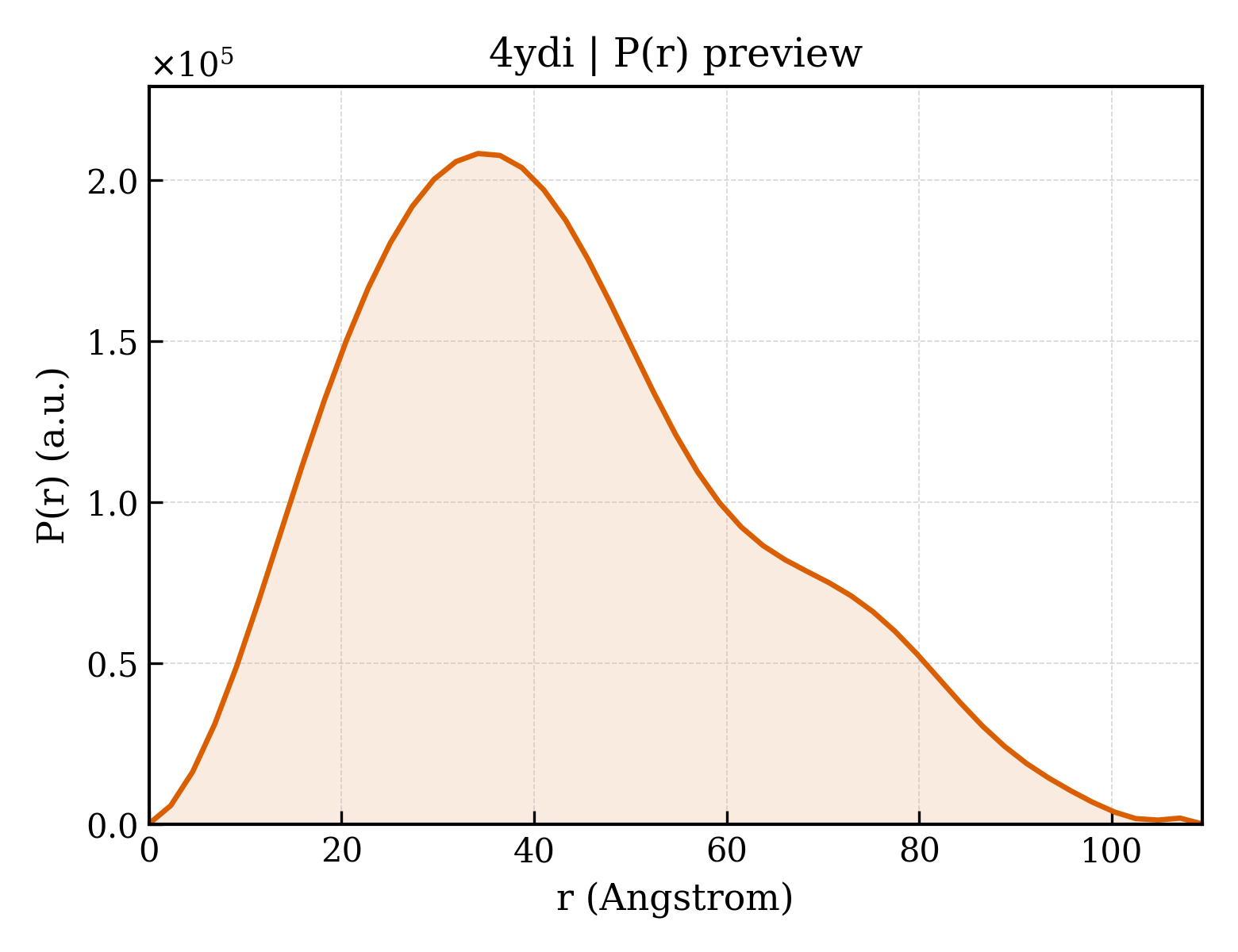

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.4 Å
Rg (real space) rg_real	33.17 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	1.2630e+08
I(0) uncertainty (real space) i0_real_error	1.9130e+06
Rg (reciprocal space) rg_reciprocal	33.07 Å
I(0) (reciprocal space) i0_reciprocal	126300000.0000
Solution quality estimate total_estimate	0.8552
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.507
Kurtosis Kurtosis kurtosis	-0.322
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	21300000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.925; Smooth: 0.797

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein gp160
Molecular weight formula_weight	39980.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G
Atom count atom_count	6169

VWRDADTTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLDNVTEKFNMWKNNMVEQMHTDIISLWDQSLKPCVKLTGGSAITQACPKVSFEPIPIHYCTPAGFAILKCKDEGFNGTGLCKNVSTVQCTHGIKPVVSTQLLLNGSLAEKNITIRSENITNNAKIIIVQLVQPVTIKCIRPNNGGSGSGGDIRQAHCNVTRSRWNKTLQEVAEKLRTYFGNKTIIFANSSGGDLEITTHSFNCGGEFFYCNTSGLFNSTWYVNSTWNDTDSTQESNDTITLPCRIKQIINMWQRAGQAMYAPPIPGVIKCESNITGLLLTRDGGKDNNVNETFRPGGGDMRDNWRSELYKYKVVEIE

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI Class编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	HEAVY CHAIN OF ANTIBODY Z258-VRC27.01
Molecular weight formula_weight	24897.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

SQRLVQSGPQVRKPGSSVRISCETSGYTFNAYILHWFRQAPGRSFEWMGWIKPKFGAVNYAHSFQGRITLTRDIYRETAFLDLTGLRFDDTAVYYCARDRLYDGSSWRLDPWGQGTRVVVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	LIGHT CHAIN OF ANTIBODY Z258-VRC27.01
Molecular weight formula_weight	23048.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLAVSVGGRVTITCRASQGIGSDLHWYQQKRGRPPKILIHHASAREEGVPSRFGGSGSHTPFIFTINDLQLDDVATYYCQVIESFGQGTRLDINRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	13

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	4ydiG01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	40 — HIV Envelope Protein Gp120; Chain G
Homologous superfamily homologous superfamily	20 — Human immunodeficiency virus 1, Gp160, envelope glycoprotein

Domain ID domain_id	4ydiH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ydiH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ydiL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4ydiL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	141.738 Å
Unit-cell length b length_b	172.253 Å
Unit-cell length c length_c	91.782 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 2
Space-group number int_tables_number	21
Crystal system crystal_system	—

Resolution resolution	3.452 Å
Low-resolution limit resolution_low	46.038 Å
R factor r_factor	0.2246
R_work r_work	0.2220
R_free r_free	0.2763

fit	/app/data/saxs_computation/yd/4ydi/4ydi.fit
pddf	/app/data/pr_computation/yd/4ydi/4ydi.pr.out
profile	/app/data/saxs_computation/yd/4ydi/4ydi.dat

Crystal structure of broad and potently neutralizing VRC01-class antibody Z258-VRC27.01, isolated from human donor Z258, in complex with HIV-1 gp120 from clade A strain Q23.17
