SAXSdb — 5dkr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein S100-B

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 5 2-[4-(4-carbamimidoylphenoxy)phenyl]-1H-indole-6-carboximidamide × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	S100B_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–92； UniProt 1–92 Author chain B； PDBConstruct 1–92； UniProt 1–92

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5dkr
Deposition date deposition_date	2015-09-03
Structure title title	Crystal Structure of Calcium-loaded S100B bound to SBi29
Keywords keywords	malignant melanoma, calcium binding, complex, covalent inhibitor, METAL BINDING PROTEIN-INHIBITOR complex; METAL BINDING PROTEIN/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5dkr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

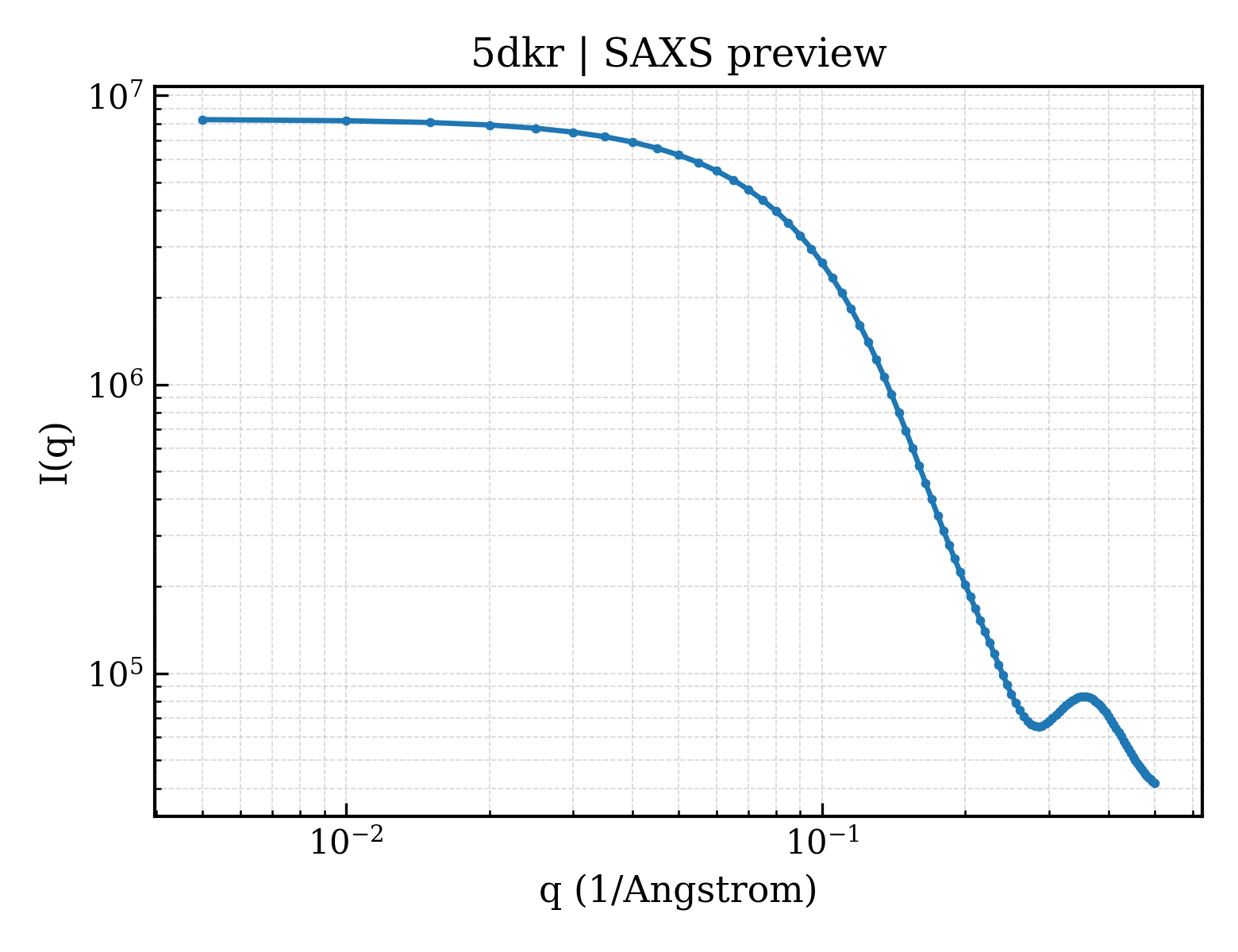

5dkr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5dkr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.48 Å
Rg (electron density)	17.24 Å
Total Rg	18.14 Å
Atom count	1478
Residues	179
Excluded volume	26387 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5dkr__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protein S100-B
Molecular weight formula_weight	10682.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1662

MSELEKAVVALIDVFHQYSGREGDKHKLKKSELKELINNELSHFLEEIKEQEVVDKVMETLDSDGDGECDFQEFMAFVAMITTACHEFFEHE

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	2-[4-(4-carbamimidoylphenoxy)phenyl]-1H-indole-6-carboximidamide
Molecular weight formula_weight	369.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	172

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5dkra_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

Domain ID domain_id	d5dkrb_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

CATH v4.4 (2 domains)

Domain ID domain_id	5dkrA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	5dkrB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

Unit-cell length a length_a	46.745 Å
Unit-cell length b length_b	47.443 Å
Unit-cell length c length_c	90.343 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.742 Å
Low-resolution limit resolution_low	33.298 Å
R factor r_factor	0.2094
R_work r_work	0.2053
R_free r_free	0.2469
