SAXSdb — 5ic8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative uncharacterized protein

Chaetomium thermophilum (strain DSM 1495 / CBS 144.50 / IMI 039719)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255
5	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 81–414 Chain D； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255
6	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 81–414 Chain C； UniProt 81–414	Fragment：UNP residues 81-414	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium, 10% 2-proponal, 20% PEG 4000, 0.05M sodium fluoride	Resolution 3.30 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5IC8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5OQL Cryo-EM structure of the 90S pre-ribosome from Chaetomium thermophilum Deposited 2017-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 55-meric	Chain E 1–414（414 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6RXT Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state A Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 57-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
6RXU Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state B1 Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 64 PDB declaration: 66-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6RXV Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state B2 Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 68-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6RXX Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state C, Poly-Ala Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 68-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
6RXY Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state a Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 57 PDB declaration: 59-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
6RXZ Cryo-EM structure of the 90S pre-ribosome (Kre33-Noc4) from Chaetomium thermophilum, state b Deposited 2019-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 68-meric	Chain UF 1–414（414 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	G0S387_CHATD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–334； UniProt 81–414 Author chain B； PDBConstruct 1–334； UniProt 81–414 Author chain C； PDBConstruct 1–334； UniProt 81–414 Author chain D； PDBConstruct 1–334； UniProt 81–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5ic8
Deposition date deposition_date	2016-02-23
Structure title title	Structure of UTP6
Keywords keywords	HAT(Half A TPR) repeat, nucleolus, rRNA processing, protein binding, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.86 Å
Radius of gyration Rg (electron density) rg_electron	37.34 Å
Forward intensity I(0) i0	222601000.00
Molecular weight molecular_weight	121870.0 kDa
Excluded volume excluded_volume	153650 Å³
Envelope volume envelope_volume	226860 Å³
Hydration-shell volume shell_volume	51588 Å³
Envelope diameter envelope_diameter	125.2 Å
Shell Rg shell_rg	42.73 Å
Envelope Rg envelope_rg	36.47 Å
Shape Rg shape_rg	37.32 Å
Total Rg total_rg	37.79 Å
Total atoms total_atoms	8581
Residues n_residues	1077
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	122.1 Å
Rg (real space) rg_real	37.75 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	2.2260e+08
I(0) uncertainty (real space) i0_real_error	3.3760e+06
Rg (reciprocal space) rg_reciprocal	37.82 Å
I(0) (reciprocal space) i0_reciprocal	222600000.0000
Solution quality estimate total_estimate	0.8904
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	46.5 Å
Skewness Skewness skewness	0.216
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12980000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.896

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.812 Å
Unit-cell length b length_b	126.343 Å
Unit-cell length c length_c	140.811 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	19.951 Å
R factor r_factor	0.2127
R_work r_work	0.2091
R_free r_free	0.2548

Description description	Putative uncharacterized protein
Molecular weight formula_weight	37317.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8581

Structure of UTP6

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative uncharacterized protein

State in the Current Structure

Other States of the Same Protein in the Database

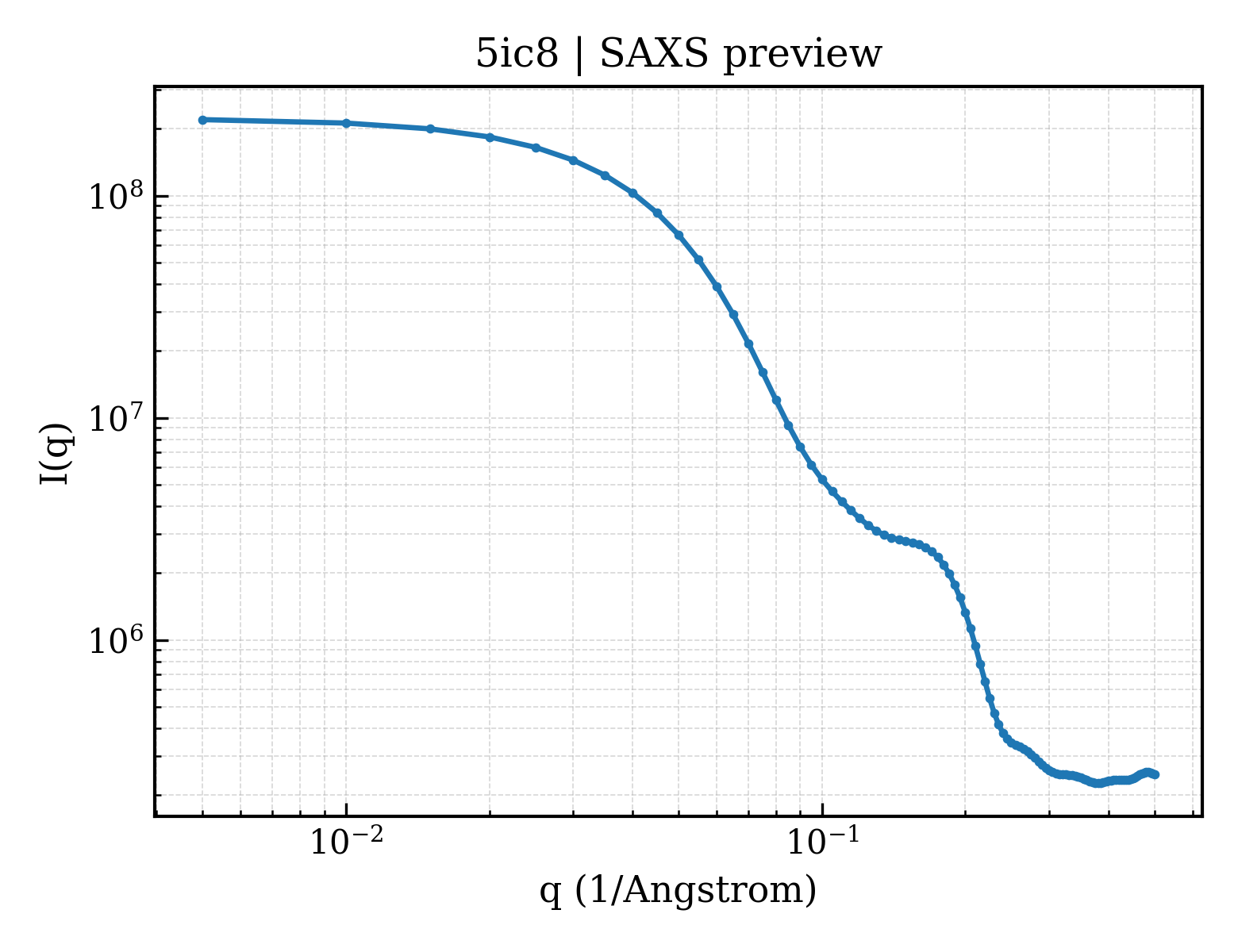

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Chaetomium thermophilum (strain DSM 1495 / CBS 144.50 / IMI 039719)
NCBI Class编号 ncbi_taxonomy_id	759272
宿主生物 host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/ic/5ic8/5ic8.fit
pddf	/app/data/pr_computation/ic/5ic8/5ic8.pr.out
profile	/app/data/saxs_computation/ic/5ic8/5ic8.dat
