5k09

Crystal Structure of COMT in complex with a thiazole ligand

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Catechol O-methyltransferase

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
10	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
11	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 PHOSPHATE ION × 1 water × 1	Consistent with protein count
12	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
13	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 PHOSPHATE ION × 1 water × 1	Consistent with protein count
14	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 PHOSPHATE ION × 1 water × 1	Consistent with protein count
15	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
16	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
17	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
18	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
19	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 PHOSPHATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
20	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
21	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
22	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
23	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
24	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
5	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
6	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 water × 1	Consistent with protein count
7	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 3 water × 1	Consistent with protein count
8	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count
9	Protein monomer	Monomer	Protein 1	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole × 1 POTASSIUM ION × 2 PHOSPHATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COMT_RAT
Isoform	P22734-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–216； UniProt 2–217 Author chain B； PDBConstruct 1–216； UniProt 2–217 Author chain C； PDBConstruct 1–216； UniProt 2–217 Author chain D； PDBConstruct 1–216； UniProt 2–217 Author chain E； PDBConstruct 1–216； UniProt 2–217 Author chain F； PDBConstruct 1–216； UniProt 2–217 Author chain G； PDBConstruct 1–216； UniProt 2–217 Author chain H； PDBConstruct 1–216； UniProt 2–217 Author chain I； PDBConstruct 1–216； UniProt 2–217 Author chain J； PDBConstruct 1–216； UniProt 2–217 Author chain K； PDBConstruct 1–216； UniProt 2–217 Author chain L； PDBConstruct 1–216； UniProt 2–217 Author chain M； PDBConstruct 1–216； UniProt 2–217 Author chain N； PDBConstruct 1–216； UniProt 2–217 Author chain O； PDBConstruct 1–216； UniProt 2–217 Author chain P； PDBConstruct 1–216； UniProt 2–217 Author chain Q； PDBConstruct 1–216； UniProt 2–217 Author chain R； PDBConstruct 1–216； UniProt 2–217 Author chain S； PDBConstruct 1–216； UniProt 2–217 Author chain T； PDBConstruct 1–216； UniProt 2–217 Author chain U； PDBConstruct 1–216； UniProt 2–217 Author chain V； PDBConstruct 1–216； UniProt 2–217 Author chain W； PDBConstruct 1–216； UniProt 2–217 Author chain X； PDBConstruct 1–216； UniProt 2–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5k09
Deposition date deposition_date	2016-05-17
Structure title title	Crystal Structure of COMT in complex with a thiazole ligand
Keywords keywords	METHYLTRANSFERASE, NEUROTRANSMITTER DEGRADATION, CATECHOL, transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5k09__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

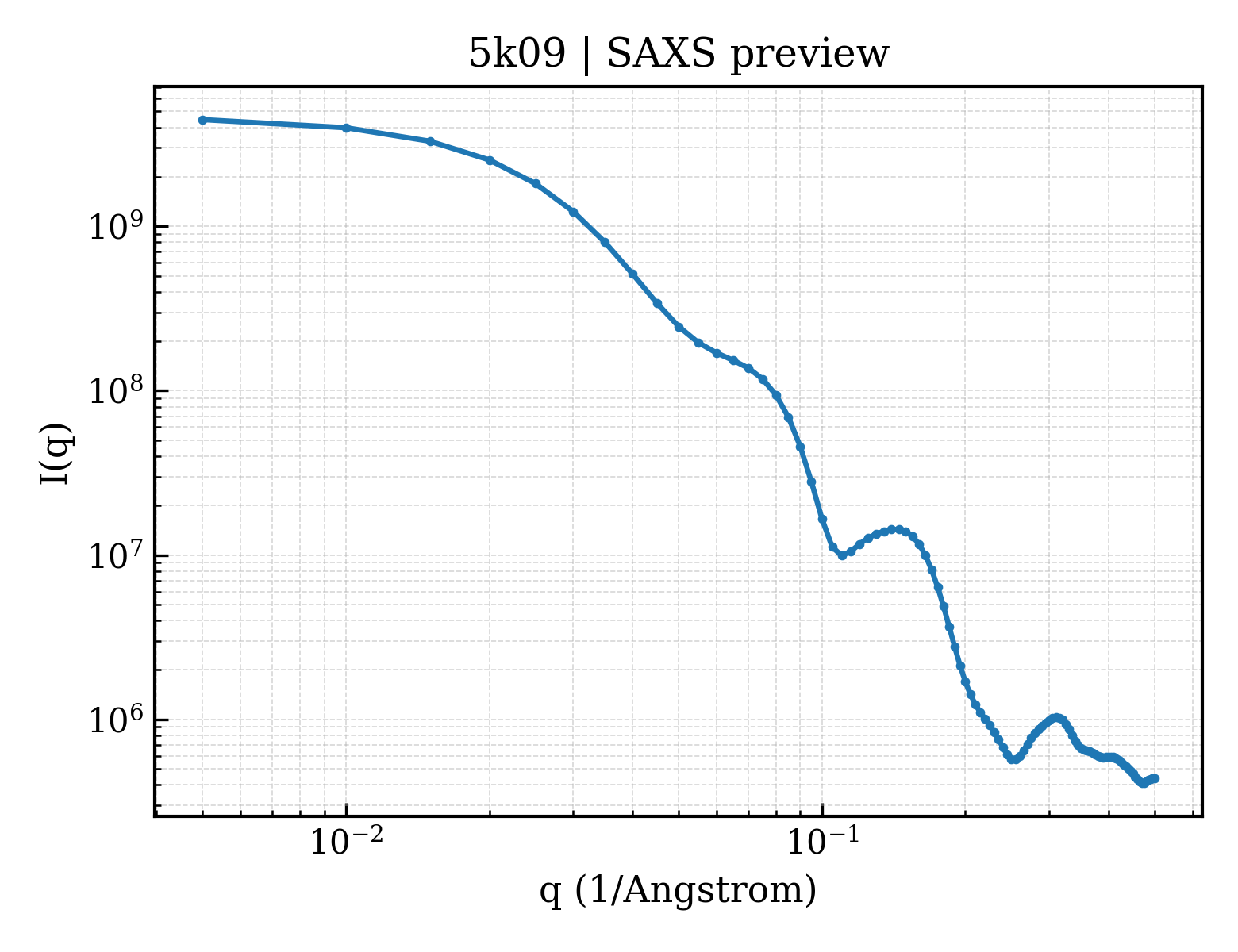

5k09__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

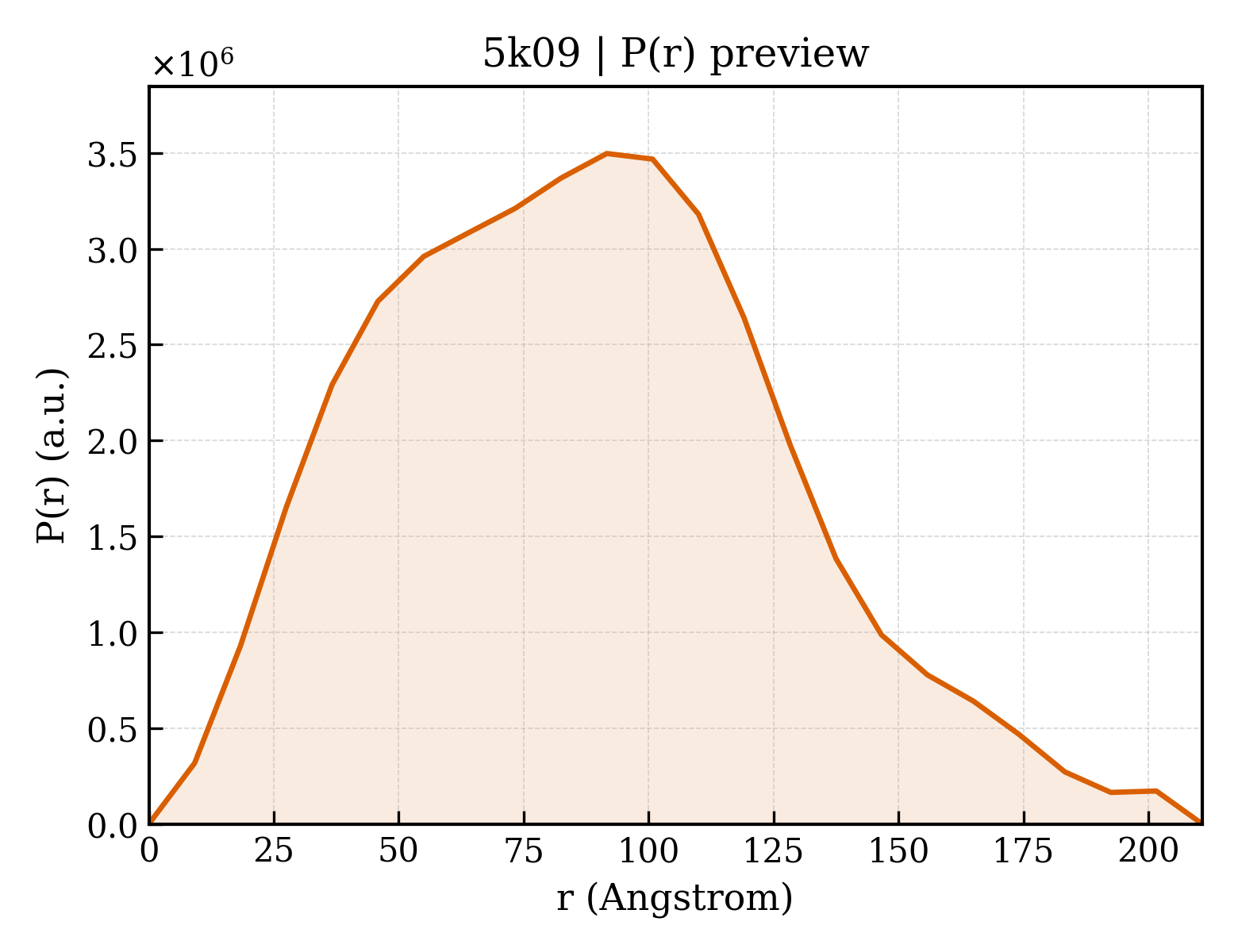

5k09__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.37 Å
Rg (electron density)	17.13 Å
Total Rg	18.14 Å
Atom count	1721
Residues	217
Excluded volume	31001 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5k09__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5k09__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`5k09__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`5k09__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`5k09__assembly_5__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`5k09__assembly_6__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`5k09__assembly_7__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`5k09__assembly_8__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
9	1	`5k09__assembly_9__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
10	1	`5k09__assembly_10__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
11	1	`5k09__assembly_11__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
12	1	`5k09__assembly_12__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
13	1	`5k09__assembly_13__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
14	1	`5k09__assembly_14__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
15	1	`5k09__assembly_15__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
16	1	`5k09__assembly_16__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
17	1	`5k09__assembly_17__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
18	1	`5k09__assembly_18__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
19	1	`5k09__assembly_19__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
20	1	`5k09__assembly_20__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
21	1	`5k09__assembly_21__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
22	1	`5k09__assembly_22__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
23	1	`5k09__assembly_23__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
24	1	`5k09__assembly_24__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Catechol O-methyltransferase
Molecular weight formula_weight	24249.7 kDa
EC 编号 ec_number	2.1.1.6
Source method src_method	man
Copy count entity_count	24

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X
Atom count atom_count	41639

GDTKEQRILRYVQQNAKPGDPQSVLEAIDTYCTQKEWAMNVGDAKGQIMDAVIREYSPSLVLELGAYCGYSAVRMARLLQPGARLLTMEINPDCAAITQQMLNFAGLQDKVTILNGASQDLIPQLKKKYDVDTLDMVFLDHWKDRYLPDTLLLEECGLLRKGTVLLADNVIVPGTPDFLAYVRGSSSFECTHYSSYLEYMKVVDGLEKAIYQGPSSD

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	5-{3-[(4-methoxyphenyl)methyl]-1H-pyrazol-5-yl}-2,4-dimethyl-1,3-thiazole
Molecular weight formula_weight	299.4 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	58

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	535

▼

6. Fold Classification (SCOP + CATH) 51 domains

SCOP 2.08 (27 domains)

Domain ID domain_id	d5k09a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d5k09b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09g1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09g2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d5k09h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09i_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09j_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09k_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09l_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09m_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09n_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09o_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09p_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09q_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09r1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09r2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d5k09s_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09t_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09u_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09v_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09w_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

Domain ID domain_id	d5k09x_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.1 — COMT-like

CATH v4.4 (24 domains)

Domain ID domain_id	5k09A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09E00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09F00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09G00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09H00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09I00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09J00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09K00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09L00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09M00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09N00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09O00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09P00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09Q00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09R00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09S00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09T00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09U00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09V00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09W00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	5k09X00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

Unit-cell length a length_a	84.035 Å
Unit-cell length b length_b	138.418 Å
Unit-cell length c length_c	158.501 Å
Unit-cell angle α angle_alpha	91.48 °
Unit-cell angle β angle_beta	97.19 °
Unit-cell angle γ angle_gamma	90.16 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	48.836 Å
R factor r_factor	0.1683
R_work r_work	0.1647
R_free r_free	0.2356

Crystal Structure of COMT in complex with a thiazole ligand

1. Protein Identity and Related Structures Protein Identity & Related Structures

Catechol O-methyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5k09__assembly_1__model_1

5k09__assembly_1__model_1 | I(q)

5k09__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 51 domains

SCOP 2.08 (27 domains)

CATH v4.4 (24 domains)

7. Citations (1)

Crystal Structure of COMT in complex with a thiazole ligand

1. Protein Identity and Related Structures Protein Identity & Related Structures

Catechol O-methyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5k09__assembly_1__model_1

5k09__assembly_1__model_1 | I(q)

5k09__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 51 domains

SCOP 2.08 (27 domains)

CATH v4.4 (24 domains)

7. Citations (1)
