SAXSdb — 5oay

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulator WhiB1

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–84	Not recorded	SF4 IRON/SULFUR CLUSTER × 1	SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 300；Pressure 1 NMR sample composition：25 mM sodium phosphate, 250 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5OAY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6ONO Complex structure of WhiB1 and region 4 of SigA in C2221 space group Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.237
6ONO Complex structure of WhiB1 and region 4 of SigA in C2221 space group Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.237
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–76（76 aa） Fragment：UNP residues 1-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	SF4 IRON/SULFUR CLUSTER × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.235

2 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	WHIB1_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–94； UniProt 1–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5oay
Deposition date deposition_date	2017-06-25
Structure title title	M. tuberculosis [4Fe-4S] protein WhiB1 is a four-helix bundle that forms a NO-sensitive complex with sigmaA and regulates the major virulence factor ESX-1
Keywords keywords	nitric oxide, sigmaA, iron-sulfur, tuberculosis, Wbl protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.95 Å
Radius of gyration Rg (electron density) rg_electron	12.19 Å
Forward intensity I(0) i0	141389000.00
Molecular weight molecular_weight	87822.0 kDa
Excluded volume excluded_volume	104910 Å³
Envelope volume envelope_volume	17722 Å³
Hydration-shell volume shell_volume	11334 Å³
Envelope diameter envelope_diameter	46.1 Å
Shell Rg shell_rg	19.05 Å
Envelope Rg envelope_rg	13.77 Å
Shape Rg shape_rg	12.29 Å
Total Rg total_rg	12.15 Å
Total atoms total_atoms	11600
Residues n_residues	760
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.1 Å
Rg (real space) rg_real	11.96 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	1.4140e+08
I(0) uncertainty (real space) i0_real_error	1.6230e+06
Rg (reciprocal space) rg_reciprocal	11.96 Å
I(0) (reciprocal space) i0_reciprocal	141400000.0000
Solution quality estimate total_estimate	0.8373
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	13.4 Å
Skewness Skewness skewness	0.330
Kurtosis Kurtosis kurtosis	-0.268
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	99120.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.703; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.811; Smooth: 0.962

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	Transcriptional regulator WhiB1
Molecular weight formula_weight	10383.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11600

来源生物 organism	Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)
NCBI Class编号 ncbi_taxonomy_id	83332
宿主生物 host_organism	Mycobacterium smegmatis

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/oa/5oay/5oay.fit
pddf	/app/data/pr_computation/oa/5oay/5oay.pr.out
profile	/app/data/saxs_computation/oa/5oay/5oay.dat

M. tuberculosis [4Fe-4S] protein WhiB1 is a four-helix bundle that forms a NO-sensitive complex with sigmaA and regulates the major virulence factor ESX-1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulator WhiB1

State in the Current Structure

Other States of the Same Protein in the Database

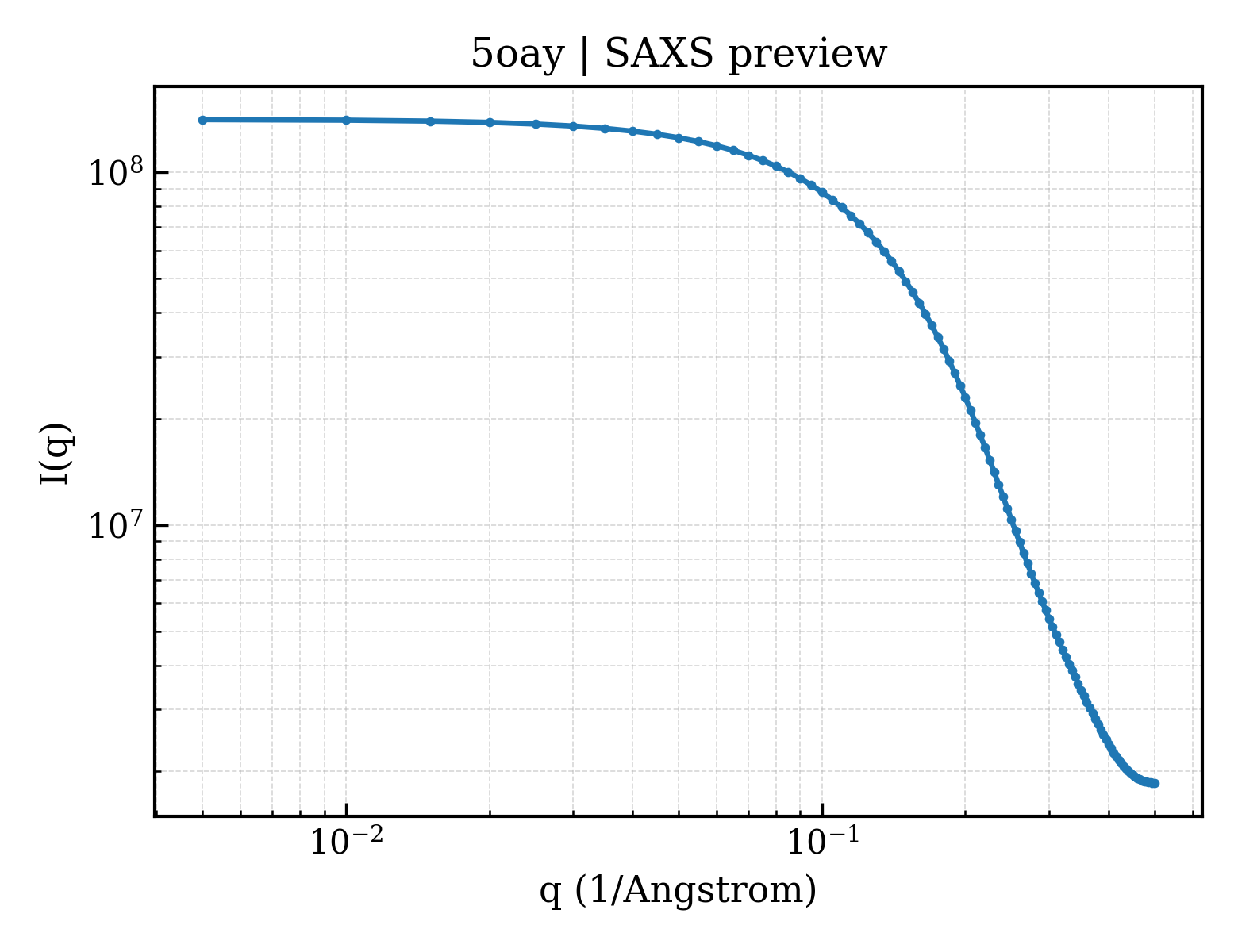

SAXS scattering curve SAXS Profile
