5unj

Structure of Human Liver Receptor Homolog 1 in complex with PGC1a and RJW100

Method: X-RAY DIFFRACTION D_max: 58.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear receptor subfamily 5 group A member 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 299–541	Fragment：unp residues 299-541	Peroxisome proliferator-activated gamma coactivator 1-alpha × 1 RJW (1R,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.05M Sodium acetate, pH 4.6; PEG4000 14%, glycerol 15-21%	Resolution 1.96 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5UNJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YOK crystal structure of human LRH-1 bound with TIF-2 peptide and phosphatidylglycerol Deposited 2005-01-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 300–541（242 aa） Fragment：sequence database residues 300-541: contains ligand binding domain (residues 346-388)	Not recorded	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.9；298 K；Sodium potassium phosphate, glycerol, ethylene glycol, pH 4.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.290
1YUC Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to Phospholipid and a Fragment of Human SHP Deposited 2005-02-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 290–541（252 aa） Fragment：Ligand Binding Domain	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 1.90 Å R-free 0.248
1YUC Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to Phospholipid and a Fragment of Human SHP Deposited 2005-02-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 290–541（252 aa） Fragment：Ligand Binding Domain	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 1.90 Å R-free 0.248
1YUC Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to Phospholipid and a Fragment of Human SHP Deposited 2005-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 290–541（252 aa） Fragment：Ligand Binding Domain Chain B 290–541（252 aa） Fragment：Ligand Binding Domain	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 2 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 1.90 Å R-free 0.248
1YUC Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to Phospholipid and a Fragment of Human SHP Deposited 2005-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 290–541（252 aa） Fragment：Ligand Binding Domain Chain B 290–541（252 aa） Fragment：Ligand Binding Domain	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 2 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 1.90 Å R-free 0.248
1ZDU The Crystal Structure of Human Liver Receptor Homologue-1 Deposited 2005-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 297–541（245 aa）	Not recorded	P3A PHOSPHATIDYLGLYCEROL-PHOSPHOGLYCEROL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；NaH2PO4, K2HPO4, pH 7.5, temperature 293K, VAPOR DIFFUSION, SITTING DROP	Resolution 2.50 Å R-free 0.281
2A66 Human Liver Receptor Homologue DNA-Binding Domain (hLRH-1 DBD) in Complex with dsDNA from the hCYP7A1 Promoter Deposited 2005-07-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 79–187（109 aa） Fragment：residues 79-187, NR C4-type	Not recorded	ZN ZINC ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；295 K；magnesium acetate, ammonium acetate, sodium cacodylate, PEG 8000, glycerol, sodium azide, hexaamine cobalt (III) trichloride, pH 6.0, hanging drop, temperature 295K, pH 6.00	Resolution 2.20 Å R-free 0.226
3TX7 Crystal structure of LRH-1/beta-catenin complex Deposited 2011-09-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 191–541（351 aa）	Not recorded	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 mM Tris-HCl, 40% PEG200, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.76 Å R-free 0.243
4DOR Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, in its apo State Bound to a Fragment of Human SHP Box1 Deposited 2012-02-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 290–541（252 aa） Fragment：UNP residues 290-541 Chain B 290–541（252 aa） Fragment：UNP residues 290-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.220
4DOR Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, in its apo State Bound to a Fragment of Human SHP Box1 Deposited 2012-02-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 290–541（252 aa） Fragment：UNP residues 290-541	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.220
4DOR Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, in its apo State Bound to a Fragment of Human SHP Box1 Deposited 2012-02-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 290–541（252 aa） Fragment：UNP residues 290-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；9.5%-15% PEG 3350, 5% glycerol, and 50 mM Bis-Tris, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.220
4DOS Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to DLPC and a Fragment of TIF-2 Deposited 2012-02-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 299–538（240 aa） Fragment：Ligand Binding Domain, UNP residues 299-538	Not recorded	1PE PENTAETHYLENE GLYCOL × 3 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop vapor diffusion；pH 5.2；298 K；18%-24% PEG 400, 5% glycerol, 0.1M lithium sulfate, and 0.1M sodium acetate pH 5.2, hanging drop vapor diffusion, temperature 298K	Resolution 2.00 Å R-free 0.238
4DOS Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to DLPC and a Fragment of TIF-2 Deposited 2012-02-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 299–538（240 aa） Fragment：Ligand Binding Domain, UNP residues 299-538	Not recorded	1PE PENTAETHYLENE GLYCOL × 3 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop vapor diffusion；pH 5.2；298 K；18%-24% PEG 400, 5% glycerol, 0.1M lithium sulfate, and 0.1M sodium acetate pH 5.2, hanging drop vapor diffusion, temperature 298K	Resolution 2.00 Å R-free 0.238
4DOS Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to DLPC and a Fragment of TIF-2 Deposited 2012-02-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 299–538（240 aa） Fragment：Ligand Binding Domain, UNP residues 299-538	Not recorded	1PE PENTAETHYLENE GLYCOL × 6 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop vapor diffusion；pH 5.2；298 K；18%-24% PEG 400, 5% glycerol, 0.1M lithium sulfate, and 0.1M sodium acetate pH 5.2, hanging drop vapor diffusion, temperature 298K	Resolution 2.00 Å R-free 0.238
4IS8 Divergent sequence tunes ligand sensitivity in phospholipid-regulated hormone receptors Deposited 2013-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 300–538（239 aa） Fragment：LIGAND BINDING DOMAIN	Mutation：Q419H,A420T,G421E,A422V,T423A,L424F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；9.5%-15% PEG3350, 5% GLYCEROL, 50 MM BIS-TRIS, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.78 Å R-free 0.257
4IS8 Divergent sequence tunes ligand sensitivity in phospholipid-regulated hormone receptors Deposited 2013-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 300–538（239 aa） Fragment：LIGAND BINDING DOMAIN	Mutation：Q419H,A420T,G421E,A422V,T423A,L424F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；9.5%-15% PEG3350, 5% GLYCEROL, 50 MM BIS-TRIS, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.78 Å R-free 0.257
4ONI Structure of Human Orphan Receptor LRH1 bound to two bacterial phospholipids Deposited 2014-01-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–541（251 aa） Fragment：Ligand Binding Domain, UNP residues 291-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；298 K；20-30% PEG 3350, Bis Tris, 5% glycerol, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.202
4ONI Structure of Human Orphan Receptor LRH1 bound to two bacterial phospholipids Deposited 2014-01-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–541（251 aa） Fragment：Ligand Binding Domain, UNP residues 291-541	Not recorded	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；298 K；20-30% PEG 3350, Bis Tris, 5% glycerol, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.202
4PLD Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, in its apo State Bound to a Fragment of Human TIF-2 Deposited 2014-05-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 301–541（241 aa） Fragment：UNP residues 301-541	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7-1 M di-Sodium Malonate, 0.1 M HEPES pH 7.4, 0.5% Jeffamine ED-2001	Resolution 1.75 Å R-free 0.225
4PLE Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to an E. Coli Phospholipid and a Fragment of TIF-2 Deposited 2014-05-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 301–541（241 aa） Fragment：UNP residues 301-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7-1 M di-Sodium Malonate, 0.1 M HEPES pH 7.4, 0.5% Jeffamine ED-2001	Resolution 1.75 Å R-free 0.236
4PLE Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to an E. Coli Phospholipid and a Fragment of TIF-2 Deposited 2014-05-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 301–541（241 aa） Fragment：UNP residues 301-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7-1 M di-Sodium Malonate, 0.1 M HEPES pH 7.4, 0.5% Jeffamine ED-2001	Resolution 1.75 Å R-free 0.236
4PLE Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to an E. Coli Phospholipid and a Fragment of TIF-2 Deposited 2014-05-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 301–541（241 aa） Fragment：UNP residues 301-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7-1 M di-Sodium Malonate, 0.1 M HEPES pH 7.4, 0.5% Jeffamine ED-2001	Resolution 1.75 Å R-free 0.236
4PLE Human Nuclear Receptor Liver Receptor Homologue-1, LRH-1, Bound to an E. Coli Phospholipid and a Fragment of TIF-2 Deposited 2014-05-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 301–541（241 aa） Fragment：UNP residues 301-541	Not recorded	EPH L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE × 1 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7-1 M di-Sodium Malonate, 0.1 M HEPES pH 7.4, 0.5% Jeffamine ED-2001	Resolution 1.75 Å R-free 0.236
4RWV Crystal structure of PIP3 bound human nuclear receptor LRH-1 (Liver Receptor Homolog 1, NR5A2) in complex with a co-regulator DAX-1 (NR0B1) peptide at 1.86 A resolution Deposited 2014-12-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–248（248 aa） Fragment：LIGAND BINDING DOMAIN (UNP residues 294-551)	Non-standard monomer：Yes (specific site not provided by mmCIF)	PIZ (2S)-3-{[(R)-{[(1S,2S,3R,4S,5S,6S)-2,6-dihydroxy-3,4,5-tris(phosphonooxy)cyclohexyl]oxy}(hydroxy)phosphoryl]oxy}propane -1,2-diyl dihexadecanoate × 1 EDO 1,2-ETHANEDIOL × 5 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；LRH-1/PIP3, 20% PEG 4K, 0.2M NaOAc, 0.1M Tris (8.5), 0.036mM PIP3, 0.90mM 15-mer PRQGSILYSLLTSSK, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.86 Å R-free 0.210
5L0M hLRH-1 DNA Binding Domain - 12bp Oct4 promoter complex Deposited 2016-07-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 79–187（109 aa） Fragment：unp residues 79-187	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M calcium acetate and 20% (w/v) PEG 3350	Resolution 2.20 Å R-free 0.197
5L11 Human Liver Receptor Homologue-1 (LRH-1) Bound to RJW100 and a Fragment of TIF-2 Deposited 2016-07-28	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：unp residues 299-541	Not recorded	RJW (1R,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；0.05 M Sodium Acetate, pH 4.6, PEG 4000 5-11%, glycerol 5-10%	Resolution 1.85 Å R-free 0.241
5SYZ Human Liver Receptor Homologue-1 (LRH-1) Bound to a RJW100 stereoisomer and a Fragment of TIF-2 Deposited 2016-08-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 297–538（242 aa）	Not recorded	71W (1S,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；Sodium acetate, PEG4000, glycerol	Resolution 1.93 Å R-free 0.228
6OQX Human Liver Receptor Homolog-1 bound to the agonist 5N and a fragment of the Tif2 coregulator Deposited 2019-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：UNP Residues 299-541	Not recorded	N1V (8beta,11alpha,12alpha)-8-(1-phenylethenyl)-1,6:7,14-dicycloprosta-1,3,5,7(14)-tetraen-11-yl sulfamate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Sodium acetate (pH 4.6), PEG4000, glycerol	Resolution 2.00 Å R-free 0.245
6OQY Human LRH-1 bound to the agonist 6N and a fragment of the Tif2 coregulator Deposited 2019-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：UNP Residues 299-541	Not recorded	N2J N-[(1S,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-yl]sulfuric diamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Sodium acetate (pH 4.6), PEG4000, glycerol	Resolution 2.23 Å R-free 0.269
6OR1 Human LRH-1 bound to the agonist 2N and a fragment of the Tif2 coregulator Deposited 2019-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：UNP Residues 299-541	Not recorded	N27 N-[(1S,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-yl]acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.05M sodium acetate (pH 4.6), 5-11% PEG4000, 0-10% glycerol. Microseeding with LRH-1-RJW100 crystals.	Resolution 2.17 Å R-free 0.239
6VC2 LRH-1 bound to SS-RJW100 and a fragment of the Tif2 Coactivator Deposited 2019-12-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa）	Not recorded	QU7 (1S,3aS,6aS)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Sodium acetate, PEG 4000, glycerol	Resolution 1.70 Å R-free 0.228
6VIF Human LRH-1 ligand-binding domain bound to agonist cpd 15 and fragment of coregulator TIF-2 Deposited 2020-01-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa）	Not recorded	QY4 N-[(8beta,11alpha,12alpha)-8-{[methyl(phenyl)amino]methyl}-1,6:7,14-dicycloprosta-1(6),2,4,7(14)-tetraen-11-yl]sulfuric diamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；Na acetate (pH 4.6), PEG 4000, glycerol	Resolution 2.26 Å R-free 0.284
7JYD Human Liver Receptor Homolog-1 in Complex with 10CA and a Fragment of Tif2 Deposited 2020-08-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：nuclear receptor ligand-binding domain	Not recorded	VQA 10-[(3aR,6R,6aR)-6-hydroxy-3-phenyl-3a-(1-phenylethenyl)-1,3a,4,5,6,6a-hexahydropentalen-2-yl]decanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.4 M sodium/potassium tartrate	Resolution 2.30 Å R-free 0.227
7JYE Human Liver Receptor Homolog-1 in Complex with 9ChoP and a Fragment of Tif2 Deposited 2020-08-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：nuclear receptor ligand-binding domain	Not recorded	VQY 9-[(3~{a}~{R},6~{R},6~{a}~{R})-6-oxidanyl-3-phenyl-3~{a}-(1-phenylethenyl)-4,5,6,6~{a}-tetrahydro-1~{H}-pentalen-2-yl]nonyl 2-(trimethyl-$l^{4}-azanyl)ethyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；9-19% tert-butanol, 0-6 % glycerol, 0.1 M tri-sodium citrate pH 4.6	Resolution 2.55 Å R-free 0.187
7TT8 Human LRH-1 LBD bound to agonist 6N-10CA and fragment of Tif2 coactivator Deposited 2022-01-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa）	Not recorded	IUW 10-[(3aR,6S,6aR)-3-phenyl-3a-(1-phenylethenyl)-6-(sulfamoylamino)-1,3a,4,5,6,6a-hexahydropentalen-2-yl]decanoic acid (non-preferred name) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；tri-Na citrate (4.6), tert-butanol, glycerol	Resolution 2.80 Å R-free 0.276
8F8M LRH-1 bound to small molecule Tet and fragment of coactivator Tif2 Deposited 2022-11-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 299–541（243 aa） Fragment：Nuclear receptor ligand-binding domain	Not recorded	XKE (1~{R},3~{a}~{R},6~{a}~{R})-4-phenyl-3~{a}-(1-phenylethenyl)-5-[9-(1~{H}-1,2,3,4-tetrazol-5-yl)nonyl]-2,3,6,6~{a}-tetrahydro-1~{H}-pentalen-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；tri-Na citrate, tert-butanol, glycerol	Resolution 2.60 Å R-free 0.220
8PKI Cryo-EM structure of NR5A2-nucleosome complex SHL+5.5 Deposited 2023-06-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain K 39–132（94 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å
9SMQ Crystal structure of LRH-1/TIF-2 peptide in complex with CP4 Deposited 2025-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 297–541（245 aa）	Not recorded	A1JOT 3-[5-phenyl-1-[3-(trifluoromethyl)phenyl]pyrazol-3-yl]propanoic acid × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.25 M Ammonium phosphate monobasic 0.9 Ammonium phosphate dibasic	Resolution 2.20 Å R-free 0.244

26 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NR5A2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–245； UniProt 299–541

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

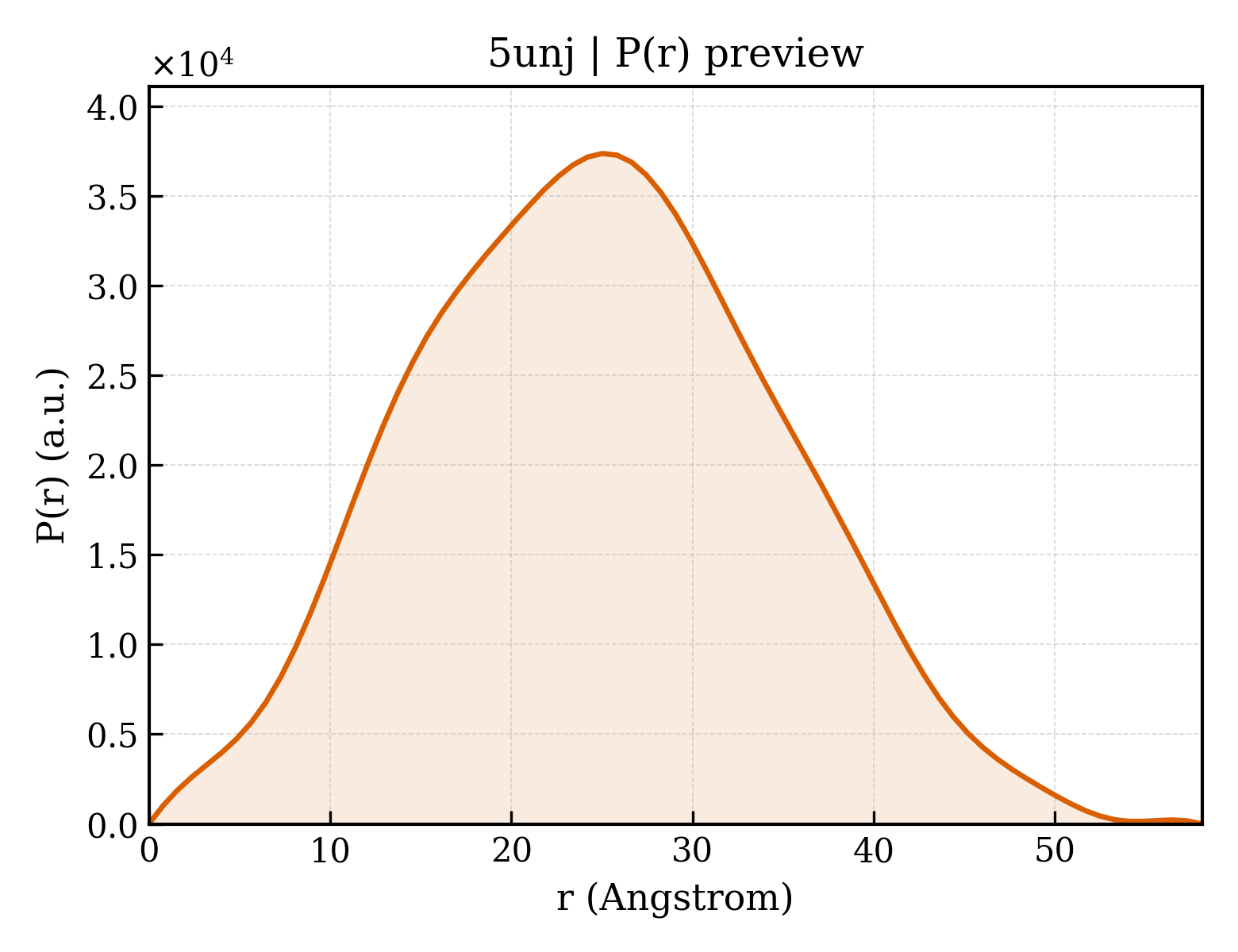

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5unj
Deposition date deposition_date	2017-01-31
Structure title title	Structure of Human Liver Receptor Homolog 1 in complex with PGC1a and RJW100
Keywords keywords	Nuclear receptor, agonist, coregulator, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.04 Å
Radius of gyration Rg (electron density) rg_electron	17.61 Å
Forward intensity I(0) i0	12110300.00
Molecular weight molecular_weight	27565.0 kDa
Excluded volume excluded_volume	35220 Å³
Envelope volume envelope_volume	39642 Å³
Hydration-shell volume shell_volume	18631 Å³
Envelope diameter envelope_diameter	58.5 Å
Shell Rg shell_rg	24.03 Å
Envelope Rg envelope_rg	17.83 Å
Shape Rg shape_rg	17.60 Å
Total Rg total_rg	18.69 Å
Total atoms total_atoms	3910
Residues n_residues	236
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.1 Å
Rg (real space) rg_real	18.90 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	1.2110e+07
I(0) uncertainty (real space) i0_real_error	1.5710e+05
Rg (reciprocal space) rg_reciprocal	18.92 Å
I(0) (reciprocal space) i0_reciprocal	12110000.0000
Solution quality estimate total_estimate	0.8982
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.0 Å
Skewness Skewness skewness	0.124
Kurtosis Kurtosis kurtosis	-0.411
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2655000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Nuclear receptor subfamily 5 group A member 2
Molecular weight formula_weight	28330.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3968

SNASIPHLILELLKCEPDEPQVQAKIMAYLQQEQANRSKHEKLSTFGLMCKMADQTLFSIVEWARSSIFFRELKVDDQMKLLQNCWSELLILDHIYRQVVHGKEGSIFLVTGQQVDYSIIASQAGATLNNLMSHAQELVAKLRSLQFDQREFVCLKFLVLFSLDVKNLENFQLVEGVQEQVNAALLDYTMCNYPQQTEKFGQLLLRLPEIRAISMQAEEYLYYKHLNGDVPYNNLLIEMLHAKRA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Peroxisome proliferator-activated gamma coactivator 1-alpha
Molecular weight formula_weight	1523.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EEPSLLKKLLLAPA

Entity 3 Entity 3 non-polymer

Description description	(1R,3aR,6aR)-5-hexyl-4-phenyl-3a-(1-phenylethenyl)-1,2,3,3a,6,6a-hexahydropentalen-1-ol
Molecular weight formula_weight	386.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	5unjA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

▶

8. Citations (1)

▶

Unit-cell length a length_a	66.180 Å
Unit-cell length b length_b	84.027 Å
Unit-cell length c length_c	45.355 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.959 Å
Low-resolution limit resolution_low	42.014 Å
R factor r_factor	0.2012
R_work r_work	0.1993
R_free r_free	0.2265

fit	/app/data/saxs_computation/un/5unj/5unj.fit
pddf	/app/data/pr_computation/un/5unj/5unj.pr.out
profile	/app/data/saxs_computation/un/5unj/5unj.dat
