SAXSdb — 5xpy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fermitin family homolog 2

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 15–680	Fragment：UNP residues 15-680 Mutation：168-217 deletion, 367-512 deletion	ACT ACETATE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.1 M Tris pH 8.5, 4.0 M Ammonium acetate	Resolution 2.10 Å R-free 0.196

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XPY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5XPZ Structural basis of kindlin-mediated integrin recognition and activation Deposited 2017-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–680（680 aa） Chain B 1–680（680 aa）	Mutation：168-217 deletion, 337-512 deletion Mutation：168-217 deletion, 337-512 deletion	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M potassium chloride, 0.05 M HEPES pH 7.5, 35% v/v pentaerythritol propoxylate	Resolution 2.60 Å R-free 0.283
5XQ0 Structural basis of kindlin-mediated integrin recognition and activation Deposited 2017-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–680（680 aa） Fragment：UNP residues 784-798 Chain B 1–680（680 aa） Fragment：UNP residues 784-798	Mutation：168-217 deletion, 337-512 deletion Mutation：168-217 deletion, 337-512 deletion	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M potassium chloride, 0.05 M HEPES pH 7.5, 35% v/v pentaerythritol propoxylate	Resolution 2.75 Å R-free 0.284
5XQ1 Structural basis of kindlin-mediated integrin recognition and activation Deposited 2017-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–680（680 aa） Fragment：UNP residues 773-787 Chain B 1–680（680 aa） Fragment：UNP residues 773-787	Mutation：168-217 deletion, 337-512 deletion Mutation：168-217 deletion, 337-512 deletion	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.2 M potassium chloride, 0.05 M HEPES pH 7.5, 35% v/v pentaerythritol propoxylate	Resolution 2.95 Å R-free 0.260
8TEC Crystal structure of Kindlin2 in complex with acylated beta1 integrin peptide Deposited 2023-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–336（336 aa） Fragment：UNP residues 1-336,513-680 Chain A 513–680（168 aa） Fragment：UNP residues 1-336,513-680 Chain B 1–336（336 aa） Fragment：UNP residues 1-336,513-680 Chain B 513–680（168 aa） Fragment：UNP residues 1-336,513-680	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；0.1 M Tris, pH 8.5, 10% isopropanal	Resolution 2.04 Å R-free 0.230
8TEE Crystal structure of Kindlin2 in complex with K794Q mutated beta1 integrin Deposited 2023-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–336（336 aa） Fragment：UNP residues 1-336,513-680 Chain A 513–680（168 aa） Fragment：UNP residues 1-336,513-680 Chain B 1–336（336 aa） Fragment：UNP residues 1-336,513-680 Chain B 513–680（168 aa） Fragment：UNP residues 1-336,513-680	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M Tris, pH 8.5, 10% isopropanal	Resolution 2.49 Å R-free 0.275

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FERM2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–474； UniProt 15–680

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5xpy
Deposition date deposition_date	2017-06-05
Structure title title	Structural basis of kindlin-mediated integrin recognition and activation
Keywords keywords	Integrin Binding, Multi-domain containing protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.19 Å
Radius of gyration Rg (electron density) rg_electron	26.37 Å
Forward intensity I(0) i0	44544900.00
Molecular weight molecular_weight	52794.0 kDa
Excluded volume excluded_volume	66597 Å³
Envelope volume envelope_volume	83900 Å³
Hydration-shell volume shell_volume	27859 Å³
Envelope diameter envelope_diameter	109.0 Å
Shell Rg shell_rg	32.17 Å
Envelope Rg envelope_rg	26.94 Å
Shape Rg shape_rg	26.33 Å
Total Rg total_rg	27.16 Å
Total atoms total_atoms	3713
Residues n_residues	454
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.0 Å
Rg (real space) rg_real	27.30 Å
Rg uncertainty (real space) rg_real_error	1.10 Å
I(0) (real space) i0_real	4.4540e+07
I(0) uncertainty (real space) i0_real_error	7.2220e+05
Rg (reciprocal space) rg_reciprocal	27.27 Å
I(0) (reciprocal space) i0_reciprocal	44540000.0000
Solution quality estimate total_estimate	0.8258
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.9 Å
Skewness Skewness skewness	0.477
Kurtosis Kurtosis kurtosis	-0.093
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14260000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.650; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.957

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fermitin family homolog 2
Molecular weight formula_weight	55083.3 kDa
Mutation mutation	168-217 deletion, 367-512 deletion
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3912

HMGSDGTWELSVHVTDLNRDVTLRVTGEVHIGGVMLKLVEKLDVKKDWSDHALWWEKKRTWLLKTHWTLDKCGIQADAKLQFTPQHKLLRLQLPNMKYVKVKVNFSDRVFKAVSDICKTFNIRHPEELSLLKKPRDPTKKKKKKLDDQSEDEALELEPGILAVSQPVTSPEILAKMFKPQALLDKAKTNQGWLDSSRSLMEQDVKENEALLLRFKYYSFFDLNPKYDAIRINQLYEQAKWALLLEEIECTEEEMMMFAALQYHINKLSIMTSENHLNNSDKEVDEVDAALSDLEITLEGGKTSTILTTDVNPECLVSPRYLKKYKSKQITARILEAHQNVAQMSLIEAKMRFIQAWQSLPEFGITHFIARFQGGKREELIGIAYNRLIRMDASTGDAIKTWRFSNMKQWNVNWEIKMVTVEFADEVRLSFICTEVDCKVVHEFIGGYIFLSTRAKDQNESLDEEMFYKLTSGWV

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5xpyA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	5xpyA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	145.069 Å
Unit-cell length b length_b	145.069 Å
Unit-cell length c length_c	59.352 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.099 Å
Low-resolution limit resolution_low	31.408 Å
R factor r_factor	0.1655
R_work r_work	0.1640
R_free r_free	0.1959

fit	/app/data/saxs_computation/xp/5xpy/5xpy.fit
pddf	/app/data/pr_computation/xp/5xpy/5xpy.pr.out
profile	/app/data/saxs_computation/xp/5xpy/5xpy.dat

Structural basis of kindlin-mediated integrin recognition and activation

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fermitin family homolog 2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

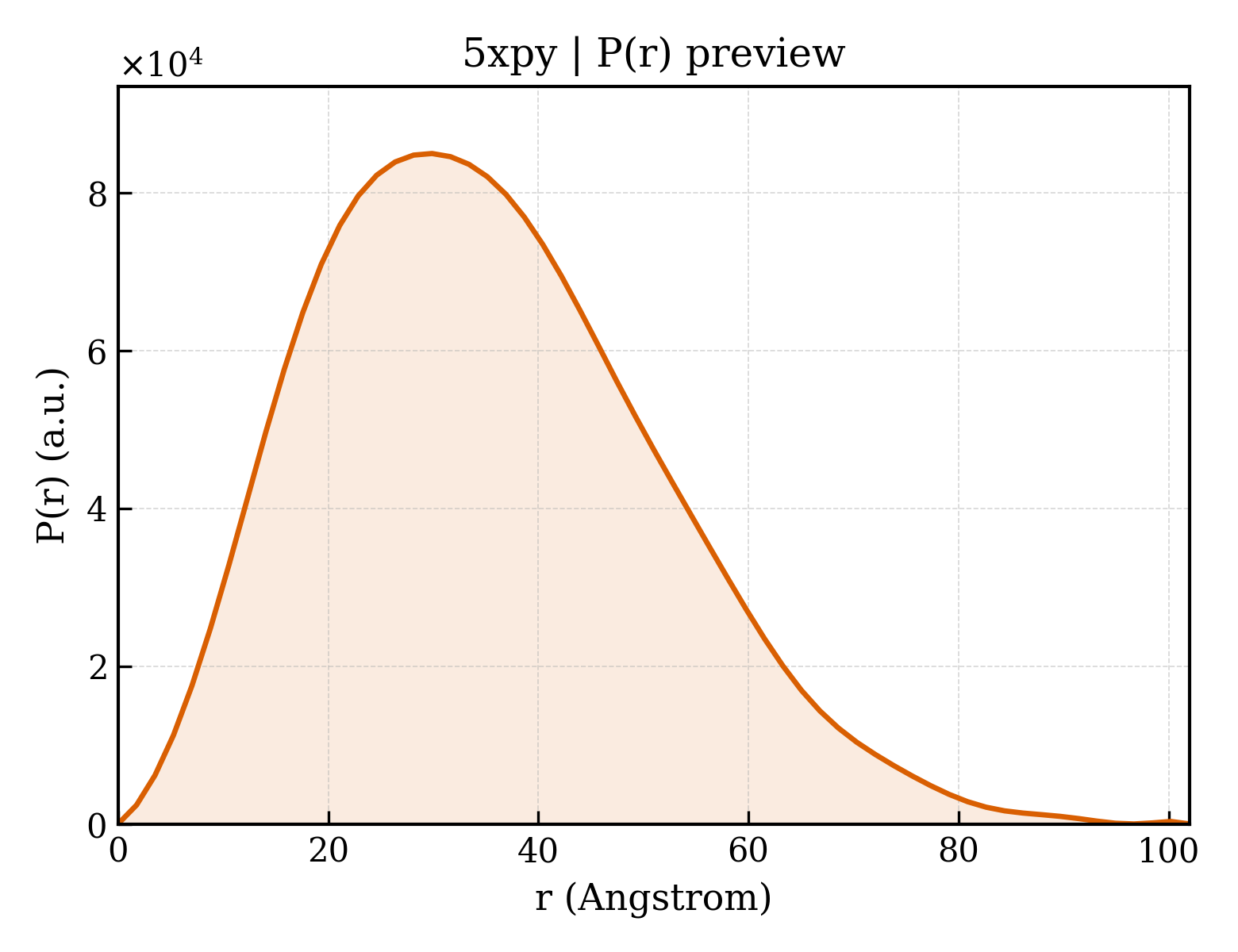

P(r) Distance Distribution P(r) Distribution
