SAXSdb — 6at0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heterochromatin protein 1

Drosophila melanogaster

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 17–76	Fragment：Chromo 1 domain, residues 17-76 Mutation：K38M Non-standard monomer：Yes (specific site not provided by mmCIF)	trimethyl lysine histone H3 tail peptide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；277 K；0.1M MES, 3.0M (NH4)2SO4	Resolution 1.28 Å R-free 0.260

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6AT0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1KNA Chromo domain of HP1 complexed with histone H3 tail containing dimethyllysine 9. Deposited 2001-12-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–76（60 aa） Fragment：Residues 23-76	Mutation：K38M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；283 K；Ammonium Sulfate, MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 283.0K	Resolution 2.10 Å R-free 0.259
1KNE Chromo domain of HP1 complexed with histone H3 tail containing trimethyllysine 9 Deposited 2001-12-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–76（60 aa） Fragment：Residues 17-76	Mutation：K38M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；283 K；Ammonium Sulfate, MES, pH 6.1, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 2.40 Å R-free 0.267
1Q3L Chromodomain Of HP1 Complexed With Histone H3 Tail Containing monomethyllysine 9. Deposited 2003-07-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–76（60 aa） Fragment：sequence database residues 17-76	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；283 K；Ammonium Sulfate, MES, pH 6.1, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 1.64 Å R-free 0.241
3P7J Drosophila HP1a chromo shadow domain Deposited 2010-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 131–206（76 aa） Fragment：UNP residues 131-206 Chain B 131–206（76 aa） Fragment：UNP residues 131-206	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；12% PEG400, 0.1 M HEPES. Cryoprotected in 12% PEG400, 0.1 M HEPES, 33% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.246
3P7J Drosophila HP1a chromo shadow domain Deposited 2010-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 131–206（76 aa） Fragment：UNP residues 131-206 Chain B 131–206（76 aa） Fragment：UNP residues 131-206	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；12% PEG400, 0.1 M HEPES. Cryoprotected in 12% PEG400, 0.1 M HEPES, 33% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.246
6ASZ Chromodomain HP1 with Y24F mutation bound to histone H3 peptide containing trimethyl lysine Deposited 2017-08-27	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 17–76（60 aa） Fragment：Chromo 1 domain, residues 17-76	Mutation：Y24F , K38M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；277 K；0.1 M MES, 3.4 M (NH4)2SO4	Resolution 1.52 Å R-free 0.274
6MHA dHP1 Chromodomain Y24W variant bound to histone H3 peptide containing trimethyllysine Deposited 2018-09-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 22–74（53 aa）	Mutation：Y24W, K38M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；3.2 M Ammonium sulfate, 0.1 M MES	Resolution 1.50 Å R-free 0.219

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HP1_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–69； UniProt 17–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6at0
Deposition date deposition_date	2017-08-27
Structure title title	Chromodomain HP1 with a p-nitro-L-phenylalanine mutation at position 24 bound to histone H3 peptide containing trimethyl lysine
Keywords keywords	histone reader, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.42 Å
Radius of gyration Rg (electron density) rg_electron	10.93 Å
Forward intensity I(0) i0	1272670.00
Molecular weight molecular_weight	7255.0 kDa
Excluded volume excluded_volume	8970 Å³
Envelope volume envelope_volume	9940 Å³
Hydration-shell volume shell_volume	8014 Å³
Envelope diameter envelope_diameter	35.1 Å
Shell Rg shell_rg	16.27 Å
Envelope Rg envelope_rg	11.30 Å
Shape Rg shape_rg	10.89 Å
Total Rg total_rg	12.44 Å
Total atoms total_atoms	511
Residues n_residues	57
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	38.0 Å
Rg (real space) rg_real	12.33 Å
Rg uncertainty (real space) rg_real_error	0.18 Å
I(0) (real space) i0_real	1.2730e+06
I(0) uncertainty (real space) i0_real_error	1.1620e+04
Rg (reciprocal space) rg_reciprocal	12.33 Å
I(0) (reciprocal space) i0_reciprocal	1273000.0000
Solution quality estimate total_estimate	0.9021
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.9 Å
Skewness Skewness skewness	0.109
Kurtosis Kurtosis kurtosis	-0.384
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	230700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Heterochromatin protein 1
Molecular weight formula_weight	8615.5 kDa
Mutation mutation	K38M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	579

MKKHHHHHHAEEEEEEFAVEKIIDRRVRKGMVEYYLKWKGYPETENTWEPENNLDCQDLIQQYEASRKD

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	Fruit fly
NCBI Class编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	trimethyl lysine histone H3 tail peptide
Molecular weight formula_weight	733.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

QTARKS

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6at0A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	34.417 Å
Unit-cell length b length_b	76.857 Å
Unit-cell length c length_c	76.479 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.285 Å
Low-resolution limit resolution_low	11.224 Å
R factor r_factor	0.2418
R_work r_work	0.2410
R_free r_free	0.2597

fit	/app/data/saxs_computation/at/6at0/6at0.fit
pddf	/app/data/pr_computation/at/6at0/6at0.pr.out
profile	/app/data/saxs_computation/at/6at0/6at0.dat

Chromodomain HP1 with a p-nitro-L-phenylalanine mutation at position 24 bound to histone H3 peptide containing trimethyl lysine

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heterochromatin protein 1

State in the Current Structure

Other States of the Same Protein in the Database

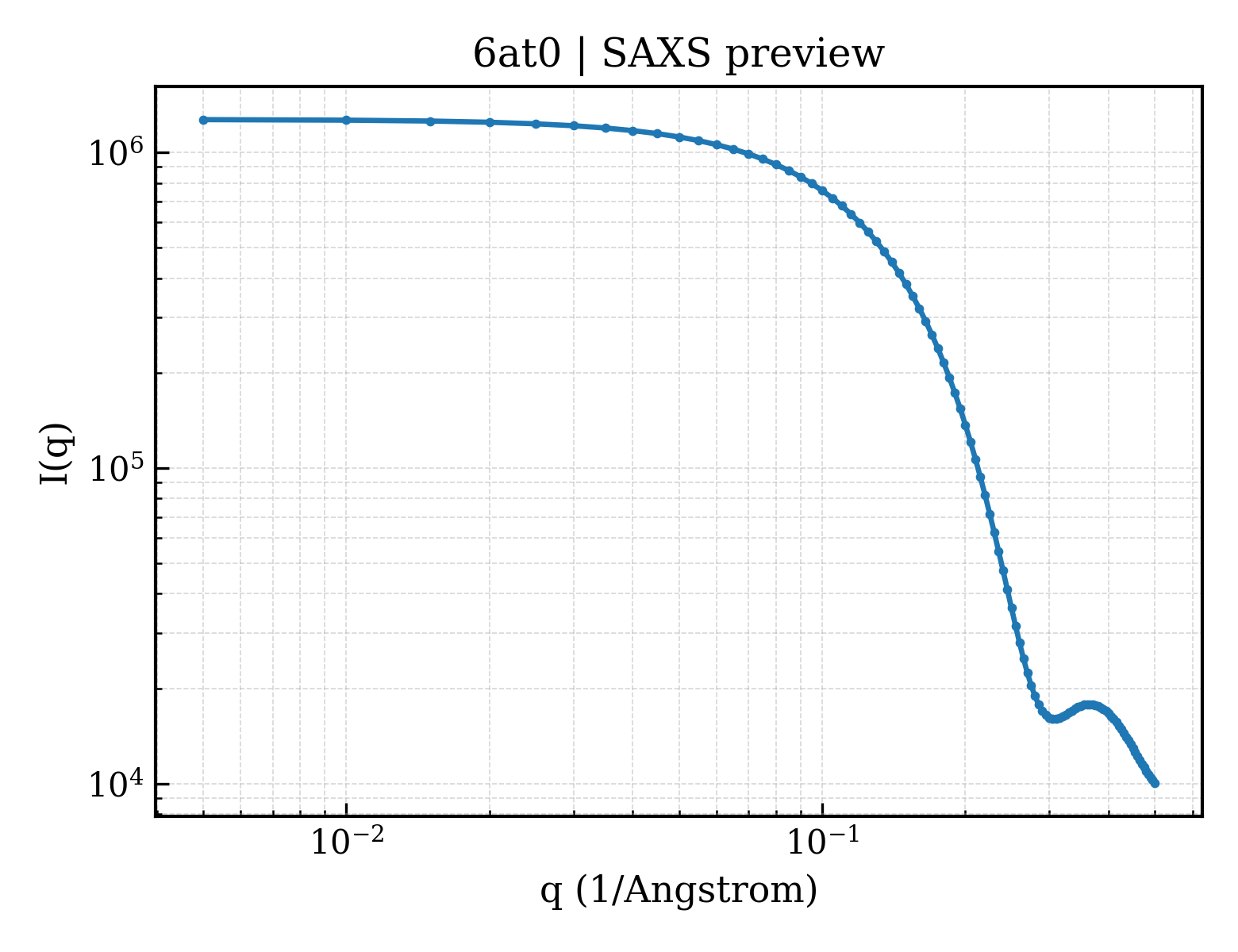

SAXS scattering curve SAXS Profile
