SAXSdb — 6chq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphopantetheine adenylyltransferase

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	2-benzyl-7-[(3-chloro-4-methylphenyl)amino]-5-methyl-3H-[1,2,4]triazolo[1,5-a]pyrimidin-8-ium × 3 SULFATE ION × 15 DIMETHYL SULFOXIDE × 6 TETRAETHYLENE GLYCOL × 6 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 24	2-benzyl-7-[(3-chloro-4-methylphenyl)amino]-5-methyl-3H-[1,2,4]triazolo[1,5-a]pyrimidin-8-ium × 12 SULFATE ION × 60 DIMETHYL SULFOXIDE × 24 TETRAETHYLENE GLYCOL × 24 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COAD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–159； UniProt 1–159 Author chain B； PDBConstruct 1–159； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6chq
Deposition date deposition_date	2018-02-22
Structure title title	Phosphopantetheine adenylyltransferase (CoaD) in complex with 2-benzyl-N-(3-chloro-4-methylphenyl)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-amine
Keywords keywords	PPAT CaaD, FBDD Gram-negative antibacterial antibiotic, Transferase Transferase-antibiotic complex, TRANSFERASE-ANTIBIOTIC complex; TRANSFERASE/ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6chq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6chq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

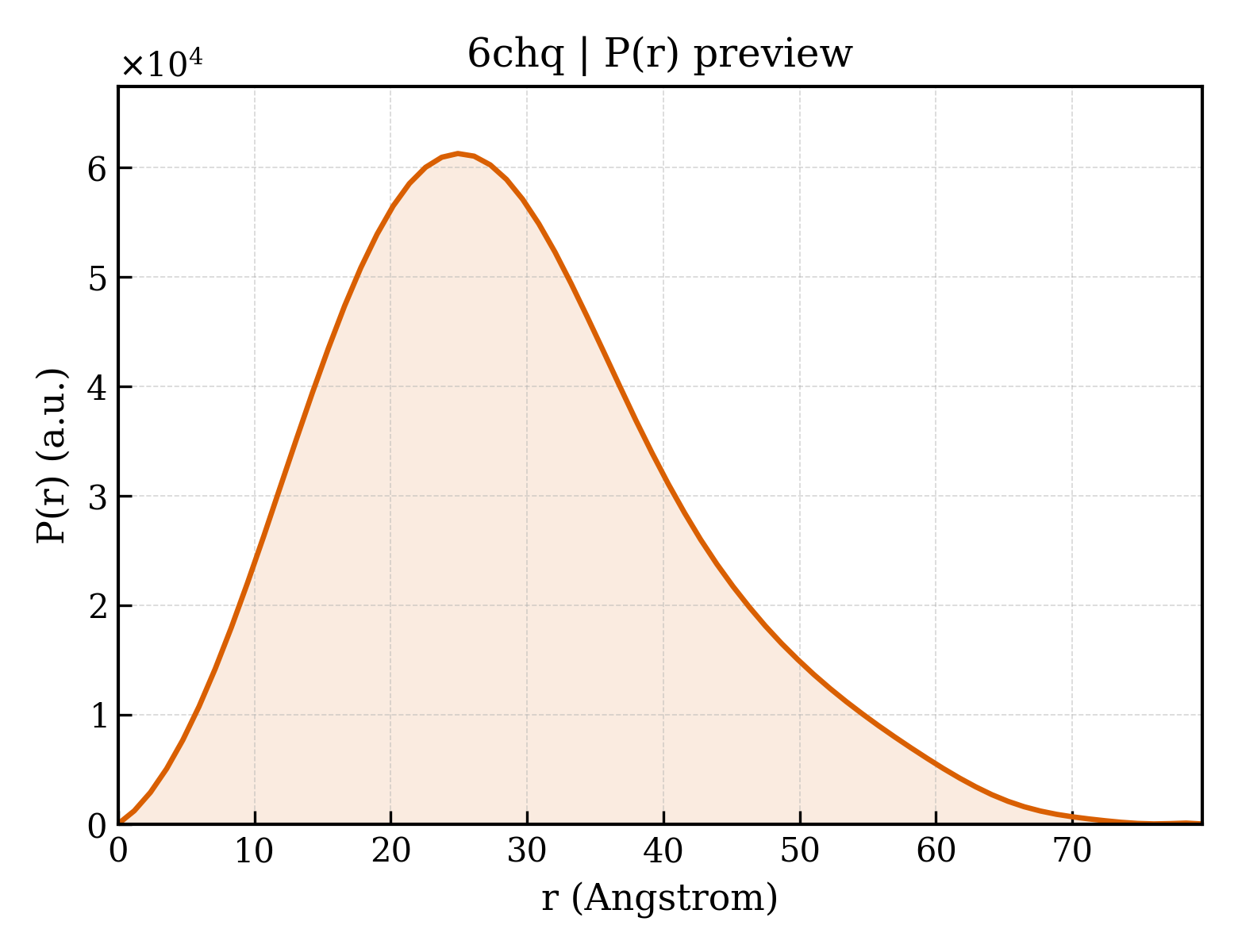

6chq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.28 Å
Rg (electron density)	28.03 Å
Total Rg	28.85 Å
Atom count	7728
Residues	954
Excluded volume	137700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6chq__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6chq__assembly_2__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Phosphopantetheine adenylyltransferase
Molecular weight formula_weight	18073.8 kDa
EC 编号 ec_number	2.7.7.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2959

MQKRAIYPGTFDPITNGHIDIVTRATQMFDHVILAIAASPSKKPMFTLEERVALAQQATAHLGNVEVVGFSDLMANFARNQHATVLIRGLRAVADFEYEMQLAHMNRHLMPELESVFLMPSKEWSFISSSLVKEVARHQGDVTHFLPENVHQALMAKLAVD

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2-benzyl-7-[(3-chloro-4-methylphenyl)amino]-5-methyl-3H-[1,2,4]triazolo[1,5-a]pyrimidin-8-ium
Molecular weight formula_weight	364.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	268

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d6chqa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d6chqa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6chqb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

CATH v4.4 (2 domains)

Domain ID domain_id	6chqA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	6chqB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	134.189 Å
Unit-cell length b length_b	134.189 Å
Unit-cell length c length_c	134.189 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	1.790 Å
Low-resolution limit resolution_low	42.430 Å
R factor r_factor	0.1720
R_work r_work	0.1710
R_free r_free	0.1920
