6eor

DPP9 - 1G244

Method: X-RAY DIFFRACTION Dmax: 180.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dipeptidyl peptidase 9

Homo sapiens

UniProt Q86TI2

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–863 Chain B； UniProt 1–863 Not recorded 9XH (2~{S})-2-azanyl-4-[4-[bis(4-fluorophenyl)methyl]piperazin-1-yl]-1-(1,3-dihydroisoindol-2-yl)butane-1,4-dione × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；10% PEG 8000, 25% Glycerol, 0.16M Calcium Acetate, 0.08M Cacodilate pH 6.25 Resolution 2.90 Å R-free 0.332
2 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain C； UniProt 1–863 Chain D； UniProt 1–863 Not recorded 9XH (2~{S})-2-azanyl-4-[4-[bis(4-fluorophenyl)methyl]piperazin-1-yl]-1-(1,3-dihydroisoindol-2-yl)butane-1,4-dione × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；10% PEG 8000, 25% Glycerol, 0.16M Calcium Acetate, 0.08M Cacodilate pH 6.25 Resolution 2.90 Å R-free 0.332

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6EOR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6EOQ DPP9 - Apo Deposited 2017-10-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–863（863 aa）
Chain C 1–863（863 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10%PEG 8000, 25% Glycerol, 0.16M Calcium Acetate, 0.08M Caodilate pH6.25,
Resolution 3.00 Å R-free 0.334
6EOQ DPP9 - Apo Deposited 2017-10-10 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10%PEG 8000, 25% Glycerol, 0.16M Calcium Acetate, 0.08M Caodilate pH6.25,
Resolution 3.00 Å R-free 0.334
6QZV DPP9 bound to a dipeptide (MP) from the N-terminus of BRCA2 Deposited 2019-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–892（892 aa）
Chain B 1–892（892 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；20 mg/ml of protein, 10% PEG 8000, 25% glycerol, 0.16 M calcium acetate, 0.08 M cacodilate pH 6.25. Drops are set in a 1:1 ratio.
Resolution 3.00 Å R-free 0.345
6QZV DPP9 bound to a dipeptide (MP) from the N-terminus of BRCA2 Deposited 2019-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–892（892 aa）
Chain D 1–892（892 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；20 mg/ml of protein, 10% PEG 8000, 25% glycerol, 0.16 M calcium acetate, 0.08 M cacodilate pH 6.25. Drops are set in a 1:1 ratio.
Resolution 3.00 Å R-free 0.345
6X6A Cryo-EM structure of NLRP1-DPP9 complex Deposited 2020-05-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
6X6C Cryo-EM structure of NLRP1-DPP9-VbP complex Deposited 2020-05-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded GK2 [(2~{R})-1-[(2~{R})-2-azanyl-3-methyl-butanoyl]pyrrolidin-2-yl]boronic acid × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25 mM Tris pH 7.5, 150 mM NaCl, 1 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7A3F Crystal structure of apo DPP9 Deposited 2020-08-18 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–892（892 aa）
Chain B 1–892（892 aa）
Not recorded PO4 PHOSPHATE ION × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.08 M Na-Cacodilate pH 5.25, 0.16 M Ca-Acetate, 30 % Glycerol, 10 % PEG 8K
Resolution 2.90 Å R-free 0.290
7A3F Crystal structure of apo DPP9 Deposited 2020-08-18 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–892（892 aa）
Chain D 1–892（892 aa）
Not recorded PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.08 M Na-Cacodilate pH 5.25, 0.16 M Ca-Acetate, 30 % Glycerol, 10 % PEG 8K
Resolution 2.90 Å R-free 0.290
7JKQ Human DPP9-CARD8 complex Deposited 2020-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25mM HEPES, pH 7.5, 150 mM NaCl, 1 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7JN7 Human DPP9-CARD8 complex Deposited 2020-08-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded GK2 [(2~{R})-1-[(2~{R})-2-azanyl-3-methyl-butanoyl]pyrrolidin-2-yl]boronic acid × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25 mM HEPES, pH 7.5, 150 mM NaCl, 1 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7SVL DPP9 IN COMPLEX WITH LIGAND ICeD-2 Deposited 2021-11-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–863（863 aa）
Chain B 1–863（863 aa）
Not recorded D06 (2S)-2-amino-1-(1,3-dihydro-2H-isoindol-2-yl)-2-[(1r,4S)-4-(pyrrolidin-1-yl)cyclohexyl]ethan-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；10% PEG 8000 25% Glycerol 0.16 M Calcium Acetate 0.08 M Cacodilate pH 6.25
Resolution 2.46 Å R-free 0.341
7SVL DPP9 IN COMPLEX WITH LIGAND ICeD-2 Deposited 2021-11-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded D06 (2S)-2-amino-1-(1,3-dihydro-2H-isoindol-2-yl)-2-[(1r,4S)-4-(pyrrolidin-1-yl)cyclohexyl]ethan-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；10% PEG 8000 25% Glycerol 0.16 M Calcium Acetate 0.08 M Cacodilate pH 6.25
Resolution 2.46 Å R-free 0.341
7SVN DPP9 IN COMPLEX WITH LIGAND ICeD-1 Deposited 2021-11-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–863（863 aa）
Chain B 1–863（863 aa）
Not recorded CW8 (2S,4S)-1-[(2S)-2-amino-2-cyclohexylacetyl]-4-fluoropyrrolidine-2-carbonitrile × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；10% PEG 8000 25% glycerol 0.16 M calcium acetate 0.08 M cacodilate pH 6.25
Resolution 2.78 Å R-free 0.349
7SVN DPP9 IN COMPLEX WITH LIGAND ICeD-1 Deposited 2021-11-19 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–863（863 aa）
Chain D 1–863（863 aa）
Not recorded CW8 (2S,4S)-1-[(2S)-2-amino-2-cyclohexylacetyl]-4-fluoropyrrolidine-2-carbonitrile × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；10% PEG 8000 25% glycerol 0.16 M calcium acetate 0.08 M cacodilate pH 6.25
Resolution 2.78 Å R-free 0.349
7ZXS Crystal structure of DPP9 in complex with a 4-oxo-b-lactam based inhibitor, A295 Deposited 2022-05-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 20–863（844 aa） Fragment：extcolor{red}{>FRAGMENT<}
Chain C 20–863（844 aa） Fragment：extcolor{red}{>FRAGMENT<}
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) KBO 2-ethyl-2-methanoyl-~{N}-[3-[[4-(quinolin-8-ylmethyl)piperazin-1-yl]methyl]phenyl]butanamide × 2 EDO 1,2-ETHANEDIOL × 17 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The crystal is grown in a condition containing PEG 2K MME buffered by Tris pH 7
Resolution 1.81 Å R-free 0.203
7ZXS Crystal structure of DPP9 in complex with a 4-oxo-b-lactam based inhibitor, A295 Deposited 2022-05-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 20–863（844 aa）
Chain D 20–863（844 aa）
Not recorded KBO 2-ethyl-2-methanoyl-~{N}-[3-[[4-(quinolin-8-ylmethyl)piperazin-1-yl]methyl]phenyl]butanamide × 2 EDO 1,2-ETHANEDIOL × 24 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The crystal is grown in a condition containing PEG 2K MME buffered by Tris pH 7
Resolution 1.81 Å R-free 0.203
9GOC Crystal structure of DPP9 Ser730Ala in complex with sulphostin. Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 20–863（844 aa）
Chain B 20–863（844 aa）
Not recorded A1INE Sulphostin × 2 EDO 1,2-ETHANEDIOL × 28 PEG DI(HYDROXYETHYL)ETHER × 2 PG5 1-METHOXY-2-[2-(2-METHOXY-ETHOXY]-ETHANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG2000 MME 20% (w/v), 0.1 M Tris pH 6.75
Resolution 1.89 Å R-free 0.199
9GOC Crystal structure of DPP9 Ser730Ala in complex with sulphostin. Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 20–863（844 aa）
Chain D 20–863（844 aa）
Not recorded A1INE Sulphostin × 2 EDO 1,2-ETHANEDIOL × 19 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG2000 MME 20% (w/v), 0.1 M Tris pH 6.75
Resolution 1.89 Å R-free 0.199
9GOD Crystal structure of DPP9 in complex with N-phosphono-(S)-3-aminopiperidine-2-one-based inhibitor Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 20–863（844 aa）
Chain D 20–863（844 aa）
Not recorded A1INH ethoxy-[2-(4-pentylphenyl)sulfanylethyl]phosphinous acid × 2 EDO 1,2-ETHANEDIOL × 12 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18.0% w/v PEG 2K MME; 0.1 M Tris pH 7.25
Resolution 2.49 Å R-free 0.219
9GOD Crystal structure of DPP9 in complex with N-phosphono-(S)-3-aminopiperidine-2-one-based inhibitor Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 20–863（844 aa）
Chain C 20–863（844 aa）
Not recorded A1INH ethoxy-[2-(4-pentylphenyl)sulfanylethyl]phosphinous acid × 2 EDO 1,2-ETHANEDIOL × 23 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18.0% w/v PEG 2K MME; 0.1 M Tris pH 7.25
Resolution 2.49 Å R-free 0.219
9GON Crystal structure of DPP9 in complex with sulphostin Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 20–863（844 aa）
Chain B 20–863（844 aa）
Not recorded A1INF azanyl-oxidanylidene-(sulfoamino)phosphanium × 2 PEG DI(HYDROXYETHYL)ETHER × 3 EDO 1,2-ETHANEDIOL × 37 CL CHLORIDE ION × 7 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 2000 MME, 0.1M Tris pH 6.75
Resolution 1.89 Å R-free 0.206
9GON Crystal structure of DPP9 in complex with sulphostin Deposited 2024-09-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 20–863（844 aa）
Chain D 20–863（844 aa）
Not recorded A1INF azanyl-oxidanylidene-(sulfoamino)phosphanium × 2 PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 34 CL CHLORIDE ION × 5 NA SODIUM ION × 3 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 2000 MME, 0.1M Tris pH 6.75
Resolution 1.89 Å R-free 0.206

13 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DPP9_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–863； UniProt 1–863 Author chain B； PDBConstruct 1–863； UniProt 1–863 Author chain C； PDBConstruct 1–863； UniProt 1–863 Author chain D； PDBConstruct 1–863； UniProt 1–863

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6eor

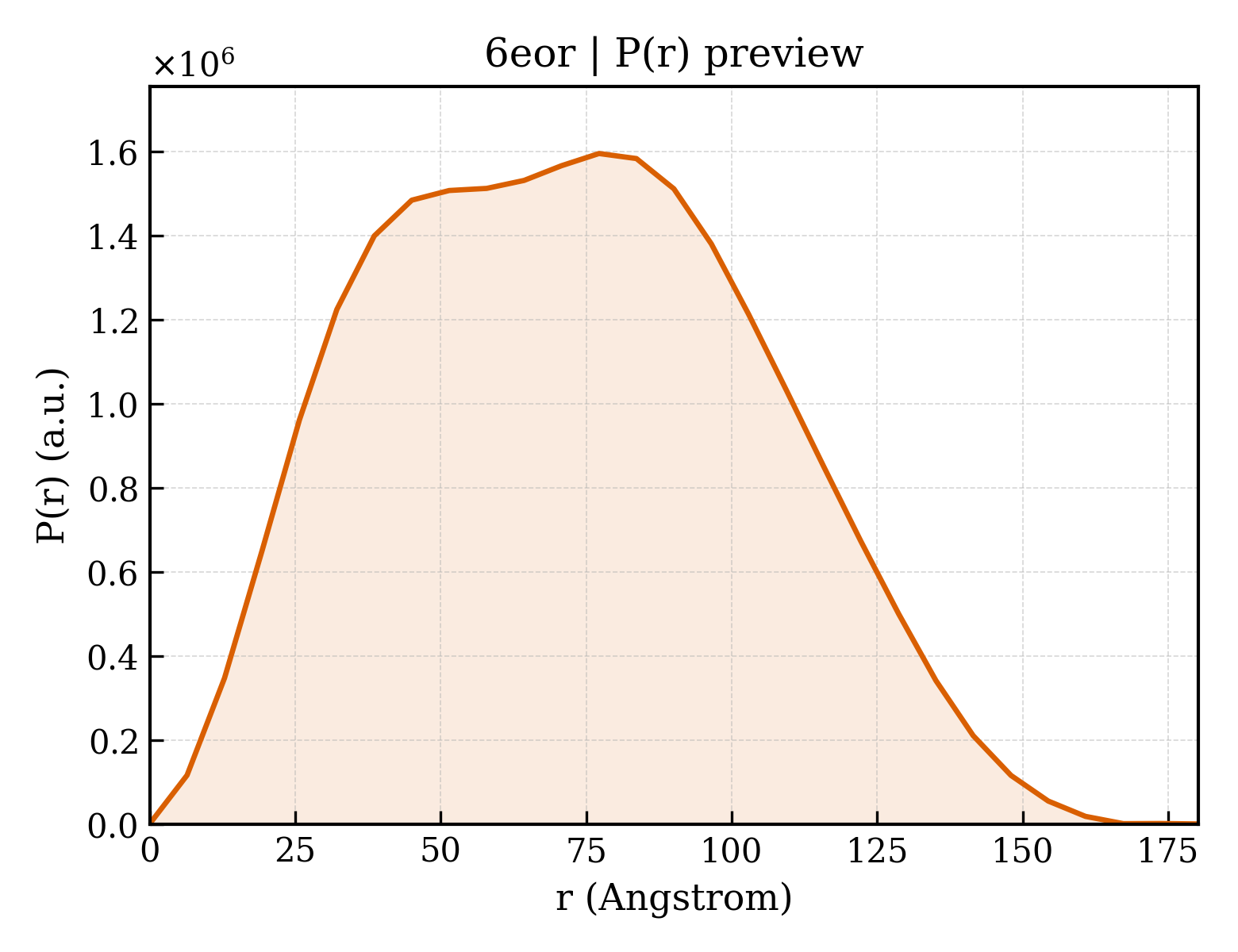

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6eor
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6eor
Deposition date deposition_date2017-10-10
Structure title titleDPP9 - 1G244
Keywords keywordsDPP9, HYDROLASE; HYDROLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier55.94 Å
Radius of gyration Rg (electron density) rg_electron55.93 Å
Forward intensity I(0) i01889910000.00
Molecular weight molecular_weight373100.0 kDa
Excluded volume excluded_volume468720 ų
Envelope volume envelope_volume656180 ų
Hydration-shell volume shell_volume94183 ų
Envelope diameter envelope_diameter182.1 Å
Shell Rg shell_rg62.97 Å
Envelope Rg envelope_rg54.13 Å
Shape Rg shape_rg55.93 Å
Total Rg total_rg56.11 Å
Total atoms total_atoms26396
Residues n_residues3233
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax180.2 Å
Rg (real space) rg_real55.88 Å
Rg uncertainty (real space) rg_real_error1.58 Å
I(0) (real space) i0_real1.8900e+09
I(0) uncertainty (real space) i0_real_error3.6800e+07
Rg (reciprocal space) rg_reciprocal55.97 Å
I(0) (reciprocal space) i0_reciprocal1890000000.0000
Solution quality estimate total_estimate0.8689
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary77.2 Å
Skewness Skewness skewness0.172
Kurtosis Kurtosis kurtosis-0.704
Angular range angular_range— – 0.1400 Å−1
Current regularization parameter α current_alpha0.0001
Highest regularization parameter α highest_alpha597500000.0000
Real-space data points n_real_points29
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.929; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.505
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id6eorA01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1820 — Alpha/Beta hydrolase fold, catalytic domain
Domain ID domain_id6eorA02
Class class2 — Mainly Beta
Architecture architecture140 — 8 Propeller
Topology topology10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily30 — Dipeptidylpeptidase IV, N-terminal domain
Domain ID domain_id6eorB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1820 — Alpha/Beta hydrolase fold, catalytic domain
Domain ID domain_id6eorB02
Class class2 — Mainly Beta
Architecture architecture140 — 8 Propeller
Topology topology10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily30 — Dipeptidylpeptidase IV, N-terminal domain
Domain ID domain_id6eorC01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1820 — Alpha/Beta hydrolase fold, catalytic domain
Domain ID domain_id6eorC02
Class class2 — Mainly Beta
Architecture architecture140 — 8 Propeller
Topology topology10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily30 — Dipeptidylpeptidase IV, N-terminal domain
Domain ID domain_id6eorD01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1820 — Alpha/Beta hydrolase fold, catalytic domain
Domain ID domain_id6eorD02
Class class2 — Mainly Beta
Architecture architecture140 — 8 Propeller
Topology topology10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily30 — Dipeptidylpeptidase IV, N-terminal domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
