SAXSdb — 6f4s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

JmjC domain-containing protein 5

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 183–416	Mutation：C217A, C232A, N308C	RCC1 domain-containing protein 1 × 1 （A6NED2） MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1M Bis-Tris pH 6.5, 29 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:2 ratio)	Resolution 1.46 Å R-free 0.152

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6F4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3UYJ Crystal structure of JMJD5 catalytic core domain in complex with nickle and alpha-KG Deposited 2011-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 173–416（244 aa） Fragment：Catalytic core domain, UNP residues 173-416 Chain B 173–416（244 aa） Fragment：Catalytic core domain, UNP residues 173-416	Not recorded	NI NICKEL (II) ION × 2 AKG 2-OXOGLUTARIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；291 K；8% PEG3350, 0.1M HepesNa pH 7.5, EVAPORATION, temperature 291K	Resolution 2.35 Å R-free 0.253
4AAP Crystal structure of JMJD5 domain of human Lysine-specific demethylase 8 (KDM8) in complex with N-oxalylglycine (NOG) Deposited 2011-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–454（237 aa） Fragment：JMJD5 DOMAIN, RESIDUES 218-454	Not recorded	ZN ZINC ION × 2 OGA N-OXALYLGLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG_3350, 0.007M NICL, 0M CDCL, 0.007M MGCL, 0.1M HEPES PH 7.3	Resolution 2.60 Å R-free 0.253
4AAP Crystal structure of JMJD5 domain of human Lysine-specific demethylase 8 (KDM8) in complex with N-oxalylglycine (NOG) Deposited 2011-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 218–454（237 aa） Fragment：JMJD5 DOMAIN, RESIDUES 218-454	Not recorded	ZN ZINC ION × 2 OGA N-OXALYLGLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG_3350, 0.007M NICL, 0M CDCL, 0.007M MGCL, 0.1M HEPES PH 7.3	Resolution 2.60 Å R-free 0.253
4GAZ Crystal Structure of a Jumonji Domain-containing Protein JMJD5 Deposited 2012-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 176–416（241 aa） Fragment：JmjC domain, UNP residues 176-416	Not recorded	NI NICKEL (II) ION × 1 OGA N-OXALYLGLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；100mM HEPES, 9% PEG 3350 (w/v), pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.81 Å R-free 0.274
4GAZ Crystal Structure of a Jumonji Domain-containing Protein JMJD5 Deposited 2012-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 176–416（241 aa） Fragment：JmjC domain, UNP residues 176-416	Not recorded	NI NICKEL (II) ION × 1 OGA N-OXALYLGLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；100mM HEPES, 9% PEG 3350 (w/v), pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.81 Å R-free 0.274
4GJY JMJD5 in complex with N-Oxalylglycine Deposited 2012-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa） Fragment：JmjC Domain (UNP Residues 183-416)	Non-standard monomer：Yes (specific site not provided by mmCIF)	CO COBALT (II) ION × 1 OGA N-OXALYLGLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；4.5% PEG 3000, 0.1 M Bis-Tris pH 5.5, 0.05 M MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.25 Å R-free 0.161
4GJZ JMJD5 in complex with 2-oxoglutarate Deposited 2012-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa） Fragment：JmjC Domain (UNP Residues 183-416)	Not recorded	CO COBALT (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；9.5% PEG 3000, 0.1 M Bis-Tris pH 6.2, 0.05 M MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.05 Å R-free 0.163
4QU1 Crystal structure of human JMJD5 jmj-c domain Deposited 2014-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa） Fragment：jmj-c domain (UNP residues 183-416)	Not recorded	NI NICKEL (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M HEPES, pH 7.0, 8% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.57 Å R-free 0.174
5FBJ Complex structure of JMJD5 and substrate Deposited 2015-12-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	AKG 2-OXOGLUTARIC ACID × 1 NMM (2S)-2-amino-5-[(N-methylcarbamimidoyl)amino]pentanoic acid × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；281 K；PEG3350 HEPEPS-Na	Resolution 2.42 Å R-free 0.246
6AVS Complex structure of JMJD5 and Symmetric Monomethyl-Arginine (MMA) Deposited 2017-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 221–454（234 aa）	Not recorded	ZN ZINC ION × 1 NMM (2S)-2-amino-5-[(N-methylcarbamimidoyl)amino]pentanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1M HEPES pH 7.0 8% PEG 3350	Resolution 2.02 Å R-free 0.272
6AX3 Complex structure of JMJD5 and Symmetric Dimethyl-Arginine (SDMA) Deposited 2017-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 222–454（233 aa）	Not recorded	2MR N3, N4-DIMETHYLARGININE × 1 AKG 2-OXOGLUTARIC ACID × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1M HEPES pH 7.0 8% PEG 3350	Resolution 2.25 Å R-free 0.259
6F4M Human JMJD5 in its apo form. Deposited 2017-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 182–416（235 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M Bis-Tris pH 6.5, 22.5 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.71 Å R-free 0.186
6F4N Human JMJD5 in complex with MN and 2OG. Deposited 2017-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 153–416（264 aa）	Not recorded	MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；0.1 M Bis-Tris pH 6.0, 21.4 % PEG3350, 0.07 M MgCl2, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:2 ratio)	Resolution 2.54 Å R-free 0.230
6F4N Human JMJD5 in complex with MN and 2OG. Deposited 2017-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 153–416（264 aa）	Not recorded	MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；0.1 M Bis-Tris pH 6.0, 21.4 % PEG3350, 0.07 M MgCl2, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:2 ratio)	Resolution 2.54 Å R-free 0.230
6F4O Human JMJD5 in complex with Mn(II) and Succinate. Deposited 2017-11-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 SIN SUCCINIC ACID × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M Bis-Tris pH 6.5, 15.0 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 2:1 ratio)	Resolution 1.28 Å R-free 0.174
6F4P Human JMJD5 in complex with MN, NOG and RPS6 (129-144) (complex-1) Deposited 2017-11-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 183–416（234 aa） Fragment：Catalytic domain, UNP residues 183-416	Not recorded	MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；0.1M Bis-Tris pH 6.0, 26.4 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:2 ratio)	Resolution 1.45 Å R-free 0.168
6F4Q Human JMJD5 (Q275C) in complex with Mn(II), NOG and RPS6-A138C (129-144) (complex-2) Deposited 2017-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 221–454（234 aa）	Mutation：C217A, C232A, Q275C, C295A, C384A	MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；0.1M Bis-Tris pH 6.0, 19.3 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.12 Å R-free 0.153
6F4R Human JMJD5 (N308C) in complex with Mn(II), NOG and RCCD1 (139-143) (complex-3) Deposited 2017-11-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Mutation：C217A, C232A, C295A, N308C, C384A Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；0.1M Bis-Tris pH 5.8, 25 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.30 Å R-free 0.162
6F4T Human JMJD5 (W414C) in complex with Mn(II), NOG and RCCD1 (139-143) (complex-5) Deposited 2017-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa） Fragment：Catalytic domain, UNP residues 183-416	Mutation：C217A, C232A, W414C Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 1 OGA N-OXALYLGLYCINE × 1 GOL GLYCEROL × 3 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1M Bis-Tris pH 6.5, 17.1 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.22 Å R-free 0.154
6I9L JmjC domain-containing protein 5 (JMJD5) in complex with Mn and pyridine-2,4-dicarboxylic acid (2,4-PDCA) Deposited 2018-11-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 PD2 PYRIDINE-2,4-DICARBOXYLIC ACID × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS PH 6.5, 15.0 % PEG3350, 0.002 M MNCL2, 300 NL SITTING DROPS (SAMPLE:WELL, 2:1 RATIO)	Resolution 1.53 Å R-free 0.164
6I9M JmjC domain-containing protein 5 (JMJD5) in complex with Mn and R-2-hydroxyglutarate Deposited 2018-11-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 2HG (2R)-2-hydroxypentanedioic acid × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Bis-Tris pH 6.5, 15.0 % PEG3350, 0.002 M MnCl2	Resolution 1.65 Å R-free 0.181
6I9N JmjC domain-containing protein 5 (JMJD5) in complex with Mn and L-2-hydroxyglutarate Deposited 2018-11-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 S2G (2S)-2-HYDROXYPENTANEDIOIC ACID × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M Bis-Tris pH 6.5, 15.0 % PEG3350, 0.002 M MnCl2	Resolution 1.36 Å R-free 0.159
7DYT Human JMJD5 in complex with MN and 5-((4-methoxybenzyl)amino)pyridine-2,4-dicarboxylic acid. Deposited 2021-01-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 HR3 5-((4-methoxybenzyl)amino)pyridine-2,4-dicarboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM HEPES sodium, 200mM magnesium chloride hexahydrate, 25% w/v PEG 3350, 1mM manganese chloride	Resolution 1.62 Å R-free 0.189
7DYU Human JMJD5 in complex with MN and 5-((4-phenylbutyl)amino)pyridine-2,4-dicarboxylic acid. Deposited 2021-01-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 MN MANGANESE (II) ION × 1 HR9 5-(4-phenylbutylamino)pyridine-2,4-dicarboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM HEPES sodium, 200mM magnesium chloride hexahydrate, 25% w/v PEG 3350, 1mM manganese chloride	Resolution 1.72 Å R-free 0.195
7DYV Human JMJD5 in complex with MN and 5-(benzylamino)pyridine-2,4-dicarboxylic acid. Deposited 2021-01-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 HRF 5-(benzylamino)pyridine-2,4-dicarboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM HEPES sodium, 200mM magnesium chloride hexahydrate, 25% w/v PEG 3350, 1mM manganese chloride	Resolution 1.92 Å R-free 0.240
7DYW Human JMJD5 in complex with MN and 5-((2-methoxybenzyl)amino)pyridine-2,4-dicarboxylic acid. Deposited 2021-01-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	HRL 5-((2-methoxybenzyl)amino)pyridine-2,4-dicarboxylic acid × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM HEPES sodium, 200mM magnesium chloride hexahydrate, 25% w/v PEG 3350, 1mM manganese chloride	Resolution 2.13 Å R-free 0.239
7DYX Human JMJD5 in complex with MN and 5-((2-cyclopropylbenzyl)amino)pyridine-2,4-dicarboxylic acid. Deposited 2021-01-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 HRR 5-((2-cyclopropylbenzyl)amino)pyridine-2,4-dicarboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM HEPES sodium, 200mM magnesium chloride hexahydrate, 25% w/v PEG 3350, 1mM manganese chloride	Resolution 2.27 Å R-free 0.280
7UQ3 JmjC domain-containing protein 5 (JMJD5) in complex with Mn and (S)-2-(1-hydroxy-2,5-dioxopyrrolidin-3-yl)acetic acid Deposited 2022-04-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 183–416（234 aa）	Not recorded	MN MANGANESE (II) ION × 1 O2U [(3S)-1-hydroxy-2,5-dioxopyrrolidin-3-yl]acetic acid × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；Sample: 22 mg/mL JMJD5, 1.5 mM MnCl2, 5 mM compound (IS-52); Reservoir: 0.1 M Bis-Tris pH 6.5, 15.0 % PEG3350, 0.002 M MnCl2; Cryo-protection: 25% (v/v) glycerol; Method: 300 nL sitting drops (sample:well, 2:1 ratio)	Resolution 1.49 Å R-free 0.135

25 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KDM8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–255； UniProt 183–416

RCC1 domain-containing protein 1

OrganismNot specified

UniProt A6NED2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 139–143	Not recorded	JmjC domain-containing protein 5 × 1 （Q8N371） MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1M Bis-Tris pH 6.5, 29 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:2 ratio)	Resolution 1.46 Å R-free 0.152

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6F4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6F4R Human JMJD5 (N308C) in complex with Mn(II), NOG and RCCD1 (139-143) (complex-3) Deposited 2017-11-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 139–143（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；0.1M Bis-Tris pH 5.8, 25 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.30 Å R-free 0.162
6F4T Human JMJD5 (W414C) in complex with Mn(II), NOG and RCCD1 (139-143) (complex-5) Deposited 2017-11-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 139–143（5 aa） Fragment：UNP residues 139-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1M Bis-Tris pH 6.5, 17.1 % PEG3350, 0.002 M MnCl2, 300 nl sitting drops (sample:well, 1:1 ratio)	Resolution 1.22 Å R-free 0.154

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RCCD1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–5； UniProt 139–143

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6f4s
Deposition date deposition_date	2017-11-30
Structure title title	Human JMJD5 (N308C) in complex with Mn(II), 2OG and RCCD1 (139-143) (complex-4)
Keywords keywords	;OXIDOREDUCTASE, NON-HEME, IRON, 2-OXOGLUTARATE, DIOXYGENASE, JMJC, JMJC DOMAIN, Lysine-specific demethylase 8, JmjC domain-containing protein 5, Arginyl C-3 Hydroxylase, JMJD5, KDM8, OXYGENASE, HYPOXIA, DNA-BINDING, METAL-BINDING, TRANSLATION, DSBH, FACIAL TRIAD, CYTOPLASM, JMJC HYDROXYLASE, JMJC DEMETHYLASE, KDMS, POST-TRANSLATIONAL MODIFICATIONS, PTM, BETA-HYDROXYLATION, HYDROXYLATION, ARGININE HYDROXYLATION, RCC1 domain-containing protein 1, RCCD1, Regulator of chromosome condensation, 40S ribosomal protein S6, RPS6, RIBOSOME BIOGENESIS, TRANSCRIPTION, EPIGENETIC REGULATION, SIGNALING, DEVELOPMENT, CELL STRUCTURE, TRANSCRIPTION ACTIVATOR/INHIBITOR, PHOSPHORYLATION, CANCER, POLYMORPHISM ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.76 Å
Radius of gyration Rg (electron density) rg_electron	17.54 Å
Forward intensity I(0) i0	13298400.00
Molecular weight molecular_weight	27970.0 kDa
Excluded volume excluded_volume	35190 Å³
Envelope volume envelope_volume	39474 Å³
Hydration-shell volume shell_volume	18544 Å³
Envelope diameter envelope_diameter	60.1 Å
Shell Rg shell_rg	24.05 Å
Envelope Rg envelope_rg	17.92 Å
Shape Rg shape_rg	17.54 Å
Total Rg total_rg	18.55 Å
Total atoms total_atoms	3877
Residues n_residues	240
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

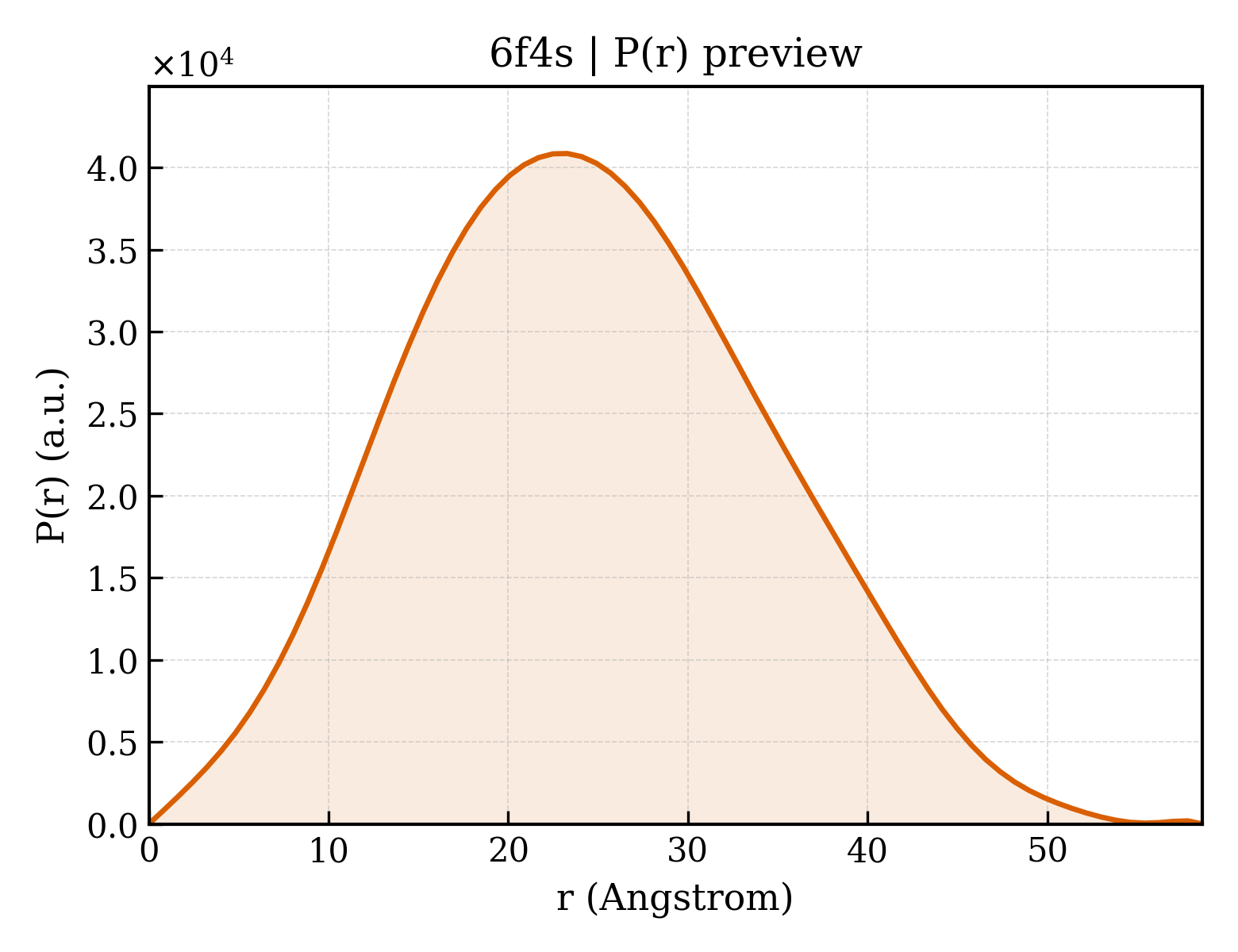

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.6 Å
Rg (real space) rg_real	18.65 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	1.3300e+07
I(0) uncertainty (real space) i0_real_error	1.5780e+05
Rg (reciprocal space) rg_reciprocal	18.67 Å
I(0) (reciprocal space) i0_reciprocal	13300000.0000
Solution quality estimate total_estimate	0.8965
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.3 Å
Skewness Skewness skewness	0.181
Kurtosis Kurtosis kurtosis	-0.415
Angular range angular_range	— – 0.4250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3445000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	JmjC domain-containing protein 5
Molecular weight formula_weight	29527.3 kDa
EC 编号 ec_number	1.14.11.47
Mutation mutation	C217A, C232A, N308C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4964

HHHHHHSSGVDLGTENLYFQSTVPRLHRPSLQHFREQFLVPGRPVILKGVADHWPAMQKWSLEYIQEIAGARTVPVEVGSRYTDEEWSQTLMTVNEFISKYIVNEPRDVGYLAQHQLFDQIPELKQDISIPDYCSLGDGEEEEITICAWFGPQGTISPLHQDPQQNFLVQVMGRKYIRLYSPQESGALYPHDTHLLHNTSQVDVENPDLEKFPKFAKAPFLSCILSPGEILFIPVKYWHYVRALDLSFSVSFWWS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	RCC1 domain-containing protein 1
Molecular weight formula_weight	583.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

CARAY

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-OXOGLUTARIC ACID
Molecular weight formula_weight	146.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	342

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6f4sA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	650 — Cupin

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.321 Å
Unit-cell length b length_b	65.607 Å
Unit-cell length c length_c	77.691 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.461 Å
Low-resolution limit resolution_low	33.426 Å
R factor r_factor	0.1375
R_work r_work	0.1367
R_free r_free	0.1520

fit	/app/data/saxs_computation/f4/6f4s/6f4s.fit
pddf	/app/data/pr_computation/f4/6f4s/6f4s.pr.out
profile	/app/data/saxs_computation/f4/6f4s/6f4s.dat
