SAXSdb — 6i18

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fascin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ACETATE ION × 1 1,2-ETHANEDIOL × 5 5-[(3,4-dichlorophenyl)methyl]-4-oxidanylidene-1-piperidin-4-yl-~{N}-pyridin-4-yl-pyrazolo[4,3-c]pyridine-7-carboxamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FSCN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–493； UniProt 1–493

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6i18
Deposition date deposition_date	2018-10-27
Structure title title	CRYSTAL STRUCTURE OF FASCIN IN COMPLEX WITH BDP-13176
Keywords keywords	actin bundling, small molecule inhibition, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6i18__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

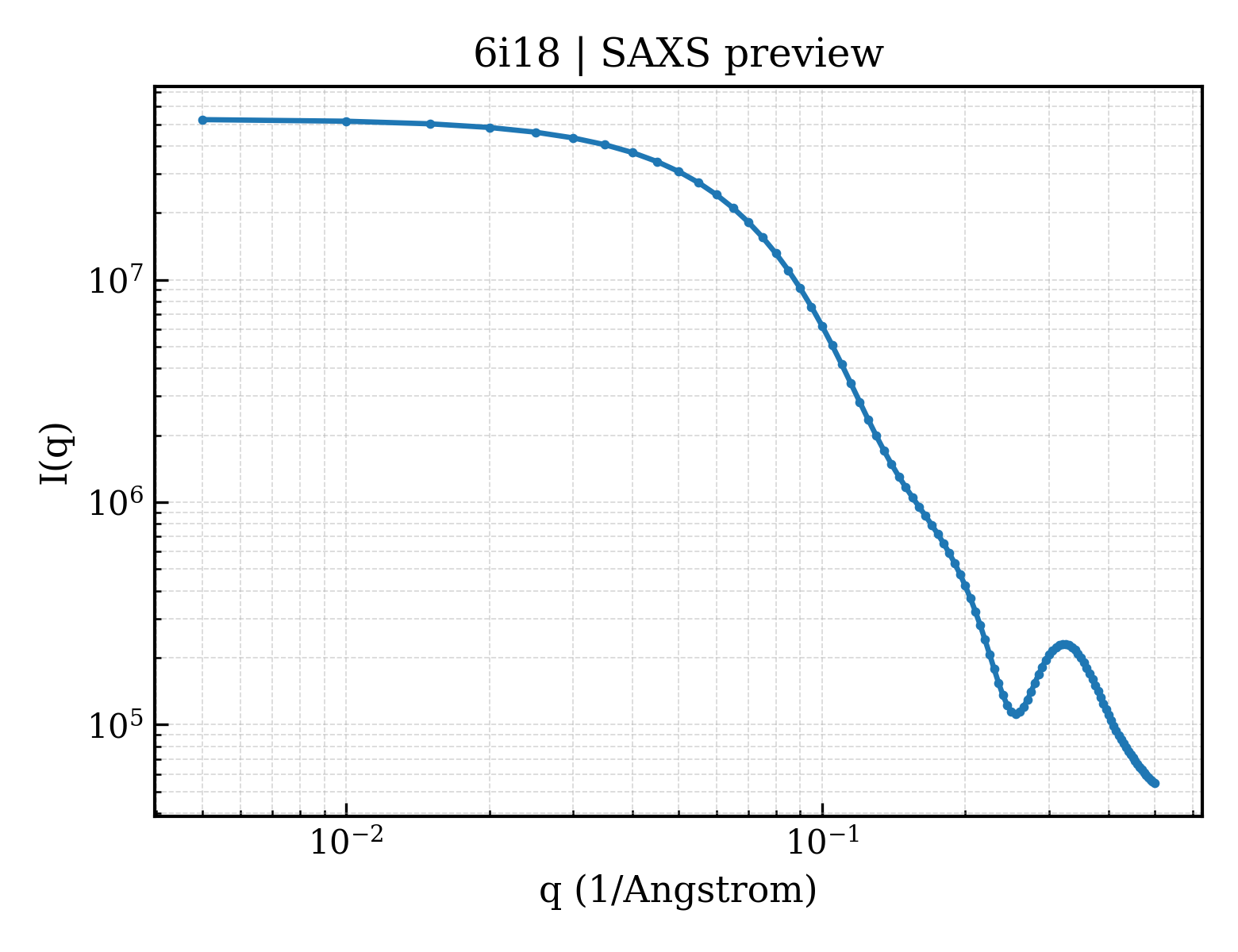

6i18__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6i18__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.48 Å
Rg (electron density)	24.28 Å
Total Rg	25.20 Å
Atom count	3842
Residues	484
Excluded volume	67495 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6i18__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fascin
Molecular weight formula_weight	54601.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4225

MTANGTAEAVQIQFGLINCGNKYLTAEAFGFKVNASASSLKKKQIWTLEQPPDEAGSAAVCLRSHLGRYLAADKDGNVTCEREVPGPDCRFLIVAHDDGRWSLQSEAHRRYFGGTEDRLSCFAQTVSPAEKWSVHIAMHPQVNIYSVTRKRYAHLSARPADEIAVDRDVPWGVDSLITLAFQDQRYSVQTADHRFLRHDGRLVARPEPATGYTLEFRSGKVAFRDCEGRYLAPSGPSGTLKAGKATKVGKDELFALEQSCAQVVLQAANERNVSTRQGMDLSANQDEETDQETFQLEIDRDTKKCAFRTHTGKYWTLTATGGVQSTASSKNASCYFDIEWRDRRITLRASNGKFVTSKKNGQLAASVETAGDSELFLMKLINRPIIVFRGEHGFIGCRKVTGTLDANRSSYDVFQLEFNDGAYNIKDSTGKYWTVGSDSAVTSSGDTPVDFFFEFCDYNKVAIKVGGRYLKGDHAGVLKASAETVDPASLWEY

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	5-[(3,4-dichlorophenyl)methyl]-4-oxidanylidene-1-piperidin-4-yl-~{N}-pyridin-4-yl-pyrazolo[4,3-c]pyridine-7-carboxamide
Molecular weight formula_weight	497.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	349

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6i18a1
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.5 — Actin-crosslinking proteins
Family Family family	b.42.5.1 — Fascin

Domain ID domain_id	d6i18a2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.5 — Actin-crosslinking proteins
Family Family family	b.42.5.1 — Fascin

Domain ID domain_id	d6i18a3
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.5 — Actin-crosslinking proteins
Family Family family	b.42.5.1 — Fascin

Domain ID domain_id	d6i18a4
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.5 — Actin-crosslinking proteins
Family Family family	b.42.5.1 — Fascin

CATH v4.4 (4 domains)

Domain ID domain_id	6i18A01
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	6i18A02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	6i18A03
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	6i18A04
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	59.660 Å
Unit-cell length b length_b	87.810 Å
Unit-cell length c length_c	98.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.490 Å
Low-resolution limit resolution_low	49.350 Å
R factor r_factor	0.1735
R_work r_work	0.1724
R_free r_free	0.1953

CRYSTAL STRUCTURE OF FASCIN IN COMPLEX WITH BDP-13176
