6j04

Crystal structure of full length human LC3B delta G120 mutant (2_125)

Method: X-RAY DIFFRACTION D_max: 86.7 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule-associated proteins 1A/1B light chain 3B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–125 Chain C； UniProt 2–125	Fragment：UNP residues 2-125 Mutation：deletion mutant G120	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；0.16M ammonium sulfate, 0.08M sodium acetate pH4.6, 20% (w/v) PEG4000; 20% (v/v) glycerol	Resolution 1.90 Å R-free 0.262
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–125 Chain D； UniProt 2–125	Fragment：UNP residues 2-125 Mutation：deletion mutant G120	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；0.16M ammonium sulfate, 0.08M sodium acetate pH4.6, 20% (w/v) PEG4000; 20% (v/v) glycerol	Resolution 1.90 Å R-free 0.262

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6J04	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1V49 Solution structure of microtubule-associated protein light chain-3 Deposited 2003-11-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 0–119（120 aa） Fragment：residues 1-120	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 230；Pressure 1 NMR sample composition 0.8mM protein U-15N, 13C; 25mM phosphate buffer NA; 100mM NACL; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8mM protein U-15N, 13C; 25mM phosphate buffer NA; 100mM NACL; 100% D2O \| 100% D2O	Resolution not provided
2LUE LC3B OPTN-LIR Ptot complex structure Deposited 2012-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 5–119（115 aa） Fragment：UNP RESIDUES 5-119	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；288 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition 0.6 mM [U-98% 13C; U-98% 15N] entity_1-1, 4.9 mM entity_2-2, 70 mM sodium phosphate-3, 30 mM sodium chloride-4, 0.3 mM DSS-5, 5 mM Protease inhibitors cocktail-6, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 2.5 mM [U-98% 13C; U-98% 15N] entity_1-7, 0.4 mM entity_2-8, 70 mM sodium phosphate-9, 30 mM sodium chloride-10, 0.3 mM DSS-11, 5 mM Protease inhibitors cocktail-12, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2N9X LC3 FUNDC1 complex structure Deposited 2015-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 0.9 mM [U-13C; U-15N] entity_1-1, 1.8 mM entity_2-2, 100 mM sodium chloride-3, 25 mM sodium phosphate-4, 10 % [U-2H] D2O-5, 1 % DSS-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2ZJD Crystal Structure of LC3-p62 complex Deposited 2008-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES pH 7.5, 23% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.56 Å R-free 0.238
2ZJD Crystal Structure of LC3-p62 complex Deposited 2008-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES pH 7.5, 23% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.56 Å R-free 0.238
2ZJD Crystal Structure of LC3-p62 complex Deposited 2008-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES pH 7.5, 23% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.56 Å R-free 0.238
2ZJD Crystal Structure of LC3-p62 complex Deposited 2008-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES pH 7.5, 23% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.56 Å R-free 0.238
3VTU Crystal structure of human LC3B_2-119 Deposited 2012-06-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：UNP RESIDUES 2-119	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；2.0M Ammonium sulfate, 0.1M Tri-sodium citrate, 0.2M Potassium sodium tartrate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.231
3VTV Crystal structure of Optineurin LIR-fused human LC3B_2-119 Deposited 2012-06-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：UNP RESIDUES 170-181, RESIDUES 2-119	Mutation：S170E, S171E, S173E, S174E, S177E	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；2.0M Ammonium sulfate, 0.05M Tri-sodium citrate, 0.1M Potassium sodium tartrate, 10% PEG 3350, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.252
3VTW Crystal structure of T7-tagged Optineurin LIR-fused human LC3B_2-119 Deposited 2012-06-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：UNP RESIDUES 170-181, RESIDUES 2-119	Mutation：S170E, S171E, S173E, S174E, S177E	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；2.0M Ammonium sulfate, 0.05M Tri-sodium citrate, 0.1M Potassium sodium tartrate, 5% Glycerol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.52 Å R-free 0.280
3VTW Crystal structure of T7-tagged Optineurin LIR-fused human LC3B_2-119 Deposited 2012-06-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–119（118 aa） Fragment：UNP RESIDUES 170-181, RESIDUES 2-119	Mutation：S170E, S171E, S173E, S174E, S177E	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；2.0M Ammonium sulfate, 0.05M Tri-sodium citrate, 0.1M Potassium sodium tartrate, 5% Glycerol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.52 Å R-free 0.280
3VTW Crystal structure of T7-tagged Optineurin LIR-fused human LC3B_2-119 Deposited 2012-06-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–119（118 aa） Fragment：UNP RESIDUES 170-181, RESIDUES 2-119	Mutation：S170E, S171E, S173E, S174E, S177E	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；2.0M Ammonium sulfate, 0.05M Tri-sodium citrate, 0.1M Potassium sodium tartrate, 5% Glycerol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.52 Å R-free 0.280
3WAO Crystal structure of Atg13 LIR-fused human LC3B_2-119 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：RESIDUES 436-447, RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Sodium citrate tribasic dihydrate 10% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.294
3WAO Crystal structure of Atg13 LIR-fused human LC3B_2-119 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–119（118 aa） Fragment：RESIDUES 436-447, RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Sodium citrate tribasic dihydrate 10% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.294
3WAO Crystal structure of Atg13 LIR-fused human LC3B_2-119 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–119（118 aa） Fragment：RESIDUES 436-447, RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Sodium citrate tribasic dihydrate 10% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.294
3WAO Crystal structure of Atg13 LIR-fused human LC3B_2-119 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–119（118 aa） Fragment：RESIDUES 436-447, RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Sodium citrate tribasic dihydrate 10% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.294
3X0W Crystal structure of PLEKHM1 LIR-fused human LC3B_2-119 Deposited 2014-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：UNP RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1M Acetate, pH 5.0, 1.4M Ammonium Sulfate, 0.1M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.71 Å R-free 0.294
3X0W Crystal structure of PLEKHM1 LIR-fused human LC3B_2-119 Deposited 2014-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–119（118 aa） Fragment：UNP RESIDUES 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1M Acetate, pH 5.0, 1.4M Ammonium Sulfate, 0.1M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.71 Å R-free 0.294
4WAA Crystal structure of Nix LIR-fused human LC3B_2-119 Deposited 2014-08-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: Monomeric	Chain A 2–119（118 aa） Fragment：UNP residues 2-119 Chain B 2–119（118 aa） Fragment：UNP residues 2-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；300 K；20% PEG3350, 8% Tacsimate pH 4	Resolution 2.35 Å R-free 0.273
5D94 Crystal structure of LC3-LIR peptide complex Deposited 2015-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Potassium thiocyanate, 30%(w/v) Polyethylene glycol monomethyl ether 2000	Resolution 1.53 Å R-free 0.215
5DCN Crystal structure of LC3 in complex with TECPR2 LIR Deposited 2015-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa） Fragment：UNP residues 2-119	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.8M Lithium sulphate, 0.01M Magnesium chloride, 0.05M MES monohydrate, pH5.6	Resolution 2.00 Å R-free 0.247
5GMV LC3B-FUNDC1 complex Deposited 2016-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG MME 2000, 0.1mM sodium cacodylate (pH 6.0)	Resolution 2.25 Å R-free 0.272
5GMV LC3B-FUNDC1 complex Deposited 2016-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG MME 2000, 0.1mM sodium cacodylate (pH 6.0)	Resolution 2.25 Å R-free 0.272
5MS2 Crystal structure of the Legionella pneumophila effector protein RavZ in complex with human LC3B Deposited 2016-12-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–119（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277.15 K；0.17 M ammonium acetate, 0.085M tri sodium citrate, 25.5% PEG 4000 and 15% glycerol	Resolution 2.47 Å R-free 0.238
5MS5 Low-salt structure of RavZ LIR2-fused human LC3B Deposited 2016-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M citric acid anhydrous and 1.6 M ammonium sulfate	Resolution 1.53 Å R-free 0.242
5MS5 Low-salt structure of RavZ LIR2-fused human LC3B Deposited 2016-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–119（118 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M citric acid anhydrous and 1.6 M ammonium sulfate	Resolution 1.53 Å R-free 0.242
5MS6 High-salt structure of RavZ LIR2-fused human LC3B Deposited 2016-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 M sodium acetate and 3 M NaCl	Resolution 1.90 Å R-free 0.261
5MS6 High-salt structure of RavZ LIR2-fused human LC3B Deposited 2016-12-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–119（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 M sodium acetate and 3 M NaCl	Resolution 1.90 Å R-free 0.261
5V4K Crystal structure of NEDD4 LIR-fused human LC3B_2-119 Deposited 2017-03-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–119（118 aa） Fragment：UNP residues 2-119,UNP residues 2-119,UNP residues 2-119,UNP residues 2-119 Chain B 2–119（118 aa） Fragment：UNP residues 2-119,UNP residues 2-119,UNP residues 2-119,UNP residues 2-119	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1M Sodium Acetate pH 5.0, 1.2M Ammonium Sulfate	Resolution 2.10 Å R-free 0.233
5W9A The structure of the Trim5alpha Bbox- coiled coil in complex LC3B Deposited 2017-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 4–117（114 aa） Fragment：UNP residues 2-119 Chain D 4–117（114 aa） Fragment：UNP residues 2-119	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；0.2 M NH4Cl, 0.1 M Tris pH8, 20% PEG 6,000	Resolution 2.74 Å R-free 0.274
5XAC CLIR - LC3B Deposited 2017-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–120（119 aa） Chain B 2–120（119 aa） Chain C 2–120（119 aa） Chain D 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 3,350, 0.1M HEPES pH 7.5, 200mM NaCl.	Resolution 1.70 Å R-free 0.245
5XAD NLIR - LC3B fusion protein Deposited 2017-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；293 K；1.0 M Ammonium sulfate, 100mM CHES/NaOH pH 9.5, 200mM NaCl.	Resolution 1.88 Å R-free 0.253
5XAD NLIR - LC3B fusion protein Deposited 2017-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；293 K；1.0 M Ammonium sulfate, 100mM CHES/NaOH pH 9.5, 200mM NaCl.	Resolution 1.88 Å R-free 0.253
5XAE mutNLIR_LC3B Deposited 2017-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–120（119 aa） Chain B 2–120（119 aa） Chain C 2–120（119 aa） Chain D 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Pentaerythritol propoxylate, 0.1M HEPES pH 7.0, 0.2M Potassium chloride.	Resolution 2.00 Å R-free 0.259
6LAN Structure of CCDC50 and LC3B complex Deposited 2019-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–125（124 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；20% v/v 2-Propanol, 0.1 M sodium citrate pH 5.6, 20% w/v PEG 2000 MME	Resolution 1.41 Å R-free 0.219
7ELG LC3B modificated with a covalent probe Deposited 2021-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–119（118 aa）	Not recorded	8Z6 2-methylidene-5-thiophen-2-yl-cyclohexane-1,3-dione × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；2.0M ammonium sulfate, 0.1M tri-sodium citrate (pH 5.6), 0.2M potassium sodium tartrate	Resolution 1.60 Å R-free 0.231
7GA8 PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1198158918 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K4R 1H-indazole-3-carbonitrile × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.87 Å R-free 0.274
7GA9 PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1198177230 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K6U (2M)-2-(2-methoxyphenyl)-1,3,4-oxadiazole × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.17 Å R-free 0.246
7GAA PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1198233191 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K7L (4S)-imidazo[1,2-a]pyrimidine-5,7-diol × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.03 Å R-free 0.248
7GAB PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1255402624 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	EYK 2-tert-butylbenzene-1,4-diol × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.23 Å R-free 0.276
7GAC PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1456069604 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	KF8 N-[(3S)-piperidin-3-yl]benzamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.91 Å R-free 0.260
7GAD PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1667545918 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K8L N-[(1,3-thiazol-5-yl)methyl]acetamide × 2 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.86 Å R-free 0.258
7GAE PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z1688504114 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	GV4 2-cyano-~{N}-(1,3,5-trimethylpyrazol-4-yl)ethanamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.92 Å R-free 0.251
7GAF PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z183352334 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K96 N-{[(2R)-oxolan-2-yl]methyl}morpholine-4-carboxamide × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.84 Å R-free 0.245
7GAG PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z198195770 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	LJA N-[3-(carbamoylamino)phenyl]acetamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.59 Å R-free 0.215
7GAH PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z2033637875 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	LRF N~2~-(4-cyano-3-methyl-1,2-thiazol-5-yl)-N~2~-methylglycinamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.90 Å R-free 0.254
7GAI PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z212122838 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K9N N-[(4-methyl-1,3-thiazol-2-yl)methyl]cyclobutanecarboxamide × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.97 Å R-free 0.281
7GAJ PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z285233820 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	KB3 (5M)-5-(2-methoxyphenyl)-1,3,4-oxadiazol-2-amine × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.89 Å R-free 0.229
7GAK PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z287121492 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	KA3 N-(cyclopropylmethyl)-4-methoxypiperidine-1-carboxamide × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.77 Å R-free 0.250
7GAL PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z291279160 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	LV4 1-[2-(trifluoromethyloxy)phenyl]thiourea × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.91 Å R-free 0.251
7GAM PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z373768900 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	NUA N-(1-ethyl-1H-pyrazol-4-yl)cyclobutanecarboxamide × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.75 Å R-free 0.234
7GAN PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z56767614 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	RWP methyl 4-[(trifluoroacetyl)amino]benzoate × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.09 Å R-free 0.256
7GAO PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z57450788 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	RV4 N-{4-[(morpholin-4-yl)methyl]phenyl}acetamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.69 Å R-free 0.218
7GAP PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z728939702 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	KCC N-methylquinoxalin-2-amine × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.68 Å R-free 0.244
7GAQ PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z755044716 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	K0J N-ethyl-1H-1,2,3-triazole-4-carboxamide × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.14 Å R-free 0.244
7GAR PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z820676436 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	2NU 2-(4-bromanylpyrazol-1-yl)-~{N}-cyclopropyl-~{N}-methyl-ethanamide × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 2.07 Å R-free 0.264
7GAS PanDDA analysis group deposition -- Crystal Structure of MAP1LC3B in complex with Z952016136 Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	KBU 4-chloro-1H-benzimidazole × 1 EDO 1,2-ETHANEDIOL × 8 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.91 Å R-free 0.276
7GAU PanDDA analysis group deposition of ground-state model of MAP1LC3B Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：TruncationafterGly120	EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.59 Å R-free 0.217
8Q53 Crystal structure of truncated human Microtubule-associated proteins 1A/1B light chain 3B (MAP1LC3B) in apo form Deposited 2023-08-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–125（125 aa）	Mutation：Truncation after Gly120	EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；36% PEG 8000, 0.1M acetate pH 4.7	Resolution 1.36 Å R-free 0.210
8Q7K IRGQ LIR2 peptide in complex with LC3B Deposited 2023-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；1 M lithium chloride, 0.1 M citrate, 20% PEG 6000	Resolution 1.60 Å R-free 0.213
8Q7K IRGQ LIR2 peptide in complex with LC3B Deposited 2023-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–125（125 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；1 M lithium chloride, 0.1 M citrate, 20% PEG 6000	Resolution 1.60 Å R-free 0.213
8YV6 Crystal structure of LC3B in complex with Influenza A virus M2 peptide Deposited 2024-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% Jeffamine, 0.1M HEPES, pH 7.0	Resolution 1.75 Å R-free 0.250
9VUY NMR Structure of LC3B in complex with HBx BH3-like motif Deposited 2025-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–119（119 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.4 mM [U-13C; U-15N] LC3B, 0.5 mM [U-13C; U-15N] HBx BH3-like motif, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.8 mM 1H LC3B, 0.4 mM [U-13, U-15N] HBx BH3-like motif, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-15N] LC3B, 0.5 mM [U-15N] HBx BH3-like motif, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5 mM [U-13, U-15N] LC3B, 0.625 mM 1H HBx BH3-like motif, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

49 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLP3B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–124； UniProt 2–125 Author chain B； PDBConstruct 2–124； UniProt 2–125 Author chain C； PDBConstruct 2–124； UniProt 2–125 Author chain D； PDBConstruct 2–124； UniProt 2–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6j04
Deposition date deposition_date	2018-12-21
Structure title title	Crystal structure of full length human LC3B delta G120 mutant (2_125)
Keywords keywords	LC3B, microtubule-associated protein light chain-3, Autophage, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.97 Å
Radius of gyration Rg (electron density) rg_electron	26.88 Å
Forward intensity I(0) i0	50587500.00
Molecular weight molecular_weight	56282.0 kDa
Excluded volume excluded_volume	71165 Å³
Envelope volume envelope_volume	93549 Å³
Hydration-shell volume shell_volume	29570 Å³
Envelope diameter envelope_diameter	91.3 Å
Shell Rg shell_rg	33.49 Å
Envelope Rg envelope_rg	26.46 Å
Shape Rg shape_rg	26.85 Å
Total Rg total_rg	27.74 Å
Total atoms total_atoms	3960
Residues n_residues	474
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

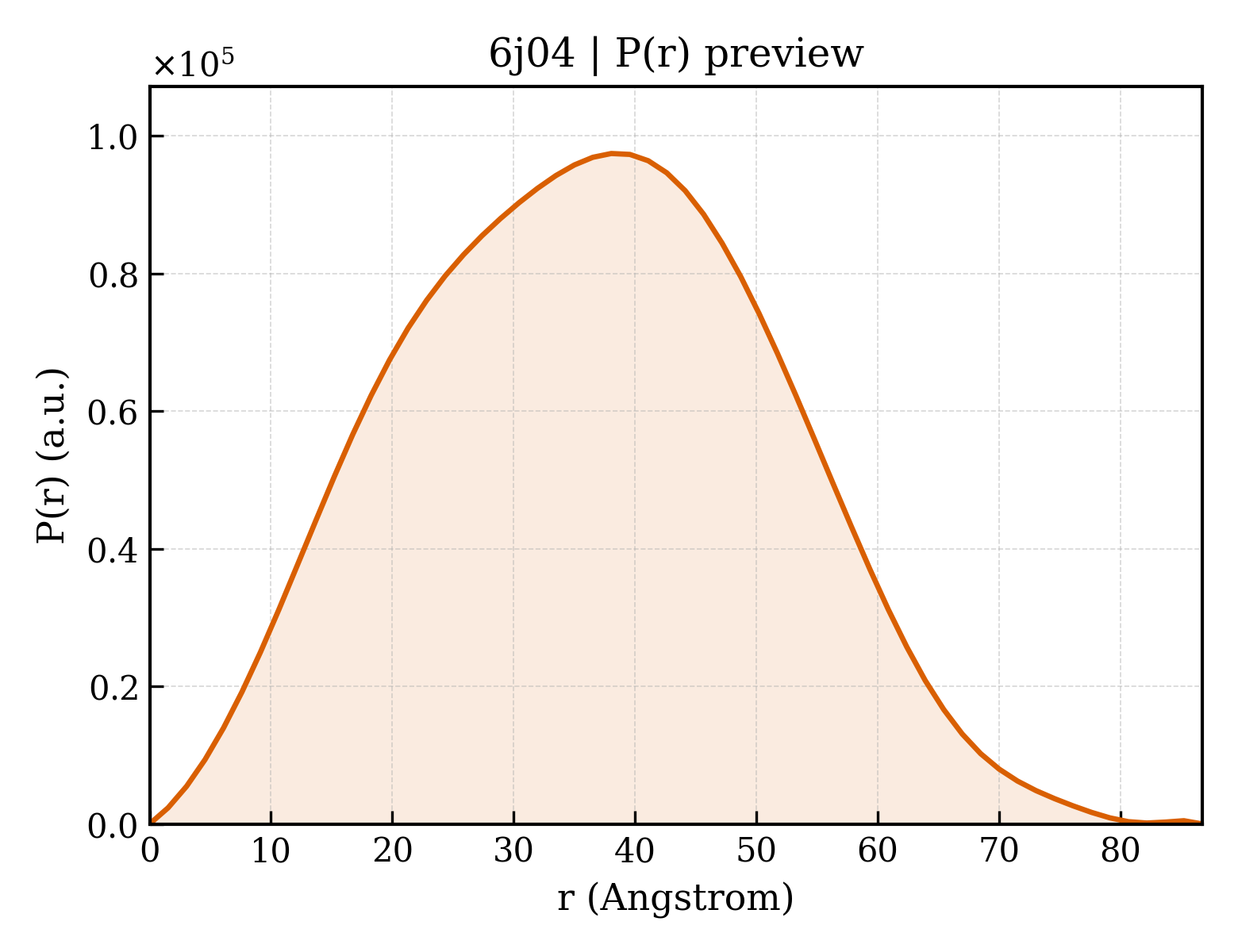

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.7 Å
Rg (real space) rg_real	27.79 Å
Rg uncertainty (real space) rg_real_error	0.46 Å
I(0) (real space) i0_real	5.0590e+07
I(0) uncertainty (real space) i0_real_error	6.5260e+05
Rg (reciprocal space) rg_reciprocal	27.85 Å
I(0) (reciprocal space) i0_reciprocal	50590000.0000
Solution quality estimate total_estimate	0.9068
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	38.0 Å
Skewness Skewness skewness	0.087
Kurtosis Kurtosis kurtosis	-0.546
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8113000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.964

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Microtubule-associated proteins 1A/1B light chain 3B
Molecular weight formula_weight	14578.8 kDa
Mutation mutation	deletion mutant G120
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4207

GPSEKTFKQRRTFEQRVEDVRLIREQHPTKIPVIIERYKGEKQLPVLDKTKFLVPDHVNMSELIKIIRRRLQLNANQAFFLLVNGHSMVSVSTPISEVYESEKDEDGFLYMVYASQETFMKLSV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	247

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6j04a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.3 — GABARAP-like

Domain ID domain_id	d6j04b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.3 — GABARAP-like

Domain ID domain_id	d6j04c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.3 — GABARAP-like

Domain ID domain_id	d6j04d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.3 — GABARAP-like

CATH v4.4 (4 domains)

Domain ID domain_id	6j04A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	6j04B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	6j04C00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	6j04D00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.644 Å
Unit-cell length b length_b	56.475 Å
Unit-cell length c length_c	67.040 Å
Unit-cell angle α angle_alpha	99.27 °
Unit-cell angle β angle_beta	97.45 °
Unit-cell angle γ angle_gamma	109.94 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.899 Å
Low-resolution limit resolution_low	27.621 Å
R factor r_factor	0.2120
R_work r_work	0.2094
R_free r_free	0.2620
