SAXSdb — 6jxx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Small ubiquitin-related modifier 2

Homo sapiens

UniProt P61956

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–95	Not recorded	Phosphorylated SLS4 from E3 ubiquitin ligase ICP0 × 1	SOLUTION NMR NMR measurement conditions：pH 7.4；298 K；Ionic strength (raw mmCIF value) 137；Pressure 1 NMR sample composition：0.5 mM [U-15N] SUMO2, 2 mM Phosphorylated SLS4 from E3 ubiquitin ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.7 mM [U-13C; U-15N] SUMO2, 1.5 mM Phosphorylated SLS4 from E3 ubiquitin ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JXX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WM2 Crystal structure of human SUMO-2 protein Deposited 2004-07-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 12–89（78 aa） Fragment：no N-terminal arm(residues 12-89)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；40% PEG600, 0.1M CHES, 0.1M Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.60 Å R-free 0.190
1WM3 Crystal structure of human SUMO-2 protein Deposited 2004-07-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 17–88（72 aa） Fragment：no N-terminal arm(residues 17-88)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；40% PEG600, 0.1M CHES, 0.1M Na-HEPES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.20 Å R-free 0.185
1WZ0 Solution Structure of Human SUMO-2 (SMT3B), a Ubiquitin-like Protein Deposited 2005-02-21	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–91（91 aa） Fragment：ubiquitin-like molecule	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM；Pressure ambient NMR sample composition 1.21mM protein U-15N, 13C; 20mM d-Tris-HCl (pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2AWT Solution Structure of Human Small Ubiquitin-Like Modifier Protein Isoform 2 (SUMO-2) Deposited 2005-09-02	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–95（95 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 50mM sodium phosphate, 150mM NaCl；Pressure ambient NMR sample composition 0.8mM SUMO-2 U-15N, 13C; 50mM phosphate buffer pH 6.0; 150mM NaCl; 1mM EDTA; 1mM DSS; 0.01% sodium azide; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2CKH SENP1-SUMO2 complex Deposited 2006-04-18	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–93（79 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.00	Resolution 3.20 Å R-free 0.294
2D07 Crystal Structure of SUMO-3-modified Thymine-DNA Glycosylase Deposited 2005-07-26	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–93（93 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；1.5M sodium malonate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.241
2IO0 Crystal structure of human Senp2 in complex with preSUMO-2 Deposited 2006-10-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–95（81 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；15% PEG 4000, 0.2M Lithium sulfate, 0.1mM Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.30 Å R-free 0.249
2IO3 Crystal structure of human Senp2 in complex with RanGAP1-SUMO-2 Deposited 2006-10-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 15–93（79 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；12% PEG 4000, 0.1M Lithium chloride, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.306
2IYD SENP1 covalent complex with SUMO-2 Deposited 2006-07-14	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–95（81 aa） Fragment：CATALYTIC FRAGMENT, RESIDUES 15-95	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.288
2N1W Solution structure of human SUMO2 Deposited 2015-04-24	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：UNP residues 1-93	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；290 K；Pressure ambient NMR sample composition 0.5-1 mM [U-100% 13C; U-100% 15N] SUMO2-1, 10 mM potassium phosphate-2, 100 mM potassium chloride-3, 2 mM DTT-4, 0.1 mM EDTA-5, 0.001 % sodium azide-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-1 mM [U-100% 15N] SUMO2-7, 10 mM potassium phosphate-8, 100 mM potassium chloride-9, 2 mM DTT-10, 0.1 mM EDTA-11, 0.001 % sodium azide-12, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-1 mM [U-100% 15N] SUMO2-13, 10 mM potassium phosphate-14, 100 mM potassium chloride-15, 2 mM DTT-16, 0.1 mM EDTA-17, 0.001 % sodium azide-18, 10 w/v Pf1 phage-19, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-1 mM SUMO2-20, 10 mM potassium phosphate-21, 100 mM potassium chloride-22, 2 mM DTT-23, 0.1 mM EDTA-24, 0.001 % sodium azide-25, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N9E Structure of SUMO-2 bound to phosphorylated RAP80 SIM Deposited 2015-11-15	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–95（95 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.3；298 K；Ionic strength (raw mmCIF value) 25；Pressure ambient NMR sample composition 1.2 mM peptide, 0.4 mM [U-100% 13C; U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2RPQ Solution Structure of a SUMO-interacting motif of MBD1-containing chromatin-associated factor 1 bound to SUMO-3 Deposited 2008-07-07	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–93（93 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 0.7 mM [U-100% 13C; U-100% 15N] SIMMCAF1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3UIN Complex between human RanGAP1-SUMO2, UBC9 and the IR1 domain from RanBP2 Deposited 2011-11-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 14–93（80 aa） Fragment：UNP residues 14-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；100 mM HEPES pH 7.5, 400 mM ammonium citrate, 2% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.60 Å R-free 0.264
3UIO Complex between human RanGAP1-SUMO2, UBC9 and the IR1 domain from RanBP2 containing IR2 Motif II Deposited 2011-11-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 14–93（80 aa） Fragment：UNP residues 14-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；279 K；14% PEG4000, 100 mM sodium citrate pH 6.0, 200 mM ammonium acetate, vapor diffusion, hanging drop, temperature 279K	Resolution 2.60 Å R-free 0.251
3ZO5 Structure of SENP2-Loop1 in complex with preSUMO-2 Deposited 2013-02-20	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–95（80 aa） Fragment：RESIDUES 16-95	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å R-free 0.236
4BKG crystal structure of human diSUMO-2 Deposited 2013-04-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 12–93（82 aa） Fragment：SUMO-2DELTAN11, RESIDUES 12-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.1 M TRIS/HCL PH 8.0, 28% PEG 350MME,0.05% DIOXANE	Resolution 2.11 Å R-free 0.231
4NPN Crystal structure of human tetra-SUMO-2 Deposited 2013-11-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 12–93（82 aa） Fragment：DELTAN11SUMO-2, UNP RESIDUES 12-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.4；289 K；0.1M Tris-HCl, 0.1M CHES, 30% PEG 600, pH 9.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.63 Å R-free 0.218
4NPN Crystal structure of human tetra-SUMO-2 Deposited 2013-11-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 12–93（82 aa） Fragment：DELTAN11SUMO-2, UNP RESIDUES 12-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.4；289 K；0.1M Tris-HCl, 0.1M CHES, 30% PEG 600, pH 9.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.63 Å R-free 0.218
5D2M Complex between human SUMO2-RANGAP1, UBC9 and ZNF451 Deposited 2015-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 15–93（79 aa） Fragment：UNP residues 15-93 Chain E 15–93（79 aa） Fragment：UNP residues 15-93	Not recorded	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；6 % (w/v) PEG 8000, 0.2 M ammonium citrate and 0.1 M HEPES pH 7.5	Resolution 2.40 Å R-free 0.234
5ELU Isoform-specific inhibition of SUMO-dependent protein-protein interactions Deposited 2015-11-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 14–89（76 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M sodium cacodylate pH 6.5, 0.2 M sodium chloride and 2.0 M ammonium sulphate	Resolution 2.35 Å R-free 0.207
5EQL Isoform-specific inhibition of SUMO-dependent protein-protein interactions Deposited 2015-11-13	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 14–89（76 aa） Fragment：UNP residues 14-89	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；291 K；0.1 M HEPES sodium salt pH 7.6, 22% w/v polyethylene glycol 3350	Resolution 2.49 Å R-free 0.243
5GHB SOLUTION STRUCTURE OF LYS42 ACETYLATED HUMAN SUMO2 Deposited 2016-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：UNP RESIDUES 1-93	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；290 K；Ionic strength (raw mmCIF value) 100 mM KCl；Pressure AMBIENT NMR sample composition 1 mM [U-100% 13C; U-100% 15N; U-80% 2H] SUMO2 K42Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] SUMO2 K42Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] SUMO2 K42Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 10 mg/mL Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM K42Ac SUMO2, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5GHC SOLUTION STRUCTURE OF LYS33 ACETYLATED HUMAN SUMO2 Deposited 2016-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–93（93 aa） Fragment：UNP RESIDUES 1-93	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；290 K；Ionic strength (raw mmCIF value) 100 mM KCl；Pressure AMBIENT NMR sample composition 1 mM SUMO2 K33Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM SUMO2 K33Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM SUMO2 K33Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 10 mg/mL Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM SUMO2 K33Ac, 10 mM potassium phosphate, 100 mM potassium chloride, 2 mM DTT, 0.1 mM EDTA, 0.001 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6JXW Complex of SUMO2 bound SLS4 from ICP0. Deposited 2019-04-25	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–95（95 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 137；Pressure 1 NMR sample composition 0.5 mM [U-98% 15N] SUMO2, 2.0 mM SLS4-SIM from Ubiquitin E3 ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] SUMO2, 2.0 mM SLS4-SIM from Ubiquitin E3 ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-15N; U-2H] SUMO2, 2.0 mM SLS4-SIM from Ubiquitin E3 ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 2.0 mM [U-15N; U-2H] SUMO2, 0.5 mM SLS4-SIM from Ubiquitin E3 ligase ICP0, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
7ZJV Structure of human USPL1 in covalent complex with DeltaN-SUMO2/3-PA probe Deposited 2022-04-12	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 18–92（75 aa）	Not recorded	ZN ZINC ION × 1 AYE prop-2-en-1-amine × 1 CL CHLORIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.9；293 K；100 mM CHES pH 8.9, 34% PEG600	Resolution 2.40 Å R-free 0.258

24 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SUMO2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–95； UniProt 1–95

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6jxx
Deposition date deposition_date	2019-04-25
Structure title title	SUMO2 bound to phosphorylated SLS4-SIM peptide from ICP0
Keywords keywords	SUMOylation, Phosphorylation, Protein-Binding-peptide complex, PROTEIN BINDING-PEPTIDE complex; PROTEIN BINDING/PEPTIDE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.37 Å
Radius of gyration Rg (electron density) rg_electron	12.70 Å
Forward intensity I(0) i0	695079000.00
Molecular weight molecular_weight	206630.0 kDa
Excluded volume excluded_volume	252040 Å³
Envelope volume envelope_volume	19640 Å³
Hydration-shell volume shell_volume	12157 Å³
Envelope diameter envelope_diameter	49.5 Å
Shell Rg shell_rg	19.55 Å
Envelope Rg envelope_rg	14.14 Å
Shape Rg shape_rg	12.69 Å
Total Rg total_rg	12.85 Å
Total atoms total_atoms	28340
Residues n_residues	1740
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.0 Å
Rg (real space) rg_real	13.28 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	6.9510e+08
I(0) uncertainty (real space) i0_real_error	7.1770e+06
Rg (reciprocal space) rg_reciprocal	13.29 Å
I(0) (reciprocal space) i0_reciprocal	695100000.0000
Solution quality estimate total_estimate	0.8739
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.9 Å
Skewness Skewness skewness	0.088
Kurtosis Kurtosis kurtosis	-0.250
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	225800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.937

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	Small ubiquitin-related modifier 2
Molecular weight formula_weight	10886.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	28340

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	Phosphorylated SLS4 from E3 ubiquitin ligase ICP0
Molecular weight formula_weight	2319.3 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/jx/6jxx/6jxx.fit
pddf	/app/data/pr_computation/jx/6jxx/6jxx.pr.out
profile	/app/data/saxs_computation/jx/6jxx/6jxx.dat

SUMO2 bound to phosphorylated SLS4-SIM peptide from ICP0

1. Protein Identity and Related Structures Protein Identity & Related Structures

Small ubiquitin-related modifier 2

State in the Current Structure

Other States of the Same Protein in the Database

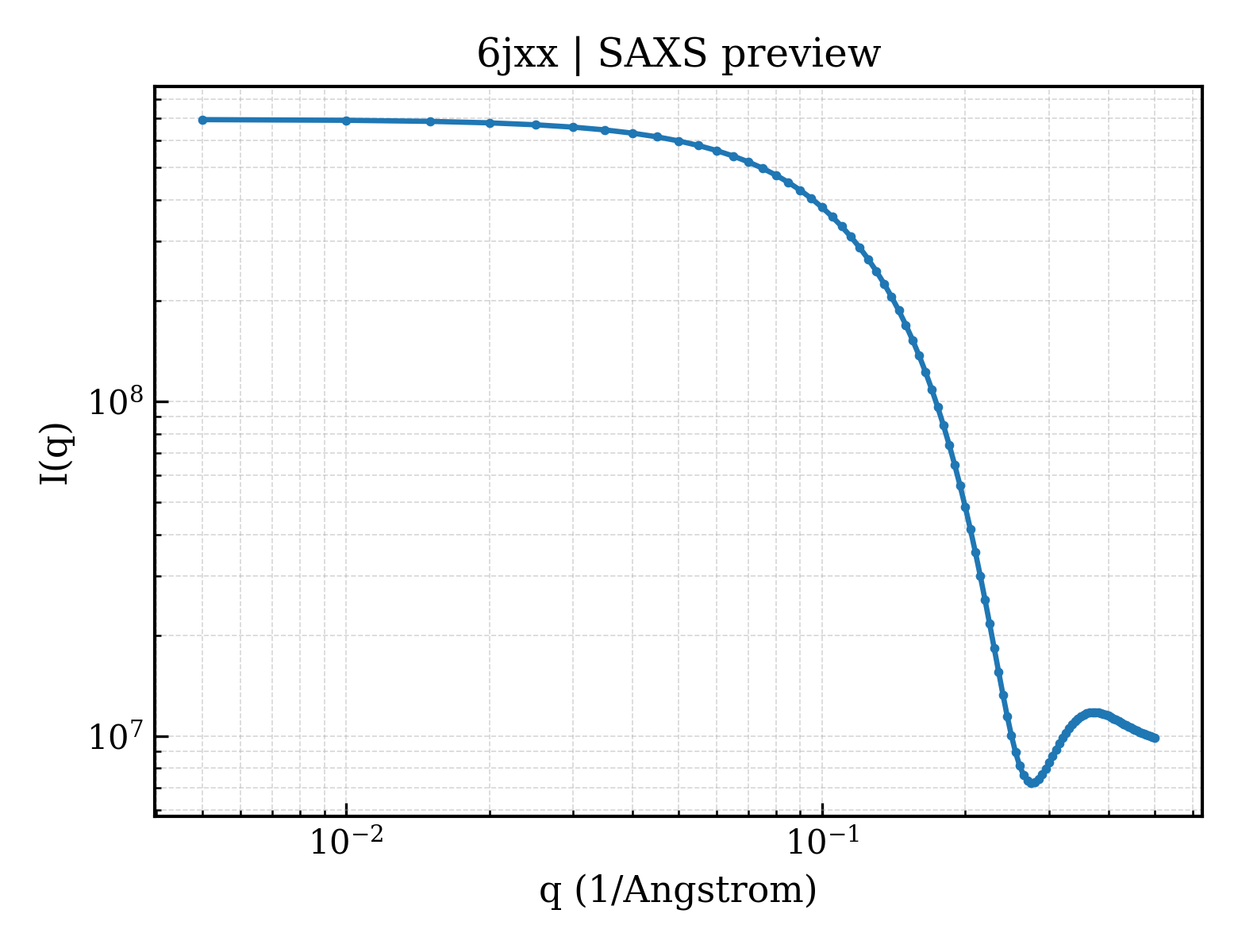

SAXS scattering curve SAXS Profile
