SAXSdb — 6m64

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mothers against decapentaplegic homolog 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 262–464 Chain C； UniProt 262–464 Chain E； UniProt 262–464	Not recorded	CBP × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；0.1 M HEPES pH 7.2, 0.2 M NaCl and 31% PEG3350	Resolution 1.45 Å R-free 0.189

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6M64	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DEV CRYSTAL STRUCTURE OF SMAD2 MH2 DOMAIN BOUND TO THE SMAD-BINDING DOMAIN OF SARA Deposited 1999-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 261–456（196 aa） Fragment：SMAD2 MH2 DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；TRIS, DIOXANE, AMMONIUM SULFATE, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 2.20 Å R-free 0.276
1DEV CRYSTAL STRUCTURE OF SMAD2 MH2 DOMAIN BOUND TO THE SMAD-BINDING DOMAIN OF SARA Deposited 1999-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 261–456（196 aa） Fragment：SMAD2 MH2 DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；TRIS, DIOXANE, AMMONIUM SULFATE, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 2.20 Å R-free 0.276
1KHX Crystal structure of a phosphorylated Smad2 Deposited 2001-12-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 241–467（227 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；dioxane, potassium phosphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.241
1U7V Crystal Structure of the phosphorylated Smad2/Smad4 heterotrimeric complex Deposited 2004-08-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 270–466（197 aa） Fragment：MH2 and Linker domains Chain C 270–466（197 aa） Fragment：MH2 and Linker domains	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；50 mM Tris-HCl, 0-15 mM magnesium chloride, 5-15% ethanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.279
2LB3 Structure of the WW domain of PIN1 in complex with a human phosphorylated Smad3 derived peptide Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 217–224（8 aa） Fragment：residues 176-183	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5XOD Crystal structure of human Smad2-Ski complex Deposited 2017-05-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 262–458（197 aa） Fragment：UNP residues 262-458	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；0.1 M sodium acetate tri-hydrate pH 4.6 and 1.85 M sodium formate	Resolution 1.85 Å R-free 0.254
5ZOJ Crystal structure of human SMAD2-MAN1 complex Deposited 2018-04-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 262–458（197 aa） Fragment：UNP residues 262-458 Chain B 262–458（197 aa） Fragment：UNP residues 262-458 Chain C 262–458（197 aa） Fragment：UNP residues 262-458	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；277 K；0.1M acetate, 7.5% PEG4000, 10% 2-propanol	Resolution 2.79 Å R-free 0.269
6ZVQ Complex between SMAD2 MH2 domain and peptide from Ski corepressor Deposited 2020-07-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 241–467（227 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 6 GOL GLYCEROL × 24 TAR D(-)-TARTARIC ACID × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；1.5M Ammonium Sulphate, 0.15M Sodium Potassium Tartrate, 0.08M Tri-Sodium Citrate pH 5.6, 25% v/v Glycerol	Resolution 2.03 Å R-free 0.210
7CO1 Crystal structure of SMAD2 in complex with wild-type CBP Deposited 2020-08-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 262–467（206 aa） Chain C 262–467（206 aa） Chain E 262–467（206 aa）	Mutation：S465E, S467E Mutation：S465E, S467E Mutation：S465E, S467E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；1 M sodium phosphate monobasic monohydrate-potassium phosphate dibasic	Resolution 3.30 Å R-free 0.283

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMAD2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–205； UniProt 262–464 Author chain C； PDBConstruct 3–205； UniProt 262–464 Author chain E； PDBConstruct 3–205； UniProt 262–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6m64
Deposition date deposition_date	2020-03-13
Structure title title	Crystal structure of SMAD2 in complex with CBP
Keywords keywords	TGF-beta, Complex, Transcription factor, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.21 Å
Radius of gyration Rg (electron density) rg_electron	26.10 Å
Forward intensity I(0) i0	92914700.00
Molecular weight molecular_weight	73828.0 kDa
Excluded volume excluded_volume	91544 Å³
Envelope volume envelope_volume	111220 Å³
Hydration-shell volume shell_volume	34433 Å³
Envelope diameter envelope_diameter	82.6 Å
Shell Rg shell_rg	34.45 Å
Envelope Rg envelope_rg	26.06 Å
Shape Rg shape_rg	26.08 Å
Total Rg total_rg	26.99 Å
Total atoms total_atoms	5190
Residues n_residues	656
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

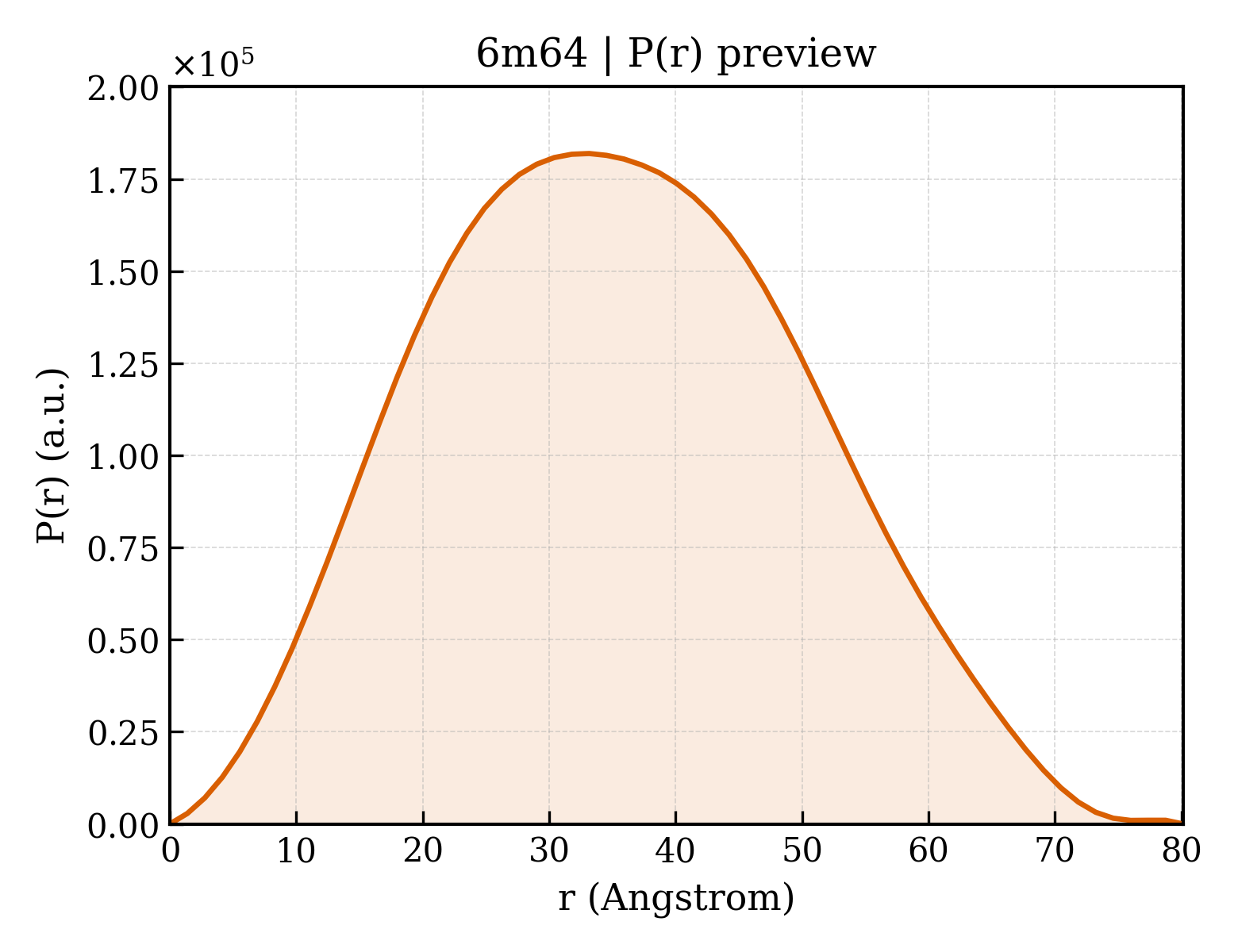

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.1 Å
Rg (real space) rg_real	27.05 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	9.2910e+07
I(0) uncertainty (real space) i0_real_error	1.2130e+06
Rg (reciprocal space) rg_reciprocal	27.10 Å
I(0) (reciprocal space) i0_reciprocal	92920000.0000
Solution quality estimate total_estimate	0.9130
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.2 Å
Skewness Skewness skewness	0.138
Kurtosis Kurtosis kurtosis	-0.596
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	35140000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.935

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Mothers against decapentaplegic homolog 2
Molecular weight formula_weight	23481.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	5863

GPDLQPVTYSEPAFWCSIAYYELNQRVGETFHASQPSLTVDGFTDPSNSERFCLGLLSNVNRNATVEMTRRHIGRGVRLYYIGGEVFAECLSDSAIFVQSPNCNQRYGWHPATVCKIPPGCNLKIFNNQEFAALLAQSVNQGFEAVYQLTRMCTIRMSFVKGWGAEYRRQTVTSTPCWIELHLNGPLQWLDKVLTQMGSPSVRCSEME

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	CBP
Molecular weight formula_weight	3121.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

GPPPAAVEAARQILREAQQQQHLYSDED

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	654

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6m64a1
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

Domain ID domain_id	d6m64a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6m64c_
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

Domain ID domain_id	d6m64e_
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	68.371 Å
Unit-cell length b length_b	70.803 Å
Unit-cell length c length_c	165.106 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	36.673 Å
R factor r_factor	0.1703
R_work r_work	0.1693
R_free r_free	0.1893

fit	/app/data/saxs_computation/m6/6m64/6m64.fit
pddf	/app/data/pr_computation/m6/6m64/6m64.pr.out
profile	/app/data/saxs_computation/m6/6m64/6m64.dat
