SAXSdb — 6mfo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protocadherin-15

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 27–396	Mutation：G16D N369D Q370N	CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.7；277 K；0.1 M HEPES pH 7.7, 66% MPD, 4% Glycerol	Resolution 3.15 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6MFO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6N2E Crystal Structure of Human Protocadherin-15 EC1-3 G16D N369D Q370N and Mouse Cadherin-23 EC1-2 T15E Deposited 2018-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 27–396（370 aa） Chain B 27–396（370 aa）	Mutation：G16D, N369D, Q370N Mutation：G16D, N369D, Q370N	CA CALCIUM ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Imidazole pH 6.8, 46% MPD	Resolution 2.90 Å R-free 0.253

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A087X1T6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–372； UniProt 27–396

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6mfo
Deposition date deposition_date	2018-09-11
Structure title title	Crystal Structure of Human Protocadherin-15 EC1-3 G16D N369D Q370N
Keywords keywords	Mechanotransduction, Calcium-binding protein, stereocilia, hair cell, tip link, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.58 Å
Radius of gyration Rg (electron density) rg_electron	41.24 Å
Forward intensity I(0) i0	22802300.00
Molecular weight molecular_weight	37520.0 kDa
Excluded volume excluded_volume	46853 Å³
Envelope volume envelope_volume	65108 Å³
Hydration-shell volume shell_volume	17632 Å³
Envelope diameter envelope_diameter	151.2 Å
Shell Rg shell_rg	33.52 Å
Envelope Rg envelope_rg	41.69 Å
Shape Rg shape_rg	41.24 Å
Total Rg total_rg	40.66 Å
Total atoms total_atoms	2634
Residues n_residues	333
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	145.8 Å
Rg (real space) rg_real	39.96 Å
Rg uncertainty (real space) rg_real_error	2.62 Å
I(0) (real space) i0_real	2.2800e+07
I(0) uncertainty (real space) i0_real_error	4.7040e+05
Rg (reciprocal space) rg_reciprocal	39.11 Å
I(0) (reciprocal space) i0_reciprocal	22780000.0000
Solution quality estimate total_estimate	0.6028
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.704
Kurtosis Kurtosis kurtosis	-0.291
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	772000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.083; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.016; Smooth: 0.566

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protocadherin-15
Molecular weight formula_weight	43069.2 kDa
Mutation mutation	G16D N369D Q370N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2639

MQYDDDWQYEDCKLARDGPPATIVAIDEESRNGTILVDNMLIKGTAGGPDPTIELSLKDNVDYWVLMDPVKQMLFLNSTGRVLDRDPPMNIHSIVVQVQCINKKVGTIIYHEVRIVVRDRNDNSPTFKHESYYATVNELTPVGTTIFTGFSGDNGATDIDDGPNGQIEYVIQYNPDDPTSNDTFEIPLMLTGNIVLRKRLNYEDKTRYFVIIQANDRAQNLNERRTTTTTLTVDVLDGDDLGPMFLPCVLVPNTRDCRPLTYQAAIPELRTPEELNPIIVTPPIQAIDQDRNIQPPSDRPGILYSILVGTPEDYPRFFHMHPRTAELSLLEPVNRDFHQKFDLVIKAEQDNGHPLPAFAGLHIEILDENDNLEHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	6mfoA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	3430 —

Domain ID domain_id	6mfoA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

Domain ID domain_id	6mfoA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	60 — Cadherins

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.894 Å
Unit-cell length b length_b	116.516 Å
Unit-cell length c length_c	99.889 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	49.990 Å
R factor r_factor	0.2181
R_work r_work	0.2145
R_free r_free	0.2884

fit	/app/data/saxs_computation/mf/6mfo/6mfo.fit
pddf	/app/data/pr_computation/mf/6mfo/6mfo.pr.out
profile	/app/data/saxs_computation/mf/6mfo/6mfo.dat

Crystal Structure of Human Protocadherin-15 EC1-3 G16D N369D Q370N

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protocadherin-15

State in the Current Structure

Other States of the Same Protein in the Database

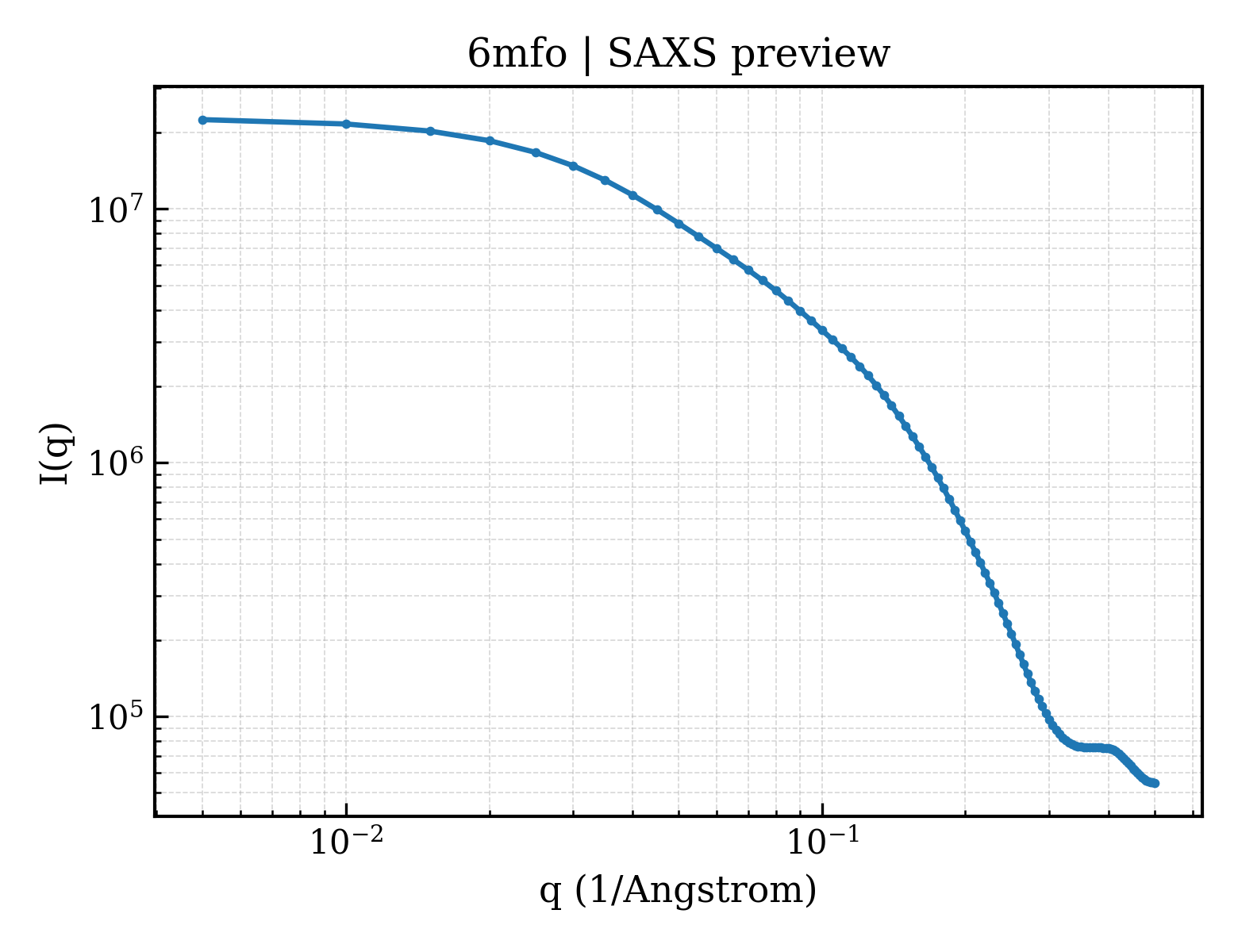

SAXS scattering curve SAXS Profile

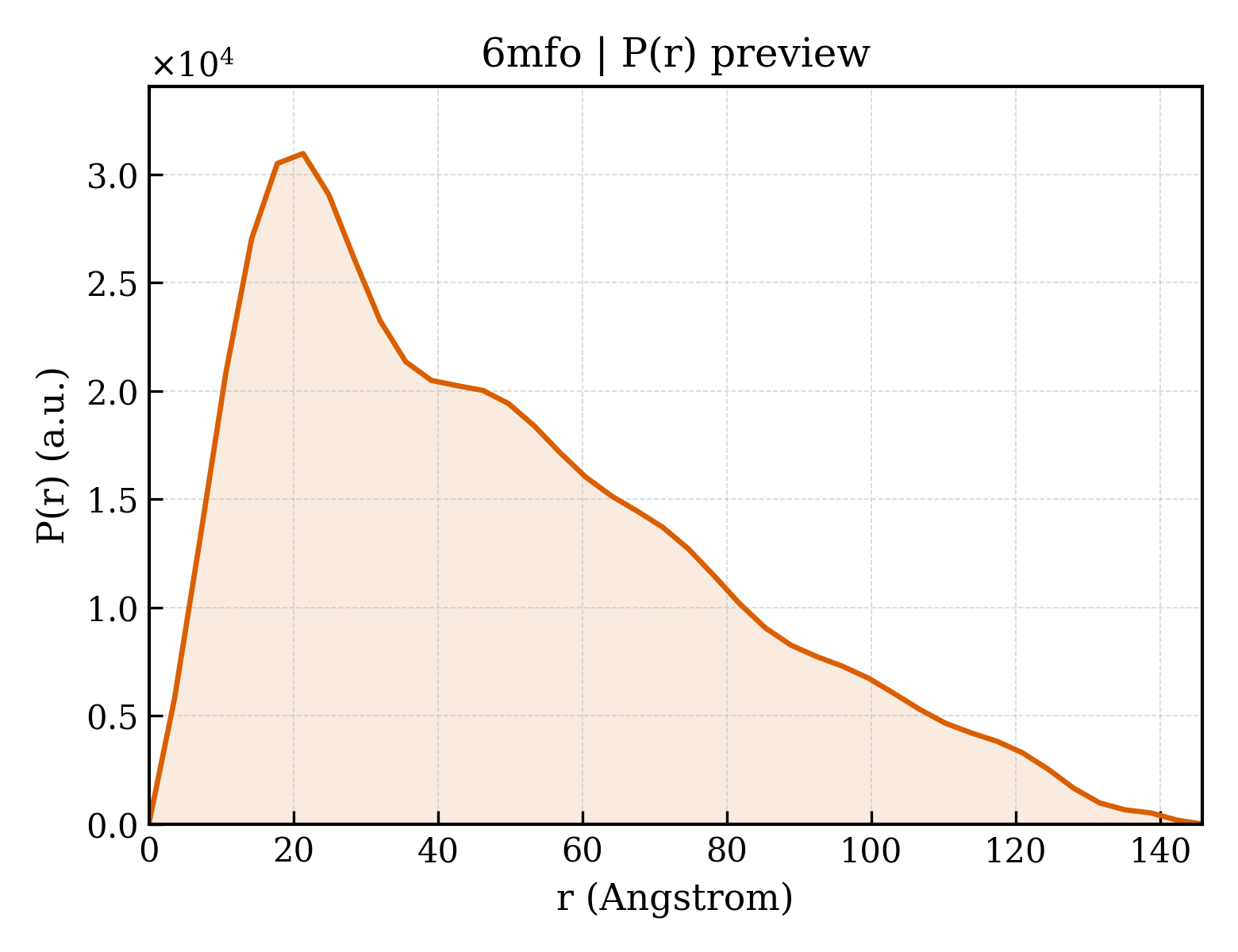

P(r) Distance Distribution P(r) Distribution
