SAXSdb — 6o8d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell-specific surface glycoprotein CD28

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 2 PDB declaration: hexameric（6） Consistent with protein copy count	Chain C； UniProt 33–150	Not recorded	Anti-CD28xCD3 CODV Fab Light chain × 2 Anti-CD28xCD3 CODV Fab Heavy chain × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；277 K；26% PEG3350, 0.75% myo-inositol, 0.263M potassium citrate tribasic monohydrate	Resolution 3.55 Å R-free 0.356

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6O8D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YJD Crystal structure of human CD28 in complex with the Fab fragment of a mitogenic antibody (5.11A1) Deposited 2005-01-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 17–152（136 aa） Fragment：Extracellular region	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；294 K；PEG 3350, magnesium formate, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 2.70 Å R-free 0.282
3WA4 Grb2 SH2 domain/CD28-derived peptide complex Deposited 2013-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 189–196（8 aa） Fragment：fragment peptide, UNP residues 190-195	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES, 1.25M sodium acetate, 0.1M cadmium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.35 Å R-free 0.209
3WA4 Grb2 SH2 domain/CD28-derived peptide complex Deposited 2013-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 189–196（8 aa） Fragment：fragment peptide, UNP residues 190-195	Non-standard monomer：Yes (specific site not provided by mmCIF)	CD CADMIUM ION × 1 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES, 1.25M sodium acetate, 0.1M cadmium sulfate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.35 Å R-free 0.209
5AUL PI3K p85 C-terminal SH2 domain/CD28-derived peptide complex Deposited 2015-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 189–196（8 aa） Fragment：UNP residues 189-196	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM Sodium Acetate trihydrate, 200 mM Ammonium Acetate, 30% PEG4000	Resolution 1.10 Å R-free 0.160
5GJH Gads SH2 domain/CD28-derived peptide complex Deposited 2016-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 189–196（8 aa） Fragment：UNP residues 189-196	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES-NaOH, 10% PEG 6000, 20% MPD	Resolution 1.20 Å R-free 0.170
5GJH Gads SH2 domain/CD28-derived peptide complex Deposited 2016-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 189–196（8 aa） Fragment：UNP residues 189-196	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES-NaOH, 10% PEG 6000, 20% MPD	Resolution 1.20 Å R-free 0.170
5GJI PI3K p85 N-terminal SH2 domain/CD28-derived peptide complex Deposited 2016-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 189–196（8 aa） Fragment：UNP residues 189-196	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100mM Sodium acetate trihydrate, 30% PEG MME 2000, 200mM Ammonium sulfate	Resolution 0.90 Å R-free 0.145
7PPN SHP2 catalytic domain in complex with CD28 (183-198) phosphopeptide (pTyr-191, p-Thr-195) Deposited 2021-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 183–198（16 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；10% PEG 20000, 100 mM Citrate buffer pH 5.5, 50 mM EDTA	Resolution 1.90 Å R-free 0.207
7VU5 Structure of the transmembrane domain of the CD28 dimer Deposited 2021-11-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–188（41 aa） Chain B 148–188（41 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；310 K；Ionic strength (raw mmCIF value) 25；Pressure 1 NMR sample composition 0.6 mM U-13C; U-15N; 75%-2H CD28_TM, 25 mM MES, 30 mM DMPC, 60 mM DHPC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM [U-13C; U-15N] CD28_TM, 25 mM MES, 30 mM acyl chain U-2H DMPC, 60 mM acyl chain U-2H DHPC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM U-15N; U-2H CD28_TM, 0.6 mM [U-13C] CD28_TM, 25 mM MES, 30 mM acyl chain U-2H DMPC, 60 mM acyl chain U-2H DHPC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.2 mM U-15N; 15%-13C CD28_TM, 25 mM MES, 30 mM acyl chain U-2H DMPC, 60 mM acyl chain U-2H DHPC, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8S6Z CD28 in complex with the antibody Fab fragment AI3 Deposited 2024-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 19–152（134 aa）	Not recorded	IMD IMIDAZOLE × 4 GOL GLYCEROL × 3 ZN ZINC ION × 13 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；Crystallization trials were set up using the CD28-AI3 Fab at 15.8 mg/mL in phosphate buffered saline (PBS) pH 7.4. Drops were set up using 100 nl protein and 100 nL reservoir solution containing 200 mM zinc acetate, 0.1 M imidazole pH 8.0, 20% w/v PEG 3000.	Resolution 3.05 Å R-free 0.258
8S6Z CD28 in complex with the antibody Fab fragment AI3 Deposited 2024-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 19–152（134 aa）	Not recorded	IMD IMIDAZOLE × 3 GOL GLYCEROL × 3 ZN ZINC ION × 13 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；Crystallization trials were set up using the CD28-AI3 Fab at 15.8 mg/mL in phosphate buffered saline (PBS) pH 7.4. Drops were set up using 100 nl protein and 100 nL reservoir solution containing 200 mM zinc acetate, 0.1 M imidazole pH 8.0, 20% w/v PEG 3000.	Resolution 3.05 Å R-free 0.258
8W2V Solution Structure of the CD28 hinge used in chimeric antigen receptor (CAR) T-cells Deposited 2024-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 114–152（39 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 70；Pressure 1 NMR measurement conditions pH 6.5；284 K；Ionic strength (raw mmCIF value) 70；Pressure 1 NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] CD28 hinge, 20 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 20 uM zinc sulphate, 1 mM pefabloc, 0.1 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [U-100% 13C; U-100% 15N] CD28 hinge, 20 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 20 uM zinc sulphate, 1 mM pefabloc, 0.1 % sodium azide, 100% D2O \| 100% D2O NMR sample composition 0.45 mM [U-100% 13C; U-100% 15N] CD28 hinge, 20 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 20 uM zinc sulphate, 1 mM pefabloc, 0.1 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-100% 15N] CD28 hinge, 20 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 20 uM zinc sulphate, 1 mM pefabloc, 0.1 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.28 mM [U-100% 15N] CD28 hinge, 20 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 20 uM zinc sulphate, 1 mM pefabloc, 0.1 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

9 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CD28_HUMAN
Isoform	P10747-7
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–118； UniProt 33–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6o8d
Deposition date deposition_date	2019-03-09
Structure title title	Anti-CD28xCD3 CODV Fab bound to CD28
Keywords keywords	;Multispecific antibody, cross-over dual variable immunoglobin, multifunctional biotherapeutic format, bispecific property, CODV, immune system, T cell activation ;; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.80 Å
Radius of gyration Rg (electron density) rg_electron	35.42 Å
Forward intensity I(0) i0	121666000.00
Molecular weight molecular_weight	87762.0 kDa
Excluded volume excluded_volume	109650 Å³
Envelope volume envelope_volume	157300 Å³
Hydration-shell volume shell_volume	38042 Å³
Envelope diameter envelope_diameter	122.4 Å
Shell Rg shell_rg	40.84 Å
Envelope Rg envelope_rg	34.38 Å
Shape Rg shape_rg	35.38 Å
Total Rg total_rg	35.96 Å
Total atoms total_atoms	6183
Residues n_residues	796
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

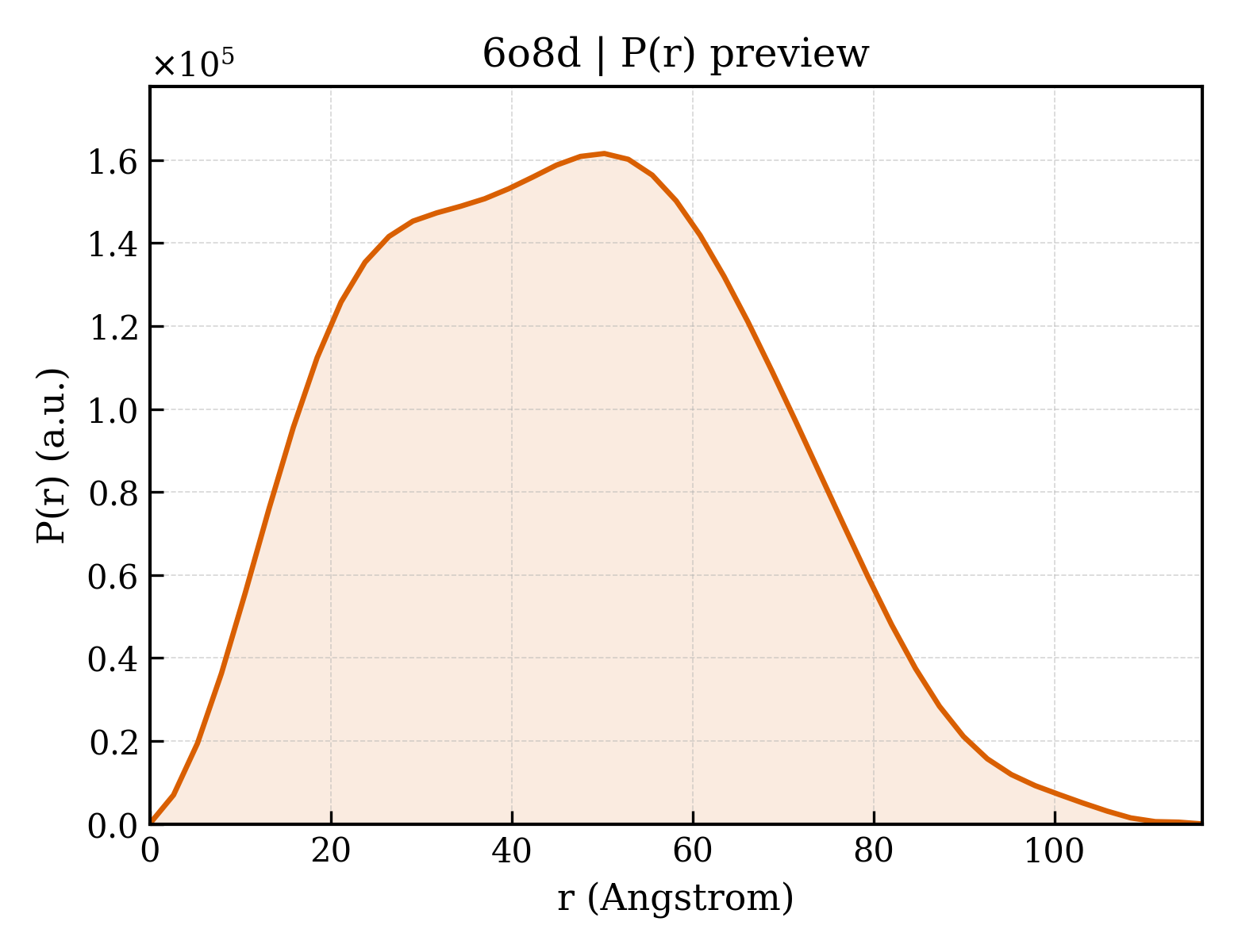

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	116.3 Å
Rg (real space) rg_real	35.79 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	1.2170e+08
I(0) uncertainty (real space) i0_real_error	1.9570e+06
Rg (reciprocal space) rg_reciprocal	35.80 Å
I(0) (reciprocal space) i0_reciprocal	121700000.0000
Solution quality estimate total_estimate	0.8827
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	50.2 Å
Skewness Skewness skewness	0.206
Kurtosis Kurtosis kurtosis	-0.593
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17060000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.752

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	T-cell-specific surface glycoprotein CD28
Molecular weight formula_weight	14617.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	6183

NKILVKQSPMLVAYDNAVNLSCKYSYNLFSREFRASLHKGLDSAVEVCVVYGNYSQQLQVYSKTGFNCDGKLGNESVTFYLQNLYVNQTDIYFCKIEVMYPPPYLDNEKSNGTIIHVKHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Anti-CD28xCD3 CODV Fab Light chain
Molecular weight formula_weight	36794.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVMTQTPLSLSVTPGQPASISCKSSQSLVHNNANTYLSWYLQKPGQSPQSLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCGQGTQYPFTFGSGTKVEIKGQPKAAPDIQMTQSPSSLSASVGDRVTITCQASQNIYVWLNWYQQKPGKAPKLLIYKASNLHTGVPSRFSGSGSGTDFTLTISSLQPEDIATYYCQQGQTYPYTFGQGTKLEIKTKGPSRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Anti-CD28xCD3 CODV Fab Heavy chain
Molecular weight formula_weight	39192.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLVQSGAEVVKPGASVKVSCKASGYTFTSYYIHWVRQAPGQGLEWIGSIYPGNVNTNYAQKFQGRATLTVDTSISTAYMELSRLRSDDTAVYYCTRSHYGLDWNFDVWGKGTTVTVSSSQVQLVESGGGVVQPGRSLRLSCAASGFTFTKAWMHWVRQAPGKQLEWVAQIKDKSNSYATYYADSVKGRFTISRDDSKNTLYLQMNSLRAEDTAVYYCRGVYYALSPFDYWGQGTLVTVSSRTASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

Domain ID domain_id	6o8dC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dH03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o8dL03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	153.140 Å
Unit-cell length b length_b	60.139 Å
Unit-cell length c length_c	152.558 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.04 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.547 Å
Low-resolution limit resolution_low	73.972 Å
R factor r_factor	0.2807
R_work r_work	0.2723
R_free r_free	0.3561

fit	/app/data/saxs_computation/o8/6o8d/6o8d.fit
pddf	/app/data/pr_computation/o8/6o8d/6o8d.pr.out
profile	/app/data/saxs_computation/o8/6o8d/6o8d.dat
