1. Protein Identity and Related Structures Protein Identity & Related Structures

Carbonic anhydrase 2

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–260	Not recorded	CU COPPER (II) ION × 2 ZN ZINC ION × 1 GOL GLYCEROL × 1 E6B ~{N}-[2-(1~{H}-imidazol-4-yl)ethyl]-4-sulfamoyl-benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；100mM HEPES pH7.5, 14% PEG3350, 20% Glycerol, 5mM CuCl2	Resolution 1.90 Å R-free 0.204

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6SKT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1G6V Complex of the camelid heavy-chain antibody fragment CAB-CA05 with bovine carbonic anhydrase Deposited 2000-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 0–260（261 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 8000, sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.276
1V9E Crystal Structure Analysis of Bovine Carbonic Anhydrase II Deposited 2004-01-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–259（259 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；pH 7.5；277 K；50mM Tris-HCl, 2.4M Ammonium sulfate, pH 7.5, SMALL TUBES, temperature 277K	Resolution 1.95 Å R-free 0.298
1V9E Crystal Structure Analysis of Bovine Carbonic Anhydrase II Deposited 2004-01-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–259（259 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；pH 7.5；277 K；50mM Tris-HCl, 2.4M Ammonium sulfate, pH 7.5, SMALL TUBES, temperature 277K	Resolution 1.95 Å R-free 0.298
1V9I Crystal Structure Analysis of the site specific mutant (Q253C) of bovine carbonic anhydrase II Deposited 2004-01-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–259（259 aa）	Mutation：Q253C	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；pH 7.5；277 K；50mM Tris-HCl, 3mM NaN3, 2.3M Ammonium Sulfate, pH 7.5, SMALL TUBES, temperature 277K	Resolution 2.95 Å R-free 0.346
23OM Crystal Structure Analysis of Bovine Carbonic Anhydrase II to 5-(2-morpholin-4-ylcarbonyl-1,3-oxazol-5-yl)thiophene-2-sulfonamide. Deposited 2026-02-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–260（259 aa）	Not recorded	8V5 5-(2-morpholin-4-ylcarbonyl-1,3-oxazol-5-yl)thiophene-2-sulfonamide × 1 BOG octyl beta-D-glucopyranoside × 1 GOL GLYCEROL × 3 ZN ZINC ION × 1 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；2M ammonium sulfate, 0.1M Tris base Buffer	Resolution 1.70 Å R-free 0.250
23OM Crystal Structure Analysis of Bovine Carbonic Anhydrase II to 5-(2-morpholin-4-ylcarbonyl-1,3-oxazol-5-yl)thiophene-2-sulfonamide. Deposited 2026-02-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–260（259 aa）	Not recorded	8V5 5-(2-morpholin-4-ylcarbonyl-1,3-oxazol-5-yl)thiophene-2-sulfonamide × 1 BOG octyl beta-D-glucopyranoside × 1 GOL GLYCEROL × 3 ZN ZINC ION × 1 ACT ACETATE ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；2M ammonium sulfate, 0.1M Tris base Buffer	Resolution 1.70 Å R-free 0.250
23ON Crystal Structure Analysis of Bovine Carbonic Anhydrase II to 4-2-methyl-1,3-oxazol-5-ylbenzenesulfonamide Deposited 2026-02-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–260（259 aa）	Not recorded	8V8 4-(2-methyl-1,3-oxazol-5-yl)benzenesulfonamide × 1 GOL GLYCEROL × 3 ACT ACETATE ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；2M ammonium sulfate, 0.1M Tris-base Buffer	Resolution 1.50 Å R-free 0.200
23ON Crystal Structure Analysis of Bovine Carbonic Anhydrase II to 4-2-methyl-1,3-oxazol-5-ylbenzenesulfonamide Deposited 2026-02-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–260（259 aa）	Not recorded	8V8 4-(2-methyl-1,3-oxazol-5-yl)benzenesulfonamide × 1 GOL GLYCEROL × 3 ACT ACETATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；2M ammonium sulfate, 0.1M Tris-base Buffer	Resolution 1.50 Å R-free 0.200
4CNR Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；281 K；10 MG/ML PROTEIN WITH 30% PEG 1500 AT 8C, pH 5.5	Resolution 2.29 Å R-free 0.236
4CNR Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；281 K；10 MG/ML PROTEIN WITH 30% PEG 1500 AT 8C, pH 5.5	Resolution 2.29 Å R-free 0.236
4CNR Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；281 K；10 MG/ML PROTEIN WITH 30% PEG 1500 AT 8C, pH 5.5	Resolution 2.29 Å R-free 0.236
4CNR Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；281 K；10 MG/ML PROTEIN WITH 30% PEG 1500 AT 8C, pH 5.5	Resolution 2.29 Å R-free 0.236
4CNV Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；PROTEIN WAS AT 10 MG/ML; THE RESERVOIR SOLUTION WAS 5% PEG 1000, 30% PEG 600, 10% GLYCEROL, 100 MM SODIUM MES BUFFER AT PH 6. SEEDS OF THE MUT1 FORM WERE USED TO OBTAIN THESE CRYSTALS.	Resolution 1.62 Å R-free 0.182
4CNW Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；PROTEIN WAS AT 10 MG/ML. THE RESERVOIR CONDITIONS WERE: 25% PEG MME 2000, 200 MM CALCIUM ACETATE, 50 MM TRIS BUFFER PH 8.0. THE CRYSTALS WERE OBTAINED THROUGH CROSS SEEDING FROM A DIFFERENT MUTANT CA-II CRYSTAL.	Resolution 2.03 Å R-free 0.259
4CNW Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；PROTEIN WAS AT 10 MG/ML. THE RESERVOIR CONDITIONS WERE: 25% PEG MME 2000, 200 MM CALCIUM ACETATE, 50 MM TRIS BUFFER PH 8.0. THE CRYSTALS WERE OBTAINED THROUGH CROSS SEEDING FROM A DIFFERENT MUTANT CA-II CRYSTAL.	Resolution 2.03 Å R-free 0.259
4CNX Surface residue engineering of bovine carbonic anhydrase to an extreme halophilic enzyme for potential application in postcombustion CO2 capture Deposited 2014-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Mutation：YES	ZN ZINC ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；281 K；PROTEIN WAS AT 10 MG/ML. THE RESERVOIR CONDITIONS WERE: 40% PEG 600, 100 MM SODIUM CITRATE AT PH 5.5 SET UP AT 8C. CROSS SEEDING FROM OTHER MUTANT CA-II CRYSTALS WAS USED TO OBTAIN THESE CRYSTALS.	Resolution 1.23 Å R-free 0.147
5A25 Rational engineering of a mesophilic carbonic anhydrase to an extreme halotolerant biocatalyst Deposited 2015-05-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1 NA SODIUM ION × 2 BOG octyl beta-D-glucopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.2；150 NL 20 MG/ML PROTEIN PLUS 150 NL RESERVOIR CONSISTING OF 50 MM TRIS PH 8.2, 2.3 M AMMONIUM SULFATE, 0.023 (W/V) N-OCTYL-B-D-GLUCOPYRANOSIDE	Resolution 1.90 Å R-free 0.197
5A25 Rational engineering of a mesophilic carbonic anhydrase to an extreme halotolerant biocatalyst Deposited 2015-05-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–260（260 aa）	Not recorded	ZN ZINC ION × 1 NA SODIUM ION × 2 BOG octyl beta-D-glucopyranoside × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.2；150 NL 20 MG/ML PROTEIN PLUS 150 NL RESERVOIR CONSISTING OF 50 MM TRIS PH 8.2, 2.3 M AMMONIUM SULFATE, 0.023 (W/V) N-OCTYL-B-D-GLUCOPYRANOSIDE	Resolution 1.90 Å R-free 0.197
5EZT Peracetylated Bovine Carbonic Anhydrase II Deposited 2015-11-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 4–260（257 aa） Fragment：UNP residues 4-260	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277.15 K；1.6M ammonium sulfate, tris	Resolution 1.54 Å R-free 0.239
6SKS Crystal structure of bovine carbonic anhydrase II in complex with a benzenesulfonamide-based ligand (SH1) Deposited 2019-08-16	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Not recorded	CU COPPER (II) ION × 4 ZN ZINC ION × 1 GOL GLYCEROL × 2 E68 ~{N}-[2-[2-(1~{H}-imidazol-4-yl)ethylamino]-2-oxidanylidene-ethyl]-4-sulfamoyl-benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；100mM HEPES pH7.5, 14% PEG3350, 20% Glycerol, 5mM CuCl2	Resolution 1.75 Å R-free 0.194
6SKV Crystal structure of bovine carbonic anhydrase II in complex with a benzenesulfonamide-based ligand (SH2) Deposited 2019-08-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–260（260 aa）	Not recorded	ZN ZINC ION × 1 CU COPPER (II) ION × 3 GOL GLYCEROL × 2 E5Z ~{N}-[3-[(~{E})-2-(1~{H}-imidazol-5-yl)ethylideneamino]-3-oxidanylidene-propyl]-4-sulfamoyl-benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；100mM HEPES pH7.5, 14% PEG3350, 20% Glycerol, 5mM CuCl2.	Resolution 1.75 Å R-free 0.189

13 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAH2_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–260； UniProt 1–260

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6skt
Deposition date deposition_date	2019-08-16
Structure title title	Crystal structure of bovine carbonic anhydrase II in complex with a benzenesulfonamide-based ligand (SH0)
Keywords keywords	CARBONIC ANHYDRASE II, CA2, SULFONAMIDE, COMPLEX, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.47 Å
Radius of gyration Rg (electron density) rg_electron	17.27 Å
Forward intensity I(0) i0	15561200.00
Molecular weight molecular_weight	29471.0 kDa
Excluded volume excluded_volume	36709 Å³
Envelope volume envelope_volume	40722 Å³
Hydration-shell volume shell_volume	19114 Å³
Envelope diameter envelope_diameter	59.5 Å
Shell Rg shell_rg	24.05 Å
Envelope Rg envelope_rg	17.63 Å
Shape Rg shape_rg	17.24 Å
Total Rg total_rg	18.35 Å
Total atoms total_atoms	2077
Residues n_residues	258
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.7 Å
Rg (real space) rg_real	18.33 Å
Rg uncertainty (real space) rg_real_error	0.34 Å
I(0) (real space) i0_real	1.5560e+07
I(0) uncertainty (real space) i0_real_error	1.8240e+05
Rg (reciprocal space) rg_reciprocal	18.35 Å
I(0) (reciprocal space) i0_reciprocal	15560000.0000
Solution quality estimate total_estimate	0.8112
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.7 Å
Skewness Skewness skewness	0.062
Kurtosis Kurtosis kurtosis	-0.465
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2750000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Carbonic anhydrase 2
Molecular weight formula_weight	29151.8 kDa
EC 编号 ec_number	4.2.1.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2252

MSHHWGYGKHNGPEHWHKDFPIANGERQSPVDIDTKAVVQDPALKPLALVYGEATSRRMVNNGHSFNVEYDDSQDKAVLKDGPLTGTYRLVQFHFHWGSSDDQGSEHTVDRKKYAAELHLVHWNTKYGDFGTAAQQPDGLAVVGVFLKVGDANPALQKVLDALDSIKTKGKSTDFPNFDPGSLLPNVLDYWTYPGSLTTPPLLESVTWIVLKEPISVSSQQMLKFRTLNFNAEGEPELLMLANWRPAQPLKNRQVRGFPK

Entity 2 Entity 2 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	~{N}-[2-(1~{H}-imidazol-4-yl)ethyl]-4-sulfamoyl-benzamide
Molecular weight formula_weight	294.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6skta_
Class class	b — All beta proteins
Fold Fold fold	b.74 — Carbonic anhydrase
Superfamily Superfamily superfamily	b.74.1 — Carbonic anhydrase
Family Family family	b.74.1.1 — Carbonic anhydrase

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.619 Å
Unit-cell length b length_b	67.619 Å
Unit-cell length c length_c	123.429 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	42.400 Å
R factor r_factor	0.1784
R_work r_work	0.1771
R_free r_free	0.2043

fit	/app/data/saxs_computation/sk/6skt/6skt.fit
pddf	/app/data/pr_computation/sk/6skt/6skt.pr.out
profile	/app/data/saxs_computation/sk/6skt/6skt.dat

Crystal structure of bovine carbonic anhydrase II in complex with a benzenesulfonamide-based ligand (SH0)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Carbonic anhydrase 2

State in the Current Structure

Other States of the Same Protein in the Database

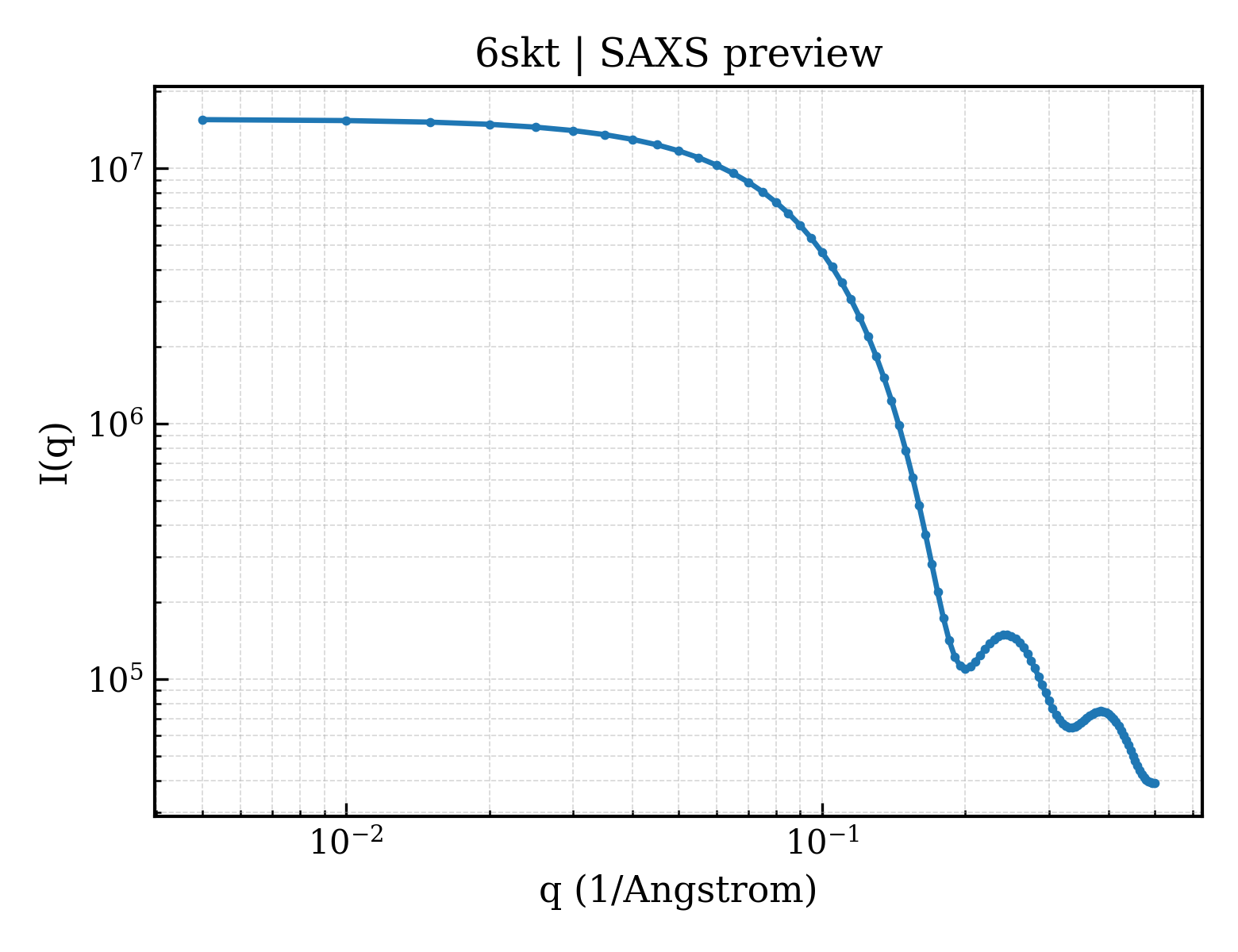

SAXS scattering curve SAXS Profile
