7at1

CRYSTAL STRUCTURES OF ASPARTATE CARBAMOYLTRANSFERASE LIGATED WITH PHOSPHONOACETAMIDE, MALONATE, AND CTP OR ATP AT 2.8-ANGSTROMS RESOLUTION AND NEUTRAL P*H

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTATE CARBAMOYLTRANSFERASE (R STATE), CATALYTIC CHAIN

Escherichia coli

UniProt P0A786

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Other combination Heteromer Protein 12 其他Polymer 6 ASPARTATE CARBAMOYLTRANSFERASE REGULATORY CHAIN × 6 (P0A7F3) alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 6 PHOSPHONOACETAMIDE × 6 ZINC ION × 6 ADENOSINE-5'-TRIPHOSPHATE × 3 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name PYRB_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 1–310; UniProt 1–310 Author chain C; PDBConstruct 1–310; UniProt 1–310

ASPARTATE CARBAMOYLTRANSFERASE REGULATORY CHAIN

Escherichia coli

UniProt P0A7F3

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Other combination Heteromer Protein 12 其他Polymer 6 ASPARTATE CARBAMOYLTRANSFERASE (R STATE), CATALYTIC CHAIN × 6 (P0A786) alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 6 PHOSPHONOACETAMIDE × 6 ZINC ION × 6 ADENOSINE-5'-TRIPHOSPHATE × 3 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name PYRI_ECOLI
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B; PDBConstruct 2–153; UniProt 1–152 Author chain D; PDBConstruct 2–153; UniProt 1–152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7at1
Deposition date deposition_date1989-09-22
Structure title titleCRYSTAL STRUCTURES OF ASPARTATE CARBAMOYLTRANSFERASE LIGATED WITH PHOSPHONOACETAMIDE, MALONATE, AND CTP OR ATP AT 2.8-ANGSTROMS RESOLUTION AND NEUTRAL P*H
Keywords keywordsTRANSFERASE (CARBAMOYL-P, ASPARTATE); TRANSFERASE (CARBAMOYL-P,ASPARTATE)
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7at1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

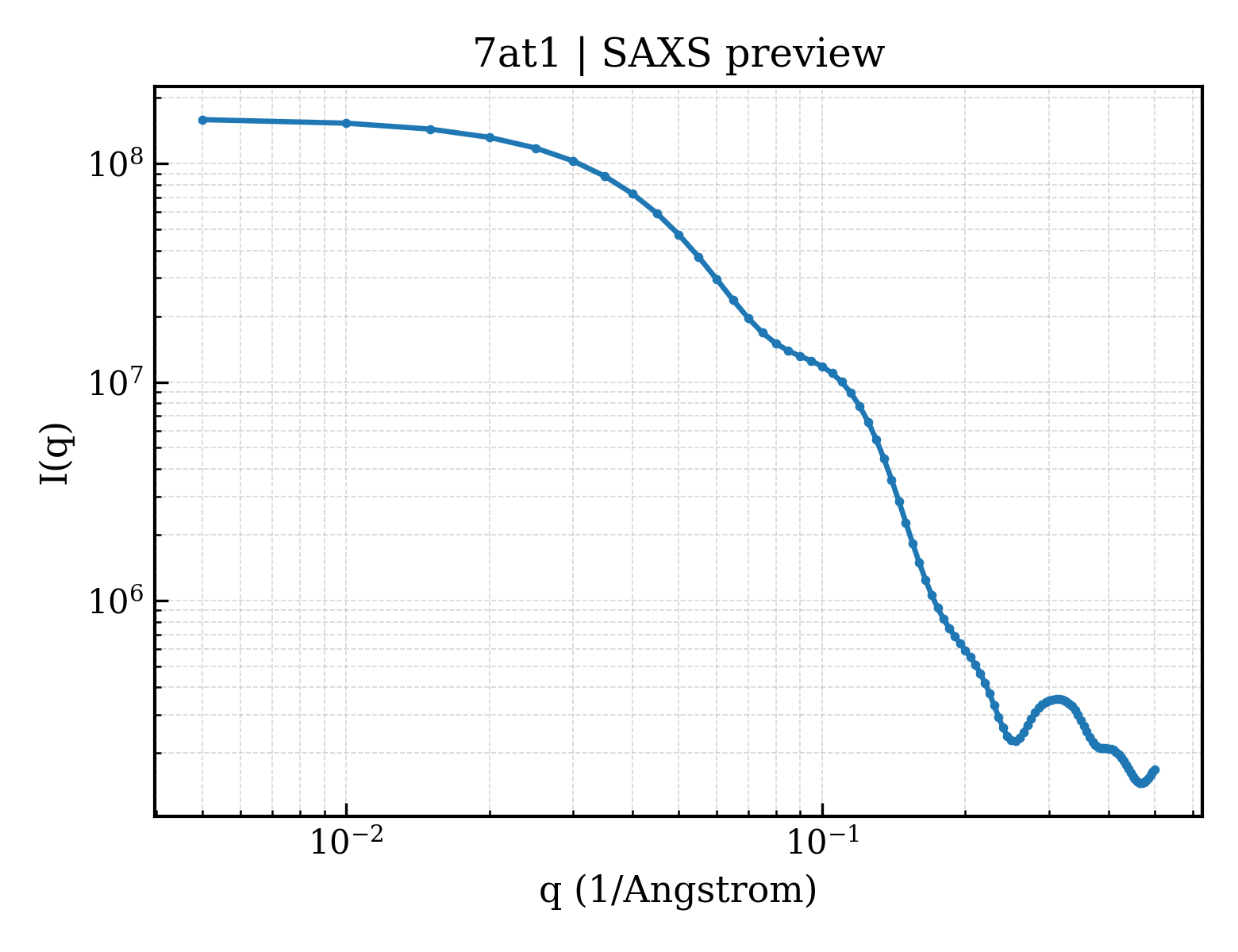

7at1__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

7at1__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)46.33 Å
Rg (electron density)45.54 Å
Total Rg45.85 Å
Atom count21507
Residues2736
Excluded volume382790 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 7at1__assembly_1__model_1 dodecameric (12) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_idd7at1a1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.78 — ATC-like
Superfamily Superfamily superfamilyc.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family familyc.78.1.1 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_idd7at1a2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.78 — ATC-like
Superfamily Superfamily superfamilyc.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family familyc.78.1.1 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_idd7at1b1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.58 — Ferredoxin-like
Superfamily Superfamily superfamilyd.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
Family Family familyd.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
Domain ID domain_idd7at1b2
Class classg — Small proteins
Fold Fold foldg.41 — Rubredoxin-like
Superfamily Superfamily superfamilyg.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
Family Family familyg.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
Domain ID domain_idd7at1c1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.78 — ATC-like
Superfamily Superfamily superfamilyc.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family familyc.78.1.1 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_idd7at1c2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.78 — ATC-like
Superfamily Superfamily superfamilyc.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family familyc.78.1.1 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_idd7at1d1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.58 — Ferredoxin-like
Superfamily Superfamily superfamilyd.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
Family Family familyd.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
Domain ID domain_idd7at1d2
Class classg — Small proteins
Fold Fold foldg.41 — Rubredoxin-like
Superfamily Superfamily superfamilyg.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
Family Family familyg.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id7at1A01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1370 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_id7at1A02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1370 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_id7at1B01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain
Domain ID domain_id7at1B02
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology30 — SH3 type barrels.
Homologous superfamily homologous superfamily20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain
Domain ID domain_id7at1C01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1370 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_id7at1C02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily1370 — Aspartate/ornithine carbamoyltransferase
Domain ID domain_id7at1D01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain
Domain ID domain_id7at1D02
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology30 — SH3 type barrels.
Homologous superfamily homologous superfamily20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain
▶

7. Citations (21)
