7b75

Cryo-EM Structure of Human Thyroglobulin

Method: ELECTRON MICROSCOPY Dmax: 225.7 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thyroglobulin

OrganismNot specified

UniProt P01266

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Homooligomer Protein × 2 其他Polymer 12 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–2768 Chain B； UniProt 1–2768 Not recorded 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 ;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5；0.22 um filtered and degased cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7B75 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6SCJ The structure of human thyroglobulin Deposited 2019-07-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–2768（2768 aa）
Chain B 1–2768（2768 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；TRIS 0.05M, 0.2M NaCl pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9I0O Cryo-EM structure of human sortilin ectodomain in complex with a thyroglobulin C-terminal peptide Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2749–2768（20 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name THYG_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–2768； UniProt 1–2768 Author chain B； PDBConstruct 1–2768； UniProt 1–2768

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7b75

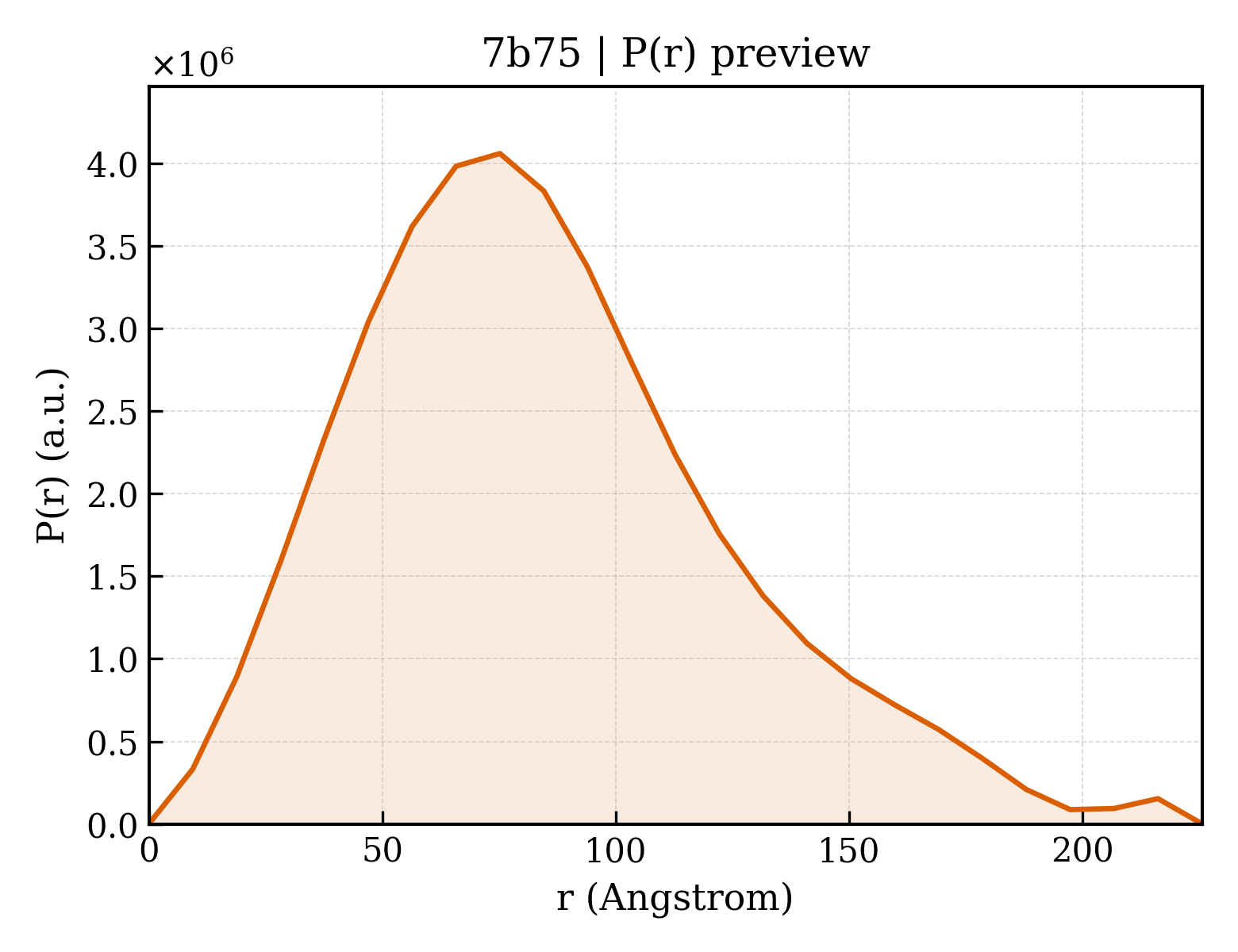

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7b75
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7b75
Deposition date deposition_date2020-12-09
Structure title titleCryo-EM Structure of Human Thyroglobulin
Keywords keywordsThyroglobulin, T3 and T4 Hormonogenesis, cryo-EM, HORMONE; HORMONE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier65.47 Å
Radius of gyration Rg (electron density) rg_electron66.20 Å
Forward intensity I(0) i04671440000.00
Molecular weight molecular_weight558020.0 kDa
Excluded volume excluded_volume690500 ų
Envelope volume envelope_volume1125600 ų
Hydration-shell volume shell_volume145800 ų
Envelope diameter envelope_diameter258.5 Å
Shell Rg shell_rg65.08 Å
Envelope Rg envelope_rg65.66 Å
Shape Rg shape_rg66.16 Å
Total Rg total_rg66.34 Å
Total atoms total_atoms39122
Residues n_residues4966
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax225.7 Å
Rg (real space) rg_real65.69 Å
Rg uncertainty (real space) rg_real_error1.53 Å
I(0) (real space) i0_real4.6590e+09
I(0) uncertainty (real space) i0_real_error9.3220e+07
Rg (reciprocal space) rg_reciprocal64.95 Å
I(0) (reciprocal space) i0_reciprocal4662000000.0000
Solution quality estimate total_estimate0.8331
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary75.2 Å
Skewness Skewness skewness0.631
Kurtosis Kurtosis kurtosis0.228
Angular range angular_range— – 0.1200 Å−1
Current regularization parameter α current_alpha0.0580
Highest regularization parameter α highest_alpha401100000.0000
Real-space data points n_real_points25
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.706; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.704
▶
