7f4y

Crystal structure of replisomal dimer of DNA polymerase from bacteriophage RB69 with DNA duplexes

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase

Enterobacteria phage RB69

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 4	;DNA (5'-D(TPCPAPAPGPTPAPAPGPCPAPGPTPCPCPGPCPTPC)-3') ; × 2 ;DNA (5'-D(GPAPGPCPGPGPAPCPTPGPCPTPTPAPC)-3') ; × 2 ;2'-DEOXYURIDINE 5'-ALPHA,BETA-IMIDO-TRIPHOSPHATE ; × 1 CALCIUM ION × 2 GUANOSINE-5'-MONOPHOSPHATE × 2 MAGNESIUM ION × 1 water × 6	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOL_BPR69
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–908； UniProt 1–903 Author chain B； PDBConstruct 6–908； UniProt 1–903

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7f4y
Deposition date deposition_date	2021-06-21
Structure title title	Crystal structure of replisomal dimer of DNA polymerase from bacteriophage RB69 with DNA duplexes
Keywords keywords	TRANSFERASE-DNA complex; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7f4y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

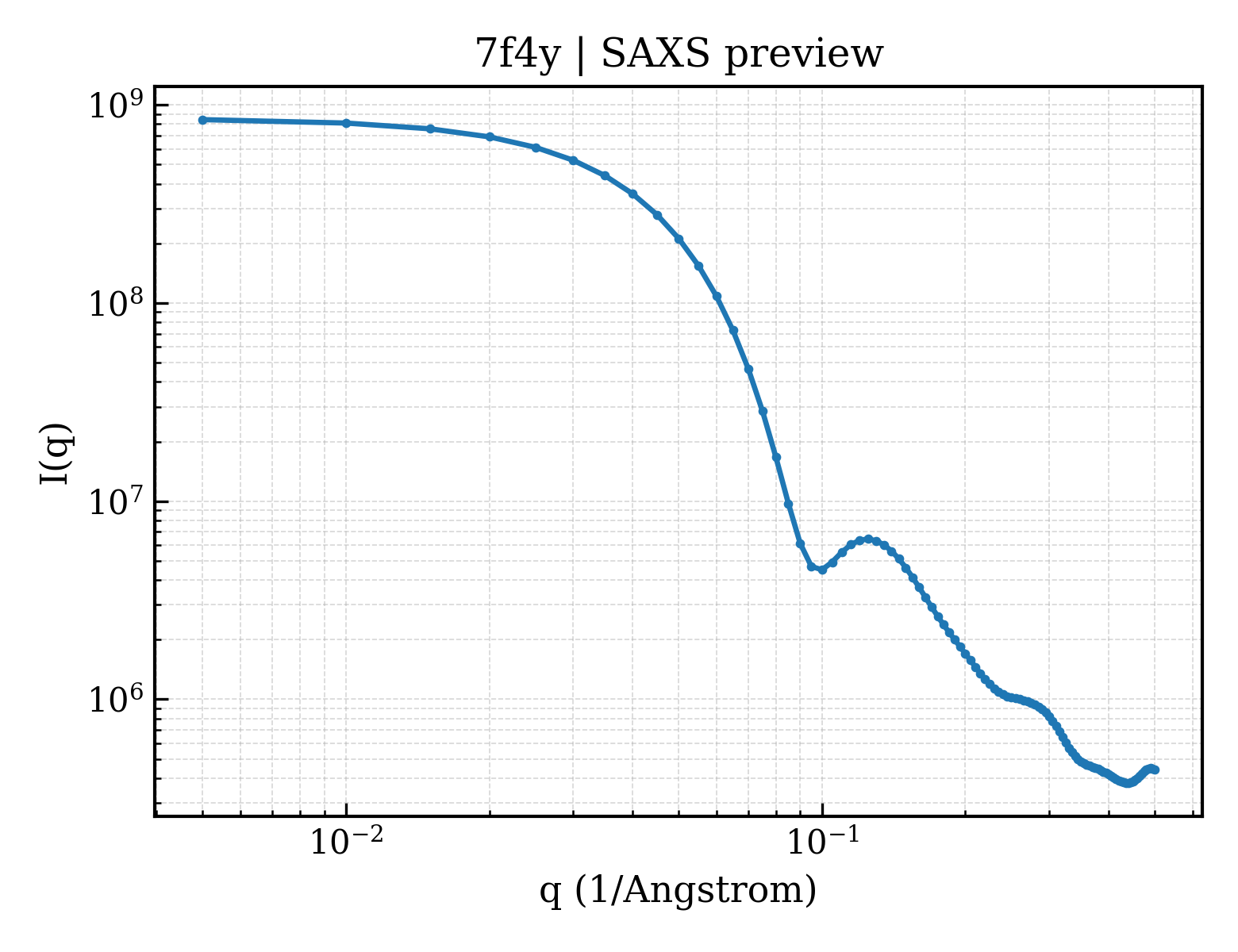

7f4y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

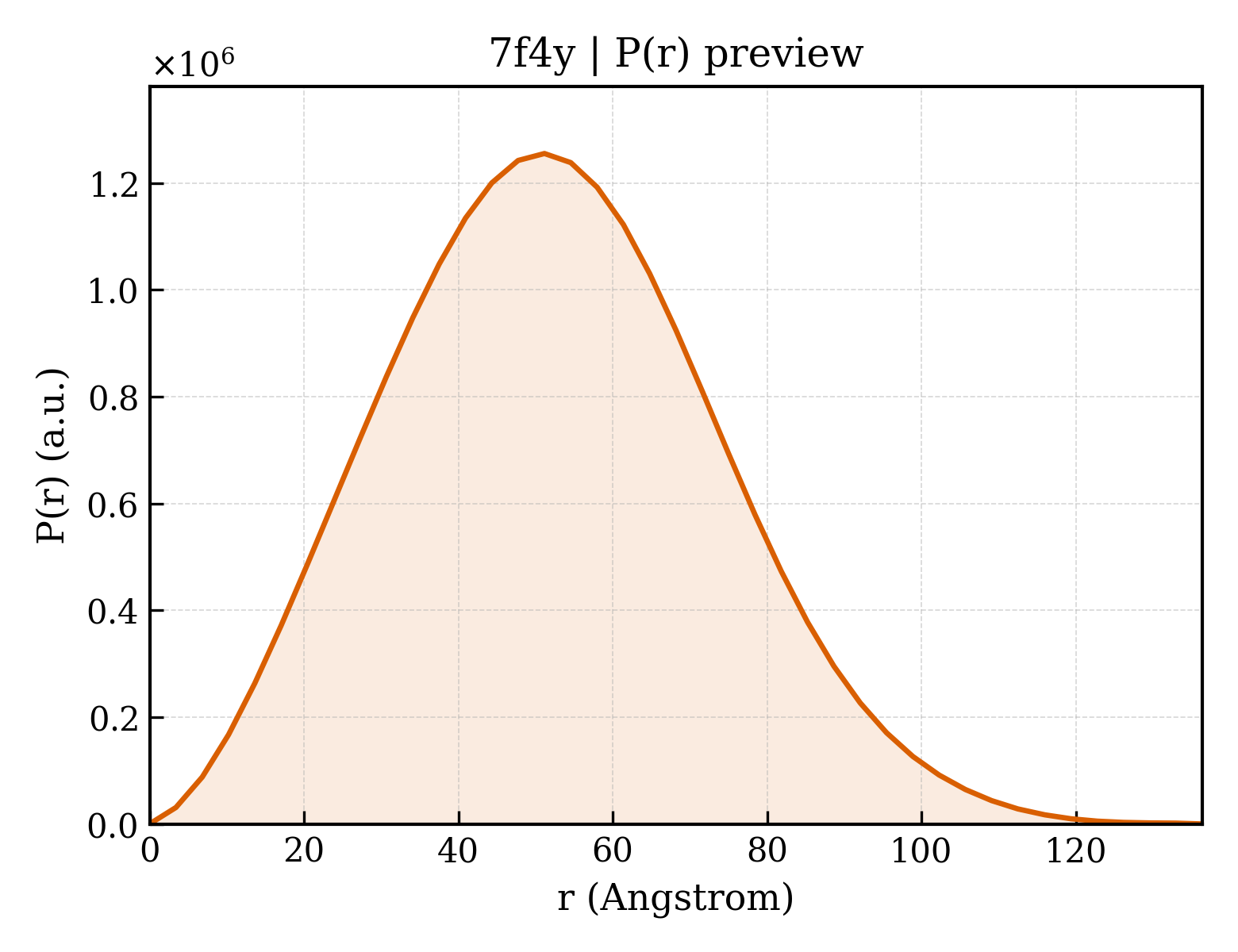

7f4y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.99 Å
Rg (electron density)	39.82 Å
Total Rg	40.16 Å
Atom count	16086
Residues	1867
Excluded volume	282280 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7f4y__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	DNA polymerase
Molecular weight formula_weight	105058.6 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	18177

GAMGSMKEFYLTVEQIGDSIFERYIDSNGRERTREVEYKPSLFAHCPESQATKYFDIYGKPCTRKLFANMRDASQWIKRMEDIGLEALGMDDFKLAYLSDTYNYEIKYDHTKIRVANFDIEVTSPDGFPEPSQAKHPIDAITHYDSIDDRFYVFDLLNSPYGNVEEWSIEIAAKLQEQGGDEVPSEIIDKIIYMPFDNEKELLMEYLNFWQQKTPVILTGWNVESFAIPYVYNRIKNIFGESTAKRLSPHRKTRVKVIENMYGSREIITLFGISVLDYIDLYKKFSFTNQPSYSLDYISEFELNVGKLKYDGPISKLRESNHQRYISYNIIAVYRVLQIDAKRQFINLSLDMGYYAKIQIQSVFSPIKTWDAIIFNSLKEQNKVIPQGRSHPVQPYPGAFVKEPIPNRYKYVMSFDLTSLYPSIIRQVNISPETIAGTFKVAPLHDYINAVAERPSDVYSCSPNGMMYYKDRDGVVPTEITKVFNQRKEHKGYMLAAQRNGEIIKEALHNPNLSVDEPLDVDYRFDFSDEIKEKIKKLSAKSLNEMLFRAQRTEVAGMTAQINRKLLINSLYGALGNVWFRYYDLRNATAITTFGQMALQWIERKVNEYLNEVCGTEGEAFVLYGDTDSIYVSADKIIDKVGESKFRDTNHWVDFLDKFARERMEPAIDRGFREMCEYMNNKQHLMFMDREAIAGPPLGSKGIGGFWTGKKRYALNVWDMEGTRYAEPKLKIMGLETQKSSTPKAVQKALKECIRRMLQEGEESLQEYFKEFEKEFRQLNYISIASVSSANNIAKYDVGGFPGPKCPFHIRGILTYNRAIKGNIDAPQVVEGEKVYVLPLREGNPFGDKCIAWPSGTEITDLIKDDVLHWMDYTVLLEKTFIKPLEGFTSAAKLDYEKKASLFDMFDF

Source Source

Source organism organism	Enterobacteria phage RB69
NCBI taxonomy ID ncbi_taxonomy_id	12353
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(TPCPAPAPGPTPAPAPGPCPAPGPTPCPCPGPCPTP*C)-3') ;
Molecular weight formula_weight	5789.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T,S

TCAAGTAAGCAGTCCGCTC

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(GPAPGPCPGPGPAPCPTPGPCPTPTPAP*C)-3') ;
Molecular weight formula_weight	4610.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P,Q

GAGCGGACTGCTTAC

Entity 4 Entity 4 non-polymer

Description description	;2'-DEOXYURIDINE 5'-ALPHA,BETA-IMIDO-TRIPHOSPHATE ;
Molecular weight formula_weight	467.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GUANOSINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	363.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1932

▶

Unit-cell length a length_a	164.440 Å
Unit-cell length b length_b	164.440 Å
Unit-cell length c length_c	165.601 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	50.010 Å
R factor r_factor	0.1961
R_work r_work	0.1936
R_free r_free	0.2455
