7jl8

Human PrimPol extending from the correct primer base C opposite the 8-oxoguanine lesion

Method: X-RAY DIFFRACTION D_max: 94.1 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed primase/polymerase protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 1–354	Not recorded	;DNA (5'-D(PAPTP(8OG)PCPCPTPAPCPCPAPCPA)-3') ; × 1 ;DNA (5'-D(PGPTPGPGPTPAPGPGPC)-3') ; × 1 DTP* 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2, 16-19% PEG 3350	Resolution 2.10 Å R-free 0.213
2	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain B； UniProt 1–354	Not recorded	;DNA (5'-D(PAPTP(8OG)PCPCPTPAPCPCPAPCPA)-3') ; × 1 ;DNA (5'-D(PGPTPGPGPTPAPGPGPC)-3') ; × 1 DTP* 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2, 16-19% PEG 3350	Resolution 2.10 Å R-free 0.213

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7JL8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5L2X Crystal structure of human PrimPol ternary complex Deposited 2016-08-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–353（353 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；17-23% PEG 3350	Resolution 2.20 Å R-free 0.255
5L2X Crystal structure of human PrimPol ternary complex Deposited 2016-08-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–353（353 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；17-23% PEG 3350	Resolution 2.20 Å R-free 0.255
5N85 Structure of RPA70N in complex with PrimPol (fragment 514-525) Deposited 2017-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 514–528（15 aa） Fragment：UNP Residues 514-528	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293.15 K；0.2 M Ammonium acetate 0.1 M Sodium acetate 4.5 20 % w/v PEG 3350	Resolution 2.00 Å R-free 0.228
5N8A Structure of RPA70N in complex with PrimPol (fragment 480-560) Deposited 2017-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 480–560（81 aa） Fragment：UNP residues 479-559	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293.15 K；0.2M imidazole malate, 30% w/v PEG 4000	Resolution 1.28 Å R-free 0.178
7JK1 Human PrimPol inserting correct dCTP opposite the 8-oxoguanine lesion Deposited 2020-07-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–354（354 aa）	Not recorded	DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2 16-19% PEG 3350	Resolution 2.62 Å R-free 0.286
7JK1 Human PrimPol inserting correct dCTP opposite the 8-oxoguanine lesion Deposited 2020-07-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–354（354 aa）	Not recorded	DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2 16-19% PEG 3350	Resolution 2.62 Å R-free 0.286
7JKL Human PrimPol misinserting dATP opposite the 8-oxoguanine lesion (3'-end base of the primer strand is 2',3'-dideoxy-terminated). Deposited 2020-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225- 250 mM CaCl2, 16 -19% PEG 3350	Resolution 2.38 Å R-free 0.277
7JKL Human PrimPol misinserting dATP opposite the 8-oxoguanine lesion (3'-end base of the primer strand is 2',3'-dideoxy-terminated). Deposited 2020-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225- 250 mM CaCl2, 16 -19% PEG 3350	Resolution 2.38 Å R-free 0.277
7JKP Human PrimPol misinserting dATP opposite the 8-oxoguanine lesion Deposited 2020-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225- 250 mM CaCl2 16 -19% PEG 3350	Resolution 2.59 Å R-free 0.307
7JKP Human PrimPol misinserting dATP opposite the 8-oxoguanine lesion Deposited 2020-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225- 250 mM CaCl2 16 -19% PEG 3350	Resolution 2.59 Å R-free 0.307
7JLG Human PrimPol extending from the erroneous primer base A opposite the 8-oxoguanine lesion Deposited 2020-07-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2, 16-19% PEG 3350	Resolution 2.07 Å R-free 0.219
7JLG Human PrimPol extending from the erroneous primer base A opposite the 8-oxoguanine lesion Deposited 2020-07-29	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–354（354 aa）	Not recorded	DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；225-250 mM CaCl2, 16-19% PEG 3350	Resolution 2.07 Å R-free 0.219

7 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRIPO_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–354； UniProt 1–354 Author chain B； PDBConstruct 1–354； UniProt 1–354

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

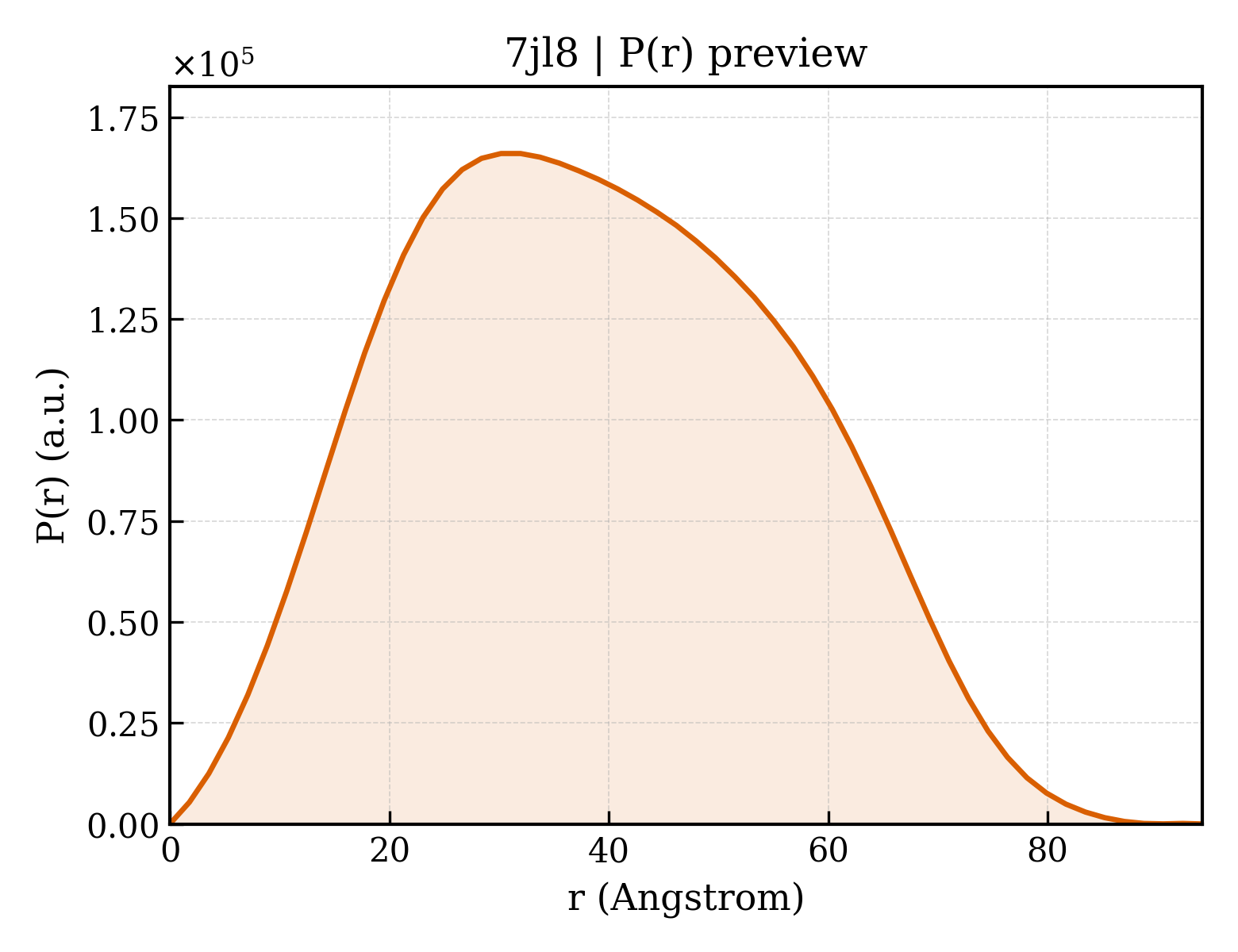

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jl8
Deposition date deposition_date	2020-07-29
Structure title title	Human PrimPol extending from the correct primer base C opposite the 8-oxoguanine lesion
Keywords keywords	Translesion, DNA synthesis, DNA Replication, DNA damage, TRANSFERASE, TRANSFERASE-DNA complex; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.11 Å
Radius of gyration Rg (electron density) rg_electron	28.56 Å
Forward intensity I(0) i0	101699000.00
Molecular weight molecular_weight	71553.0 kDa
Excluded volume excluded_volume	86062 Å³
Envelope volume envelope_volume	116020 Å³
Hydration-shell volume shell_volume	33804 Å³
Envelope diameter envelope_diameter	92.7 Å
Shell Rg shell_rg	36.05 Å
Envelope Rg envelope_rg	28.11 Å
Shape Rg shape_rg	28.50 Å
Total Rg total_rg	29.42 Å
Total atoms total_atoms	9368
Residues n_residues	558
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.1 Å
Rg (real space) rg_real	30.03 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	1.0170e+08
I(0) uncertainty (real space) i0_real_error	1.3900e+06
Rg (reciprocal space) rg_reciprocal	30.07 Å
I(0) (reciprocal space) i0_reciprocal	101700000.0000
Solution quality estimate total_estimate	0.9102
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	92.3 Å
Skewness Skewness skewness	0.158
Kurtosis Kurtosis kurtosis	-0.727
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12610000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.968

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	DNA-directed primase/polymerase protein
Molecular weight formula_weight	41038.5 kDa
EC 编号 ec_number	2.7.7.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9581

MNRKWEAKLKQIEERASHYERKPLSSVYRPRLSKPEEPPSIWRLFHRQAQAFNFVKSCKEDVHVFALECKVGDGQRIYLVTTYAEFWFYYKSRKNLLHCYEVIPENAVCKLYFDLEFNKPANPGADGKKMVALLIEYVCKALQELYGVNCSAEDVLNLDSSTDEKFSRHLIFQLHDVAFKDNIHVGNFLRKILQPALDLLGSEDDDSAPETTGHGFPHFSEAPARQGFSFNKMFTEKATEESWTSNSKKLERLGSAEQSSPDLSFLVVKNNMGEKHLFVDLGVYTRNRNFRLYKSSKIGKRVALEVTEDNKFFPIQSKDVSDEYQYFLSSLVSNVRFSDTLRILTCEPSQNKQK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PAPTP(8OG)PCPCPTPAPCPCPAPCPA)-3') ;
Molecular weight formula_weight	5053.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,G

CATGCCTACCACACCCC

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(PGPTPGPGPTPAPGPGP*C)-3') ;
Molecular weight formula_weight	4103.7 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D,H

GGGTGTGGTAGGC

Entity 4 Entity 4 non-polymer

Description description	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ;
Molecular weight formula_weight	491.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	161

▶

8. Citations (1)

▶

Unit-cell length a length_a	50.689 Å
Unit-cell length b length_b	65.330 Å
Unit-cell length c length_c	72.001 Å
Unit-cell angle α angle_alpha	68.47 °
Unit-cell angle β angle_beta	85.67 °
Unit-cell angle γ angle_gamma	86.92 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	28.160 Å
R factor r_factor	0.1883
R_work r_work	0.1871
R_free r_free	0.2133

fit	/app/data/saxs_computation/jl/7jl8/7jl8.fit
pddf	/app/data/pr_computation/jl/7jl8/7jl8.pr.out
profile	/app/data/saxs_computation/jl/7jl8/7jl8.dat
