SAXSdb — 7rta

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neuropeptide Y

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain N； UniProt 29–64	Non-standard monomer：Yes (specific site not provided by mmCIF)	4A3B2-B Fab heavy chain × 1 4A3B2-B Fab light chain × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；Protein complex (~4 mg/mL with respect to Fab, NPY:Fab at molar ratio of 1.4:1, all dissolved in 25 mM Tris (pH 7.5), 100 mM NaCl) was combined to an equal volume (2 uL) of well solution comprising 200 mM Li2SO4, 100 mM sodium acetate (pH 4.5), 22% (w/v) PEG1000	Resolution 2.60 Å R-free 0.270

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RTA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QFA STRUCTURE OF A NEUROPEPTIDE Y Y2 AGONIST Deposited 1999-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 52–64（13 aa） Fragment：NPY Y2 RECEPTOR AGONIST	Mutation：I28L, I31L Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.6；293 K；Pressure 1 NMR sample composition 40% TFE-D3,60% WATER	Resolution not provided
1RON NMR SOLUTION STRUCTURE OF HUMAN NEUROPEPTIDE Y Deposited 1996-01-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–64（36 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.2；310 K	Resolution not provided
7VGX Neuropeptide Y Y1 Receptor (NPY1R) in Complex with G Protein and its endogeneous Peptide-Agonist Neuropeptide Y (NPY) Deposited 2021-09-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain L 29–64（36 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 3.20 Å
7X9A Cryo-EM structure of neuropeptide Y Y1 receptor in complex with NPY and Gi Deposited 2022-03-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain P 29–64（36 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7X9B Cryo-EM structure of neuropeptide Y Y2 receptor in complex with NPY and Gi Deposited 2022-03-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain P 29–64（36 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7YOO Complex structure of Neuropeptide Y Y2 receptor in complex with NPY and Gi Deposited 2022-08-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain L 29–64（36 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
8K6M Structural complex of neuropeptide Y receptor 1 Deposited 2023-07-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 29–64（36 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8K6N Structural complex of neuropeptide Y receptor 2 Deposited 2023-07-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 29–64（36 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8K6O Structural complex of neuropeptide Y receptor 1 Deposited 2023-07-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 29–64（36 aa）	Mutation：I31L,Q34P	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NPY_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain N； PDBConstruct 1–36； UniProt 29–64

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rta
Deposition date deposition_date	2021-08-12
Structure title title	Crystal structures of human PYY and NPY
Keywords keywords	peptide hormone C-terminal amidation helix antibody, HORMONE, HORMONE-IMMUNE SYSTEM complex; HORMONE/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.73 Å
Radius of gyration Rg (electron density) rg_electron	25.00 Å
Forward intensity I(0) i0	38216800.00
Molecular weight molecular_weight	46586.0 kDa
Excluded volume excluded_volume	57625 Å³
Envelope volume envelope_volume	73938 Å³
Hydration-shell volume shell_volume	25185 Å³
Envelope diameter envelope_diameter	99.8 Å
Shell Rg shell_rg	31.58 Å
Envelope Rg envelope_rg	25.12 Å
Shape Rg shape_rg	24.99 Å
Total Rg total_rg	25.76 Å
Total atoms total_atoms	3279
Residues n_residues	441
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

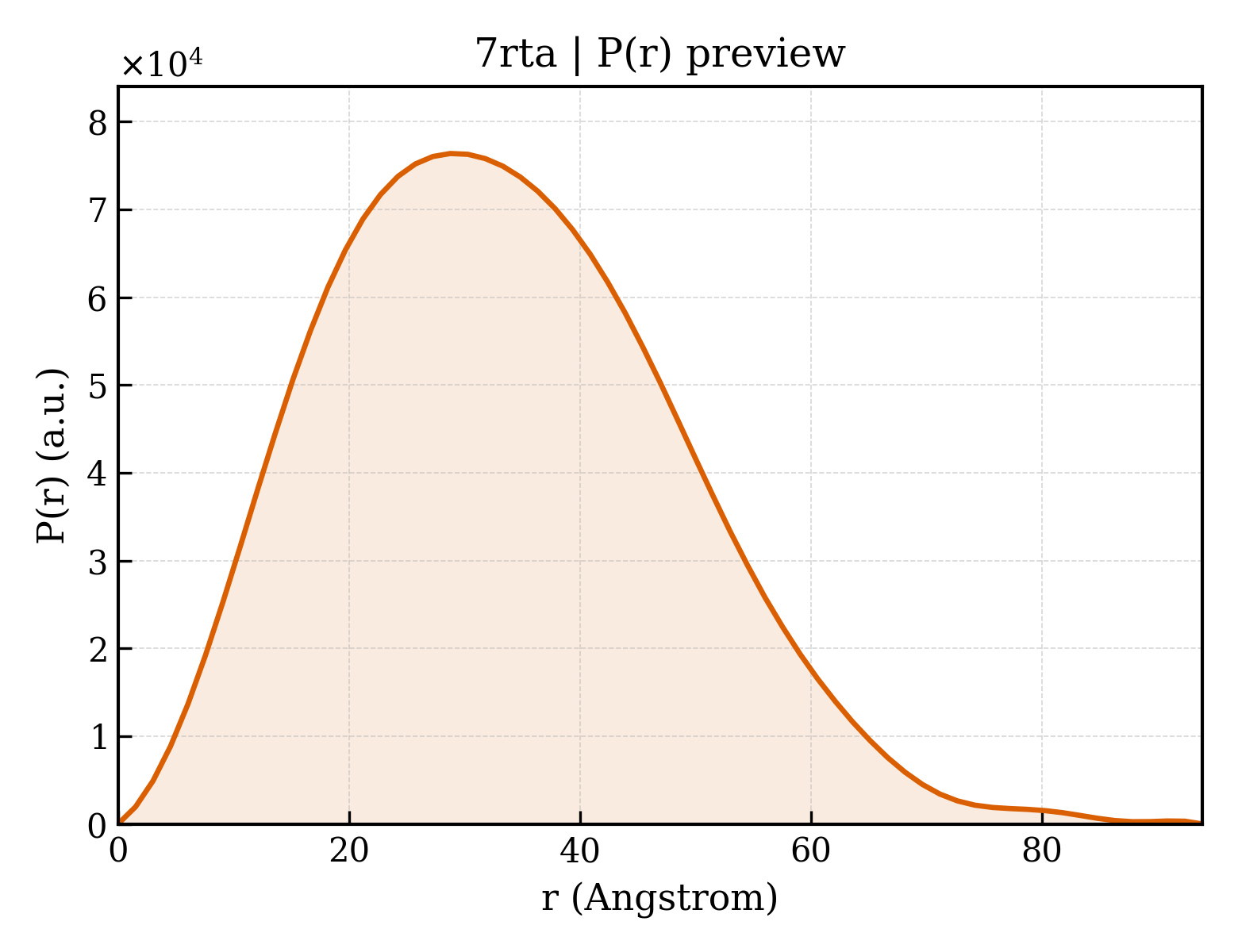

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	93.9 Å
Rg (real space) rg_real	25.76 Å
Rg uncertainty (real space) rg_real_error	0.87 Å
I(0) (real space) i0_real	3.8220e+07
I(0) uncertainty (real space) i0_real_error	5.9070e+05
Rg (reciprocal space) rg_reciprocal	25.76 Å
I(0) (reciprocal space) i0_reciprocal	38220000.0000
Solution quality estimate total_estimate	0.8538
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.8 Å
Skewness Skewness skewness	0.389
Kurtosis Kurtosis kurtosis	-0.146
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7719000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.731; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.903; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	4A3B2-B Fab heavy chain
Molecular weight formula_weight	23862.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	3308

QVQLVQSGAEVKKPGSSVKVSCKASGYTFTNYWMHWVRQAPGQGLEWMGNIDPSNGGTNYNEKFKSRVTITADESTSTAYMELSSLRSEDTAVYYCASFAYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCGSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	4A3B2-B Fab light chain
Molecular weight formula_weight	23595.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASGNIHNYLAWYQQKPGKAPKFLIYNAETLSDGVPSRFRGSGSGTDFALSISSLQPEDFATYYCQHFMYPPFTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Neuropeptide Y
Molecular weight formula_weight	4276.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

YPSKPDNPGEDAPAEDMARYYSALRHYINLITRQRYX

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7rtaH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rtaH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rtaL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rtaL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	136.830 Å
Unit-cell length b length_b	136.830 Å
Unit-cell length c length_c	116.985 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	44.790 Å
R factor r_factor	0.2198
R_work r_work	0.2171
R_free r_free	0.2704

fit	/app/data/saxs_computation/rt/7rta/7rta.fit
pddf	/app/data/pr_computation/rt/7rta/7rta.pr.out
profile	/app/data/saxs_computation/rt/7rta/7rta.dat

Crystal structures of human PYY and NPY
