SAXSdb — 7t9m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thyrotropin receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain R； UniProt 22–764	Not recorded	CS-17 Heavy Chain × 1 CS-17 Light Chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7T9M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T9I Native human TSH bound to human Thyrotropin receptor in complex with miniGs399 (composite structure) Deposited 2021-12-19	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 22–764（743 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7T9N M22 Agonist Autoantibody bound to Human Thyrotropin receptor in complex with miniGs399 (composite structure) Deposited 2021-12-19	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 22–764（743 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7UTZ Human thyrotropin analog TR1402 bound to human Thyrotropin receptor in complex with miniGs399 (composite structure) Deposited 2022-04-28	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 21–764（744 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A0A0MTJ0_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 10–702； UniProt 22–764

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7t9m
Deposition date deposition_date	2021-12-19
Structure title title	Human Thyrotropin receptor bound by CS-17 Inverse Agonist Fab/Org 274179-0 Antagonist
Keywords keywords	G protein-coupled receptor, Thyroid-stimulating hormone receptor, Thyrotropin receptor, CS-17 Fab, Thyroid, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.14 Å
Radius of gyration Rg (electron density) rg_electron	41.01 Å
Forward intensity I(0) i0	174832000.00
Molecular weight molecular_weight	111310.0 kDa
Excluded volume excluded_volume	140850 Å³
Envelope volume envelope_volume	200100 Å³
Hydration-shell volume shell_volume	42575 Å³
Envelope diameter envelope_diameter	141.3 Å
Shell Rg shell_rg	43.60 Å
Envelope Rg envelope_rg	40.83 Å
Shape Rg shape_rg	40.96 Å
Total Rg total_rg	41.32 Å
Total atoms total_atoms	15615
Residues n_residues	995
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

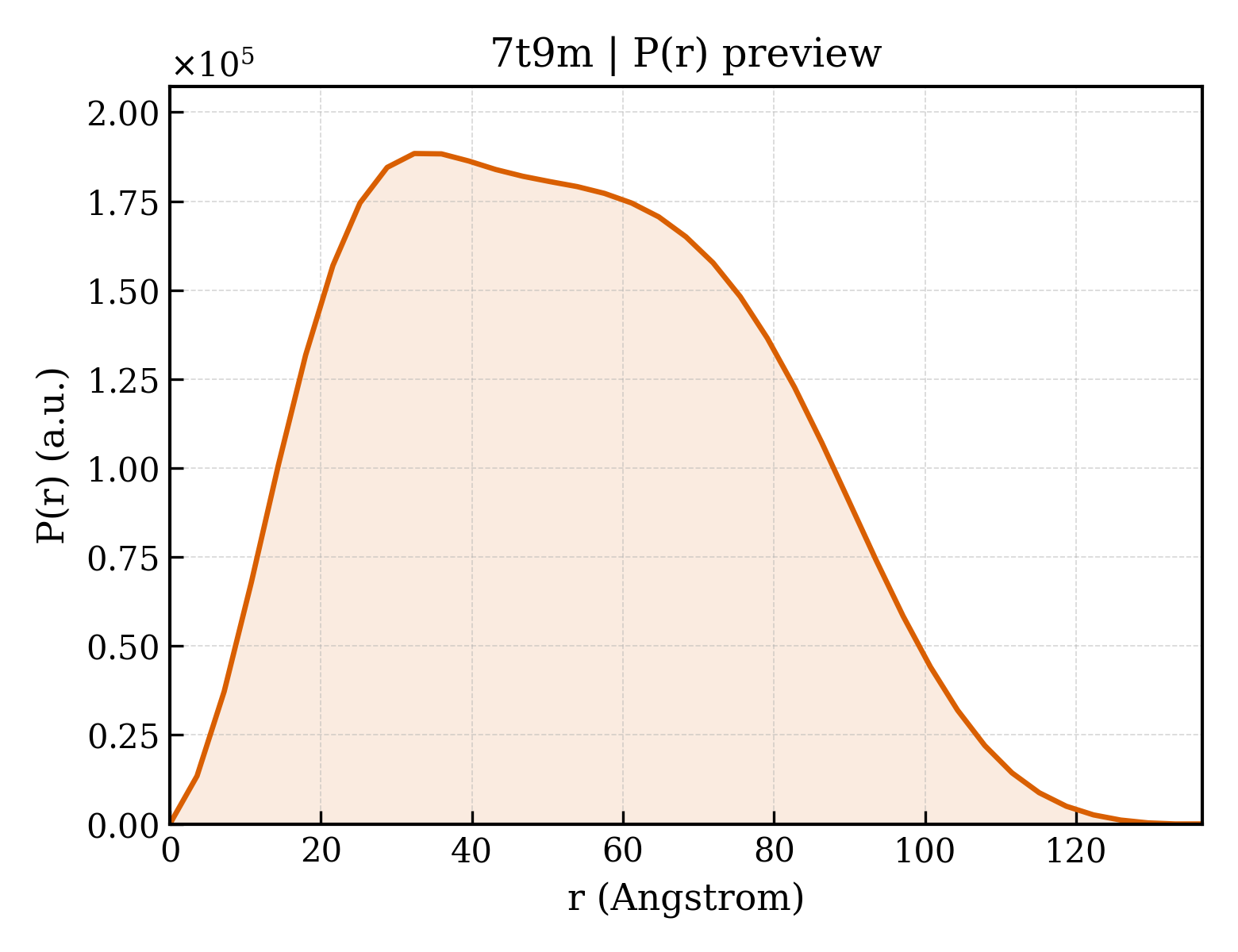

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	136.7 Å
Rg (real space) rg_real	41.22 Å
Rg uncertainty (real space) rg_real_error	1.20 Å
I(0) (real space) i0_real	1.7480e+08
I(0) uncertainty (real space) i0_real_error	3.0300e+06
Rg (reciprocal space) rg_reciprocal	41.15 Å
I(0) (reciprocal space) i0_reciprocal	174800000.0000
Solution quality estimate total_estimate	0.8789
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	32.4 Å
Skewness Skewness skewness	0.238
Kurtosis Kurtosis kurtosis	-0.738
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15990000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.919; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CS-17 Heavy Chain
Molecular weight formula_weight	23277.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	15615

EVQLQQSGPELVKPGASVKMSCKASGYTFTSYIIHWVKQKPGQGLEWIGYINLYNDGTNYNEKFTGKATLTSDKSSSTAYMELSSLTSEDSAVYYCAREDYYGRVADFDVWGAGTTVTVSSKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKI

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	CS-17 Light Chain
Molecular weight formula_weight	23283.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

HLVLTQSPAIMSASPGEKVTISCSASSSVSYMCWFQQKPGSSPKPWIYRTSNLASGVPARFSGSGSGTSYSLTISSMEAEDAATYYCQQYHSYPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Thyrotropin receptor
Molecular weight formula_weight	79742.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DYKDDDDGTMGCSSPPCECHQEEDFRVTCKDIQRIPSLPPSTQTLKLIETHLRTIPSHAFSNLPNISRIYVSIDVTLQQLESHSFYNLSKVTHIEIRNTRNLTYIDPDALKELPLLKFLGIFNTGLKMFPDLTKVYSTDIFFILEITDNPYMTSIPVNAFQGLCNETLTLKLYNNGFTSVQGYAFNGTKLDAVYLNKNKYLTVIDKDAFGGVYSGPSLLDVSQTSVTALPSKGLEHLKELIARNTWTLKKLPLSLSFLHLTRADLSYPSHCCAFKNQKKIRGILESLMCNESSMQSLRQRKSVNGQELKNPQEETLQAFDSHYDYTICGDSEDMVCTPKSDEFNPCEDIMGYKFLRIVVWFVSLLALLGNVFVLLILLTSHYKLNVPRFLMCNLAFADFCMGMYLLLIASVDLYTHSEYYNHAIDWQTGPGCNTAGFFTVFASELSVYTLTVITLERWYAITFAMRLDRKIRLRHACAIMVGGWVCCFLLALLPLVGISSYAKVSICLPMDTETPLALAYIVFVLTLNIVAFVIVCCCYVKIYITVRNPQYNPGDKDTKIAKRMAVLIFTDFICMAPISFYALSAILNKPLITVSNSKILLVLFYPLNSCANPFLYAIFTKAFQRDVFILLSKFGICKRQAQAYRGQRVPPKNSTDIQVQKVTHEMRQGLHNMEDVYELIENSHLTPKKQGQISEEYMQTVL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	3

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7t9mH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7t9mH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7t9mL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7t9mL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	41054

fit	/app/data/saxs_computation/t9/7t9m/7t9m.fit
pddf	/app/data/pr_computation/t9/7t9m/7t9m.pr.out
profile	/app/data/saxs_computation/t9/7t9m/7t9m.dat
