SAXSdb — 7to7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bromodomain-containing protein 3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	1xAcK.4xE (monoAcK.4xE) × 1 GLYCEROL × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	1xAcK.4xE (monoAcK.4xE) × 1 GLYCEROL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRD3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–128； UniProt 25–147 Author chain B； PDBConstruct 6–128； UniProt 25–147 Author chain D； PDBConstruct 6–128； UniProt 25–147 Author chain E； PDBConstruct 6–128； UniProt 25–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7to7
Deposition date deposition_date	2022-01-23
Structure title title	BRD3-BD1 in complex with RaPID linear peptide 1xAcK.4XE (monoAcK.4xE)
Keywords keywords	BET, bromodomain, RaPID, BRD3, acetylated, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7to7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7to7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

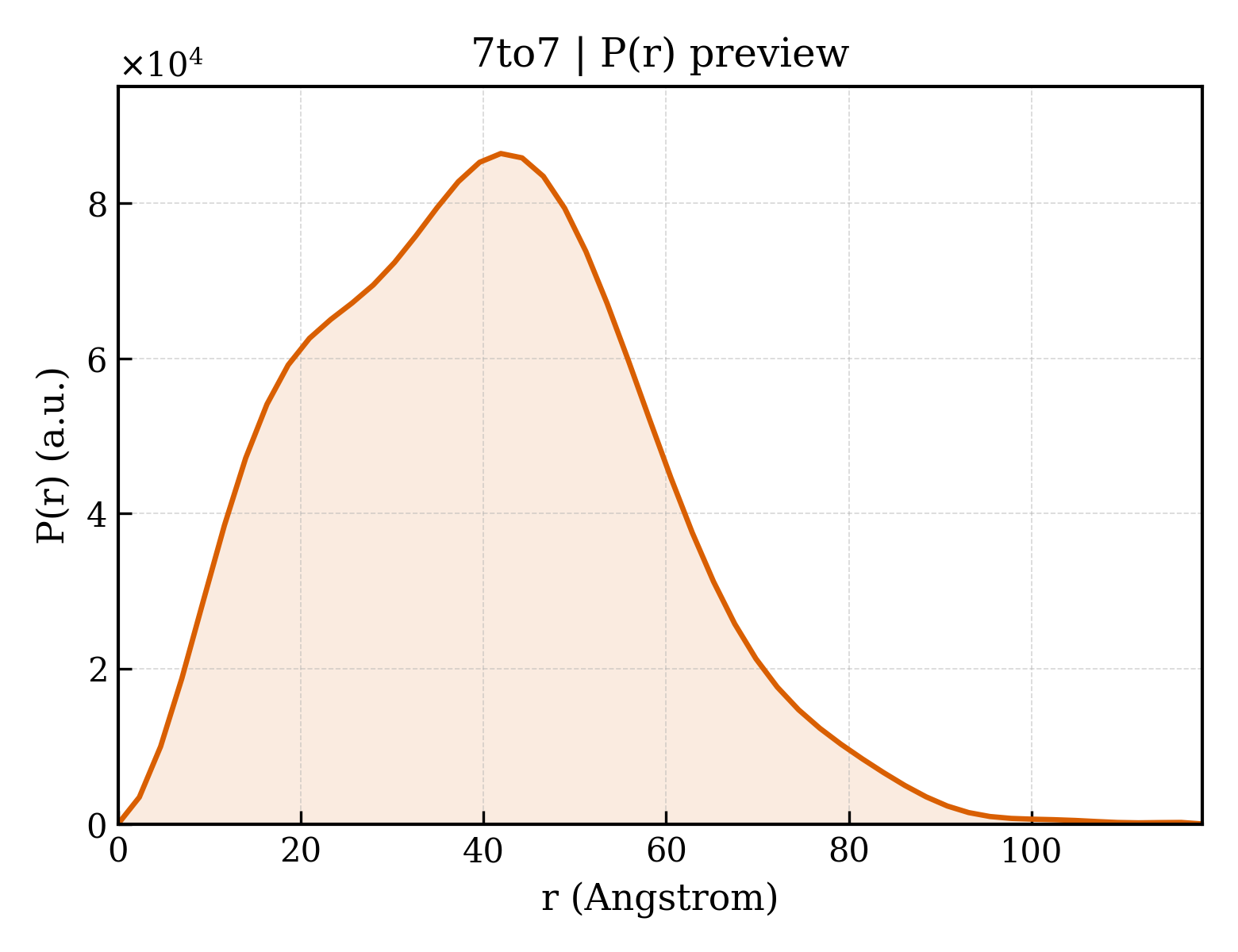

7to7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.06 Å
Rg (electron density)	23.43 Å
Total Rg	24.12 Å
Atom count	2032
Residues	241
Excluded volume	36677 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7to7__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7to7__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Bromodomain-containing protein 3
Molecular weight formula_weight	15095.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E
Atom count atom_count	4478

QPLGSEVSNPSKPGRKTNQLQYMQNVVVKTLWKHQFAWPFYQPVDAIKLNLPDYHKIIKNPMDMGTIKKRLENNYYWSASECMQDFNTMFTNCYIYNKPTDDIVLMAQALEKIFLQKVAQMPQEEVEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	1xAcK.4xE (monoAcK.4xE)
Molecular weight formula_weight	1805.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

EEALLLAKLYHFGEE

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7to7A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	7to7B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	7to7D01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	7to7E01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

▶

Unit-cell length a length_a	41.862 Å
Unit-cell length b length_b	99.277 Å
Unit-cell length c length_c	120.608 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.930 Å
Low-resolution limit resolution_low	49.640 Å
R factor r_factor	0.2039
R_work r_work	0.2013
R_free r_free	0.2506
