SAXSdb — 7vac

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mucin-1 subunit alpha

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain G； UniProt 145–157	Not recorded	14A fab light chain × 1 14A fab heavy chain × 1 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 3.50 Å R-free 0.219
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain H； UniProt 145–157	Not recorded	14A fab light chain × 1 14A fab heavy chain × 1 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 3.50 Å R-free 0.219
3	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain I； UniProt 145–157	Not recorded	14A fab light chain × 1 14A fab heavy chain × 1 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 3.50 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7VAC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1SM3 CRYSTAL STRUCTURE OF THE TUMOR SPECIFIC ANTIBODY SM3 COMPLEX WITH ITS PEPTIDE EPITOPE Deposited 1997-12-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 139–151（13 aa）	Not recorded	CD CADMIUM ION × 8 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 1.95 Å R-free 0.283
6BSB Crystal structure of the Mucin-1 SEA domain, L1105M mutant, Selenium-derivative Deposited 2017-12-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1041–1097（57 aa） Fragment：SEA domain, N-terminal Chain B 1098–1152（55 aa） Fragment：SEA domain, C-terminal	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；Native crystals (see related entry) were used as seeds in a drop of 1:1 mix of the SeMet-derivative (9 mg/ml in 10 mM Tris-Cl, pH 7.4) and reservoir solution (0.1 M sodium acetate trihydrate pH 4.6, 1.75 M sodium chloride, 0.2 M ammonium sulfate).	Resolution 1.60 Å R-free 0.222
6BSC Crystal structure of the Mucin-1 SEA domain Deposited 2017-12-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1041–1097（57 aa） Fragment：SEA domain, N-terminal Chain B 1098–1152（55 aa） Fragment：SEA domain, C-terminal	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；Drop was a 1:1 mix of protein (10 mg/ml in 10 mM Tris-Cl, pH 7.4) and reservoir solution (0.1 M sodium acetate trihydrate pH 4.6, 2.0 M sodium chloride)	Resolution 1.30 Å R-free 0.184
6FZQ Crystal structure of scFv-SM3 in complex with compound 3 Deposited 2018-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 141–146（6 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 10 EEN 2-deoxy-2-[(difluoroacetyl)amino]-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；PEG 3350 disodium hydrogen phosphate	Resolution 1.70 Å R-free 0.225
6FZR Crystal structure of scFv-SM3 in complex with compound 2 Deposited 2018-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 141–146（6 aa） Fragment：UNP residues 141-146	Not recorded	EDO 1,2-ETHANEDIOL × 8 EEQ 2-deoxy-2-[(fluoroacetyl)amino]-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；PEG 3350 disodium hydrogen phosphate	Resolution 1.80 Å R-free 0.232
6TGG scFv-1SM3 in complex with glycopeptide containing an sp2-imino sugar Deposited 2019-11-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 141–146（6 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 N8W ~{N}-[(6~{S},7~{R},8~{S},8~{a}~{R})-7,8-bis(oxidanyl)-3-oxidanylidene-1,5,6,7,8,8~{a}-hexahydro-[1,3]oxazolo[3,4-a]pyridin-6-yl]ethanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；PEG 3350 disodium hydrogen phosphate	Resolution 2.00 Å R-free 0.237
7Q4I Crystal structure of DmC1GalT1 in complex with UDP-Mn2+ and the APD-TGalNAc-RP Deposited 2021-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 141–146（6 aa） Chain G 141–146（6 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UDP URIDINE-5'-DIPHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 3 MN MANGANESE (II) ION × 2 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；potassium thiocyanate, Polyethylene glycol monomethyl ether 2,000	Resolution 2.40 Å R-free 0.235
7V4W Crystal structure of Antibody 16A in complex with MUC1 peptide Deposited 2021-08-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 145–157（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；Di-sodium hydrogen phosphate 0.2M, PEG 3350 20%	Resolution 2.10 Å R-free 0.233
7V64 Crystal structure of Antibody 16A in complex with MUC1 Glycopeptide(GlycoT) Deposited 2021-08-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；1.0 M Lithium chloride, 0.1 M Tris pH 8.5, 20% PEG 6000	Resolution 1.56 Å R-free 0.203
7V7K Crystal structure of Antibody 16A in complex with MUC1 Glycopeptide(GlycoST) Deposited 2021-08-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；1.0 M Lithium chloride, 0.1 M Tris pH 8.5, 20%(w/v) PEG 6000	Resolution 2.20 Å R-free 0.251
7V8Q Crystal structure of antibody 14A in complex with MUC1 Glycopeptide(GlycoT) Deposited 2021-08-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；Crystal screen D4=JCSG F7, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 20% v/v 2-Propanol, 20% w/v Polyethylene glycol 4000	Resolution 3.20 Å R-free 0.244
7V8Q Crystal structure of antibody 14A in complex with MUC1 Glycopeptide(GlycoT) Deposited 2021-08-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；Crystal screen D4=JCSG F7, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 20% v/v 2-Propanol, 20% w/v Polyethylene glycol 4000	Resolution 3.20 Å R-free 0.244
7V8Q Crystal structure of antibody 14A in complex with MUC1 Glycopeptide(GlycoT) Deposited 2021-08-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；Crystal screen D4=JCSG F7, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 20% v/v 2-Propanol, 20% w/v Polyethylene glycol 4000	Resolution 3.20 Å R-free 0.244
7VAZ Crystal structure of antibody 14A in complex with MUC1 glycopeptide(GlycoS) Deposited 2021-08-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 145–157（13 aa）	Not recorded	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 2.73 Å R-free 0.264
7VAZ Crystal structure of antibody 14A in complex with MUC1 glycopeptide(GlycoS) Deposited 2021-08-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 145–157（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 2.73 Å R-free 0.264
7VAZ Crystal structure of antibody 14A in complex with MUC1 glycopeptide(GlycoS) Deposited 2021-08-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 145–157（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.1 M Sodium citrate pH 5.5, Isopropanol 10%, PEG 4000 20%	Resolution 2.73 Å R-free 0.264
8AXH Crystal structure of a MUC1-like glycopeptide containing the unnatural L-4-hydroxynorvaline in complex with scFv-SM3 Deposited 2022-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–146（6 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 6 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；PEG 3350 disodium hydrogen phosphate	Resolution 1.85 Å R-free 0.206
8P6I Crystal structure of the 139H2 Fab fragment bound to Muc1 peptide epitope Deposited 2023-05-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 141–149（9 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；0.2M NaCl 20%w/v PEG 8K 0.1M Na Phos Cit pH 4.2	Resolution 2.50 Å R-free 0.254
8P6I Crystal structure of the 139H2 Fab fragment bound to Muc1 peptide epitope Deposited 2023-05-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain a 141–149（9 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；0.2M NaCl 20%w/v PEG 8K 0.1M Na Phos Cit pH 4.2	Resolution 2.50 Å R-free 0.254
8S6K Crystal structure of ScFv-G2D11 complexed to a bis-Tn glycopeptide Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 127–133（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 7 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；lithium chloride Tris PEG 8000	Resolution 1.75 Å R-free 0.221
8S6K Crystal structure of ScFv-G2D11 complexed to a bis-Tn glycopeptide Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain N 127–133（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 5 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；lithium chloride Tris PEG 8000	Resolution 1.75 Å R-free 0.221
8S6T Crystal structure of Fab-3F1 complexed to a bis-STn glycopeptide Deposited 2024-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 126–138（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；Magnesium chloride hexahydrate calcium chloride dihydrate NDSB sodium HEPES MOPS ethylene glycol PEG 8000	Resolution 1.85 Å R-free 0.267
8S6V Crystal structure of Fab-2D9 chimera complexed to a bis-Tn glycopeptide Deposited 2024-02-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 127–135（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 4 SO4 SULFATE ION × 2 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；lithium sulfate Bis-Tris PEG 3350	Resolution 1.95 Å R-free 0.244
8S6V Crystal structure of Fab-2D9 chimera complexed to a bis-Tn glycopeptide Deposited 2024-02-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 127–135（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 7 SO4 SULFATE ION × 3 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；lithium sulfate Bis-Tris PEG 3350	Resolution 1.95 Å R-free 0.244

17 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MUC1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–13； UniProt 145–157 Author chain H； PDBConstruct 1–13； UniProt 145–157 Author chain I； PDBConstruct 1–13； UniProt 145–157

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7vac
Deposition date deposition_date	2021-08-28
Structure title title	Crystal structure of antibody 14A in complex with MUC1 glycopeptide(GlycoST)
Keywords keywords	Antibody, anti-MUC1, Glycopeptide, PEPTIDE BINDING PROTEIN, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.05 Å
Radius of gyration Rg (electron density) rg_electron	41.80 Å
Forward intensity I(0) i0	303365000.00
Molecular weight molecular_weight	142140.0 kDa
Excluded volume excluded_volume	177670 Å³
Envelope volume envelope_volume	247620 Å³
Hydration-shell volume shell_volume	50576 Å³
Envelope diameter envelope_diameter	140.1 Å
Shell Rg shell_rg	46.20 Å
Envelope Rg envelope_rg	40.64 Å
Shape Rg shape_rg	41.78 Å
Total Rg total_rg	42.08 Å
Total atoms total_atoms	10097
Residues n_residues	1319
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

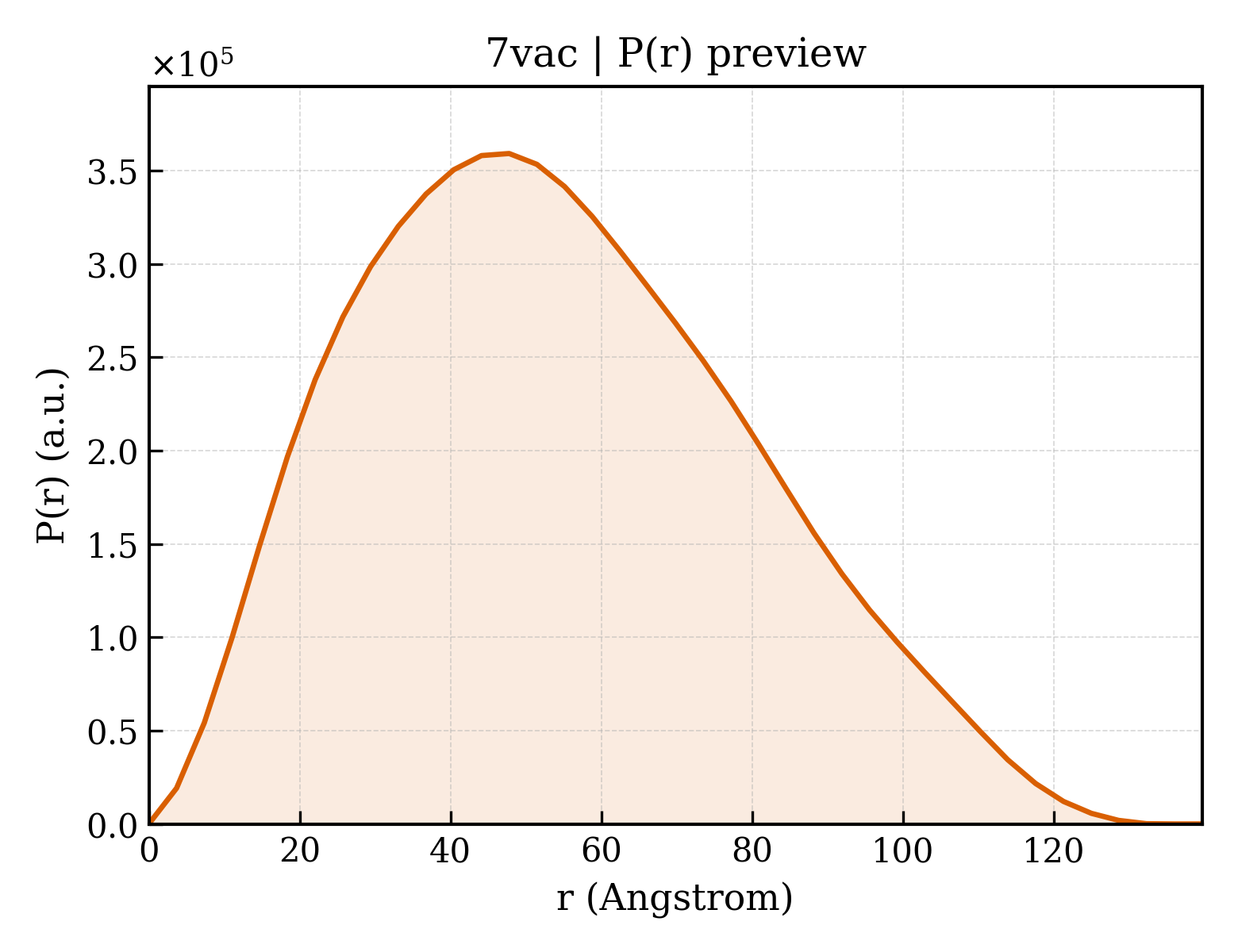

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	139.7 Å
Rg (real space) rg_real	42.14 Å
Rg uncertainty (real space) rg_real_error	1.34 Å
I(0) (real space) i0_real	3.0340e+08
I(0) uncertainty (real space) i0_real_error	5.4950e+06
Rg (reciprocal space) rg_reciprocal	42.05 Å
I(0) (reciprocal space) i0_reciprocal	303300000.0000
Solution quality estimate total_estimate	0.8848
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	47.8 Å
Skewness Skewness skewness	0.333
Kurtosis Kurtosis kurtosis	-0.525
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20750000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.761

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	14A fab light chain
Molecular weight formula_weight	23512.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	10097

QAVVTQESALTTSPGETVTLTCRSSTGAVTTSNYANWVQEKPDHLFTGLIGRTNNRVPGVPARFSGSLIGDKAALTITGAQTEDEAIYFCALWYSNHFIFGSGTKVTVLKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichopalpus nigribasis

Entity 2 Entity 2 polymer

Description description	14A fab heavy chain
Molecular weight formula_weight	24568.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

MEVKLLQSGGGLVQPGGSLKLSCAASGIDFSGYWMSWVRRAPGKGLEWIGEITPDSSTINYAPSLKDEFIISRDNAKNTLYLQMTKVRSDDTALYYCVSYYEGFAYWGQGTLVTVSAASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTENLYFQ

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichopalpus nigribasis

Entity 3 Entity 3 polymer

Description description	Mucin-1 subunit alpha
Molecular weight formula_weight	1217.3 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

RPAPGSTAPPAHG

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-galactopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

▼

7. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	7vacA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacE01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacE02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7vacF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.920 Å
Unit-cell length b length_b	206.848 Å
Unit-cell length c length_c	225.405 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	40.690 Å
R factor r_factor	0.1734
R_work r_work	0.1711
R_free r_free	0.2190

fit	/app/data/saxs_computation/va/7vac/7vac.fit
pddf	/app/data/pr_computation/va/7vac/7vac.pr.out
profile	/app/data/saxs_computation/va/7vac/7vac.dat

Crystal structure of antibody 14A in complex with MUC1 glycopeptide(GlycoST)
