7x28

MERS-CoV spike complex with S41 neutralizing antibody Fab Class3 (2u1d RBD with 2Fab)

Method: ELECTRON MICROSCOPY Dmax: 222.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

Middle East respiratory syndrome-related coronavirus

UniProt K0BRG7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count Chain F； UniProt 1–1290 Chain G； UniProt 1–1290 Chain I； UniProt 1–1290 Not recorded antibody S41 heavy chain × 2 antibody S41 light chain × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.49 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7X28 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4KQZ structure of the receptor binding domain (RBD) of MERS-CoV spike Deposited 2013-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 367–606（240 aa） Fragment：UNP RESIDUES 367-606
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M ammonium tartrate dibasic pH7.0, 12% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.51 Å R-free 0.251
4KQZ structure of the receptor binding domain (RBD) of MERS-CoV spike Deposited 2013-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 367–606（240 aa） Fragment：UNP RESIDUES 367-606
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M ammonium tartrate dibasic pH7.0, 12% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.51 Å R-free 0.251
4KR0 Complex structure of MERS-CoV spike RBD bound to CD26 Deposited 2013-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 367–606（240 aa） Fragment：UNP RESIDUES 367-606
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；291 K；6% v/v 2-propanol, 0.1M sodium acetate pH4.5, 26% PEG 550, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.70 Å R-free 0.232
4MOD Structure of the MERS-CoV fusion core Deposited 2013-09-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 992–1054（63 aa）
Chain A 1252–1286（35 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M BIS-TRIS, 25%(w/v) Polyethylene glycol 3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.90 Å R-free 0.213
4MOD Structure of the MERS-CoV fusion core Deposited 2013-09-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric
Chain B 992–1054（63 aa）
Chain B 1252–1286（35 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M BIS-TRIS, 25%(w/v) Polyethylene glycol 3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.90 Å R-free 0.213
6Q04 MERS-CoV S structure in complex with 5-N-acetyl neuraminic acid Deposited 2019-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 19–1294（1276 aa）
Chain B 19–1294（1276 aa）
Chain C 19–1294（1276 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 FOL FOLIC ACID × 3 SIA N-acetyl-alpha-neuraminic acid × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
6Q05 MERS-CoV S structure in complex with sialyl-lewisX Deposited 2019-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 19–1294（1276 aa）
Chain B 19–1294（1276 aa）
Chain C 19–1294（1276 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 FOL FOLIC ACID × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
6Q06 MERS-CoV S structure in complex with 2,3-sialyl-N-acetyl-lactosamine Deposited 2019-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 19–1294（1276 aa）
Chain B 19–1294（1276 aa）
Chain C 19–1294（1276 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 FOL FOLIC ACID × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
6Q07 MERS-CoV S structure in complex with 2,6-sialyl-N-acetyl-lactosamine Deposited 2019-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 19–1294（1276 aa）
Chain B 19–1294（1276 aa）
Chain C 19–1294（1276 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 24 FOL FOLIC ACID × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7V3L MERS S ectodomain trimer in complex with neutralizing antibody 6516 Deposited 2021-08-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–1290（1290 aa）
Chain B 1–1290（1290 aa）
Chain C 1–1290（1290 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
7V5J MERS S ectodomain trimer in complex with neutralizing antibody 0722(state 2) Deposited 2021-08-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 18–1206（1189 aa）
Chain B 18–1206（1189 aa）
Chain C 18–1206（1189 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7V5K MERS S ectodomain trimer in complex with neutralizing antibody 0722 (state 1) Deposited 2021-08-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 18–1206（1189 aa）
Chain B 18–1206（1189 aa）
Chain C 18–1206（1189 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7V6N MERS S ectodomain trimer in complex with neutralizing antibody 111 state1 Deposited 2021-08-20 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 18–1206（1189 aa）
Chain B 18–1206（1189 aa）
Chain C 18–1206（1189 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.99 Å
7V6O MERS S ectodomain trimer in complex with neutralizing antibody 111 (state 2) Deposited 2021-08-20 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 18–1206（1189 aa）
Chain B 18–1206（1189 aa）
Chain C 18–1206（1189 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.56 Å
7X25 MERS-CoV spike complex with S41 neutralizing antibody Fab Class4 (2u1d RBD with 3Fab) Deposited 2022-02-25 Different mutation/modification Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–1290（1290 aa）
Chain I 1–1290（1290 aa）
Chain J 1–1290（1290 aa）
Mutation：V1060P, L1061P Mutation：V1060P, L1061P Mutation：V1060P, L1061P No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
7X29 MERS-CoV spike complex with S41 neutralizing antibody Fab Class2 (1u2d RBD with 2Fab) Deposited 2022-02-25 Different mutation/modification Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–1290（1290 aa）
Chain B 1–1290（1290 aa）
Chain C 1–1290（1290 aa）
Mutation：V1060P, l1061P Mutation：V1060P, l1061P Mutation：V1060P, l1061P No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
7X2A MERS-CoV spike complex with S41 neutralizing antibody Fab Class1 (1u2d RBD with 1Fab) Deposited 2022-02-25 Different mutation/modification Different oligomeric state Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1290（1290 aa）
Chain B 1–1290（1290 aa）
Chain C 1–1290（1290 aa）
Mutation：V1060P, l1061P Mutation：V1060P, l1061P Mutation：V1060P, l1061P No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
7YMT Cryo-EM structure of MERS-CoV spike protein, Two RBD-up conformation 2 Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 17 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 6.55 Å
7YMV Cryo-EM structure of MERS-CoV spike protein, Two RBD-up conformation 1 Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 6.74 Å
7YMW Cryo-EM structure of MERS-CoV spike protein, One RBD-up conformation 4 Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 6.05 Å
7YMX Cryo-EM structure of MERS-CoV spike protein, One RBD-up conformation 2 Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 4.44 Å
7YMY Cryo-EM structure of MERS-CoV spike protein, One RBD-up conformation 1 Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 4.96 Å
7YMZ Cryo-EM structure of MERS-CoV spike protein, intermediate conformation Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 4.39 Å
7YN0 Cryo-EM structure of MERS-CoV spike protein, all RBD-down conformation Deposited 2022-07-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 17–1291（1275 aa）
Chain B 17–1291（1275 aa）
Chain C 17–1291（1275 aa）
Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P Mutation：R748A, R751G, V1060P, L1061P NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 24 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2.5 seconds before plunging; blot force: -1; waiting time: 30s.
Resolution 4.10 Å

22 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name K0BRG7_MERS
Isoform —
PDB entities 3
Chains and sequence ranges Author chain F； PDBConstruct 1–1290； UniProt 1–1290 Author chain G； PDBConstruct 1–1290； UniProt 1–1290 Author chain I； PDBConstruct 1–1290； UniProt 1–1290

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7x28

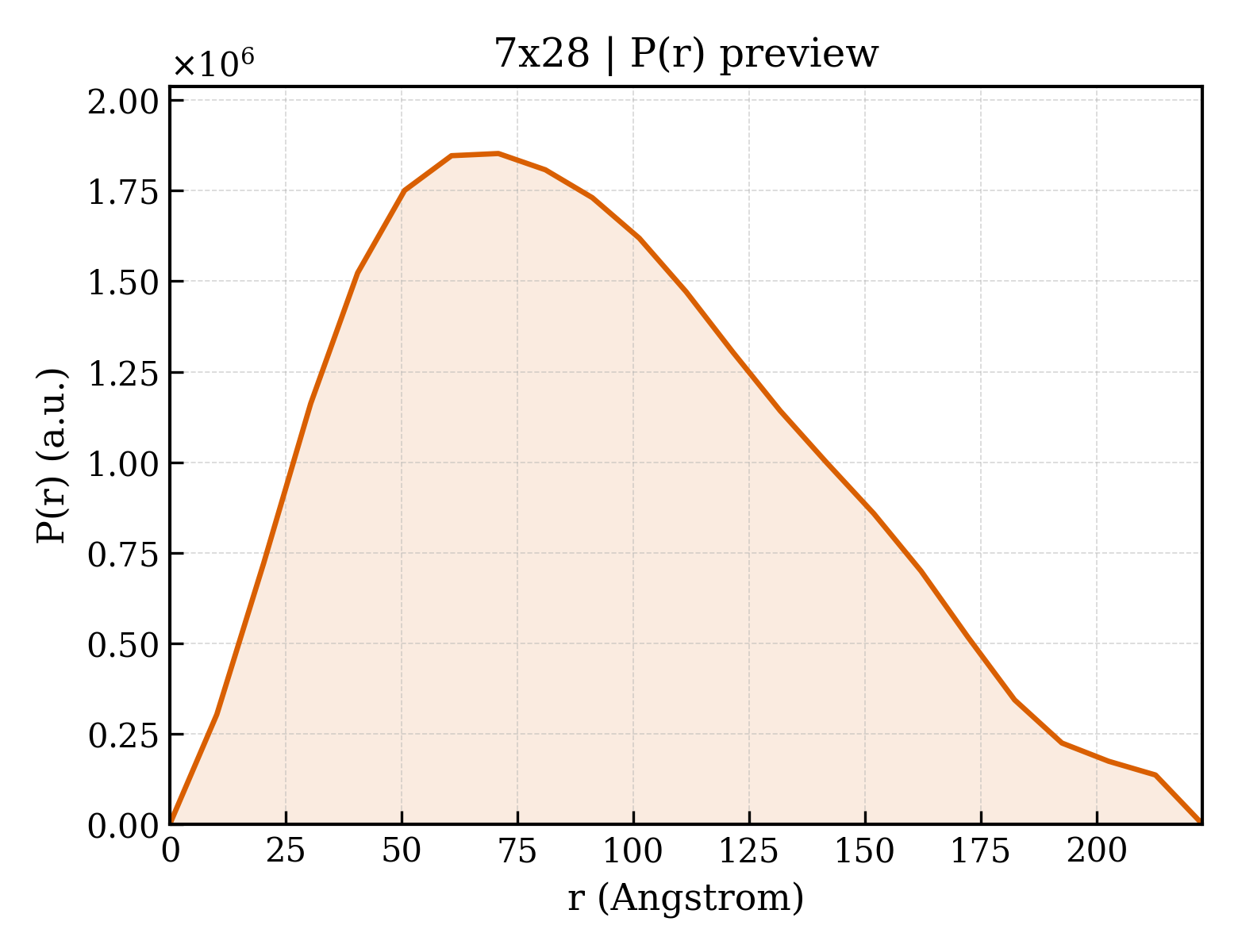

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7x28
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7x28
Deposition date deposition_date2022-02-25
Structure title titleMERS-CoV spike complex with S41 neutralizing antibody Fab Class3 (2u1d RBD with 2Fab)
Keywords keywordsreceptor binding domain, VIRAL PROTEIN-IMMUNE SYSTEM complex, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier72.15 Å
Radius of gyration Rg (electron density) rg_electron72.63 Å
Forward intensity I(0) i02829650000.00
Molecular weight molecular_weight448260.0 kDa
Excluded volume excluded_volume560010 ų
Envelope volume envelope_volume866230 ų
Hydration-shell volume shell_volume108050 ų
Envelope diameter envelope_diameter252.8 Å
Shell Rg shell_rg63.72 Å
Envelope Rg envelope_rg72.04 Å
Shape Rg shape_rg72.61 Å
Total Rg total_rg72.53 Å
Total atoms total_atoms31571
Residues n_residues4119
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax222.8 Å
Rg (real space) rg_real72.19 Å
Rg uncertainty (real space) rg_real_error1.28 Å
I(0) (real space) i0_real2.8240e+09
I(0) uncertainty (real space) i0_real_error5.8640e+07
Rg (reciprocal space) rg_reciprocal70.85 Å
I(0) (reciprocal space) i0_reciprocal2820000000.0000
Solution quality estimate total_estimate0.8418
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary70.9 Å
Skewness Skewness skewness0.406
Kurtosis Kurtosis kurtosis-0.510
Angular range angular_range— – 0.1100 Å−1
Current regularization parameter α current_alpha0.0573
Highest regularization parameter α highest_alpha118300000.0000
Real-space data points n_real_points23
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.033
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id7x28C01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28C02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28D01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28D02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28H01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28H02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28K01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id7x28K02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
▶

8. Citations (1)

▶

9. Files and Curves (10)
