SAXSdb — 7y9l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional cytochrome P450/NADPH--P450 reductase

Priestia megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	5-nitro-2-oxidanyl-benzenecarbonitrile × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 NICKEL (II) ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	5-nitro-2-oxidanyl-benzenecarbonitrile × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 NICKEL (II) ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPXB_BACMB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–457； UniProt 3–458 Author chain B； PDBConstruct 2–457； UniProt 3–458

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7y9l
Deposition date deposition_date	2022-06-25
Structure title title	Crystal structure of P450 BM3-2F from Bacillus megaterium in complex with 2-Hydroxy-5-Nitrobenzonitrile
Keywords keywords	synthesis, monooxygenase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7y9l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

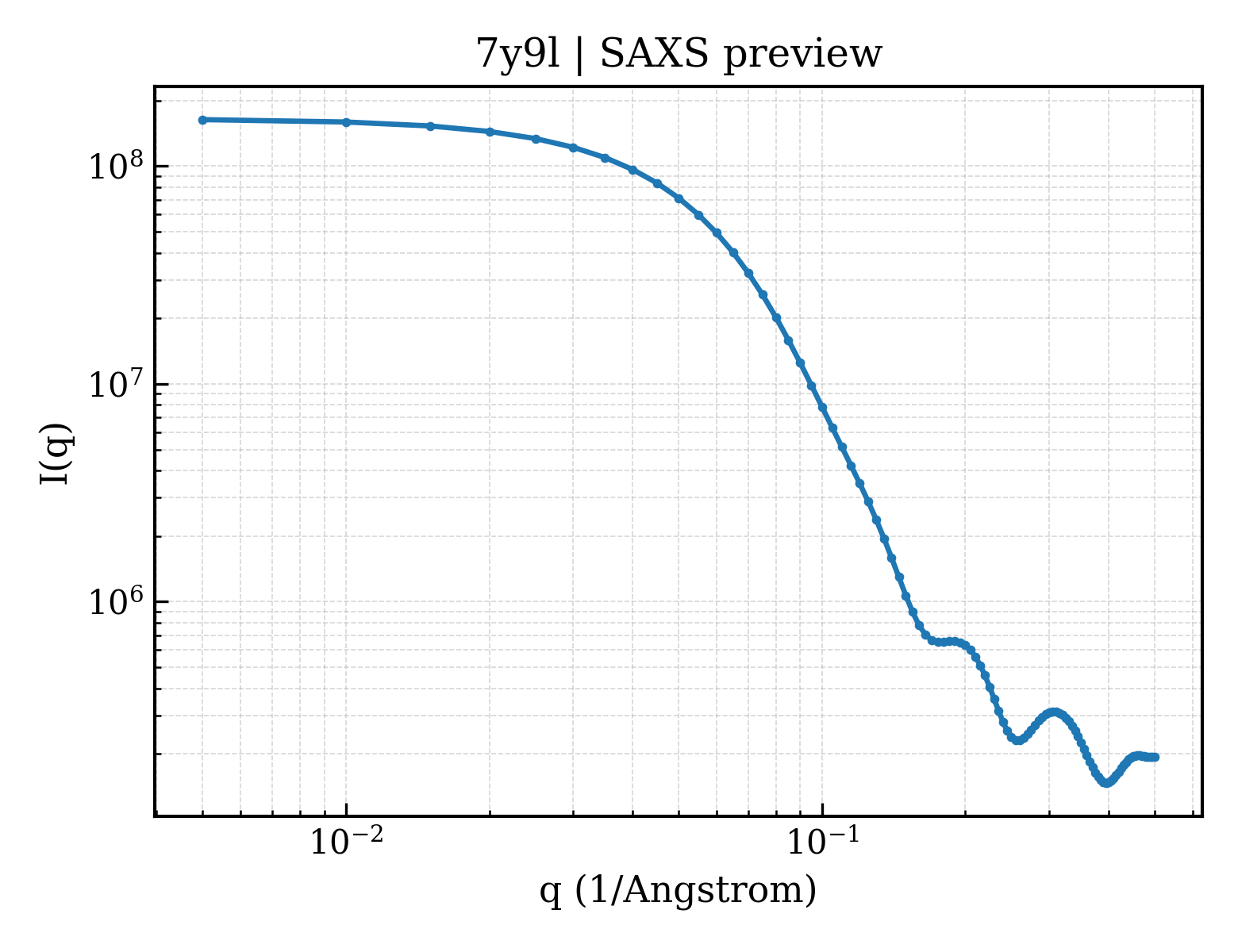

7y9l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7y9l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.27 Å
Rg (electron density)	21.89 Å
Total Rg	22.83 Å
Atom count	3704
Residues	451
Excluded volume	66123 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7y9l__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7y9l__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Bifunctional cytochrome P450/NADPH--P450 reductase
Molecular weight formula_weight	52405.7 kDa
EC 编号 ec_number	1.14.14.1,1.6.2.4
Mutation mutation	A82F,A328F
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8064

AIKEMPQPKTFGELKNLPLLNTDKPVQALMKIADELGEIFKFEAPGRVTRYLSSQRLIKEACDESRFDKNLSQALKFVRDFFGDGLFTSWTHEKNWKKAHNILLPSFSQQAMKGYHAMMVDIAVQLVQKWERLNADEHIEVPEDMTRLTLDTIGLCGFNYRFNSFYRDQPHPFITSMVRALDEAMNKLQRANPDDPAYDENKRQFQEDIKVMNDLVDKIIADRKASGEQSDDLLTHMLNGKDPETGEPLDDENIRYQIITFLIAGHETTSGLLSFALYFLVKNPHVLQKAAEEAARVLVDPVPSYKQVKQLKYVGMVLNEALRLWPTFPAFSLYAKEDTVLGGEYPLEKGDELMVLIPQLHRDKTIWGDDVEEFRPERFENPSAIPQHAFKPFGNGQRACIGQQFALHEATLVLGMMLKHFDFEDHTNYELDIKETLTLKPEGFVVKAKSKKIPLGG

Source Source

Source organism organism	Priestia megaterium
Common name common_name	Bacillus megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1348623
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	5-nitro-2-oxidanyl-benzenecarbonitrile
Molecular weight formula_weight	164.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	684

▶

Unit-cell length a length_a	59.014 Å
Unit-cell length b length_b	146.956 Å
Unit-cell length c length_c	63.271 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.07 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.760 Å
Low-resolution limit resolution_low	24.780 Å
R factor r_factor	0.1736
R_work r_work	0.1730
R_free r_free	0.2031

Crystal structure of P450 BM3-2F from Bacillus megaterium in complex with 2-Hydroxy-5-Nitrobenzonitrile
