SAXSdb — 7z9t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitogen-activated protein kinase 14

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	N-(2-cyclobutyl-1H-1,3-benzodiazol-5-yl)benzenesulfonamide × 2 ADENOSINE-5'-TRIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MK14_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 1–359； UniProt 1–359 Author chain BBB； PDBConstruct 1–359； UniProt 1–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7z9t
Deposition date deposition_date	2022-03-21
Structure title title	Crystal structure of p38alpha C162S in complex with ATPgS and CAS 2094667-81-7 (in catalytic site, Y35 out), P 1 21 1
Keywords keywords	kinase, enzyme, inhibitor, ligand, ONCOPROTEIN; ONCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7z9t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7z9t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

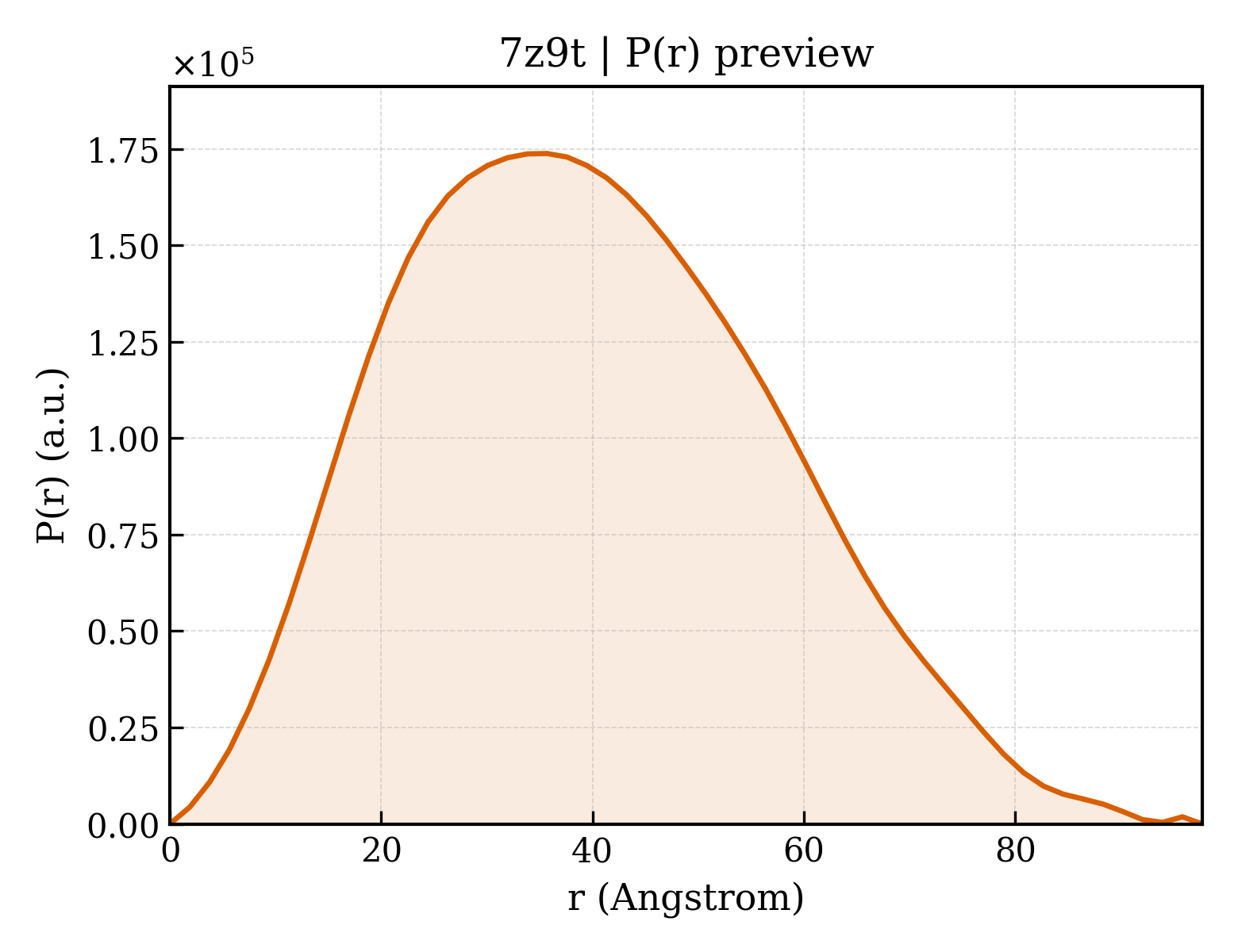

7z9t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.56 Å
Rg (electron density)	29.77 Å
Total Rg	30.52 Å
Atom count	5718
Residues	699
Excluded volume	101990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7z9t__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Mitogen-activated protein kinase 14
Molecular weight formula_weight	41235.0 kDa
EC 编号 ec_number	2.7.11.24
Mutation mutation	C162S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA,BBB
Atom count atom_count	5835

MSQERPTFYRQELNKTIWEVPERYQNLSPVGSGAYGSVCAAFDTKTGHRVAVKKLSRPFQSIIHAKRTYRELRLLKHMKHENVIGLLDVFTPARSLEEFNDVYLVTHLMGADLNNIVKCQKLTDDHVQFLIYQILRGLKYIHSADIIHRDLKPSNLAVNEDSELKILDFGLARHTDDEMTGYVATRWYRAPEIMLNWMHYNQTVDIWSVGCIMAELLTGRTLFPGTDHIDQLKLILRLVGTPGAELLKKISSESARNYIQSLAQMPKMNFANVFIGANPLAVDLLEKMLVLDSDKRITAAQALAHAYFAQYHDPDDEPVADPYDQSFESRDLLIDEWKSLTYDEVISFVPPPLDQEEME

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	N-(2-cyclobutyl-1H-1,3-benzodiazol-5-yl)benzenesulfonamide
Molecular weight formula_weight	327.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	117

▶

Unit-cell length a length_a	67.141 Å
Unit-cell length b length_b	68.072 Å
Unit-cell length c length_c	79.980 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	79.700 Å
R factor r_factor	—
R_work r_work	0.1994
R_free r_free	0.2541

Crystal structure of p38alpha C162S in complex with ATPgS and CAS 2094667-81-7 (in catalytic site, Y35 out), P 1 21 1
