8bud

Structure of DDB1 bound to Z7-engaged CDK12-cyclin K

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA damage-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cyclin-dependent kinase 12 × 1 （Q9NYV4） Cyclin-K × 1 （O75909） SULFATE ION × 10 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Cyclin-dependent kinase 12 × 1 （Q9NYV4） Cyclin-K × 1 （O75909） SULFATE ION × 15 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	Cyclin-dependent kinase 12 × 1 （Q9NYV4） Cyclin-K × 1 （O75909） SULFATE ION × 14 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–399； UniProt 1–395 Author chain A； PDBConstruct 409–840； UniProt 709–1140 Author chain D； PDBConstruct 5–399； UniProt 1–395 Author chain D； PDBConstruct 409–840； UniProt 709–1140 Author chain G； PDBConstruct 5–399； UniProt 1–395 Author chain G； PDBConstruct 409–840； UniProt 709–1140

Cyclin-dependent kinase 12

Homo sapiens

UniProt Q9NYV4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-K × 1 （O75909） SULFATE ION × 10 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-K × 1 （O75909） SULFATE ION × 15 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-K × 1 （O75909） SULFATE ION × 14 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDK12_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–343； UniProt 712–1051 Author chain E； PDBConstruct 4–343； UniProt 712–1051 Author chain H； PDBConstruct 4–343； UniProt 712–1051

Cyclin-K

Homo sapiens

UniProt O75909

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-dependent kinase 12 × 1 （Q9NYV4） SULFATE ION × 10 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-dependent kinase 12 × 1 （Q9NYV4） SULFATE ION × 15 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	DNA damage-binding protein 1 × 1 （Q16531） Cyclin-dependent kinase 12 × 1 （Q9NYV4） SULFATE ION × 14 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCNK_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 5–271； UniProt 1–267 Author chain F； PDBConstruct 5–271； UniProt 1–267 Author chain I； PDBConstruct 5–271； UniProt 1–267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8bud
Deposition date deposition_date	2022-11-30
Structure title title	Structure of DDB1 bound to Z7-engaged CDK12-cyclin K
Keywords keywords	kinase, cyclin, ubiquitin, degrader, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8bud__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8bud__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

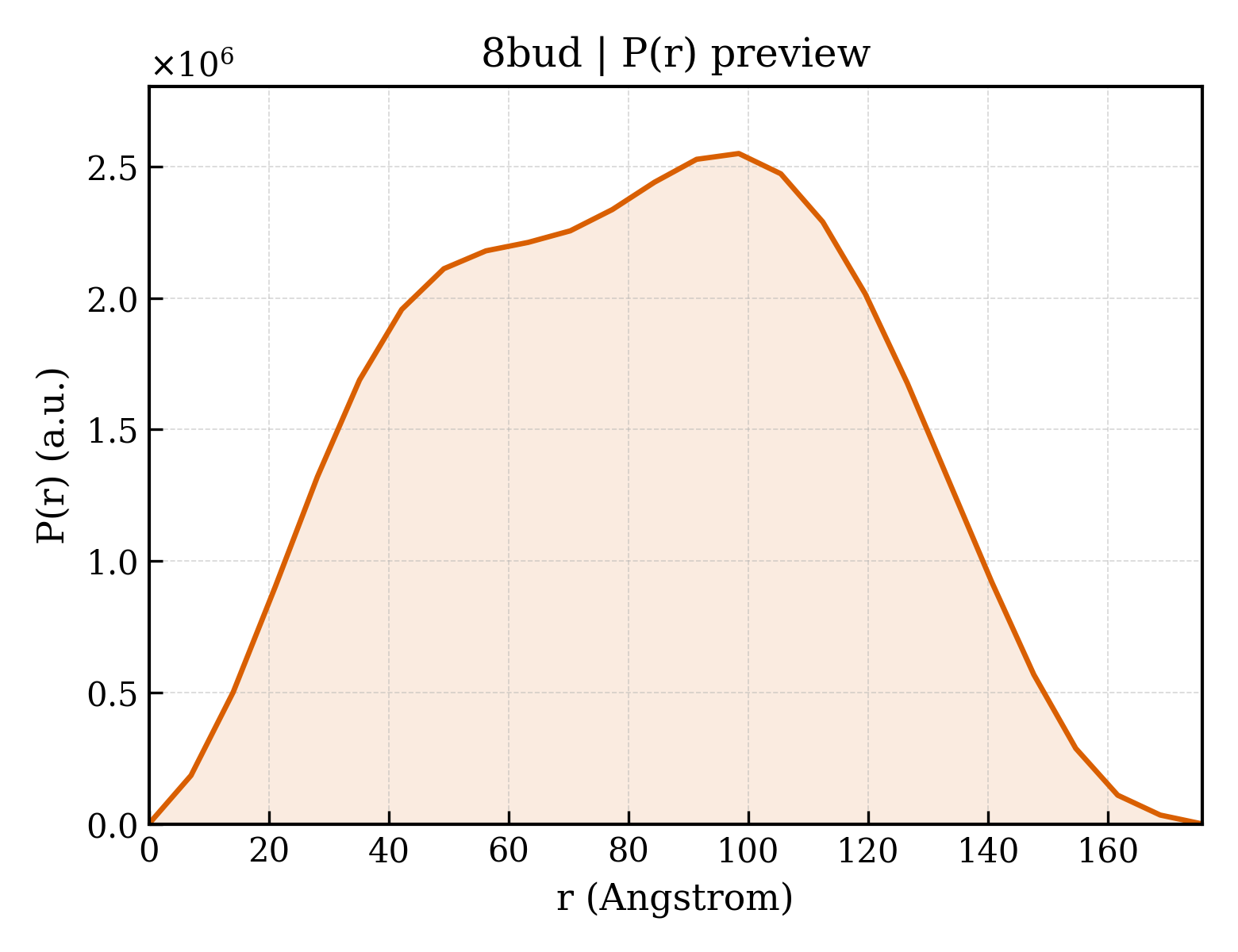

8bud__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.89 Å
Rg (electron density)	38.45 Å
Total Rg	38.82 Å
Atom count	22519
Residues	1402
Excluded volume	201930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8bud__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8bud__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8bud__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA damage-binding protein 1
Molecular weight formula_weight	93675.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G
Atom count atom_count	67623

GGGRMSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGGNGNSGEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Cyclin-dependent kinase 12
Molecular weight formula_weight	40143.3 kDa
EC 编号 ec_number	2.7.11.22,2.7.11.23
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H

GGGRRQTESDWGKRCVDKFDIIGIIGEGTYGQVYKAKDKDTGELVALKKVRLDNEKEGFPITAIREIKILRQLIHRSVVNMKEIVTDKQDALDFKKDKGAFYLVFEYMDHDLMGLLESGLVHFSEDHIKSFMKQLMEGLEYCHKKNFLHRDIKCSNILLNNSGQIKLADFGLARLYNSEESRPYTNKVITLWYRPPELLLGEERYTPAIDVWSCGCILGELFTKKPIFQANLELAQLELISRLCGSPCPAVWPDVIRLPYFNTMKPKKQYRRRLREEFSFIPSAALDLLDHMLTLDPSKRCTAEQTLQSDFLKDVELSKMAPPDLPHWQDCHELWSKKRRRQRQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Cyclin-K
Molecular weight formula_weight	31700.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I

GGGRMKENKENSSPSVTSANLDHTKPCWYWDKKDLAHTPSQLEGLDPATEARYRREGARFIFDVGTRLGLHYDTLATGIIYFHRFYMFHSFKQFPRYVTGACCLFLAGKVEETPKKCKDIIKTARSLLNDVQFGQFGDDPKEEVMVLERILLQTIKFDLQVEHPYQFLLKYAKQLKGDKNKIQKLVQMAWTFVNDSLCTTLSLQWEPEIIAVAVMYLAGRLCKFEIQEWTSKPMYRRWWEQFVQDVPVDVLEDICHQILDLYSQGKQQMPH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	39

Entity 5 Entity 5 non-polymer

Description description	~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide
Molecular weight formula_weight	373.2 kDa
Source method src_method	syn
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 15 domains

CATH v4.4 (15 domains)

Domain ID domain_id	8budA01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budA02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

Domain ID domain_id	8budB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8budB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	8budD01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budD02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

Domain ID domain_id	8budE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8budE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	8budG01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budG02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8budG03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

Domain ID domain_id	8budH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8budH02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

Unit-cell length a length_a	249.626 Å
Unit-cell length b length_b	249.626 Å
Unit-cell length c length_c	218.222 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	trigonal

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	60.350 Å
R factor r_factor	0.1909
R_work r_work	0.1894
R_free r_free	0.2197
