SAXSdb — 8dle

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

8-amino-7-oxononanoate synthase

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–384	Not recorded	Acyl carrier protein × 1 （B7MJ81） PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 3 SWC N-{(2R)-2-hydroxy-3,3-dimethyl-4-[(trihydroxy-lambda~5~-phosphanyl)oxy]butanoyl}-beta-alanyl-N-(2-{4-[fluoro(dihydroxy)-lambda~4~-sulfanyl]phenyl}ethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；289.15 K；1.5 M ammonium sulfate	Resolution 2.30 Å R-free 0.246

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	J7QD78_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–384； UniProt 1–384

Acyl carrier protein

Escherichia coli

UniProt B7MJ81

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–78	Not recorded	8-amino-7-oxononanoate synthase × 1 （J7QD78） PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 3 SWC N-{(2R)-2-hydroxy-3,3-dimethyl-4-[(trihydroxy-lambda~5~-phosphanyl)oxy]butanoyl}-beta-alanyl-N-(2-{4-[fluoro(dihydroxy)-lambda~4~-sulfanyl]phenyl}ethyl)-beta-alaninamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；289.15 K；1.5 M ammonium sulfate	Resolution 2.30 Å R-free 0.246

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8DLE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5KOF Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabB, and Acyl Carrier Protein, AcpP Deposited 2016-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–78（78 aa） Chain D 1–78（78 aa）	Not recorded	6W5 [(3~{S})-2,2-dimethyl-3-oxidanyl-4-oxidanylidene-4-[[3-oxidanylidene-3-[2-(prop-2-enoylamino)ethylamino]propyl]amino]butyl] dihydrogen phosphate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；298 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate pH 5.4, 20% PEG 4000	Resolution 2.40 Å R-free 0.229
5VCB Crystal structure of holo-(acyl-carrier-protein) synthase:holo(acyl-carrier-protein) complex from Escherichia Coli. Deposited 2017-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain d 2–78（77 aa） Chain e 2–78（77 aa） Chain f 2–78（77 aa）	Not recorded	PNS 4'-PHOSPHOPANTETHEINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Bis-Tris propane, pH 7.0 18-22% PEG 6k or 18-22% PEG 10k	Resolution 4.10 Å R-free 0.297
5VCB Crystal structure of holo-(acyl-carrier-protein) synthase:holo(acyl-carrier-protein) complex from Escherichia Coli. Deposited 2017-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain J 2–78（77 aa） Chain K 2–78（77 aa） Chain L 2–78（77 aa）	Not recorded	PNS 4'-PHOSPHOPANTETHEINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Bis-Tris propane, pH 7.0 18-22% PEG 6k or 18-22% PEG 10k	Resolution 4.10 Å R-free 0.297
5VCB Crystal structure of holo-(acyl-carrier-protein) synthase:holo(acyl-carrier-protein) complex from Escherichia Coli. Deposited 2017-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 2–78（77 aa） Chain Q 2–78（77 aa） Chain R 2–78（77 aa）	Not recorded	PNS 4'-PHOSPHOPANTETHEINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Bis-Tris propane, pH 7.0 18-22% PEG 6k or 18-22% PEG 10k	Resolution 4.10 Å R-free 0.297
5VCB Crystal structure of holo-(acyl-carrier-protein) synthase:holo(acyl-carrier-protein) complex from Escherichia Coli. Deposited 2017-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 2–78（77 aa） Chain E 2–78（77 aa） Chain F 2–78（77 aa）	Not recorded	PNS 4'-PHOSPHOPANTETHEINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Bis-Tris propane, pH 7.0 18-22% PEG 6k or 18-22% PEG 10k	Resolution 4.10 Å R-free 0.297
5VCB Crystal structure of holo-(acyl-carrier-protein) synthase:holo(acyl-carrier-protein) complex from Escherichia Coli. Deposited 2017-03-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain V 2–78（77 aa） Chain W 2–78（77 aa） Chain X 2–78（77 aa）	Not recorded	PNS 4'-PHOSPHOPANTETHEINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Bis-Tris propane, pH 7.0 18-22% PEG 6k or 18-22% PEG 10k	Resolution 4.10 Å R-free 0.297
5WGB Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and E. coli ACP1 protein at 2.75A Deposited 2017-07-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；285 K；0.1 M MES pH 6.5 0.3 M Ammonium Acetate 20 mM Calcium Acetate 20 mM CaCl2 19 % isopropanol	Resolution 2.75 Å R-free 0.255
5WKP Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and Iron-Sulfur Cluster Scaffold Protein ISCU1, and E. coli ACP1 protein at 3.15A Deposited 2017-07-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–78（77 aa） Chain G 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；285 K；0.1 M MES pH 7 15 % PEG 3350	Resolution 3.15 Å R-free 0.242
5WLW Crystal Structure of the Human Mitochondrial Cysteine Desulfurase with active Cysteine Loop within ISCU1 active site, coordinating Zn ion. Complexed with human ISD11 and E. coli ACP1 at 3.3A. Deposited 2017-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–78（77 aa） Chain G 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M MES pH 7.0 15 % PEG 3350	Resolution 3.32 Å R-free 0.255
6DFL WaaP in complex with acyl carrier protein Deposited 2018-05-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–74（72 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	G9S S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] hexadecanethioate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100mM HEPES pH 7.4, 5% Jeffamine M-600	Resolution 2.40 Å R-free 0.269
6N3P Crosslinked AcpP=FabZ complex from E. coli Type II FAS Deposited 2018-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 2–78（77 aa） Chain H 2–78（77 aa） Chain I 2–78（77 aa） Chain J 2–78（77 aa） Chain K 2–78（77 aa） Chain L 2–78（77 aa）	Not recorded	XLN N~3~-{(2R)-4-[(dihydroxyphosphanyl)oxy]-2-hydroxy-3,3-dimethylbutanoyl}-N-(3-{[(1Z)-pent-1-en-1-yl]sulfonyl}propyl)-beta-alaninamide × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM Bis-Tris pH 6.5, 200 mM MgCl2, 19% PEG 3350, 1:1 mix of 9.5 mg/mL protein and reservoir solution.	Resolution 2.50 Å R-free 0.257
6UXE Structure of the human mitochondrial desulfurase complex Nfs1-ISCU2(M140I)-ISD11 with E.coli ACP1 at 1.57 A resolution showing flexibility of N terminal end of ISCU2 Deposited 2019-11-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 100 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；288 K；0.1 M MES pH 6.0-6.5, 22% PEG400	Resolution 1.57 Å R-free 0.180
6W1D Structure of human mitochondrial complex Nfs1-ISCU2 (WT)-ISD11 with E.coli ACP1 at 1.8 A resolution (NIAU)2 Deposited 2020-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 96 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；288 K；0.1 M MES pH 6.0-6.5 22 % PEG 400	Resolution 1.79 Å R-free 0.189
6WI2 Structure of human mitochondrial complex Nfs1-ISCU2-ISD11 with E.coli ACP1 at 1.95 A resolution (NIAU)2. N-terminal mutation of ISCU2 (L35) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Deposited 2020-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 36 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 10 PG4 TETRAETHYLENE GLYCOL × 2 ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 PGE TRIETHYLENE GLYCOL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400	Resolution 1.95 Å R-free 0.185
6WIH N-terminal mutation of ISCU2 (L35H36) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Structure of human mitochondrial complex Nfs1-ISCU2(L35H36)-ISD11 with E.coli ACP1 at 1.9 A resolution (NIAU)2. Deposited 2020-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 1 PEG DI(HYDROXYETHYL)ETHER × 9 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 38 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 PGE TRIETHYLENE GLYCOL × 3 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400	Resolution 1.90 Å R-free 0.186
7RTK Structure of the (NIAU)2 complex with N-terminal mutation of ISCU2 Y35D at 2.5 A resolution Deposited 2021-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–78（77 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 58 GOL GLYCEROL × 6 PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 16 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400	Resolution 2.50 Å R-free 0.214
7SQI Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabB, and C14-crypto Acyl Carrier Protein, AcpP Deposited 2021-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–78（78 aa） Chain D 1–78（78 aa）	Not recorded	NA SODIUM ION × 2 A7V N-{2-[(2Z)-3-chlorotetradec-2-enamido]ethyl}-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；20% PEG 8000, 0.3 M sodium acetate, 0.1 M sodium cacodylate	Resolution 1.70 Å R-free 0.205
7SZ9 Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabB, and C16:1-crypto Acyl Carrier Protein, AcpP Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–78（77 aa） Chain D 2–78（77 aa）	Not recorded	NA SODIUM ION × 2 DJ5 N~3~-{(2R)-4-[(dihydroxyphosphanyl)oxy]-2-hydroxy-3,3-dimethylbutanoyl}-N-(2-{[(9Z)-hexadec-9-enoyl]amino}ethyl)-beta-alaninamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；20% PEG 8000, 0.3 M sodium acetate, 0.1 M sodium cacodylate	Resolution 2.20 Å R-free 0.255

14 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACP_ECO45
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–78； UniProt 1–78

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dle
Deposition date deposition_date	2022-07-07
Structure title title	Crosslinked Crystal Structure of the 8-amino-7-oxonanoate synthase, BioF, and Benzene Sulfonyl Fluoride-crypto Acyl Carrier Protein, BSF-ACP
Keywords keywords	BioF, AONS, crosslinking, ACP, complex, PLP, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.68 Å
Radius of gyration Rg (electron density) rg_electron	27.16 Å
Forward intensity I(0) i0	46440800.00
Molecular weight molecular_weight	50859.0 kDa
Excluded volume excluded_volume	62873 Å³
Envelope volume envelope_volume	84295 Å³
Hydration-shell volume shell_volume	27445 Å³
Envelope diameter envelope_diameter	100.1 Å
Shell Rg shell_rg	32.43 Å
Envelope Rg envelope_rg	27.12 Å
Shape Rg shape_rg	27.17 Å
Total Rg total_rg	27.70 Å
Total atoms total_atoms	3570
Residues n_residues	457
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

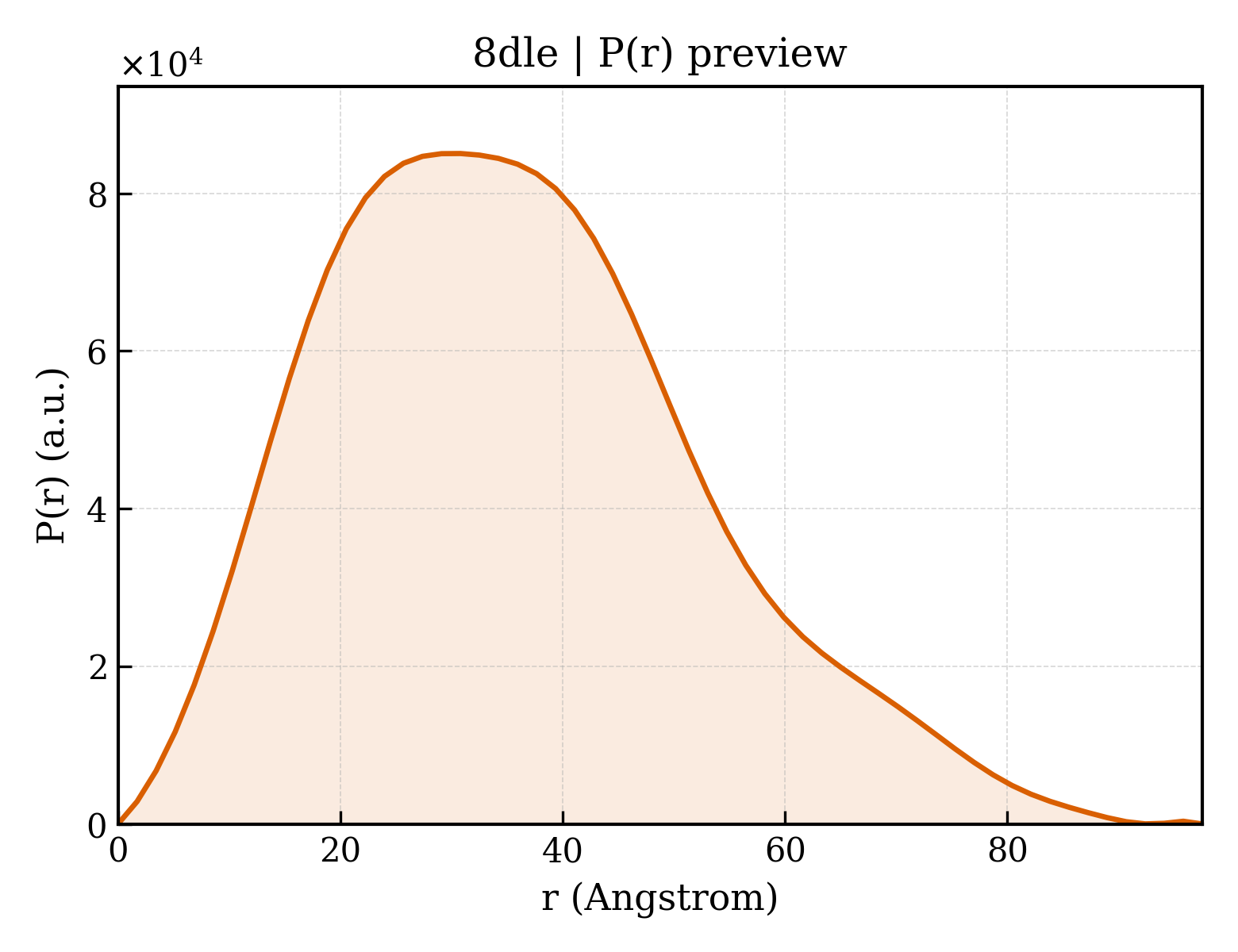

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.5 Å
Rg (real space) rg_real	27.83 Å
Rg uncertainty (real space) rg_real_error	0.81 Å
I(0) (real space) i0_real	4.6440e+07
I(0) uncertainty (real space) i0_real_error	7.1420e+05
Rg (reciprocal space) rg_reciprocal	27.79 Å
I(0) (reciprocal space) i0_reciprocal	46440000.0000
Solution quality estimate total_estimate	0.6613
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.8 Å
Skewness Skewness skewness	0.485
Kurtosis Kurtosis kurtosis	-0.142
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13450000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.755; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.878; Smooth: 0.919

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	8-amino-7-oxononanoate synthase
Molecular weight formula_weight	42712.3 kDa
EC 编号 ec_number	2.3.1.47
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3700

MSWQEKINAALDARRAADALRRRYPVAQGAGRWLVADDRQYLNFSSNDYLGLSHHPQIIRAWQQGAEQFGIGSGGSGHVSGYSVVHQALEEELAEWLGYSRALLFISGFAANQAVIAAMMAKEDRIAADRLSHASLLEAASLSPSQLRRFAHNDVTHLARLLASPCPGQQMVVTEGVFSMDGDSAPLAEIQQVTQQHNGWLMVDDAHGTGVIGEQGRGSCWLQKVKPELLVVTFGKGFGVSGAAVLCSSTVADYLLQFARHLIYSTSMPPAQAQALRASLAVIRSDEGDARREKLAALITRFRAGVQDLPFTLADSCSAIQPLIVGDNSRALQLAEKLRQQGCWVTAIRPPTVPAGTARLRLTLTAAHEMQDIDRLLEVLHGNGLEHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Acyl carrier protein
Molecular weight formula_weight	8645.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSTIEERVKKIIGEQLGVKQEEVTNNASFVEDLGADSLDTVELVMALEEEFDTEIPDEEAEKITTVQAAIDYINGHQA

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	;N-{(2R)-2-hydroxy-3,3-dimethyl-4-[(trihydroxy-lambda~5~-phosphanyl)oxy]butanoyl}-beta-alanyl-N-(2-{4-[fluoro(dihydroxy)-lambda~4~-sulfanyl]phenyl}ethyl)-beta-alaninamide ;
Molecular weight formula_weight	557.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	90

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8dleB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	10 — ACP-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	94.490 Å
Unit-cell length b length_b	162.310 Å
Unit-cell length c length_c	70.970 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	53.570 Å
R factor r_factor	0.2053
R_work r_work	0.2031
R_free r_free	0.2459

fit	/app/data/saxs_computation/dl/8dle/8dle.fit
pddf	/app/data/pr_computation/dl/8dle/8dle.pr.out
profile	/app/data/saxs_computation/dl/8dle/8dle.dat
