SAXSdb — 8dtl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin receptor

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 28–1372 Chain B； UniProt 28–1372	Not recorded	Insulin mimetic peptide S597 × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 5.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8DTL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1LK2 1.35A crystal structure of H-2Kb complexed with the GNYSFYAL peptide Deposited 2002-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 423–430（8 aa） Fragment：sequence database residues 423-430, numbered 1-8	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；K/Na-Phosphate, MPD, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.35 Å R-free 0.164
7SL1 Full-length insulin receptor bound with site 1 binding deficient mutant insulin (A-V3E) Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7SL2 Full-length insulin receptor bound with site 2 binding deficient mutant insulin (A-L13R) -- asymmetric conformation Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7SL3 Full-length insulin receptor bound with site 2 binding deficient mutant insulin (A-L13R) -- symmetric conformation Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7SL4 Full-length insulin receptor bound with site 2 binding deficient mutant insulin (B-L17R) -- asymmetric conformation Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
7SL6 Full-length insulin receptor bound with site 2 binding deficient mutant insulin (B-L17R) -- symmetric conformation Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7SL7 Full-length insulin receptor bound with both site 1 binding deficient mutant insulin (A-V3E) and site 2 binding deficient mutant insulin (A-L13R) Deposited 2021-10-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7STH Full-length insulin receptor bound with unsaturated insulin WT (2 insulin bound) symmetric conformation Deposited 2021-11-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7STI Full-length insulin receptor bound with unsaturated insulin WT (1 insulin bound) asymmetric conformation Deposited 2021-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
7STJ Full-length insulin receptor bound with unsaturated insulin WT (2 insulins bound) asymmetric conformation (Conformation 1) Deposited 2021-11-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7STK Full-length insulin receptor bound with unsaturated insulin WT (2 insulins bound) asymmetric conformation (Conformation 2) Deposited 2021-11-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8DTM Cryo-EM structure of insulin receptor (IR) bound with S597 component 2 Deposited 2022-07-26	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–1372（1345 aa） Chain B 28–1372（1345 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8EYX Cryo-EM structure of 4 insulins bound full-length mouse IR mutant with physically decoupled alpha CTs (C684S/C685S/C687S; denoted as IR-3CS) Asymmetric conformation 1 Deposited 2022-10-29	Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 28–1372（1345 aa） Chain B 28–1372（1345 aa）	Mutation：C684S,C685S,C687S Mutation：C684S,C685S,C687S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
8EYY Cryo-EM structure of 4 insulins bound full-length mouse IR mutant with physically decoupled alpha CTs (C684S/C685S/C687S, denoted as IR-3CS) Asymmetric conformation 2 Deposited 2022-10-29	Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 28–1372（1345 aa） Chain B 28–1372（1345 aa）	Mutation：C684S,C685S,C687S Mutation：C684S,C685S,C687S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
8EZ0 Cryo-EM structure of 4 insulins bound full-length mouse IR mutant with physically decoupled alpha CTs (C684S/C685S/C687S; denoted as IR-3CS) Symmetric conformation Deposited 2022-10-29	Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 28–1372（1345 aa） Chain B 28–1372（1345 aa）	Mutation：C684S,C685S,C687S Mutation：C684S,C685S,C687S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9DNN Insulin receptor in complex with both insulin and de novo designed site-2 binder "S2B". Deposited 2024-09-17	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–1372（1372 aa） Chain B 1–1372（1372 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.10 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INSR_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–1345； UniProt 28–1372 Author chain B； PDBConstruct 1–1345； UniProt 28–1372

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dtl
Deposition date deposition_date	2022-07-25
Structure title title	Cryo-EM structure of insulin receptor (IR) bound with S597 peptide
Keywords keywords	Insulin receptor, S597, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	55.20 Å
Radius of gyration Rg (electron density) rg_electron	54.88 Å
Forward intensity I(0) i0	465355000.00
Molecular weight molecular_weight	177980.0 kDa
Excluded volume excluded_volume	222420 Å³
Envelope volume envelope_volume	379770 Å³
Hydration-shell volume shell_volume	62522 Å³
Envelope diameter envelope_diameter	175.2 Å
Shell Rg shell_rg	52.79 Å
Envelope Rg envelope_rg	51.46 Å
Shape Rg shape_rg	54.83 Å
Total Rg total_rg	54.98 Å
Total atoms total_atoms	12512
Residues n_residues	1544
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

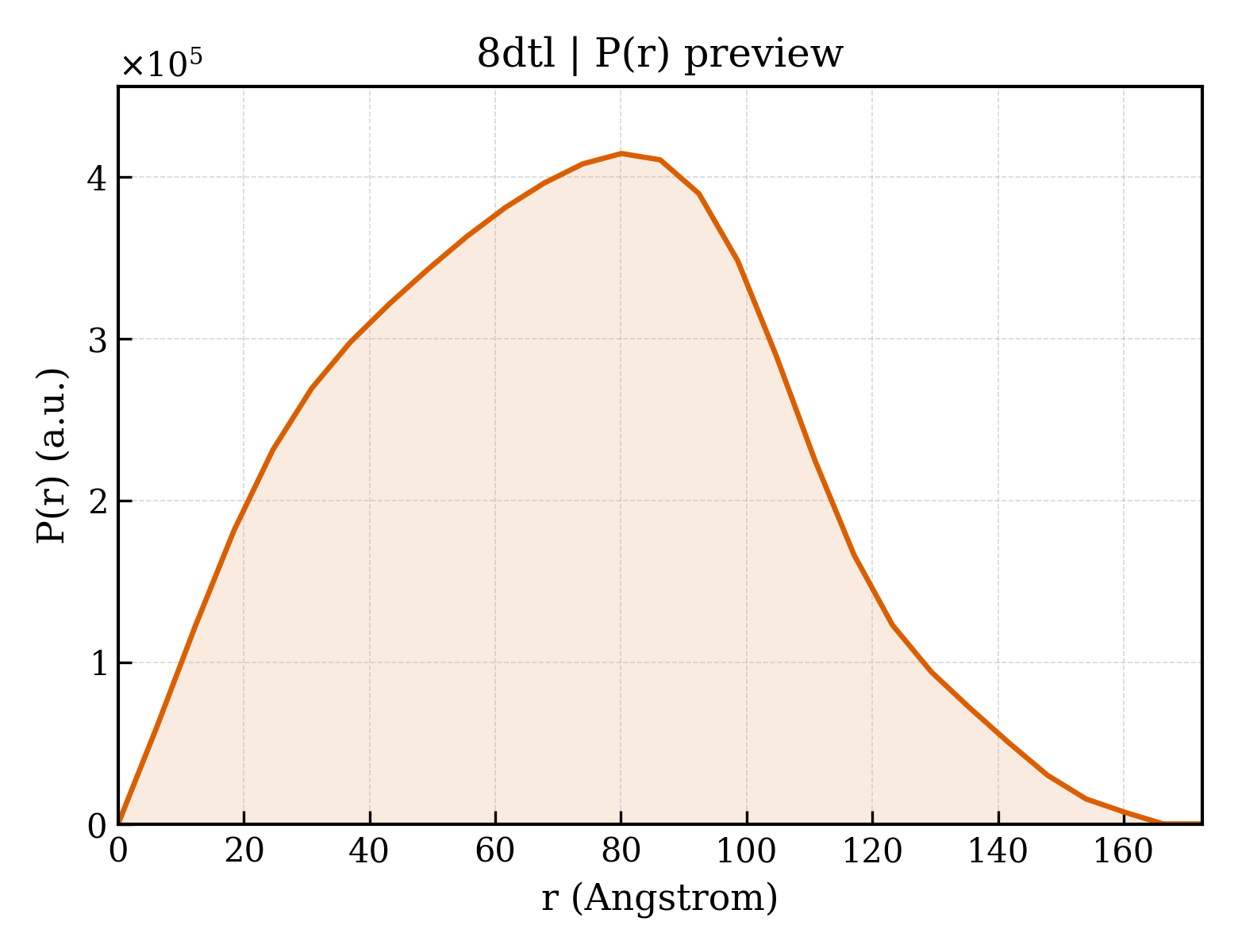

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	172.5 Å
Rg (real space) rg_real	55.14 Å
Rg uncertainty (real space) rg_real_error	1.81 Å
I(0) (real space) i0_real	4.6540e+08
I(0) uncertainty (real space) i0_real_error	8.7570e+06
Rg (reciprocal space) rg_reciprocal	55.22 Å
I(0) (reciprocal space) i0_reciprocal	465400000.0000
Solution quality estimate total_estimate	0.8485
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	80.1 Å
Skewness Skewness skewness	0.109
Kurtosis Kurtosis kurtosis	-0.603
Angular range angular_range	— – 0.1400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16100000.0000
Real-space data points n_real_points	29
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.145

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Insulin mimetic peptide S597
Molecular weight formula_weight	3789.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D
Atom count atom_count	12512

SLEEEWAQIECEVYGRGCPSESFYDWFERQL

Entity 2 Entity 2 polymer

Description description	Insulin receptor
Molecular weight formula_weight	153232.6 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

HLYPGEVCPGMDIRNNLTRLHELENCSVIEGHLQILLMFKTRPEDFRDLSFPKLIMITDYLLLFRVYGLESLKDLFPNLTVIRGSRLFFNYALVIFEMVHLKELGLYNLMNITRGSVRIEKNNELCYLATIDWSRILDSVEDNYIVLNKDDNEECGDVCPGTAKGKTNCPATVINGQFVERCWTHSHCQKVCPTICKSHGCTAEGLCCHKECLGNCSEPDDPTKCVACRNFYLDGQCVETCPPPYYHFQDWRCVNFSFCQDLHFKCRNSRKPGCHQYVIHNNKCIPECPSGYTMNSSNLMCTPCLGPCPKVCQILEGEKTIDSVTSAQELRGCTVINGSLIINIRGGNNLAAELEANLGLIEEISGFLKIRRSYALVSLSFFRKLHLIRGETLEIGNYSFYALDNQNLRQLWDWSKHNLTITQGKLFFHYNPKLCLSEIHKMEEVSGTKGRQERNDIALKTNGDQASCENELLKFSFIRTSFDKILLRWEPYWPPDFRDLLGFMLFYKEAPYQNVTEFDGQDACGSNSWTVVDIDPPQRSNDPKSQTPSHPGWLMRGLKPWTQYAIFVKTLVTFSDERRTYGAKSDIIYVQTDATNPSVPLDPISVSNSSSQIILKWKPPSDPNGNITHYLVYWERQAEDSELFELDYCLKGLKLPSRTWSPPFESDDSQKHNQSEYDDSASECCSCPKTDSQILKELEESSFRKTFEDYLHNVVFVPRPSRKRRSLEEVGNVTATTLTLPDFPNVSSTIVPTSQEEHRPFEKVVNKESLVISGLRHFTGYRIELQACNQDSPDERCSVAAYVSARTMPEAKADDIVGPVTHEIFENNVVHLMWQEPKEPNGLIVLYEVSYRRYGDEELHLCVSRKHFALERGCRLRGLSPGNYSVRVRATSLAGNGSWTEPTYFYVTDYLDVPSNIAKIIIGPLIFVFLFSVVIGSIYLFLRKRQPDGPMGPLYASSNPEYLSASDVFPSSVYVPDEWEVPREKITLLRELGQGSFGMVYEGNAKDIIKGEAETRVAVKTVNESASLRERIEFLNEASVMKGFTCHHVVRLLGVVSKGQPTLVVMELMAHGDLKSHLRSLRPDAENNPGRPPPTLQEMIQMTAEIADGMAYLNAKKFVHRDLAARNCMVAHDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMSPESLKDGVFTASSDMWSFGVVLWEITSLAEQPYQGLSNEQVLKFVMDGGYLDPPDNCPERLTDLMRMCWQFNPKMRPTFLEIVNLLKDDLHPSFPEVSFFYSEENKAPESEELEMEFEDMENVPLDRSSHCQREEAGGREGGSSLSIKRTYDEHIPYTHMNGGKKNGRVLTLPRSNPS

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	5.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	152565

fit	/app/data/saxs_computation/dt/8dtl/8dtl.fit
pddf	/app/data/pr_computation/dt/8dtl/8dtl.pr.out
profile	/app/data/saxs_computation/dt/8dtl/8dtl.dat
