1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fe6
沉积日期 deposition_date	2022-12-05
结构标题 title	Crystal structure of human O-GlcNAc transferase (OGT) in complex with an exosite-binding peptide and UDP-GlcNAc
关键词 keywords	O-GlcNAc transferase, exosite, protein-protein interaction, complex, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.87 Å
回转半径 Rg (电子) rg_electron	54.58 Å
零角强度 I(0) i0	1463530000.00
分子量 molecular_weight	320500.0 kDa
排除体积 excluded_volume	400880 Å³
包络体积 envelope_volume	561610 Å³
水化壳体积 shell_volume	84510 Å³
包络直径 envelope_diameter	174.4 Å
壳层 Rg shell_rg	58.85 Å
包络 Rg envelope_rg	52.96 Å
形状 Rg shape_rg	54.59 Å
总 Rg total_rg	54.65 Å
总原子数 total_atoms	22504
残基数 n_residues	2824
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	172.8 Å
Rg (实空间) rg_real	54.74 Å
Rg 误差 (实空间) rg_real_error	1.67 Å
I(0) (实空间) i0_real	1.4640e+09
I(0) 误差 (实空间) i0_real_error	3.0540e+07
Rg (倒空间) rg_reciprocal	54.94 Å
I(0) (倒空间) i0_reciprocal	1464000000.0000
解质量估计 total_estimate	0.8832
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	77.5 Å
偏度 Skewness skewness	0.095
峰度 Kurtosis kurtosis	-0.729
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	91440000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.605

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit
分子量 formula_weight	80974.5 kDa
EC 编号 ec_number	2.4.1.255
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	22552

GPGSCPTHADSLNNLANIKREQGNIEEAVRLYRKALEVFPEFAAAHSNLASVLQQQGKLQEALMHYKEAIRISPTFADAYSNMGNTLKEMQDVQGALQCYTRAIQINPAFADAHSNLASIHKDSGNIPEAIASYRTALKLKPDFPDAYCNLAHCLQIVCDWTDYDERMKKLVSIVADQLEKNRLPSVHPHHSMLYPLSHGFRKAIAERHGNLCLDKINVLHKPPYEHPKDLKLSDGRLRVGYVSSDFGNHPTSHLMQSIPGMHNPDKFEVFCYALSPDDGTNFRVKVMAEANHFIDLSQIPCNGKAADRIHQDGIHILVNMNGYTKGARNELFALRPAPIQAMWLGYPGTSGALFMDYIITDQETSPAEVAEQYSEKLAYMPHTFFIGDHANMFPHLKKKAVIDFKSNGHIYDNRIVLNGIDLKAFLDSLPDVKIVKMKCPDGGDNADSSNTALNMPVIPMNTIAEAVIEMINRGQIQITINGFSISNGLATTQINNKAATGEEVPRTIIVTTRSQYGLPEDAIVYCNFNQLYKIDPSTLQMWANILKRVPNSVLWLLRFPAVGEPNIQQYAQNMGLPQNRIIFSPVAPKEEHVRRGQLADVCLDTPLCNGHTTGMDVLWAGTPMVTMPGETLASRVAASQLTCLGCLELIAKNRQEYEDIAVKLGTDLEYLKKVRGKVWKQRISSPLFNTKQYTMELERLYLQMWEHYAAGNKPDHMIKPVE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	A motif peptide
分子量 formula_weight	1586.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

RQFMPVYQIYLQ

Entity 3 non-polymer

描述 description	URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE
分子量 formula_weight	607.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	8fe6A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	11380 —

结构域编号 domain_id	8fe6A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8fe6A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	8fe6C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	11380 —

结构域编号 domain_id	8fe6C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8fe6C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	8fe6E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	11380 —

结构域编号 domain_id	8fe6E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8fe6E03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	8fe6G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	11380 —

结构域编号 domain_id	8fe6G02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
同源超家族 H-superfamily homologous superfamily	150 —

结构域编号 domain_id	8fe6G03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	281.532 Å
晶胞边长 b length_b	281.532 Å
晶胞边长 c length_c	143.212 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	trigonal

分辨率 resolution	3.060 Å
最低分辨率 resolution_low	40.640 Å
R 因子 r_factor	0.1816
R_work r_work	0.1807
R_free r_free	0.2194

fit	/app/data/saxs_computation/fe/8fe6/8fe6.fit
pddf	/app/data/pr_computation/fe/8fe6/8fe6.pr.out
profile	/app/data/saxs_computation/fe/8fe6/8fe6.dat

Crystal structure of human O-GlcNAc transferase (OGT) in complex with an exosite-binding peptide and UDP-GlcNAc

SAXS 散射曲线 SAXS Profile

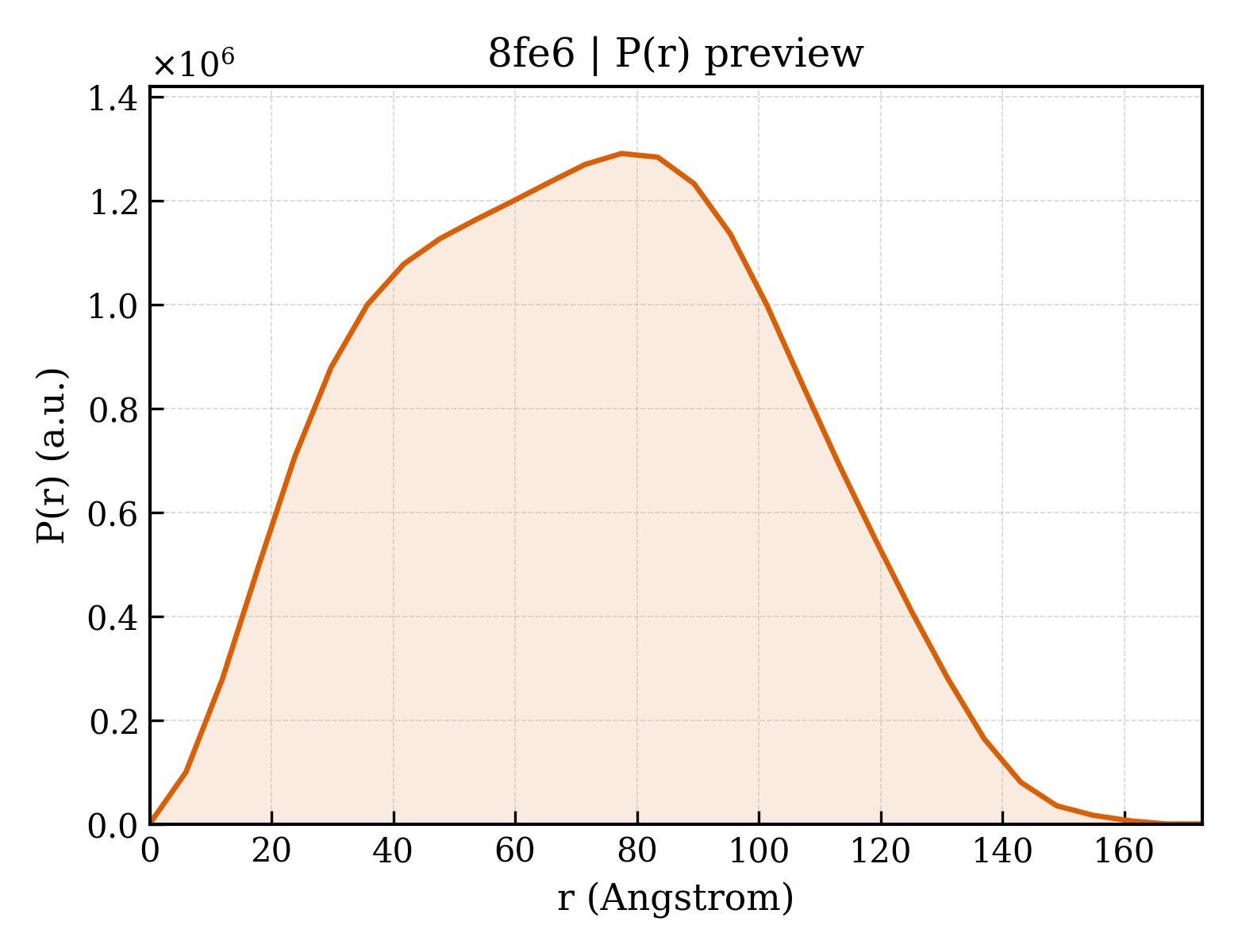

P(r) 距离分布 P(r) Distribution
