SAXSdb — 8g8f

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8g8f
沉积日期 deposition_date	2023-02-17
结构标题 title	Human IMPDH2 mutant - L245P, treated with ATP, IMP, and NAD+; extended filament segment reconstruction
关键词 keywords	Filament, Dehydrogenase, CBS domain, Bateman domain, purine biosynthesis, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.96 Å
回转半径 Rg (电子) rg_electron	52.39 Å
零角强度 I(0) i0	2934450000.00
分子量 molecular_weight	442150.0 kDa
排除体积 excluded_volume	548850 Å³
包络体积 envelope_volume	841110 Å³
水化壳体积 shell_volume	126660 Å³
包络直径 envelope_diameter	154.4 Å
壳层 Rg shell_rg	63.53 Å
包络 Rg envelope_rg	49.57 Å
形状 Rg shape_rg	52.39 Å
总 Rg total_rg	52.68 Å
总原子数 total_atoms	30912
残基数 n_residues	3928
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	150.7 Å
Rg (实空间) rg_real	52.54 Å
Rg 误差 (实空间) rg_real_error	0.97 Å
I(0) (实空间) i0_real	2.9340e+09
I(0) 误差 (实空间) i0_real_error	5.1960e+07
Rg (倒空间) rg_reciprocal	53.30 Å
I(0) (倒空间) i0_reciprocal	2938000000.0000
解质量估计 total_estimate	0.8651
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.4 Å
偏度 Skewness skewness	-0.183
峰度 Kurtosis kurtosis	-0.560
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	152100000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.582

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	;Inosine-5'-monophosphate dehydrogenase 2 ;
分子量 formula_weight	56464.5 kDa
EC 编号 ec_number	1.1.1.205
突变 mutation	L245P
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	30912

SEFELMADYLISGGTSYVPDDGLTAQQLFNCGDGLTYNDFLILPGYIDFTADQVDLTSALTKKITLKTPLVSSPMDTVTEAGMAIAMALTGGIGFIHHNCTPEFQANEVRKVKKYEQGFITDPVVLSPKDRVRDVFEAKARHGFCGIPITDTGRMGSRLVGIISSRDIDFLKEEEHDCFLEEIMTKREDLVVAPAGITLKEANEILQRSKKGKLPIVNEDDELVAIIARTDLKKNRDYPLASKDAKKQLPCGAAIGTHEDDKYRLDLLAQAGVDVVVLDSSQGNSIFQINMIKYIKDKYPNLQVIGGNVVTAAQAKNLIDAGVDALRVGMGSGSICITQEVLACGRPQATAVYKVSEYARRFGVPVIADGGIQNVGHIAKALALGASTVMMGSLLAATTEAPGEYFFSDGIRLKKYRGMGSLDAMDKHLSSQNRYFSEADKIKVAQGVSGAVQDKGSIHKFVPYLIAGIQHSCQDIGAKSLTQVRAMMYSGELKFEKRTSSAQVEGGVHSLHSYEKRLF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 3 non-polymer

描述 description	INOSINIC ACID
分子量 formula_weight	348.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (13)

Neurodevelopmental disorder mutations in the purine biosynthetic enzyme IMPDH2 disrupt its allosteric regulation.

J.Biol.Chem. (2023)

PMID: 37414152 · DOI: 10.1016/j.jbc.2023.105012 PRIMARY

Point mutations in IMPDH2 which cause early-onset neurodevelopmental disorders disrupt enzyme regulation and filament structure.

Biorxiv (2023)

PMID: 36993700 · DOI: 10.1101/2023.03.15.532669

Improvement of cryo-EM maps by density modification.

Nat Methods (2020)

PMID: 32807957 · DOI: 10.1038/s41592-020-0914-9

Macromolecular structure determination using X-rays, neutrons and electrons: recent developments in Phenix.

Acta Crystallogr D Struct Biol (2019)

PMID: 31588918 · DOI: 10.1107/S2059798319011471

ISOLDE: a physically realistic environment for model building into low-resolution electron-density maps.

Acta Crystallogr D Struct Biol (2018)

PMID: 29872003 · DOI: 10.1107/S2059798318002425

New tools for automated high-resolution cryo-EM structure determination in RELION-3.

Elife (2018)

PMID: 30412051 · DOI: 10.1101/384537

Real-space refinement in PHENIX for cryo-EM and crystallography.

Acta Crystallogr D Struct Biol (2018)

PMID: 29872004 · DOI: 10.1107/S2059798318006551

MotionCor2: anisotropic correction of beam-induced motion for improved cryo-electron microscopy.

Nat Methods (2017)

PMID: 28250466 · DOI: 10.7554/eLife.06980

CTFFIND4: Fast and accurate defocus estimation from electron micrographs.

J Struct Biol (2015)

PMID: 26278980 · DOI: 10.1016/j.jsb.2012.12.006

RELION: implementation of a Bayesian approach to cryo-EM structure determination.

J Struct Biol (2012)

PMID: 23000701 · DOI: 10.1016/j.jsb.2012.05.005

Coot: model-building tools for molecular graphics.

Acta Crystallogr D Biol Crystallogr (2004)

PMID: 15572765 · DOI: 10.1107/S0907444904019158

UCSF Chimera--a visualization system for exploratory research and analysis.

J Comput Chem (2004)

PMID: 15264254 · DOI: 10.1002/jcc.20084

Leginon: an automated system for acquisition of images from vitreous ice specimens.

J Struct Biol (2000)

PMID: 11121305 · DOI: 10.1006/jsbi.2000.4314

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	54304

fit	/app/data/saxs_computation/g8/8g8f/8g8f.fit
pddf	/app/data/pr_computation/g8/8g8f/8g8f.pr.out
profile	/app/data/saxs_computation/g8/8g8f/8g8f.dat

Human IMPDH2 mutant - L245P, treated with ATP, IMP, and NAD+; extended filament segment reconstruction

SAXS 散射曲线 SAXS Profile

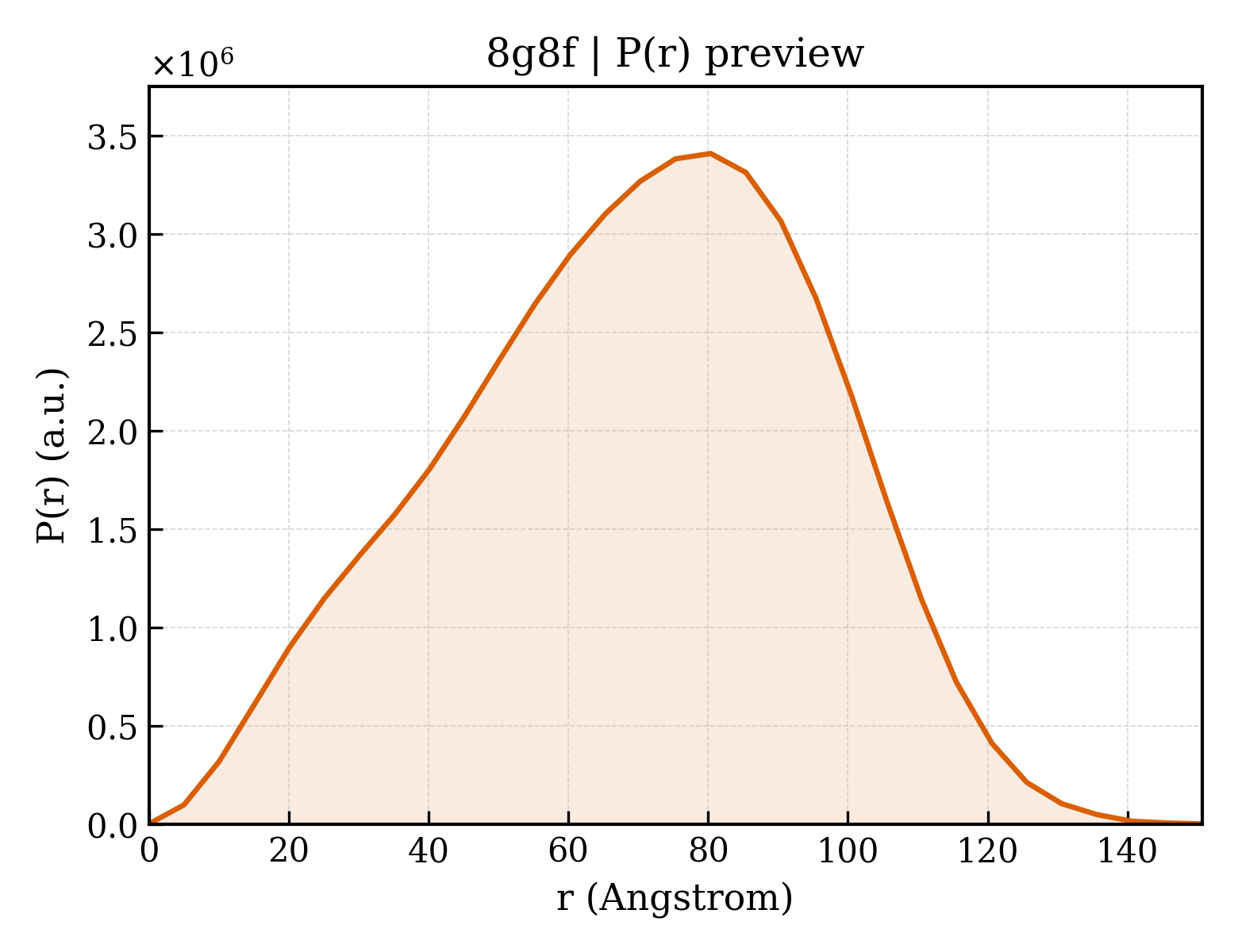

P(r) 距离分布 P(r) Distribution
