SAXSdb — 8h62

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Internalin A

Listeria monocytogenes serovar 1/2a

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 36–496	Not recorded	Cadherin-1 × 1 （P12830） CA CALCIUM ION × 4 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium acetate 45% MPD	Resolution 1.91 Å R-free 0.210

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8H62	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8H63 Crystal structure of Internalin A from Listeria monocytogenes with nanobody VHH10 bound Deposited 2022-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–496（461 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 IPA ISOPROPYL ALCOHOL × 1 GOL GLYCEROL × 2 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.085 M HEPES sodium pH 7.0; 8.5% Isopropanol; 20% PEG 4,000	Resolution 1.53 Å R-free 0.190
8H64 Crystal structure of Internalin A from Listeria monocytogenes with nanobody VHH24 bound Deposited 2022-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–496（461 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Amonium citrate tribasic pH 7.0; 14% PEG 4,000	Resolution 2.35 Å R-free 0.227
8H64 Crystal structure of Internalin A from Listeria monocytogenes with nanobody VHH24 bound Deposited 2022-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–496（461 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Amonium citrate tribasic pH 7.0; 14% PEG 4,000	Resolution 2.35 Å R-free 0.227
8H64 Crystal structure of Internalin A from Listeria monocytogenes with nanobody VHH24 bound Deposited 2022-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 36–496（461 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Amonium citrate tribasic pH 7.0; 14% PEG 4,000	Resolution 2.35 Å R-free 0.227
8H64 Crystal structure of Internalin A from Listeria monocytogenes with nanobody VHH24 bound Deposited 2022-10-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 36–496（461 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Amonium citrate tribasic pH 7.0; 14% PEG 4,000	Resolution 2.35 Å R-free 0.227

2 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INLA_LISMO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–462； UniProt 36–496

Cadherin-1

Homo sapiens

UniProt P12830

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 155–367	Mutation：C163S	Internalin A × 1 （P0DJM0） CA CALCIUM ION × 4 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium acetate 45% MPD	Resolution 1.91 Å R-free 0.210

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8H62	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1O6S Internalin (Listeria monocytogenes) / E-Cadherin (human) Recognition Complex Deposited 2002-10-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–255（100 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 156-253	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；VAPOUR DIFFUSION / HANGING DROP 10 MG/ML IN 10 MM HEPES PH 7.0, 26% PEG 4000, 100 MM MES/TRIS PH 7.0, 100 MM SODIUM ACETATE, 50 MM CACL2	Resolution 1.80 Å R-free 0.221
2O72 Crystal Structure Analysis of human E-cadherin (1-213) Deposited 2006-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 155–367（213 aa） Fragment：N-Terminal domains 1 and 2, residues 155-317	Mutation：C9S	CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；10% PEG 8000, 0.2M calcium chloride, 5% DMSO, 0.1M Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 4K, temperature 277K	Resolution 2.00 Å R-free 0.234
2OMT Crystal structure of InlA G194S+S/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–255（100 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 2.00 Å R-free 0.283
2OMU Crystal structure of InlA G194S+S Y369S/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–255（100 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.80 Å R-free 0.217
2OMV Crystal structure of InlA S192N Y369S/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–255（100 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.90 Å R-free 0.219
2OMX Crystal structure of InlA S192N G194S+S/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–258（103 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.70 Å R-free 0.223
2OMY Crystal structure of InlA S192N/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–254（99 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.70 Å R-free 0.211
2OMZ Crystal structure of InlA Y369A/hEC1 complex Deposited 2007-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–254（99 aa） Fragment：N-terminal domain of human E-cadherin	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 4000, CaCl2, Na-Acetate, Tris/MES, pH 6.0, vapor diffusion, hanging drop, temperature 298K	Resolution 1.60 Å R-free 0.186
3FF7 Structure of NK cell receptor KLRG1 bound to E-cadherin Deposited 2008-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 155–253（99 aa） Fragment：UNP residues 155-253, Cadherin 1 domain Chain B 155–253（99 aa） Fragment：UNP residues 155-253, Cadherin 1 domain	Mutation：C9L Mutation：C9L	ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；298 K；PEG4000, pH 4.6, vapor diffusion, temperature 298K	Resolution 1.80 Å R-free 0.246
3FF8 Structure of NK cell receptor KLRG1 bound to E-cadherin Deposited 2008-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 155–254（100 aa） Fragment：UNP residues 155-254, Cadherin 1 domain Chain B 155–254（100 aa） Fragment：UNP residues 155-254, Cadherin 1 domain	Mutation：C9L Mutation：C9L	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；298 K；PEG8000, pH 6.5, vapor diffusion, temperature 298K	Resolution 2.00 Å R-free 0.253
4ZT1 Crystal structure of human E-Cadherin (residues 3-213) in x-dimer conformation Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–367（211 aa） Fragment：UNP residues 157-367 Chain B 157–367（211 aa） Fragment：UNP residues 157-367	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；TRIS 0.1 M, ammonium sulfate 1.3 M, calcium chloride 50 mM	Resolution 1.92 Å R-free 0.219
4ZTE Crystal structure of human E-Cadherin (residues 3-213) in complex with a peptidomimetic inhibitor Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 157–367（211 aa） Fragment：residues 157-367 Chain B 157–367（211 aa） Fragment：residues 157-367	Not recorded	CA CALCIUM ION × 6 4RL N-{[(2S,5S)-1-benzyl-5-(2-{[(2S,3S)-1-(tert-butylamino)-3-methyl-1-oxopentan-2-yl]amino}-2-oxoethyl)-3,6-dioxopiperazin-2-yl]methyl}-L-alpha-asparagine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；TRIS 0.1 M, ammonium sulfate 1.3 M, calcium chloride 80 mM	Resolution 2.13 Å R-free 0.230
6CXY Crystal Structure of Human E-cadherin bound by mouse monoclonal antibody Fab mAb-1_19A11 Deposited 2018-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 155–371（217 aa）	Not recorded	CA CALCIUM ION × 3 EDO 1,2-ETHANEDIOL × 18 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；290 K；HosaA.19747.a.KW2.PC00156 at 10.3 mg/ml in a buffer containing 50 mM Tris, pH = 8, 150 mM NaCl, and 3 mM CaCl2 was mixed 0.1 uL + 0.1 uL with Wizard 3/4 (h12): 15% (w/v) PEG-20,000, 0.1 M HEPES/ NaOH, pH = 7.0. The crystal was cryoprotected with 20% ethylene glycol. Tray: 299140h12, puck: qxp2-3	Resolution 2.20 Å R-free 0.197
6OLE Human ribosome nascent chain complex (CDH1-RNC) stalled by a drug-like molecule with AP and PE tRNAs Deposited 2019-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 76 PDB declaration: 83-meric	Chain y 693–730（38 aa）	Not recorded	MG MAGNESIUM ION × 31 ZN ZINC ION × 6 MVM N-(3-chloropyridin-2-yl)-N-[(3R)-piperidin-3-yl]-4-(3H-[1,2,3]triazolo[4,5-b]pyridin-3-yl)benzamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
6OLF Human ribosome nascent chain complex (CDH1-RNC) stalled by a drug-like molecule with AA and PE tRNAs Deposited 2019-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 76 PDB declaration: 83-meric	Chain y 693–730（38 aa）	Not recorded	ZN ZINC ION × 6 MG MAGNESIUM ION × 31 MVM N-(3-chloropyridin-2-yl)-N-[(3R)-piperidin-3-yl]-4-(3H-[1,2,3]triazolo[4,5-b]pyridin-3-yl)benzamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6OLG Human ribosome nascent chain complex stalled by a drug-like small molecule (CDH1_RNC with PP tRNA) Deposited 2019-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 79 PDB declaration: 85-meric	Chain A 693–730（38 aa）	Not recorded	MG MAGNESIUM ION × 326 ZN ZINC ION × 5 MVM N-(3-chloropyridin-2-yl)-N-[(3R)-piperidin-3-yl]-4-(3H-[1,2,3]triazolo[4,5-b]pyridin-3-yl)benzamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6VEL Crystal Structure of Human E-cadherin bound by mouse monoclonal antibody 66E8Fab Deposited 2020-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 155–371（217 aa）	Not recorded	SO4 SULFATE ION × 6 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；290 K；A complex of HosaA.19747.a.KW2, MumuA.20194.a.LG23, and MumuA.20195.a.LH23 was crystallized at 10.4 mg/ml at 14C and mixed 1:1 with 12.5% (w/v) PEG 4000, 20% (v/v) 1,2,6-hexanetriol, 0.1M GlyGly/AMPD pH 8.5, 0.03M of each Lithium sulfate, Sodium sulfate, and Potassium sulfate. Tray 307437a10: puck ckt8-9.	Resolution 2.65 Å R-free 0.236
7STZ Crystal Structure of Human E-cadherin EC1-5 bound by mouse monoclonal antibody Fab mAb-1_19A11 Deposited 2021-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 155–698（544 aa） Chain D 155–698（544 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PG4 TETRAETHYLENE GLYCOL × 5 MAN alpha-D-mannopyranose × 3 BMA beta-D-mannopyranose × 12 CA CALCIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；290 K；HosaA.19747.a.LS31.PC00180 at 11.5 mg/mL was mixed 2:1 (0.2 uL protein and 0.1 uL precipitant) with 0.1M sodium HEPES pH 7.0 and 15% w/v PEG4000 (ProPlex B11) and stored at 14C. The crystal was cryoprotected with 15% ethylene glycol. Tray: 321285b11, puck: ygq5-2.	Resolution 2.95 Å R-free 0.208
9P99 CryoEM structure of integrin alphaEbeta7 bound to E-cadherin Deposited 2025-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 155–371（217 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 3 MN MANGANESE (II) ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CADH1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–213； UniProt 155–367

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8h62
Deposition date deposition_date	2022-10-14
Structure title title	Crystal structure of Internalin A from Listeria monocytogenes with human E-cadherin EC12
Keywords keywords	Internalin A Cadherin Bacterial invasion nanobody Surface plasmon resonance Isothermal titration calorimetry, CELL INVASION; CELL INVASION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.94 Å
Radius of gyration Rg (electron density) rg_electron	32.88 Å
Forward intensity I(0) i0	83800700.00
Molecular weight molecular_weight	73178.0 kDa
Excluded volume excluded_volume	91868 Å³
Envelope volume envelope_volume	115380 Å³
Hydration-shell volume shell_volume	32090 Å³
Envelope diameter envelope_diameter	128.2 Å
Shell Rg shell_rg	35.84 Å
Envelope Rg envelope_rg	33.21 Å
Shape Rg shape_rg	32.89 Å
Total Rg total_rg	33.10 Å
Total atoms total_atoms	5144
Residues n_residues	675
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

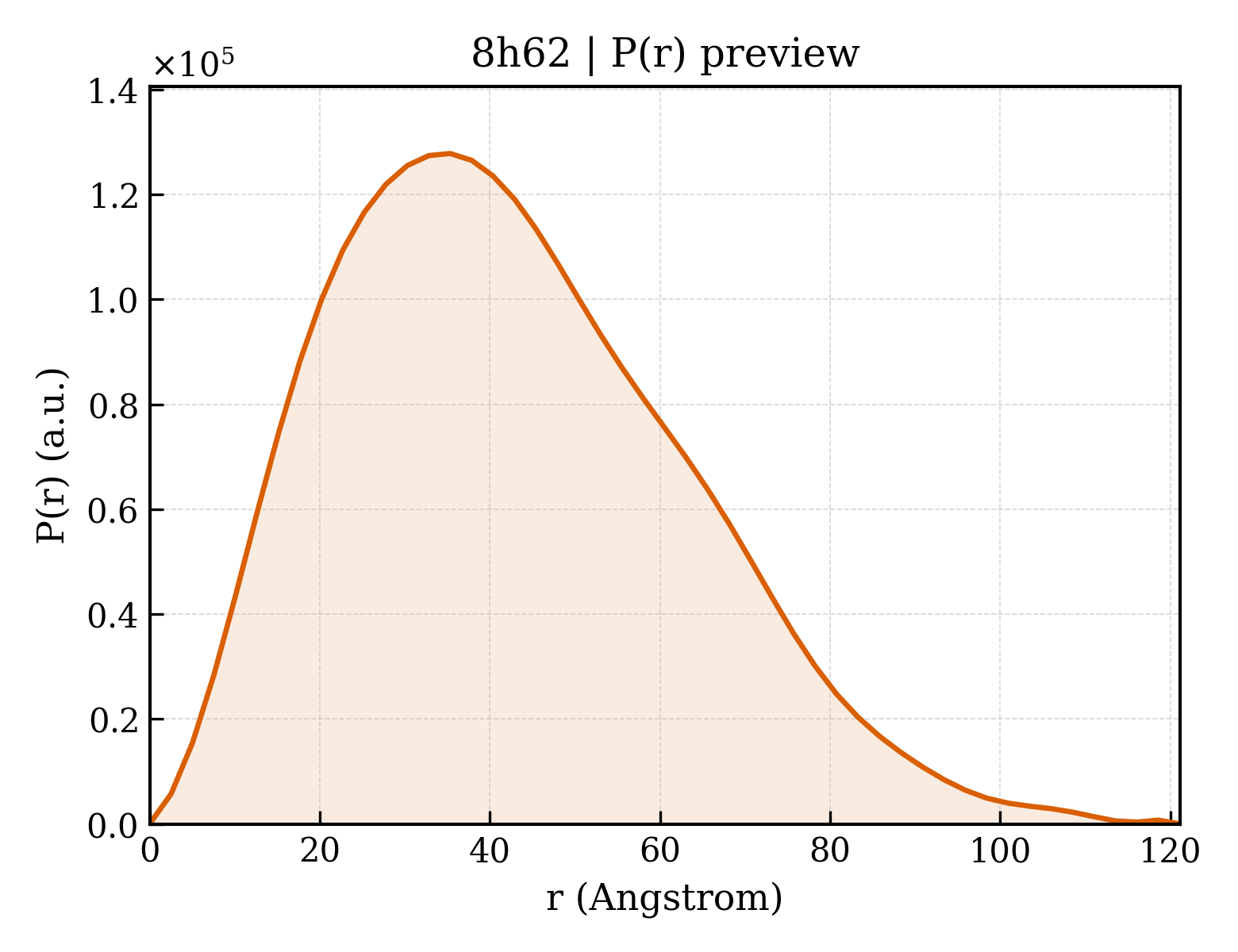

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.2 Å
Rg (real space) rg_real	33.21 Å
Rg uncertainty (real space) rg_real_error	1.27 Å
I(0) (real space) i0_real	8.3800e+07
I(0) uncertainty (real space) i0_real_error	1.3630e+06
Rg (reciprocal space) rg_reciprocal	33.09 Å
I(0) (reciprocal space) i0_reciprocal	83790000.0000
Solution quality estimate total_estimate	0.8321
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.3 Å
Skewness Skewness skewness	0.502
Kurtosis Kurtosis kurtosis	-0.141
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8674000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.720; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.714; Smooth: 0.937

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Internalin A
Molecular weight formula_weight	49914.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5815

SATITQDTPINQIFTDTALAEKMKTVLGKTNVTDTVSQTDLDQVTTLQADRLGIKSIDGVEYLNNLTQINFSNNQLTDITPLKNLTKLVDILMNNNQIADITPLANLTNLTGLTLFNNQITDIDPLKNLTNLNRLELSSNTISDISALSGLTSLQQLSFGNQVTDLKPLANLTTLERLDISSNKVSDISVLAKLTNLESLIATNNQISDITPLGILTNLDELSLNGNQLKDIGTLASLTNLTDLDLANNQISNLAPLSGLTKLTELKLGANQISNISPLAGLTALTNLELNENQLEDISPISNLKNLTYLTLYFNNISDISPVSSLTKLQRLFFYNNKVSDVSSLANLTNINWLSAGHNQISDLTPLANLTRITQLGLNDQAWTNAPVNYKANVSIPNTVKNVTGALIAPATISDGGSYTEPDITWNLPSYTNEVSYTFSQPVTIGKGTTTFSGTVTQPLKA

来源 Source

来源生物 organism	Listeria monocytogenes serovar 1/2a
NCBI Class编号 ncbi_taxonomy_id	169963
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Cadherin-1
Molecular weight formula_weight	23134.7 kDa
Mutation mutation	C163S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DWVIPPISSPENEKGPFPKNLVQIKSNKDKEGKVFYSITGQGADTPPVGVFIIERETGWLKVTEPLDRERIATYTLFSHAVSSNGNAVEDPMEILITVTDQNDNKPEFTQEVFKGSVMEGALPGTSVMEVTATDADDDVNTYNAAIAYTILSQDPELPDKNMFTINRNTGVISVVTTGLDRESFPTYTLVVQAADLQGEGLSTTATAVITVTD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	630

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.350 Å
Unit-cell length b length_b	69.580 Å
Unit-cell length c length_c	72.490 Å
Unit-cell angle α angle_alpha	101.48 °
Unit-cell angle β angle_beta	97.77 °
Unit-cell angle γ angle_gamma	105.99 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.910 Å
Low-resolution limit resolution_low	34.800 Å
R factor r_factor	0.1776
R_work r_work	0.1763
R_free r_free	0.2097

fit	/app/data/saxs_computation/h6/8h62/8h62.fit
pddf	/app/data/pr_computation/h6/8h62/8h62.pr.out
profile	/app/data/saxs_computation/h6/8h62/8h62.dat
