SAXSdb — 8i6v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vacuolar transporter chaperone complex subunit 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–129 Chain B； UniProt 1–129 Chain C； UniProt 1–129	Not recorded	Vacuolar transporter chaperone 3 complex subunit 3 × 1 （Q02725） Vacuolar transporter chaperone complex subunit 4 × 1 （P47075） POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PO4 PHOSPHATE ION × 3 3PO TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.06 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8I6V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7YTJ Cryo-EM structure of VTC complex Deposited 2022-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 2–129（128 aa） Chain B 2–129（128 aa） Chain C 2–129（128 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 3 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 PO4 PHOSPHATE ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9UMG Cryo-EM structure of VTC complex(Vtc5/Vtc4/Vtc3/Vtc1) Deposited 2025-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 5–122（118 aa） Chain B 21–123（103 aa） Chain C 21–123（103 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8；150mM NaCl, 25mM Tris-HCL, 0.0002m/v GDN, 1mM IP6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VTC1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–129； UniProt 1–129 Author chain B； PDBConstruct 1–129； UniProt 1–129 Author chain C； PDBConstruct 1–129； UniProt 1–129

Vacuolar transporter chaperone 3 complex subunit 3

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt Q02725

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain D； UniProt 1–835	Not recorded	Vacuolar transporter chaperone complex subunit 1 × 3 （P40046） Vacuolar transporter chaperone complex subunit 4 × 1 （P47075） POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PO4 PHOSPHATE ION × 3 3PO TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.06 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8I6V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7YTJ Cryo-EM structure of VTC complex Deposited 2022-08-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–835（835 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 3 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 PO4 PHOSPHATE ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9UMG Cryo-EM structure of VTC complex(Vtc5/Vtc4/Vtc3/Vtc1) Deposited 2025-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 203–806（604 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8；150mM NaCl, 25mM Tris-HCL, 0.0002m/v GDN, 1mM IP6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VTC3_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–835； UniProt 1–835

Vacuolar transporter chaperone complex subunit 4

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P47075

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 1–721	Not recorded	Vacuolar transporter chaperone complex subunit 1 × 3 （P40046） Vacuolar transporter chaperone 3 complex subunit 3 × 1 （Q02725） POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PO4 PHOSPHATE ION × 3 3PO TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.06 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8I6V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3G3Q Crystal structure of a eukaryotic polyphosphate polymerase in complex with a phosphate polymer Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	PO4 PHOSPHATE ION × 14 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；22% PEG 3350, 0.15 M (NH4)2SO4, 0.1 M Bis-Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 2.64 Å R-free 0.250
3G3Q Crystal structure of a eukaryotic polyphosphate polymerase in complex with a phosphate polymer Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	PO4 PHOSPHATE ION × 15 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；22% PEG 3350, 0.15 M (NH4)2SO4, 0.1 M Bis-Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 2.64 Å R-free 0.250
3G3Q Crystal structure of a eukaryotic polyphosphate polymerase in complex with a phosphate polymer Deposited 2009-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 189–480（292 aa） Fragment：UNP residues 189-480 Chain B 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	PO4 PHOSPHATE ION × 29 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；22% PEG 3350, 0.15 M (NH4)2SO4, 0.1 M Bis-Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 2.64 Å R-free 0.250
3G3R Crystal structure of a eukaryotic polyphosphate polymerase in complex with AppNHp-Mn2+ Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 1 SO4 SULFATE ION × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；15% PEG 3350, 0.2 M (NH4)2SO4, 0.1 M Bis-Tris, 10% Jeffamine M-600, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.00 Å R-free 0.253
3G3R Crystal structure of a eukaryotic polyphosphate polymerase in complex with AppNHp-Mn2+ Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；15% PEG 3350, 0.2 M (NH4)2SO4, 0.1 M Bis-Tris, 10% Jeffamine M-600, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.00 Å R-free 0.253
3G3T Crystal structure of a eukaryotic polyphosphate polymerase in complex with orthophosphate Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	PO4 PHOSPHATE ION × 4 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；1 M Na+/K+ phosphate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.85 Å R-free 0.235
3G3U Crystal structure of a eukaryotic polyphosphate polymerase in complex with pyrophosphate Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	POP PYROPHOSPHATE 2- × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；15 % PEG 3350, 0.2 M (NH4)2SO4, 0.1 M Bis-Tris, 10 % Jeffamine M-600, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.07 Å R-free 0.241
3G3U Crystal structure of a eukaryotic polyphosphate polymerase in complex with pyrophosphate Deposited 2009-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 189–480（292 aa） Fragment：UNP residues 189-480	Not recorded	POP PYROPHOSPHATE 2- × 1 SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；15 % PEG 3350, 0.2 M (NH4)2SO4, 0.1 M Bis-Tris, 10 % Jeffamine M-600, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.07 Å R-free 0.241
5IIG Structure of the SPX-TTM domain fragment of the yeast inorganic polyphophate polymerase Vtc4 (form A). Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–480（479 aa） Fragment：SPX domain, UNP residues 2-480	Mutation：E426N	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1M HEPES, 1.5M Li2SO4	Resolution 2.99 Å R-free 0.273
5IIQ Structure of the SPX-TTM domain fragment of the yeast inorganic polyphophate polymerase Vtc4 (form B). Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–480（479 aa） Fragment：SPX domain- TTM domain, UNP residues 2-480	Not recorded	SO4 SULFATE ION × 3 POP PYROPHOSPHATE 2- × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1M HEPES, 1.5M AmSO4, 4% PEG 1000	Resolution 3.03 Å R-free 0.262
5IIT Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–178（178 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；19% PEG 3350, 0.1M AmSO4, 0.1M MES	Resolution 2.13 Å R-free 0.247
5IIT Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–178（178 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；19% PEG 3350, 0.1M AmSO4, 0.1M MES	Resolution 2.13 Å R-free 0.247
5IIT Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–178（178 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；19% PEG 3350, 0.1M AmSO4, 0.1M MES	Resolution 2.13 Å R-free 0.247
5IIT Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–178（178 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；19% PEG 3350, 0.1M AmSO4, 0.1M MES	Resolution 2.13 Å R-free 0.247
5LNC Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-08-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–178（178 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；8.75% PEG 6000, 2.75M NaCl	Resolution 3.29 Å R-free 0.302
5LNC Structure of SPX domain of the yeast inorganic polyphophate polymerase Vtc4 crystallized by carrier-driven crystallization in fusion with the macro domain of human histone macroH2A1.1 Deposited 2016-08-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–178（178 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；8.75% PEG 6000, 2.75M NaCl	Resolution 3.29 Å R-free 0.302
7YTJ Cryo-EM structure of VTC complex Deposited 2022-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 2–721（720 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 3 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 PO4 PHOSPHATE ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9UMG Cryo-EM structure of VTC complex(Vtc5/Vtc4/Vtc3/Vtc1) Deposited 2025-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 196–721（526 aa）	Mutation：R264A,R266A,E426A	IHP INOSITOL HEXAKISPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8；150mM NaCl, 25mM Tris-HCL, 0.0002m/v GDN, 1mM IP6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å

10 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VTC4_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–721； UniProt 1–721

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8i6v
Deposition date deposition_date	2023-01-29
Structure title title	Cryo-EM structure of the polyphosphate polymerase VTC complex(Vtc4/Vtc3/Vtc1)
Keywords keywords	polyphosphate polymerase; VTC complex; coupled synthesis and translocation, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.53 Å
Radius of gyration Rg (electron density) rg_electron	48.78 Å
Forward intensity I(0) i0	470061000.00
Molecular weight molecular_weight	186400.0 kDa
Excluded volume excluded_volume	236700 Å³
Envelope volume envelope_volume	340210 Å³
Hydration-shell volume shell_volume	62969 Å³
Envelope diameter envelope_diameter	170.2 Å
Shell Rg shell_rg	47.24 Å
Envelope Rg envelope_rg	48.03 Å
Shape Rg shape_rg	48.77 Å
Total Rg total_rg	48.74 Å
Total atoms total_atoms	13168
Residues n_residues	1594
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

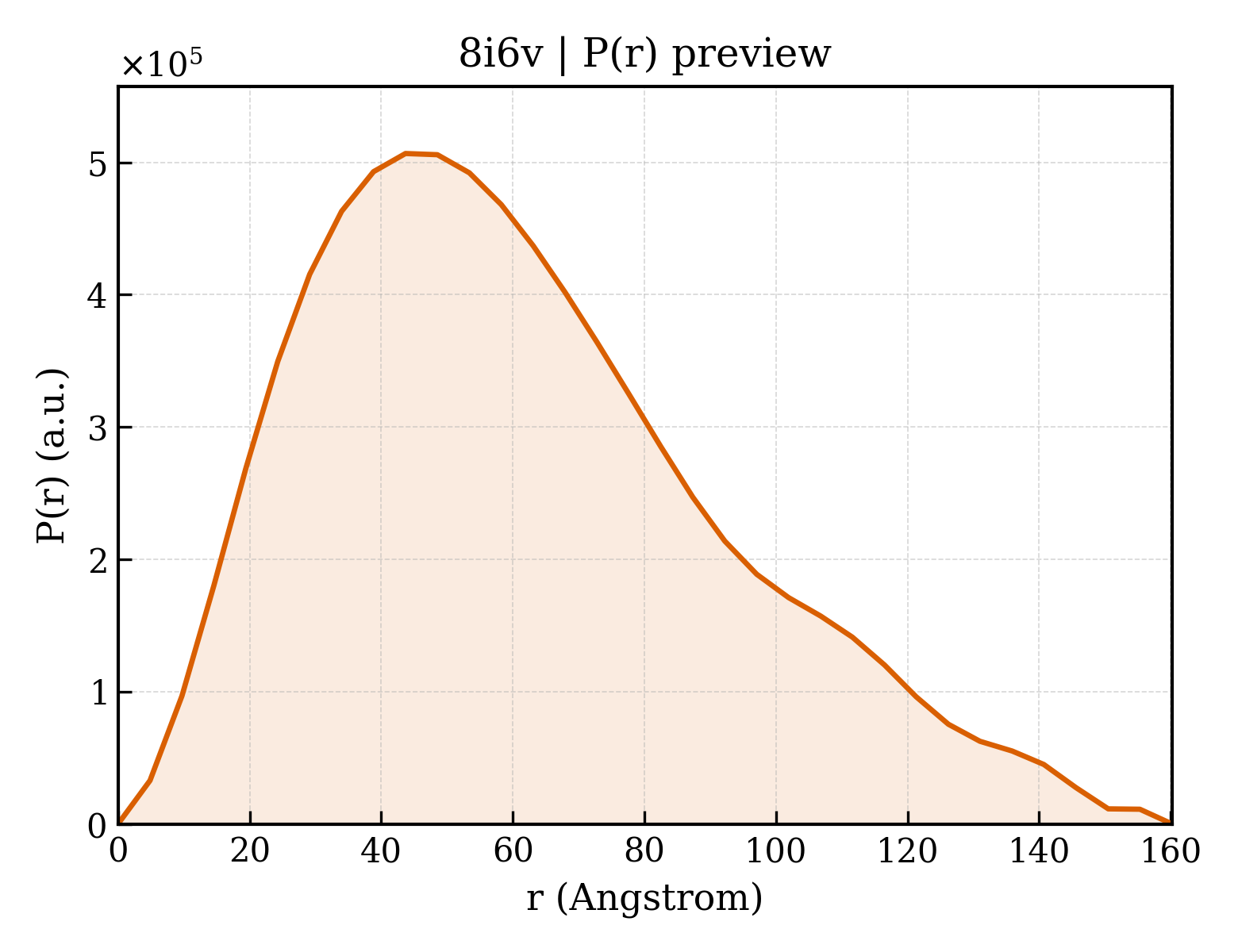

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	160.2 Å
Rg (real space) rg_real	48.12 Å
Rg uncertainty (real space) rg_real_error	2.04 Å
I(0) (real space) i0_real	4.7010e+08
I(0) uncertainty (real space) i0_real_error	1.0010e+07
Rg (reciprocal space) rg_reciprocal	47.53 Å
I(0) (reciprocal space) i0_reciprocal	469700000.0000
Solution quality estimate total_estimate	0.8073
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	43.7 Å
Skewness Skewness skewness	0.604
Kurtosis Kurtosis kurtosis	-0.170
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	61760000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.920; Smooth: 0.176

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Vacuolar transporter chaperone complex subunit 1
Molecular weight formula_weight	14388.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	13172

MSSAPLLQRTPGKKIALPTRVEPKVFFANERTFLSWLNFTVMLGGLGVGLLNFGDKIGRVSAGLFTFVAMGTMIYALVTYHWRAAAIRRRGSGPYDDRLGPTLLCFFLLVAVIINFILRLKYNDANTKL

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Vacuolar transporter chaperone 3 complex subunit 3
Molecular weight formula_weight	96684.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MLFGIKLANDVYPPWKDSYIDYERLKKLLKESVIHDGRSSVDSWSERNESDFVEALDKELEKVYTFQISKYNAVLRKLDDLEENTKSAEKIQKINSEQFKNTLEECLDEAQRLDNFDRLNFTGFIKIVKKHDKLHPNYPSVKSLLQVRLKELPFNNSEEYSPLLYRISYLYEFLRSNYDHPNTVSKSLASTSKLSHFSNLEDASFKSYKFWVHDDNIMEVKARILRHLPALVYASVPNENDDFVDNLESDVRVQPEARLNIGSKSNSLSSDGNSNQDVEIGKSKSVIFPQSYDPTITTLYFDNDFFDLYNNRLLKISGAPTLRLRWIGKLLDKPDIFLEKRTFTENTETGNSSFEEIRLQMKAKFINNFIFKNDPSYKNYLINQLRERGTQKEELEKLSRDFDNIQNFIVEEKLQPVLRATYNRTAFQIPGDQSIRVTIDSNIMYIREDSLDKNRPIRNPENWHRDDIDSNIPNPLRFLRAGEYSKFPYSVMEIKVINQDNSQMPNYEWIKDLTNSHLVNEVPKFSLYLQGVASLFGEDDKYVNILPFWLPDLETDIRKNPQEAYEEEKKTLQKQKSIHDKLDNMRRLSKISVPDGKTTERQGQKDQNTRHVIADLEDHESSDEEGTALPKKSAVKKGKKFKTNAAFLKILAGKNISENGNDPYSDDTDSASSFQLPPGVKKPVHLLKNAGPVKVEAKVWLANERTFNRWLSVTTLLSVLTFSIYNSVQKAEFPQLADLLAYVYFFLTLFCGVWAYRTYLKRLTLIKGRSGKHLDAPVGPILVAVVLIVTLVVNFSVAFKEAARRERGLVNVSSQPSLPRTLKPIQDFIFNLVGE

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	Vacuolar transporter chaperone complex subunit 4
Molecular weight formula_weight	83268.7 kDa
EC 编号 ec_number	2.7.4.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MKFGEHLSKSLIRQYSYYYISYDDLKTELEDNLSKNNGQWTQELETDFLESLEIELDKVYTFCKVKHSEVFRRVKEVQEQVQHTVRLLDSNNPPTQLDFEILEEELSDIIADVHDLAKFSRLNYTGFQKIIKKHDKKTGFILKPVFQVRLDSKPFFKENYDELVVKISQLYDIARTSGRPIKGDSSAGGKQQNFVRQTTKYWVHPDNITELKLIILKHLPVLVFNTNKEFEREDSAITSIYFDNENLDLYYGRLRKDEGAEAHRLRWYGGMSTDTIFVERKTHREDWTGEKSVKARFALKERHVNDFLKGKYTVDQVFAKMRKEGKKPMNEIENLEALASEIQYVMLKKKLRPVVRSFYNRTAFQLPGDARVRISLDTELTMVREDNFDGVDRTHKNWRRTDIGVDWPFKQLDDKDICRFPYAVLEVKLQTQLGQEPPEWVRELVGSHLVEPVPKFSKFIHGVATLLNDKVDSIPFWLPQMDVDIRKPPLPTNIEITRPGRSDNEDNDFDEDDEDDAALVAAMTNAPGNSLDIEESVGYGATSAPTSNTNHVVESANAAYYQRKIRNAENPISKKYYEIVAFFDHYFNGDQISKIPKGTTFDTQIRAPPGKTICVPVRVEPKVYFATERTYLSWLSISILLGGVSTTLLTYGSPTAMIGSIGFFITSLAVLIRTVMVYAKRVVNIRLKRAVDYEDKIGPGMVSVFLILSILFSFFCNLVAK

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 non-polymer

Description description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	TRIPHOSPHATE
Molecular weight formula_weight	258.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8i6vE01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	100 — mRNA Triphosphatase Cet1; Chain A
Homologous superfamily homologous superfamily	30 — VTC, catalytic tunnel domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.06 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	1042873

fit	/app/data/saxs_computation/i6/8i6v/8i6v.fit
pddf	/app/data/pr_computation/i6/8i6v/8i6v.pr.out
profile	/app/data/saxs_computation/i6/8i6v/8i6v.dat
